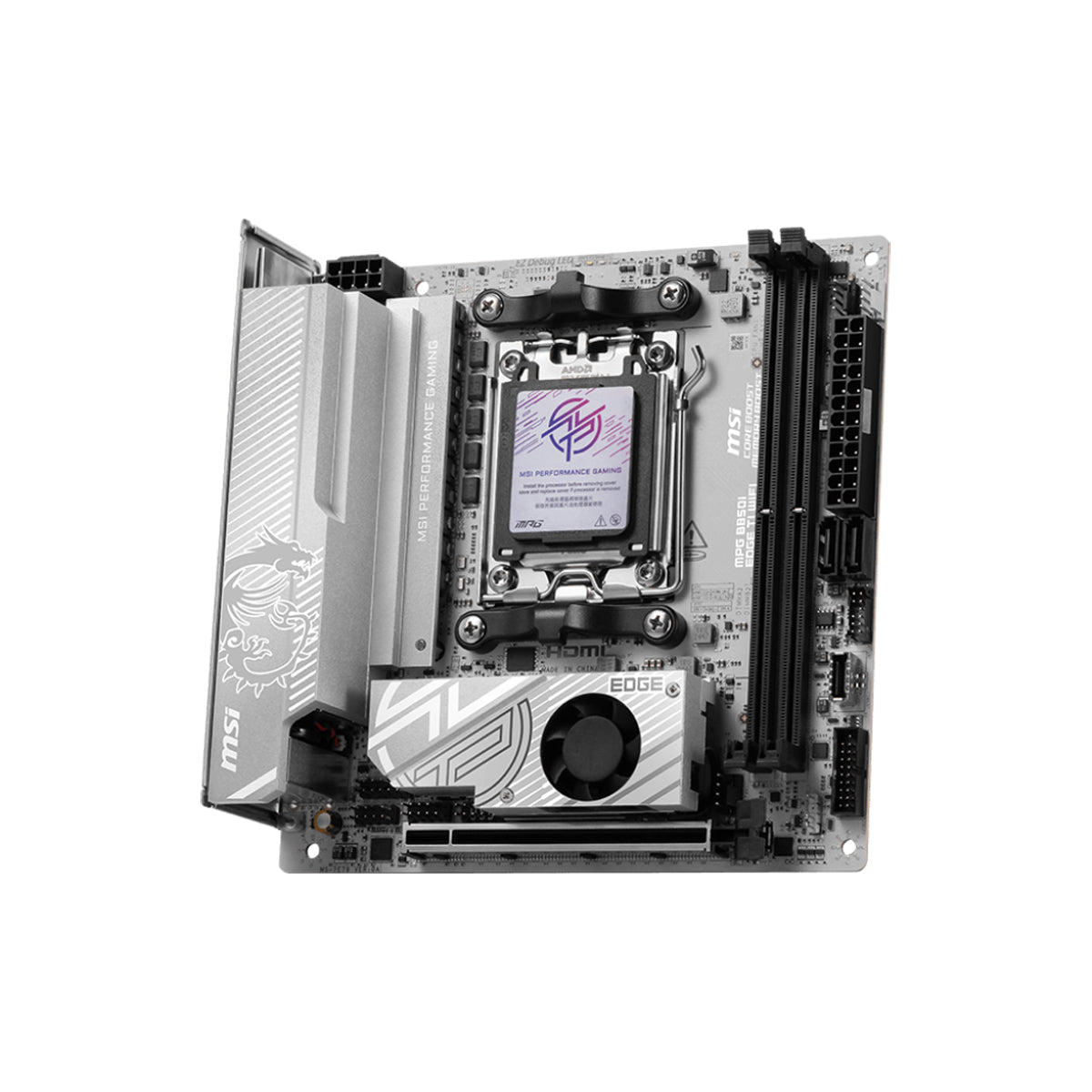

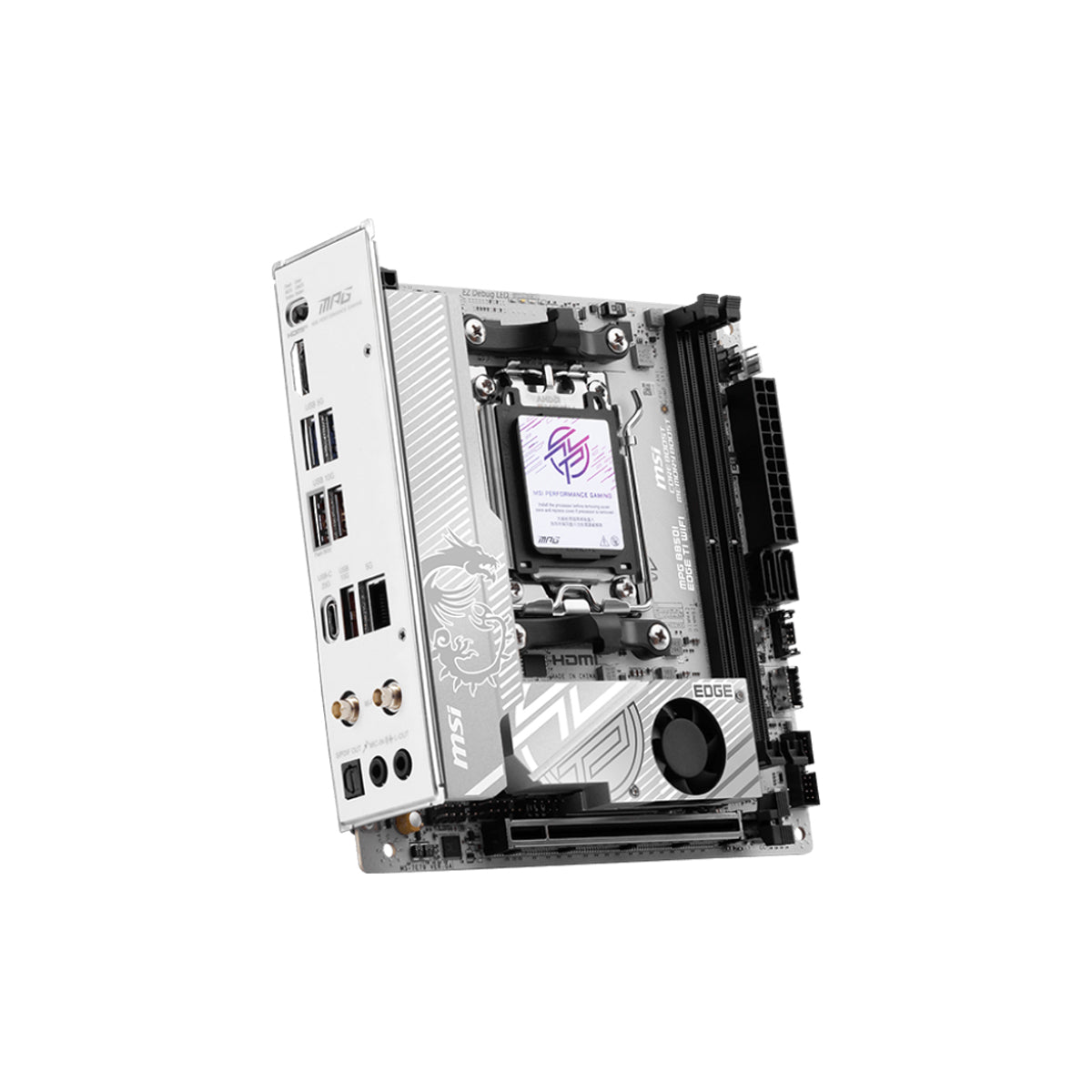

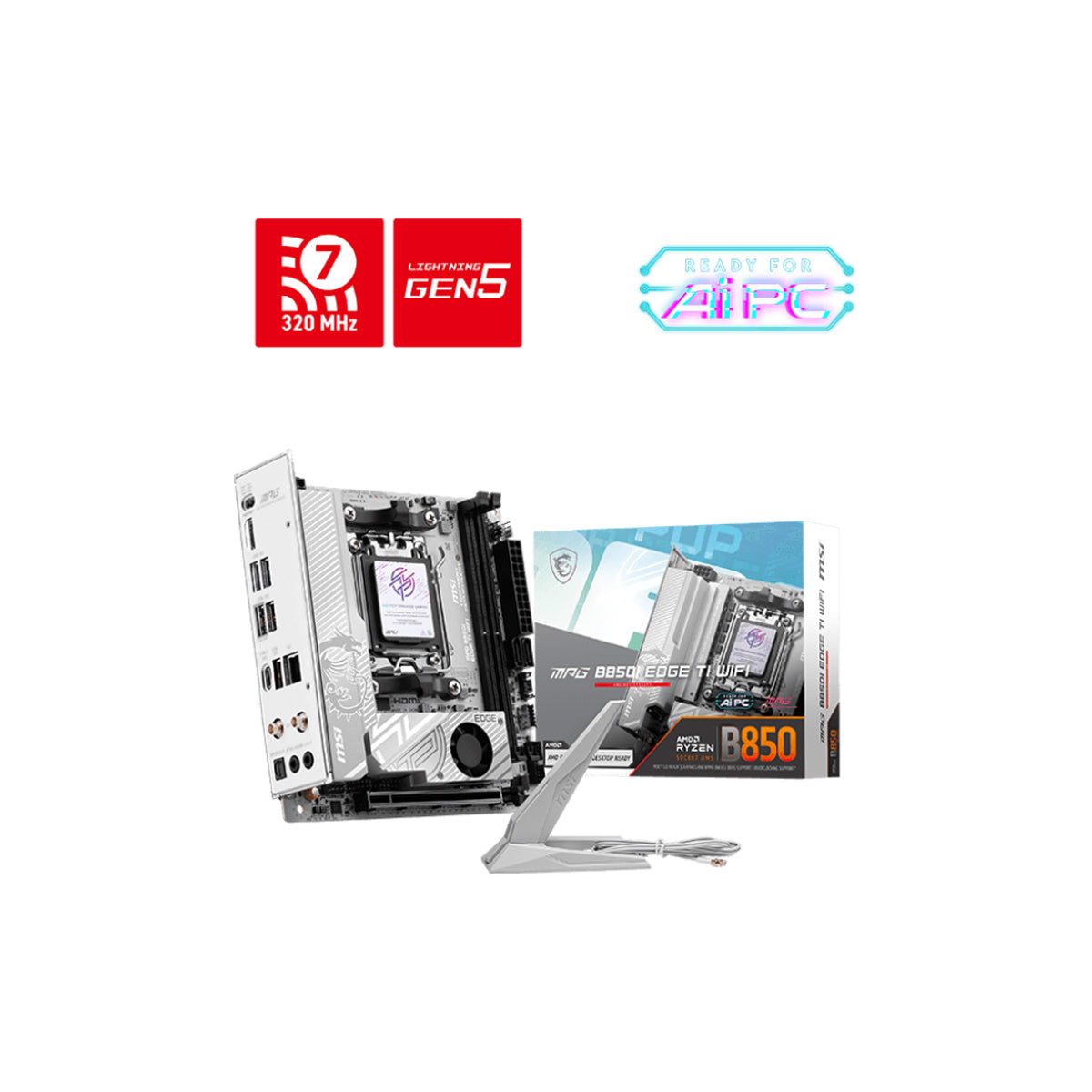

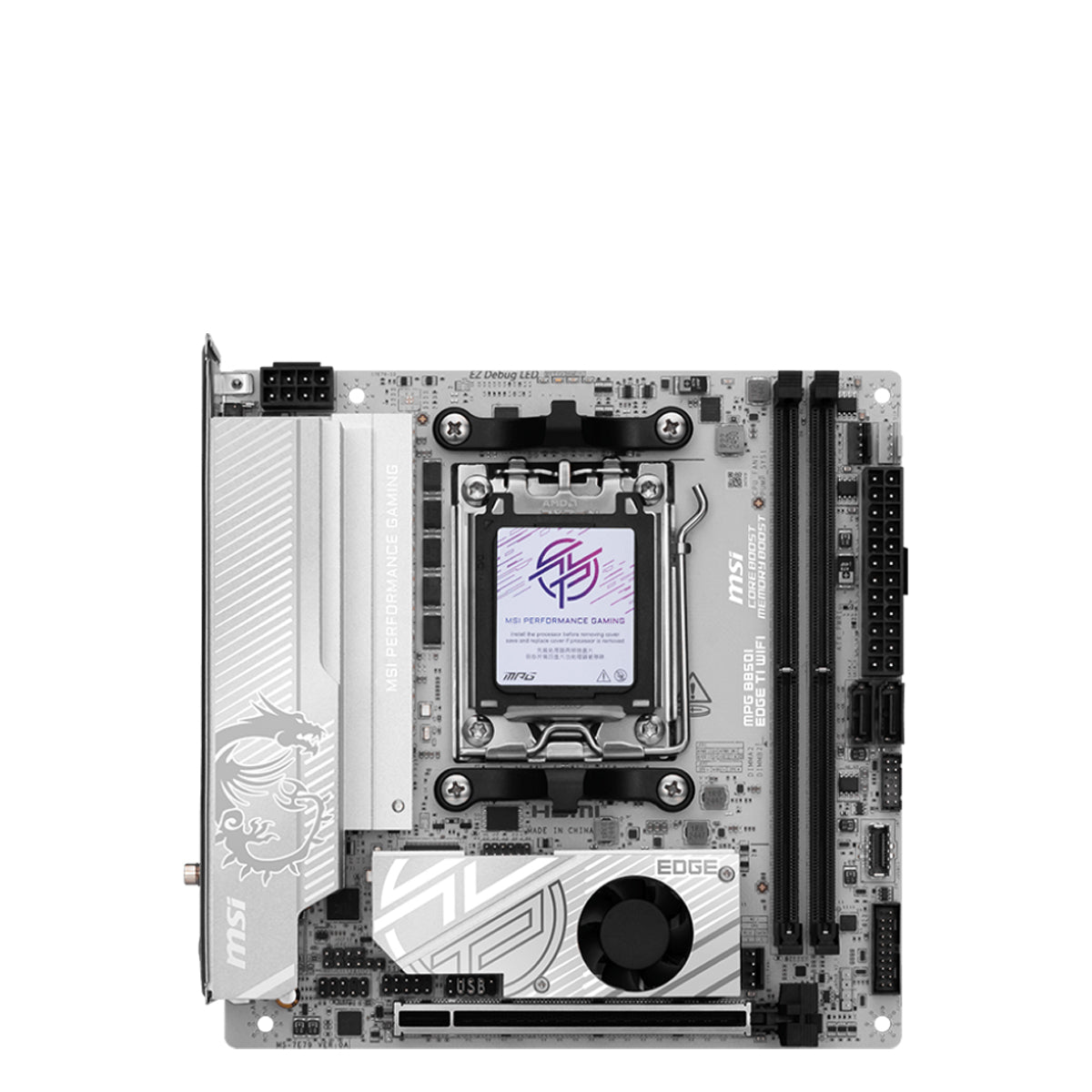

MSI MPG B850I EDGE TI WIFI Mini-ITX Motherboard

The MPG B850I EDGE TI WIFI features a sleek silver-white design, perfect for white PC builds. Despite its compact Mini-ITX form, it delivers powerful performance with true Wi-Fi 7, 5G LAN, PCIe 5.0 compatibility, and Supplemental PCIe Power support—making it the best white-themed B850 ITX motherboard for AMD Ryzen™ 9000 Series processors.

Premium MPG Series Design

MSI’s MPG series is engineered for gamers who value strong performance and stylish aesthetics. Designed with high-end hardware, vibrant accents, and optimized layouts, MPG motherboards deliver a visually striking and high-performance gaming experience.

Advanced Hardware + AI Integration

MSI motherboards incorporate cutting-edge hardware with intelligent AI functions via MSI Center and BIOS, making system management easier than ever.

AI Engine

The AI Engine automatically syncs and optimizes applications to create a smooth and efficient computing environment.

AI LAN Manager

Automatically prioritizes latency-sensitive applications to ensure a stable, low-latency online experience.

Frozr AI Cooling

Automatically adjusts fan duty based on system temperature to keep the PC cool, stable, and high-performing.

AI Boost

Exclusive MSI feature that boosts NPU performance for enhanced AI acceleration.

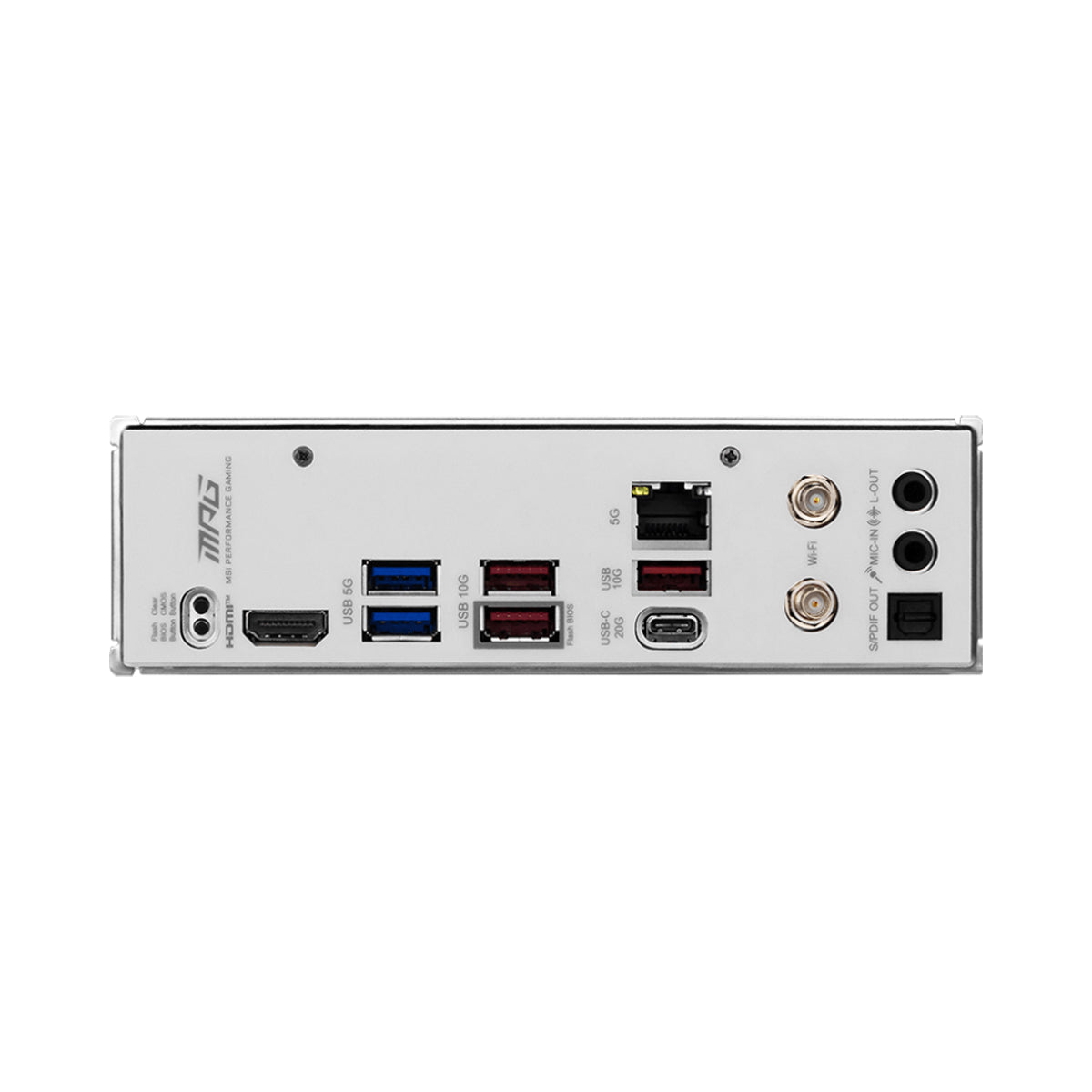

Pre-Installed I/O Shield

The integrated I/O shield ensures easy installation with perfect alignment and increased build durability.

EZ DIY Features

MSI provides multiple EZ DIY features to simplify the building process:

EZ Antenna: Tool-less antenna installation.

EZ Conn Header (JAF_2): Connect MSI EZ series fans or liquid coolers easily. A 1-to-3 EZ Conn cable is included for ARGB, fans, and USB connections.

EZ Front Panel Cable: Simplifies front panel connections for quick setup.

MSI Driver Utility Installer

Once connected to the internet, the installer automatically detects suitable drivers and utilities for quick setup. Compatible with Windows 11 build 22H2 and above.

EZ Debug LED & EZ Memory Detection LED

LED indicators help users easily identify issues with the CPU, memory, or boot process for faster troubleshooting.

Color-Coded Headers

Specific headers, such as Pump Fan, ARGB, and PCIe 8-pin, are color-marked for better cable management and clarity.

M.2 Signal & USB Speed Identifiers

Printed labels on the motherboard help users quickly identify M.2 signal types and USB port speeds.

One-Click Overclocking in Click BIOS X

MSI Click BIOS X provides simplified overclocking options for both CPU and memory.

Game Boost: One-click CPU overclocking.

AI Boost: Automatic NPU performance enhancement.

EXPO/A-XMP: Quick memory overclocking with preset profiles.

AI-Enhanced PC Experience

MSI Center offers intuitive system customization with modules such as AI Engine, Mystic Light, Cooling Wizard, and Hardware Monitor.

Ultra Performance

Direct 8+2+1 Power Design

The flagship VRM with 90A Smart Power Stages and dual power connectors delivers stable power for high-end processors.

Optimized PCB Design

Enhanced PCB layers deliver higher bandwidth, faster transfer speeds, and improved signal reliability.

EZ OC Tuning

Performance Preset: Adjust power limits intuitively.

Performance Switch: Combines AMD PBO and MSI OC settings for improved single-core and multi-core performance.

Thermal Profiles: Select 85°C / 75°C / 65°C thermal limits to reduce voltage and heat while maintaining performance.

Config TDP: Quickly set ECO Mode (65W) or custom TDP profiles.

DDR5 Memory Support

Supports high-speed DDR5 with SMT welding and Memory Boost technology for superior stability and performance.

High-Efficiency Mode & Latency Killer

Reduces memory latency by up to 12% and offers multiple timing presets for advanced users.

Transient Voltage Suppressors (TVS)

Protects the motherboard from sudden voltage spikes by diverting excess current safely.

Solid Pin Power Connectors

8-pin and 24-pin solid power connectors improve stability, efficiency, and durability under high current loads.

Enhanced I/O Shield Structure

Extra sponge material and corrosion-resistant design reduce static and EMI for improved durability.

Over Current Protection (OCP)

Critical components like USB ports, memory, CPU, and PWM ICs are protected from excessive current.

Exclusive Grounding Structure

MSI’s patented power phase grounding structure reduces EMI and improves cooling efficiency.

Cooling – Frozr Design

Extended Heatsink: Larger heatsink ensures sustained performance under heavy load.

M.2 Shield Frozr: Protects M.2 SSDs from thermal throttling.

7W/mK Thermal Pads: High-grade thermal materials stabilize system performance.

Frozr Heatsink: Features a patented fan with dual ball bearings for top-tier cooling.

Combo Fan Header

Automatically detects PWM/DC mode for pumps or fans.

Cooling Wizard & Frozr AI Cooling

Offers automated and manual controls to optimize cooling performance.

TriLink High-Bandwidth Networking

Wi-Fi 7 + 5G LAN: Delivers ultra-fast, low-latency connectivity.

AI LAN Manager: Prioritizes gaming and critical applications.

Storage Support

Supports the latest high-speed storage standards for ultra-fast game loading and file transfers.

Lightning Gen 5 PCIe

Supports 128GB/s bandwidth with reinforced Steel Armor PCIe slot.

Audio Boost 5

Delivers studio-grade sound with ALC4080 processor, premium capacitors, isolated audio design, and headphone amplifier.

RGB Lighting – Mystic Light

Customize millions of colors and effects through MSI Center. Supports external RGB devices with Mystic Light Extension.

Click BIOS X

Modernized UI with easy navigation for users of all levels.

MSI Center

Unified software suite for adjusting system settings, lighting, AI features, cooling, diagnostics, and more.

MPG B850I EDGE TI WIFI – Key Specifications

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors • Supports DDR5, Dual Channel DDR5 8200+ MT/s (OC) • Direct 8+2+1 Power Phases, Core Boost, Memory Boost, 10-layer PCB • Enhanced cooling with extended heatsink and M.2 Shield Frozr • EZ DIY features: EZ Antenna, EZ Conn, EZ Front Panel Cable • Lightning Gen 5 PCIe & M.2 • 5G LAN + Wi-Fi 7 + USB 20Gbps • Audio Boost 5 for immersive audio • Mystic Light RGB software control
