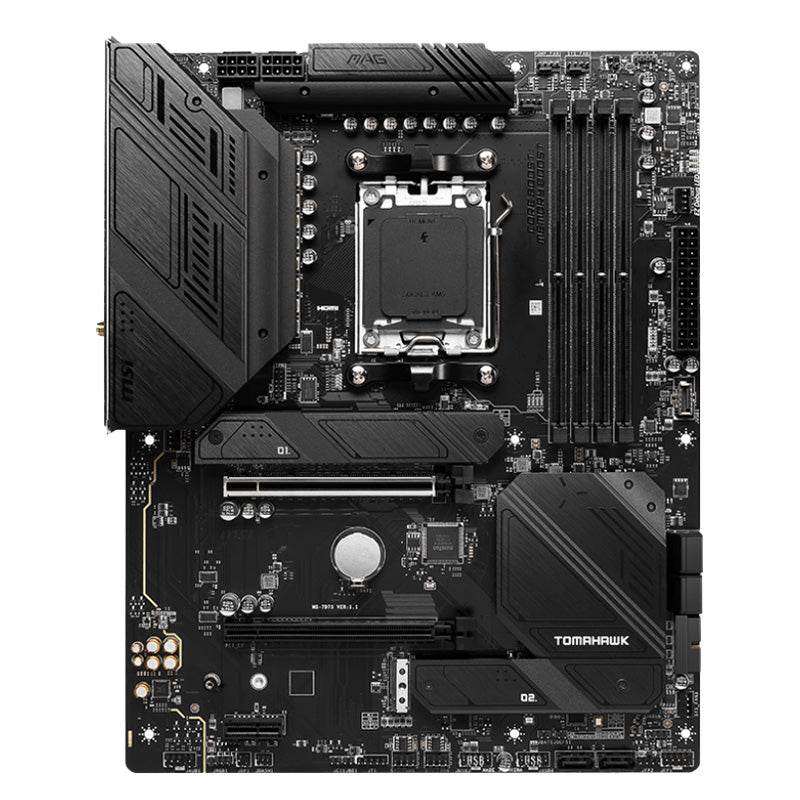

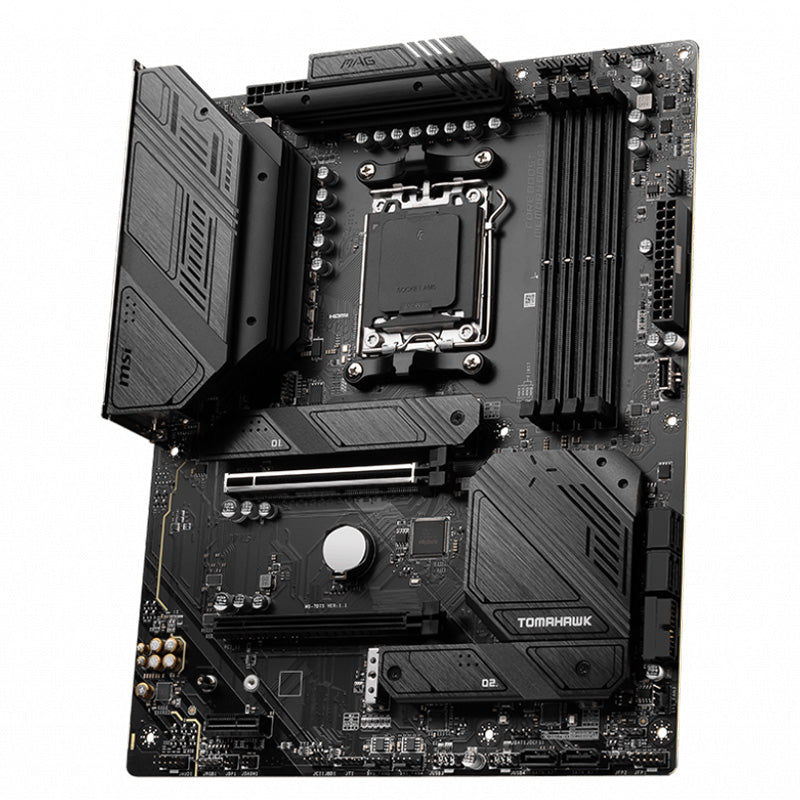

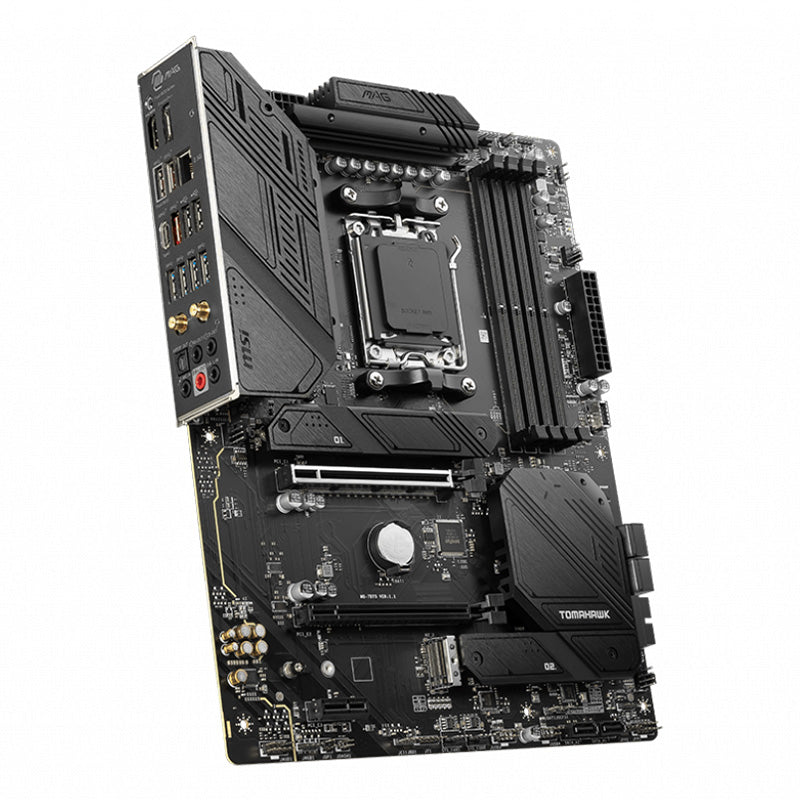

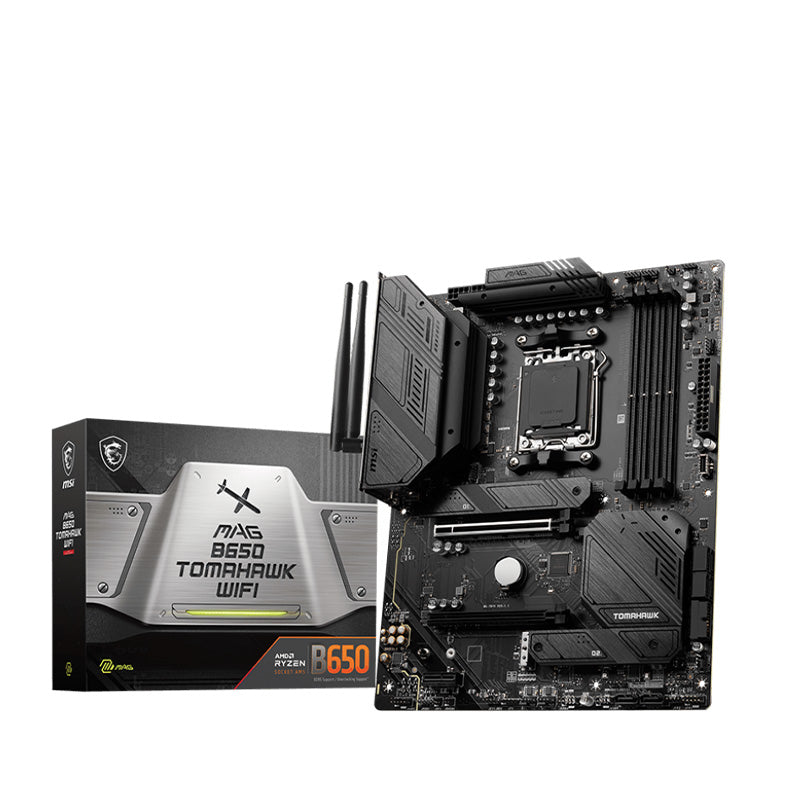

MSI MAG B650 TOMAHAWK WIFI Gaming Motherboard
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
14+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
PERFORMANCE SWITCH
Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI’s own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
EZ M.2 CLIP
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
FLASH BIOS BUTTON
Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B650M MORTAR WIFI is ready to deliver the world class memory performance.
EASY OVERCLOCKING WITH EXPO PROFILE
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
Specifications
Specifications
| CHIPSET | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors. Socket AM5 |
| MEMORY |
4x DDR5, Maximum Memory Capacity 256GB Memory Support: DDR5 7600+(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 (JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode, non-ECC un-buffered memory, and AMD EXPO |
| ONBOARD GRAPHICS |
1x HDMI™ (Supports HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*) 1x DisplayPort (Supports DP 1.4, maximum resolution of 8K 60Hz*) *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT |
2x PCI-E x16 slots • Supports x16/x2 (For Ryzen™ 9000 and 7000 Series processors) • Supports x8/x2 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x2 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| AUDIO |
Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| STORAGE |
3x M.2: M.2_1 (From CPU) supports up to PCIe 4.0 x4, 22110/2280 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4, 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4, 2280/2260 devices 6x SATA 6G * The M2_2 slot will be unavailable when using Ryzen™ 5 8500G processor. ** M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots. |
| RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function. |
| USB |
2x USB 2.0 (Rear), 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek® RTL8125B 2.5Gbps LAN |
| INTERNAL IO |
1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR) 1x CPU Fan, 1x Pump Fan, 6x System Fan 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD) 1x Tuning Controller connector (JDASH), 2x Addressable V2 RGB LED connectors (JARGB_V2) 2x RGB LED connectors (JRGB), 1x TPM pin header (Support TPM 2.0) 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C port |
| WIRELESS LAN & BLUETOOTH |
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 20MHz / 40MHz / 80MHz / 160MHz bandwidth in 2.4GHz / 5GHz or 6GHz* bands Supports 802.11 a/b/g/n/ac/ax, Bluetooth® 5.3** * Wi-Fi 6E 6GHz availability depends on country regulations and will be ready in Windows 11. ** Bluetooth 5.3 is supported in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE | 4x EZ Debug LED |

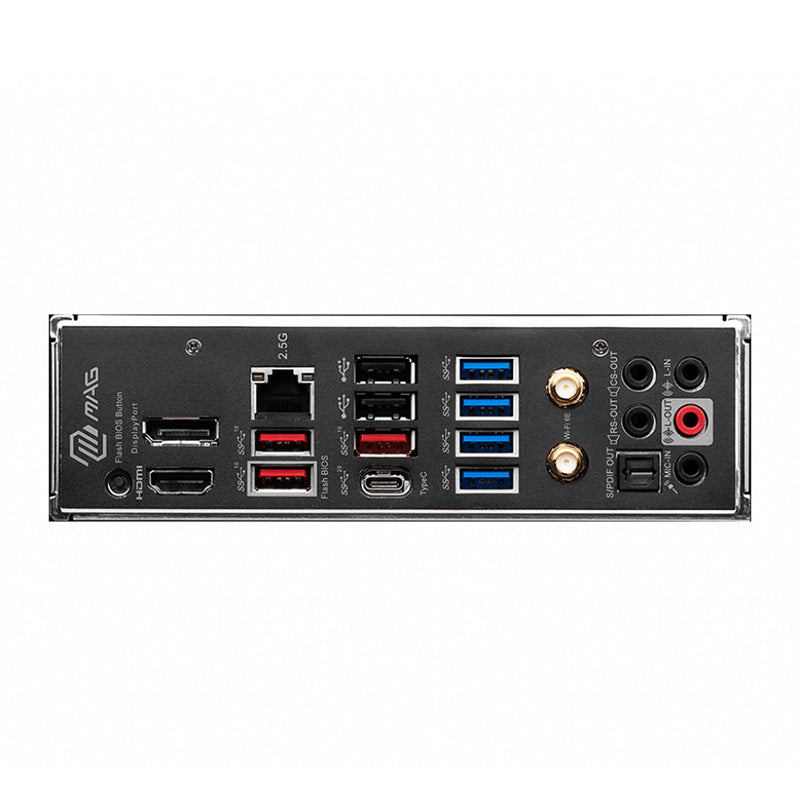

| BACK PANEL PORTS |
DisplayPort 1.4, HDMI™ 2.1 Port USB 2.0 Port, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2x2 20Gbps Type-C 2.5G LAN Port, Wi-Fi / Bluetooth Antenna HD Audio Connectors, Flash BIOS Button, Optical S/PDIF OUT |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
