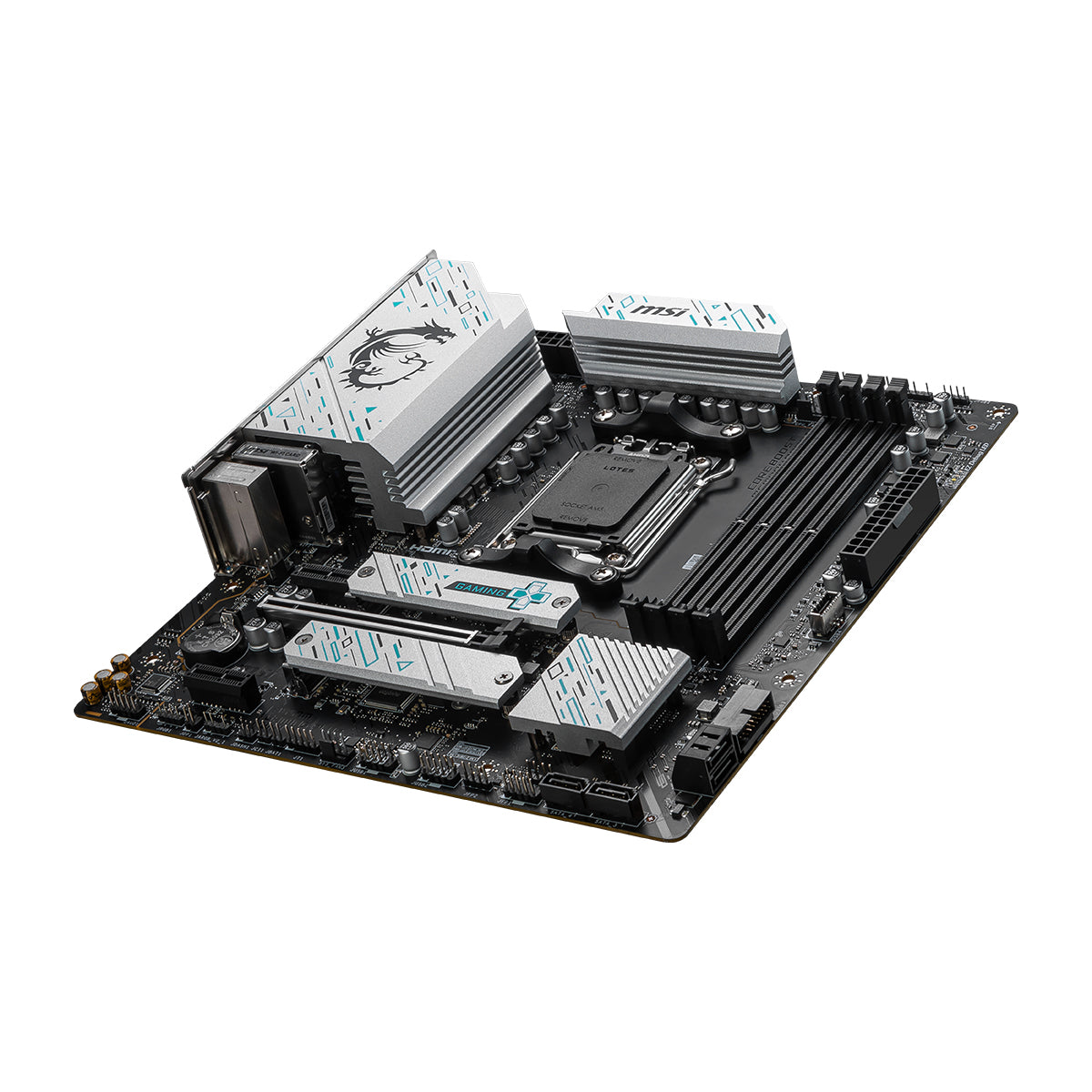

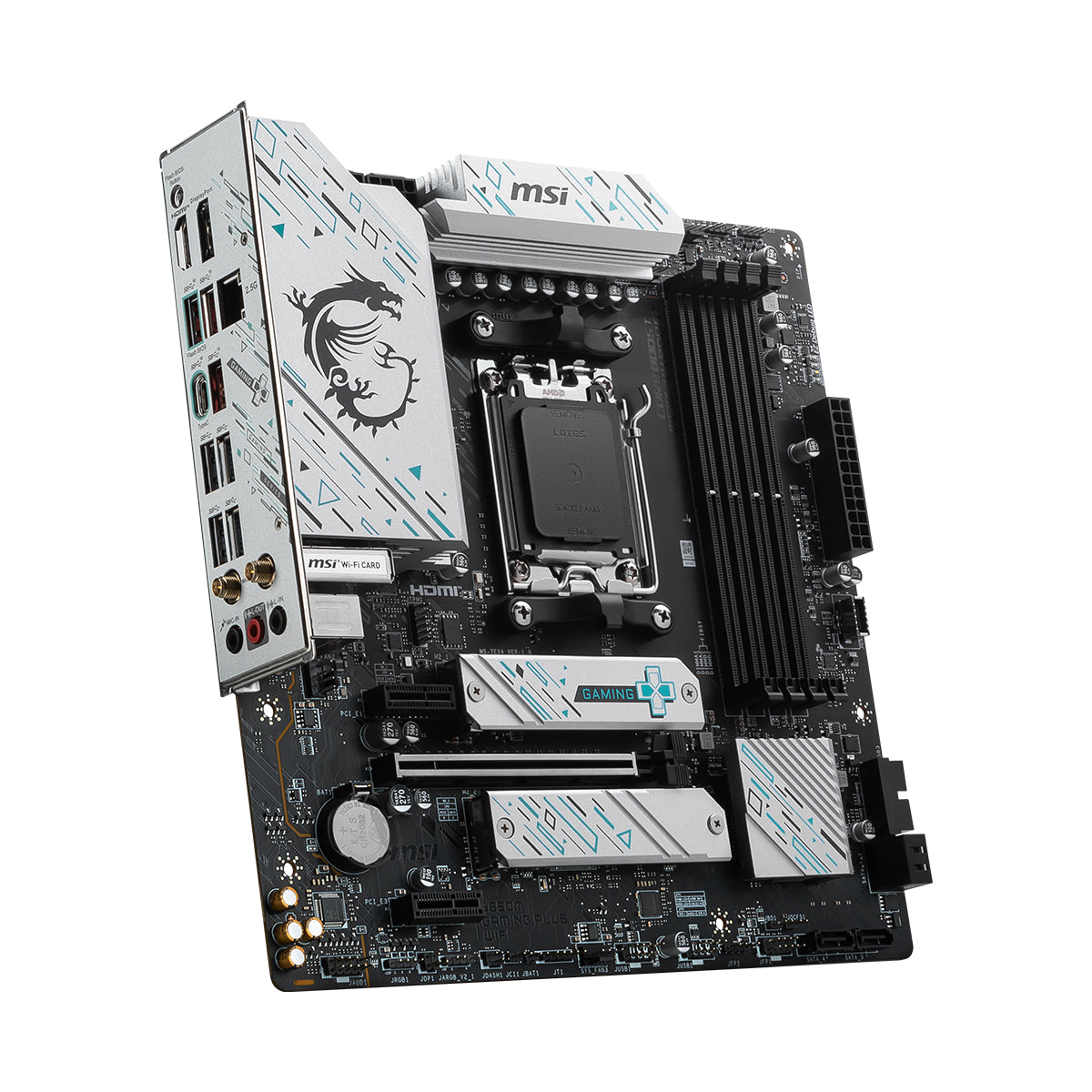

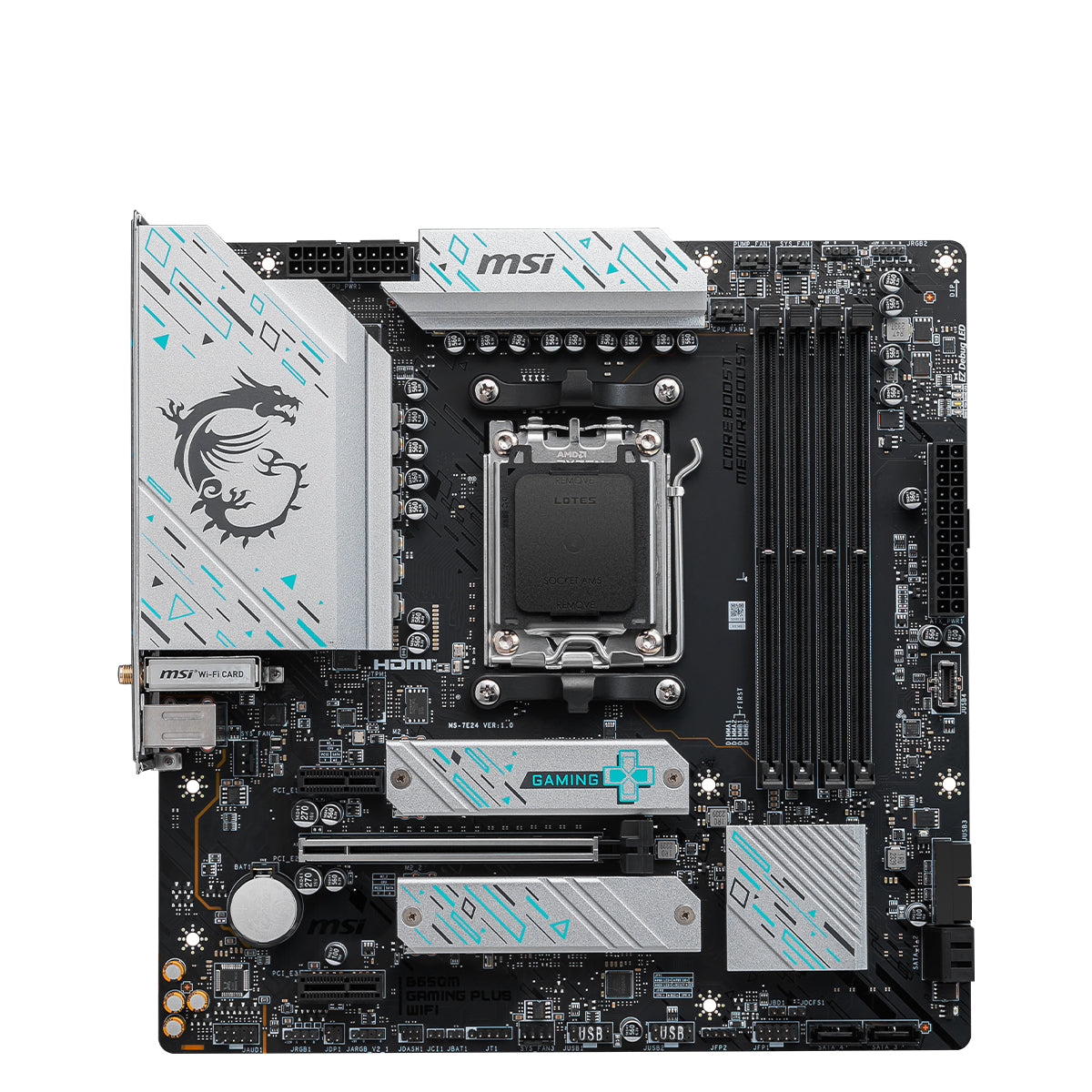

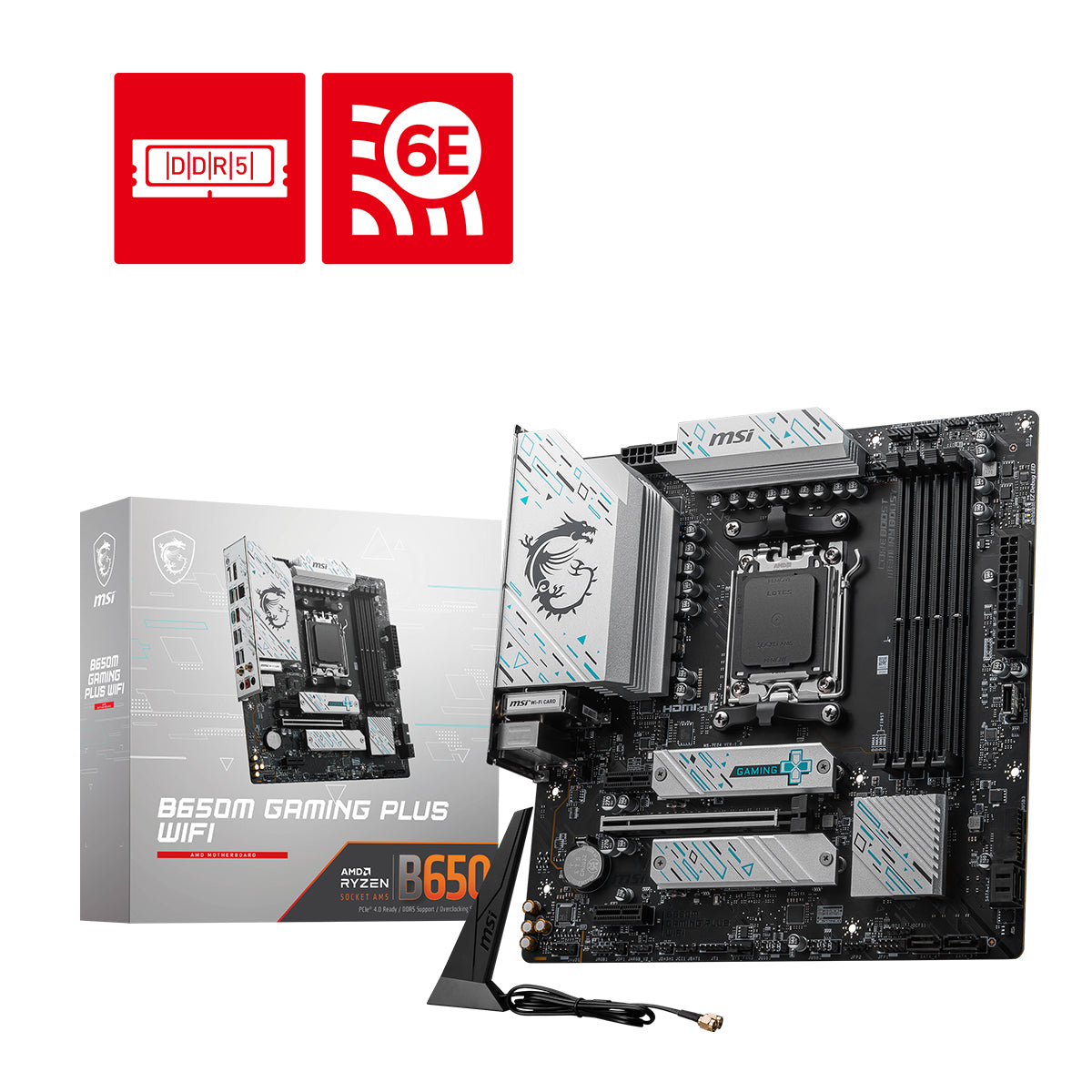

MSI B650M GAMING PLUS WIFI mATX Motherboard
MSI
| SKU
77375
$265.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
MSI B650M Gaming Plus wifi
B650M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
Specifications
Specifications
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory | 4 x DDR5 UDIMM, Maximum 256GB Memory Support DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz Supports Dual-Channel mode, non-ECC un-buffered memory, AMD EXPO™ Max overclocking frequency: • 1DPC 1R up to 7200+ MHz • 1DPC 2R up to 6000+ MHz • 2DPC 1R up to 6000+ MHz • 2DPC 2R up to 5400+ MHz |
| Onboard Graphics | 1 x HDMI™ (HDMI 2.1, max 4K@60Hz) 1 x DisplayPort (DP 1.4, max 4K@60Hz) *Available only on CPUs with integrated graphics. Specifications vary by CPU. |
| Slots | 1 x PCI-E x16 (x16/x4 for Ryzen™ 9000/7000, x8/x4 for Ryzen™ 8700/8600/8400, x4/x4 for Ryzen™ 8500/8300) 2 x PCI-E x1 slots (PCIe 3.0 from chipset, PCIe 4.0 up to x16 from CPU, PCIe 3.0 from chipset) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 2 x M.2 (M.2_1 & M.2_2 from CPU, PCIe 4.0 x4, supports 2280/2260 devices) 4 x SATA 6G * M.2_2 supports PCIe 4.0 x2 with Ryzen™ 8500/8300 processors |
| RAID | Supports RAID 0, 1, 10 for SATA; RAID 0, 1 for M.2 NVMe devices |
| USB | Front: 4 x USB 2.0, 2 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-C Rear: 4 x USB 5Gbps Type-A, 3 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal I/O | 1 x ATX_PWR, 2 x CPU_PWR, 1 x CPU Fan, 1 x Pump Fan, 3 x System Fan 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Tuning Controller (JDASH) 2 x Addressable V2 RGB (JARGB_V2), 2 x RGB LED (JRGB), 1 x TPM pin header 4 x USB 2.0 ports, 2 x USB 5Gbps Type-A ports, 1 x USB 10Gbps Type-C port |
| Wireless LAN & Bluetooth | Wi-Fi 6E pre-installed (M.2 Key-E) MU-MIMO TX/RX, 2.4/5/6GHz, 20/40/80/160MHz bandwidth Supports 802.11 a/b/g/n/ac/ax, Bluetooth® 5.3* |
| LED Feature | 4 x EZ Debug LED |

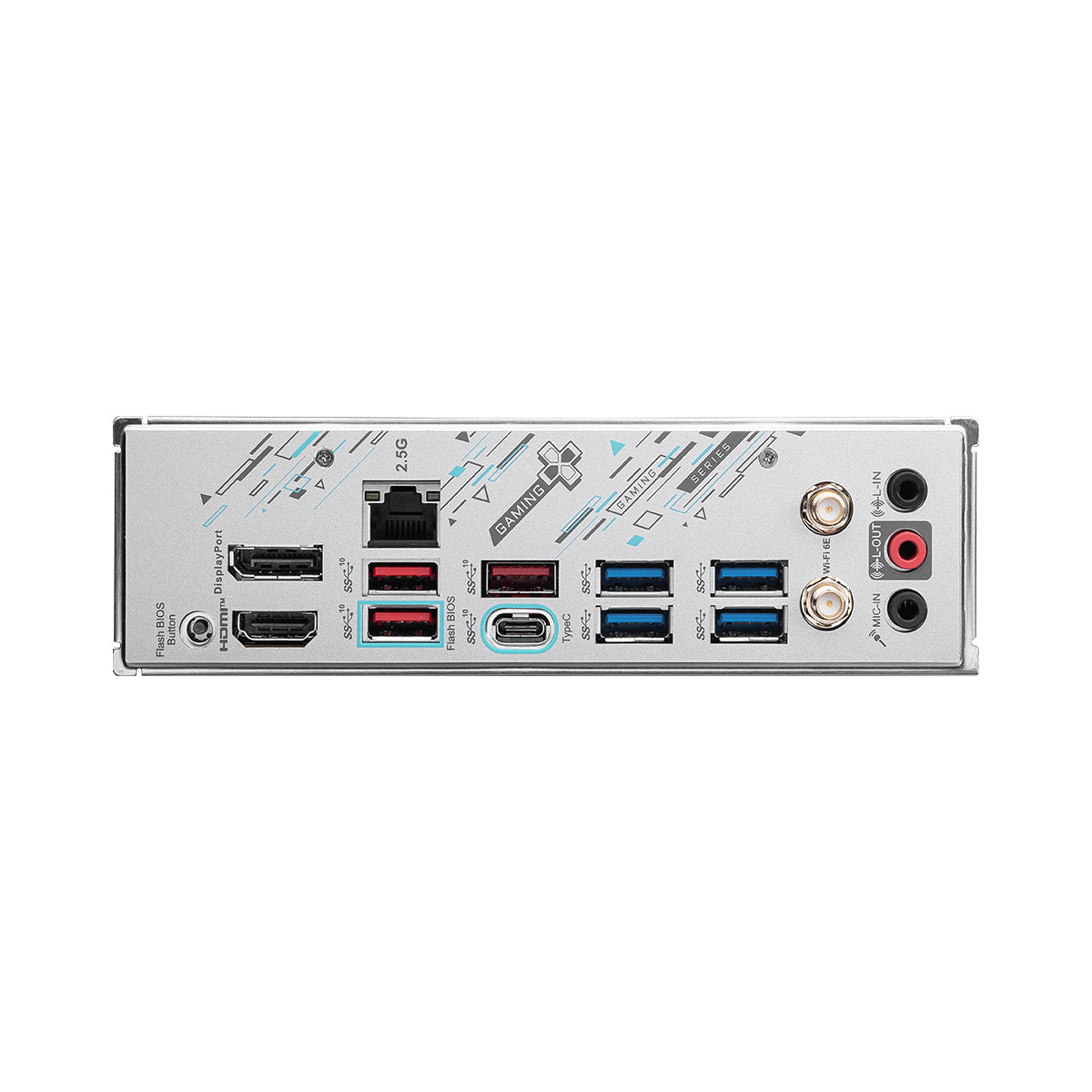

| Back Panel Ports | DisplayPort, HDMI™, Flash BIOS Button USB 3.2 Gen 2 10Gbps Type-A (x2), USB 3.2 Gen 2 10Gbps Type-C, USB 3.2 Gen 1 5Gbps Type-A, USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, Audio connectors |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Box Content / Form Factor | mATX, 243.84mm x 243.84mm |
