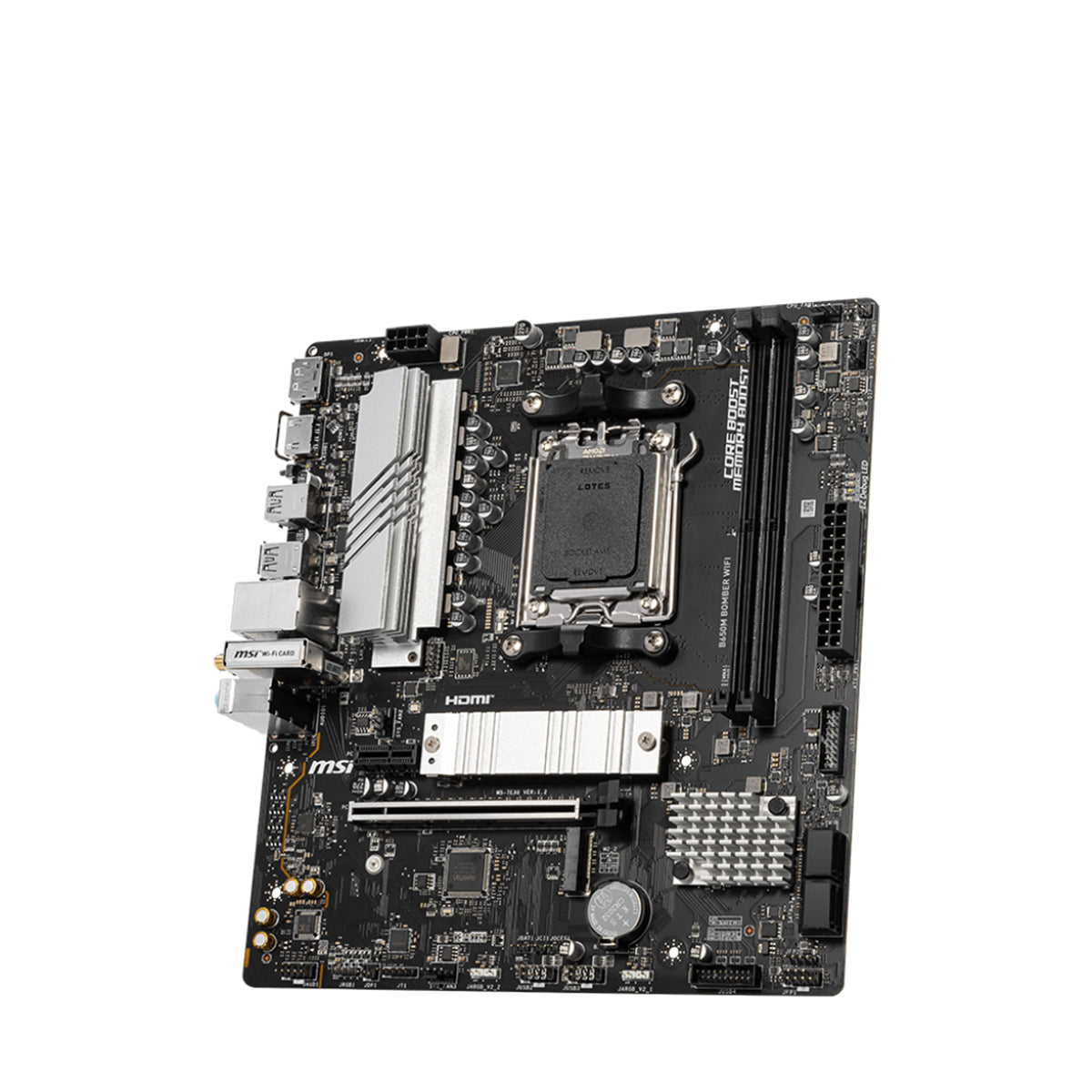

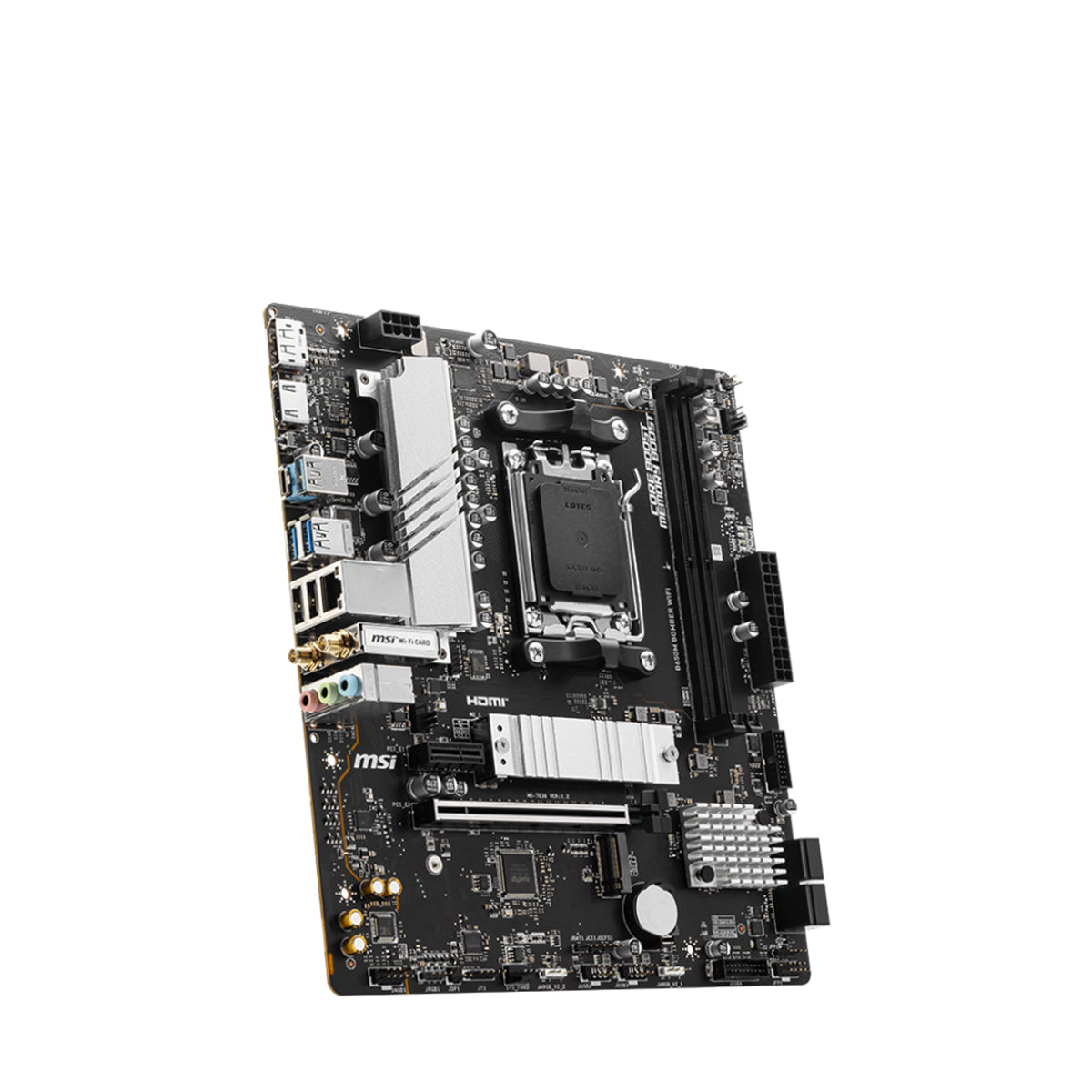

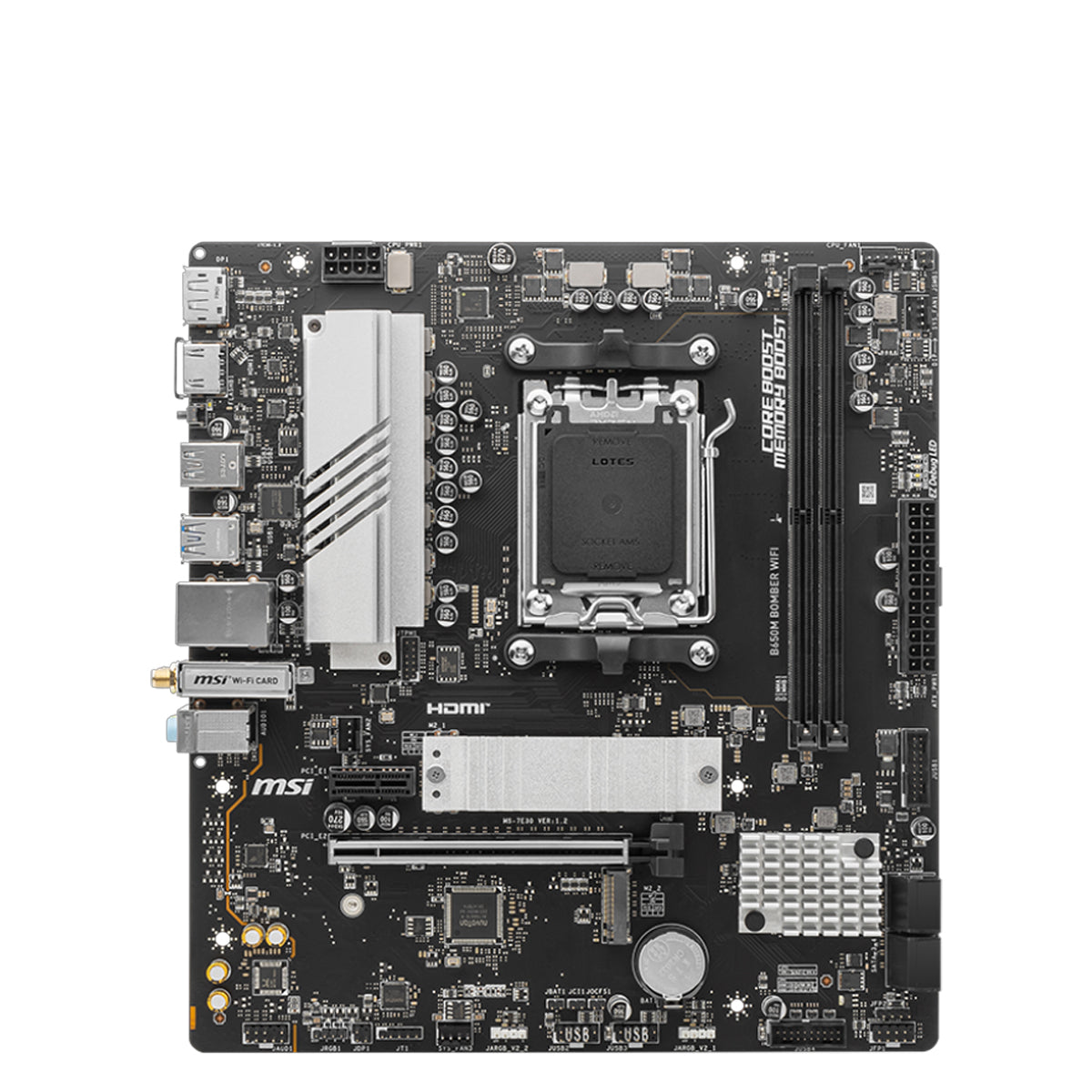

MSI B650M BOMBER WIFI mATX Motherboard
MSI
| SKU
73485
$209.00
Unit price
/
Unavailable
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
B650M BOMBER WIFI
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications
Specifications
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors, Socket AM5 |
| Memory | 2 x DDR5, Maximum 128GB Memory Support DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MT/s Max overclocking frequency: 1DPC 1R up to 7800+ MT/s, 1DPC 2R up to 6400+ MT/s Supports Dual-Channel mode, non-ECC un-buffered memory, AMD EXPO™ |
| Onboard Graphics | 1 x HDMI™ (HDMI 2.1, max 4K@60Hz) 1 x DisplayPort (DP 1.4, max 4K@60Hz) *Available only on CPUs with integrated graphics. Specifications vary by CPU. |
| Slots | 1 x PCI-E x16 (supports x16/x1; x16 for Ryzen™ 9000/7000, x8 for Ryzen™ 8700/8600/8400, x4 for Ryzen™ 8500/8300) 1 x PCI-E x1 (PCIe 3.0 up to x1 from chipset; PCIe 4.0 up to x16 from CPU) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 2 x M.2 (M.2_1 & M.2_2 from CPU, PCIe 4.0 x4, supports 2280 devices) 4 x SATA 6G * M.2_2 unavailable with Ryzen™ 8500/8300 Series processors |
| RAID | Supports RAID 0, 1, 10 for SATA and M.2 NVMe storage devices |
| USB | Rear: 2 x USB 2.0, 3 x USB 5Gbps Type-A, 1 x USB 5Gbps Type-C Front: 4 x USB 2.0, 4 x USB 5Gbps Type-A |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal I/O | 1 x ATX_PWR, 1 x CPU_PWR, 1 x CPU Fan, 3 x System Fan 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD) 2 x Addressable V2 RGB (JARGB_V2), 1 x RGB LED (JRGB), 1 x TPM pin header 4 x USB 2.0 ports, 4 x USB 5Gbps Type-A ports |
| Wireless LAN & Bluetooth | Wi-Fi 6E pre-installed (M.2 Key-E) MU-MIMO TX/RX, supports 2.4/5/6GHz, 20/40/80/160MHz bandwidth Supports 802.11 a/b/g/n/ac/ax, Bluetooth® 5.3* |
| LED Feature | 4 x EZ Debug LED |

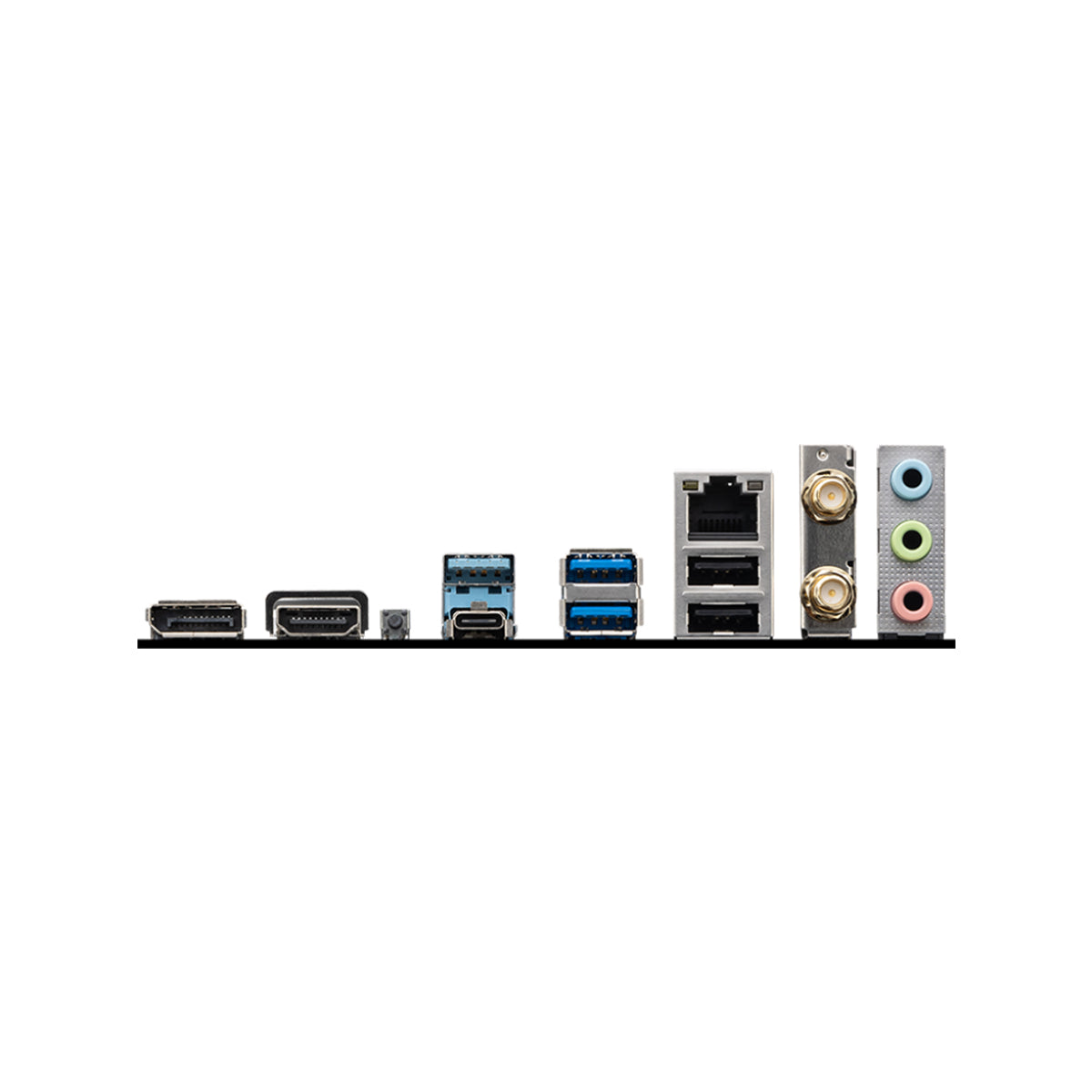

| Back Panel Ports | DisplayPort, HDMI™, Flash BIOS Button USB 5Gbps Type-A & Type-C, USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, Audio connectors |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Box Content / Form Factor | mATX, 226mm x 243.84mm |
