Description
Description

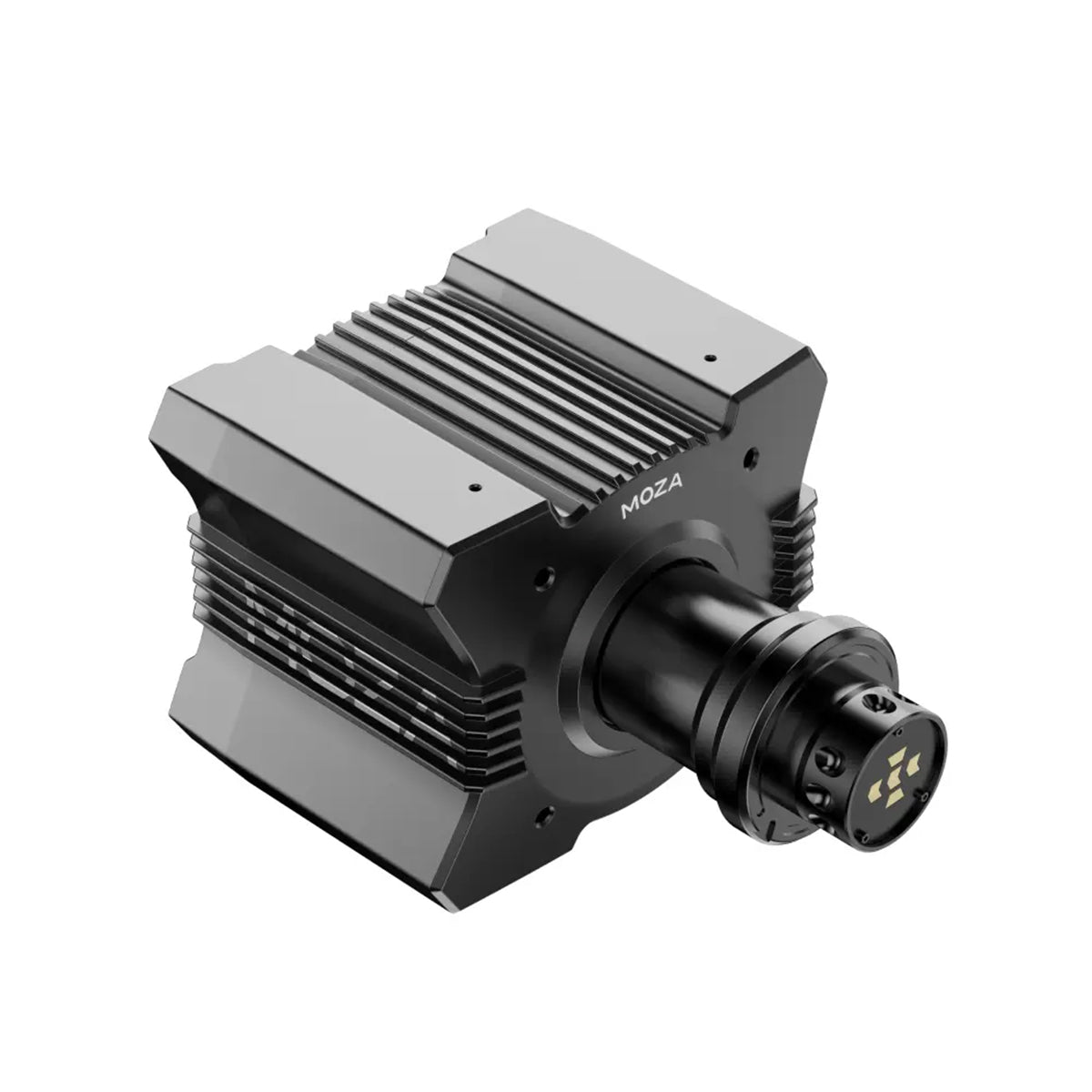

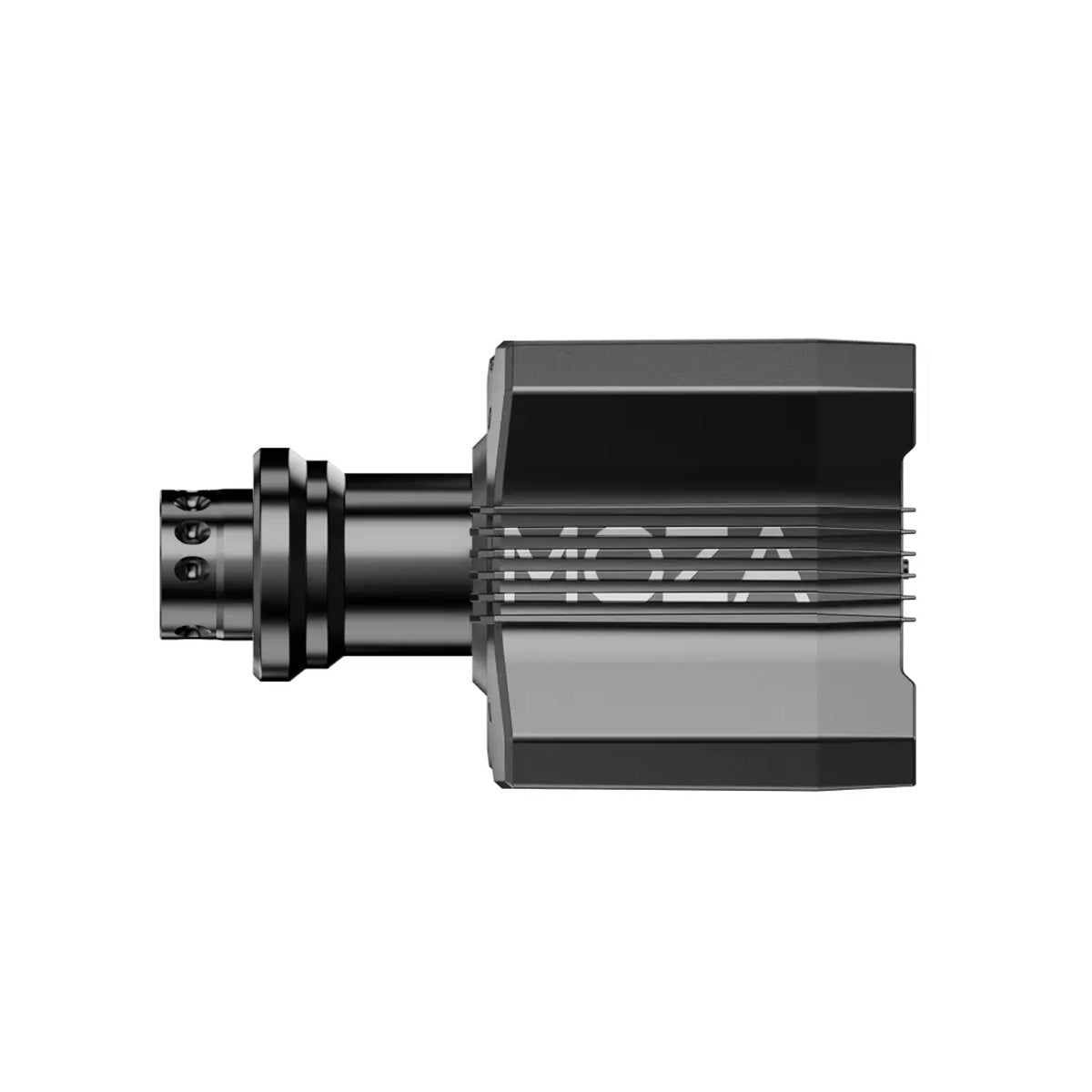

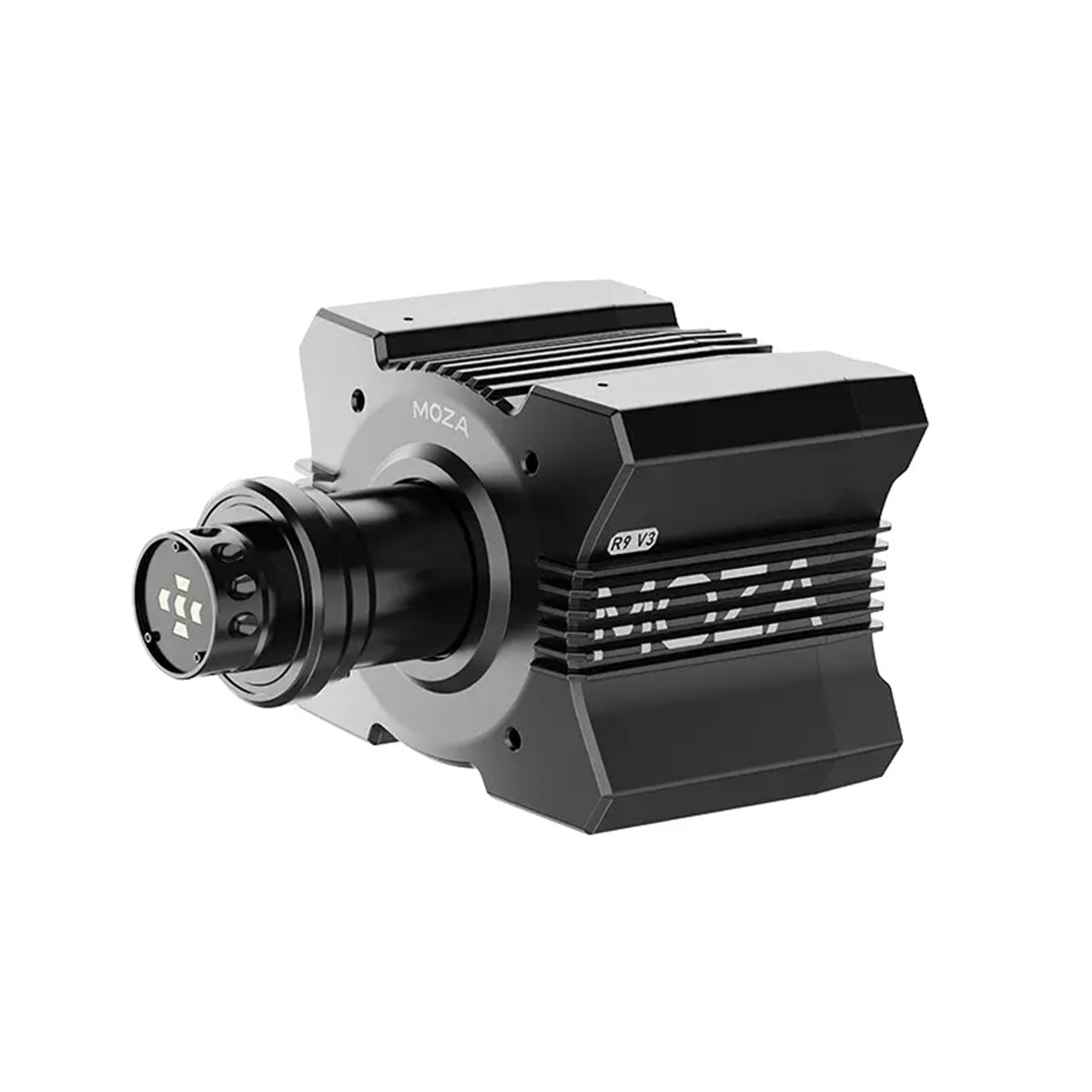

MOZA R9 V3 Direct Drive Wheel Base
The MOZA R9 V3 is a professional-grade direct drive wheel base delivering 9Nm of consistent torque. Engineered for precision and reliability, it is ideal for serious sim racers seeking a compact yet powerful force feedback solution.
21-Bit Magnetic Encoder With a 280MHz High-Performance Processor
With 2,097,152 steps per rotation and an angular resolution of 0.00017°, the system ensures ultra-smooth control, rapid response, and exceptionally detailed force feedback for a highly precise and immersive driving experience.
MOZA High-Performance Servo Motor
Custom-built servo motor designed for racing, offering ultra-smooth rotation, minimal vibration, and precise control.
NexGen 4.0 Force Feedback Algorithm with Enhanced Dynamic Feedback
MOZA’s NexGen 4.0 algorithm delivers smooth, detailed, and responsive force feedback. Experience sharper curbs, clearer surface textures, and quicker reactions to tire slip and weight transfer—with improved torque compensation for precise steering.
Smart Temperature Control System
Advanced temperature monitoring ensures optimal performance and long-term durability under heavy load conditions.
Aviation Grade Aluminum Alloy Housing
Unmatched quality and durability. The MOZA R9's whole housing is made of aviation grade aluminum alloy.
Industrial Conductive Slip Ring
The base and the steering wheel are connected through an automotive-grade conductive slip ring with a lifespan of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.
The Ultimate Control Hub for MOZA Ecosystem
Easily tune your entire setup—from wheelbase to pedals—with one powerful, intuitive interface. Access game-specific presets, pro driver configs, and advanced FFB settings to get race-ready in seconds.
Smart Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components and employs intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.
Aviation Grade Aluminum Alloy Housing
Unmatched quality and durability. The MOZA R9's whole housing is made of aviation grade aluminum alloy.
Industrial Conductive Slip Ring
The base and the steering wheel are connected through an automotive-grade conductive slip ring with a lifespan of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.
APP Cloud Control
The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP. Settings can be imported with one click onto new simulators.
Specifications
Specifications
| Platform | PC |
| FFB Drive System | Direct Drive |
| Max Wheel Rotation | Limitless |
| Peak Torque | 9 N·m |
| Peak Power | 180W |
| Input Voltage | 110V~220V AC → 36V DC |
| USB Refresh Rate | 1000Hz |
| Wheel Base Indicator Light | Supported |
| App Functionality | Supported (MOZA Pit House & MOZA Mobile App) |
| Quick Release | MOZA Quick Release |

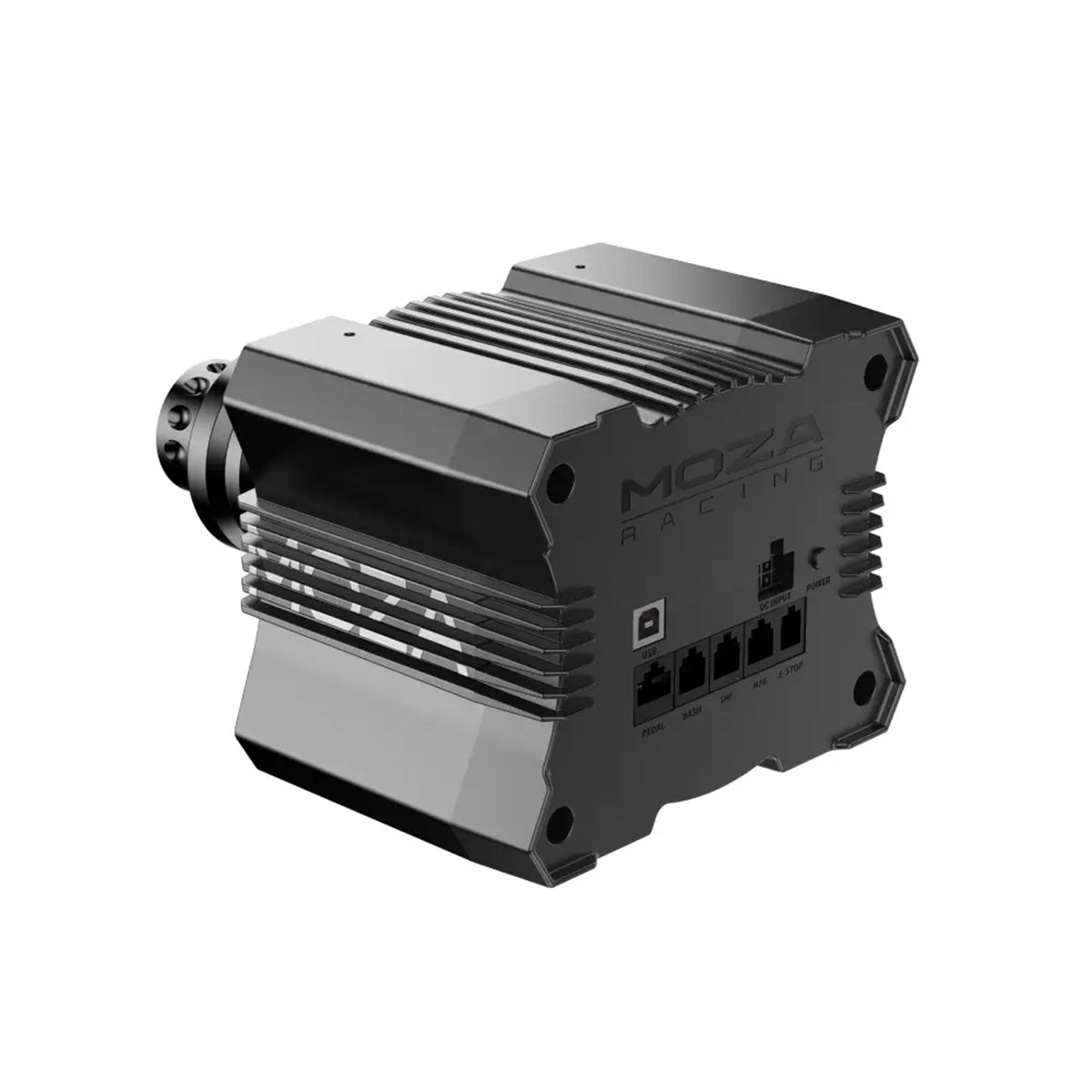

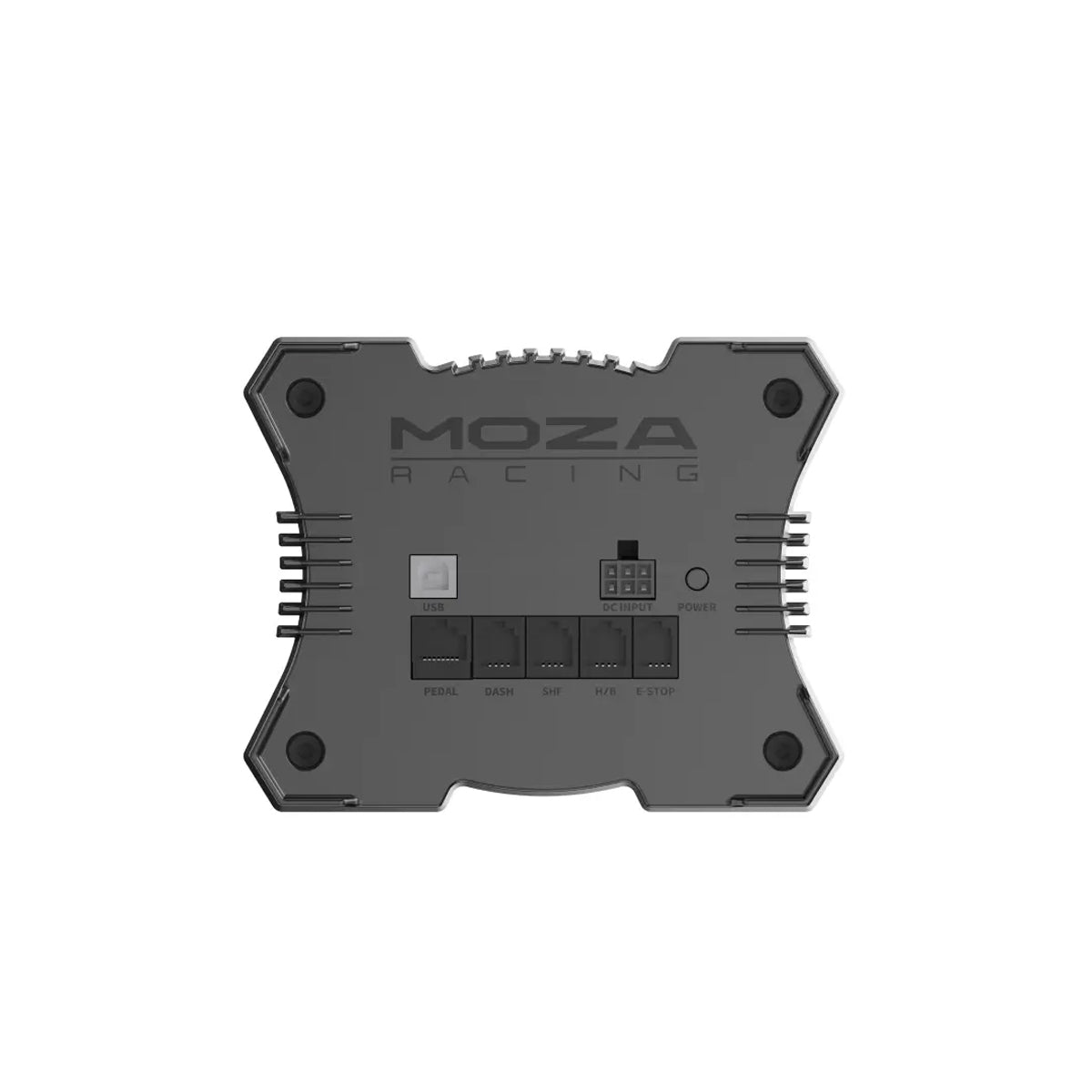

| Connection Ports | Power, DC Input, Pedals, E-stop, USB, Dash, Shifter, Handbrake |
| Firmware Updating | Applicable |
| Temperature Control System | Intelligent Temperature Monitoring & Active Cooling |
| Encoder | 21-bit Magnetic Encoder (2,097,152 steps per revolution) |
| Motor Type | High-performance Servo Motor (18-Slot / 16-Pole Configuration) |
| Housing Material | Aviation Grade Aluminum Alloy |
| Color | Black |
| Mounting | 4-hole bottom mount; optional table clamp and side mounting supported |
| Table Clamp | Optional |
| Side Mounting | Optional |
| Emergency Stop Switch | Optional |
| Size (L x W x H) | 240 × 157 × 124 mm |
| Accessories | User Manual, Warranty Card, Power Supply, USB Cable, Toolkit |
