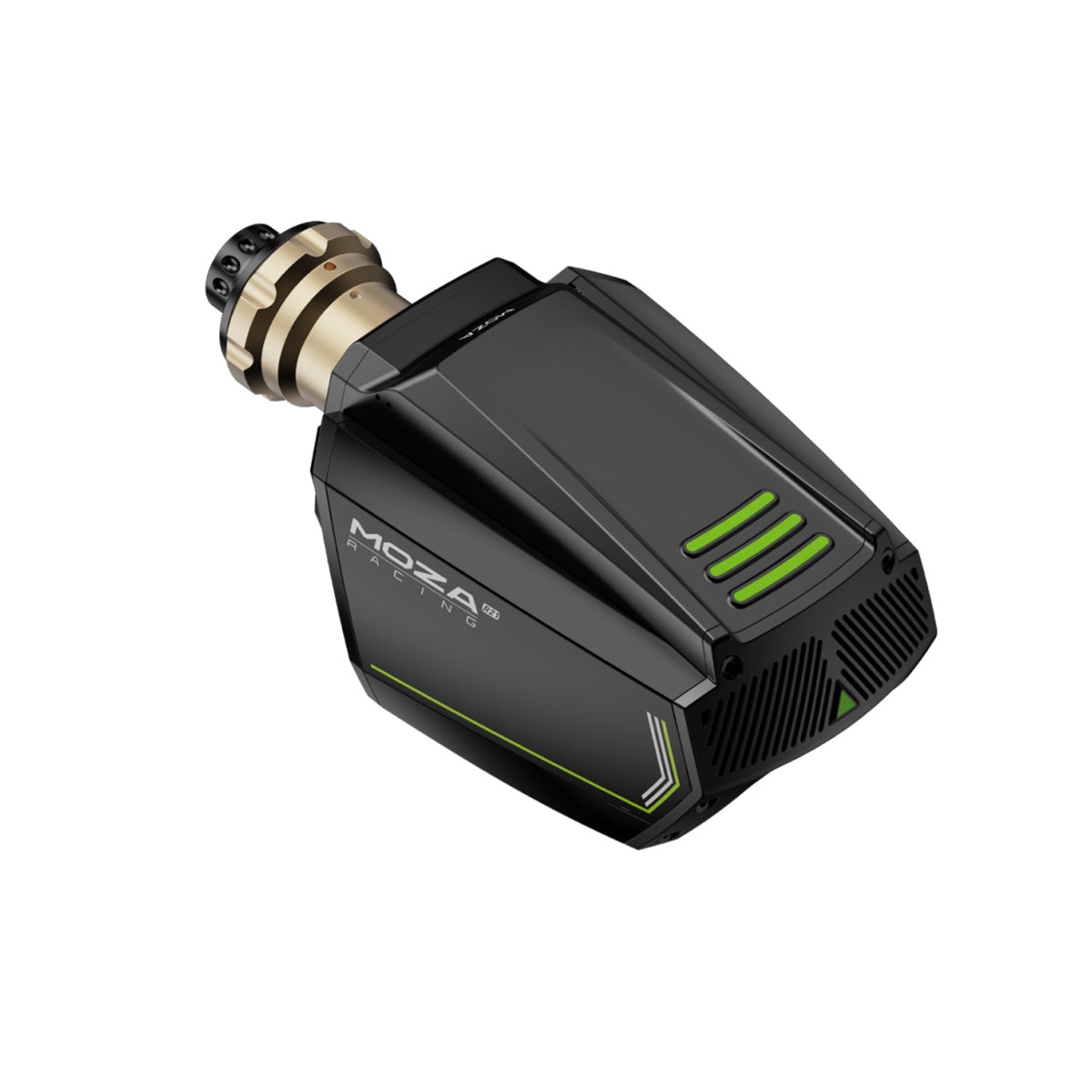

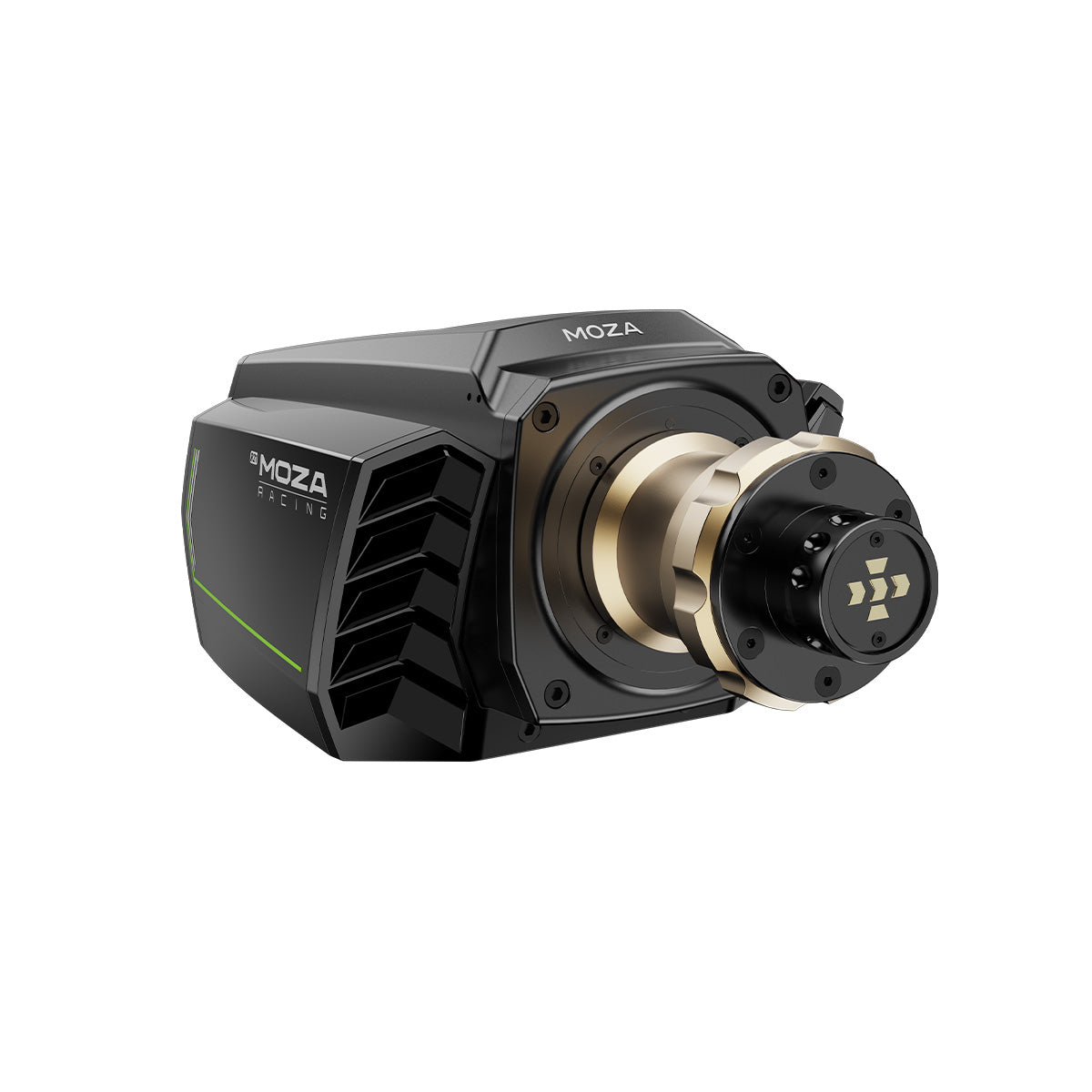

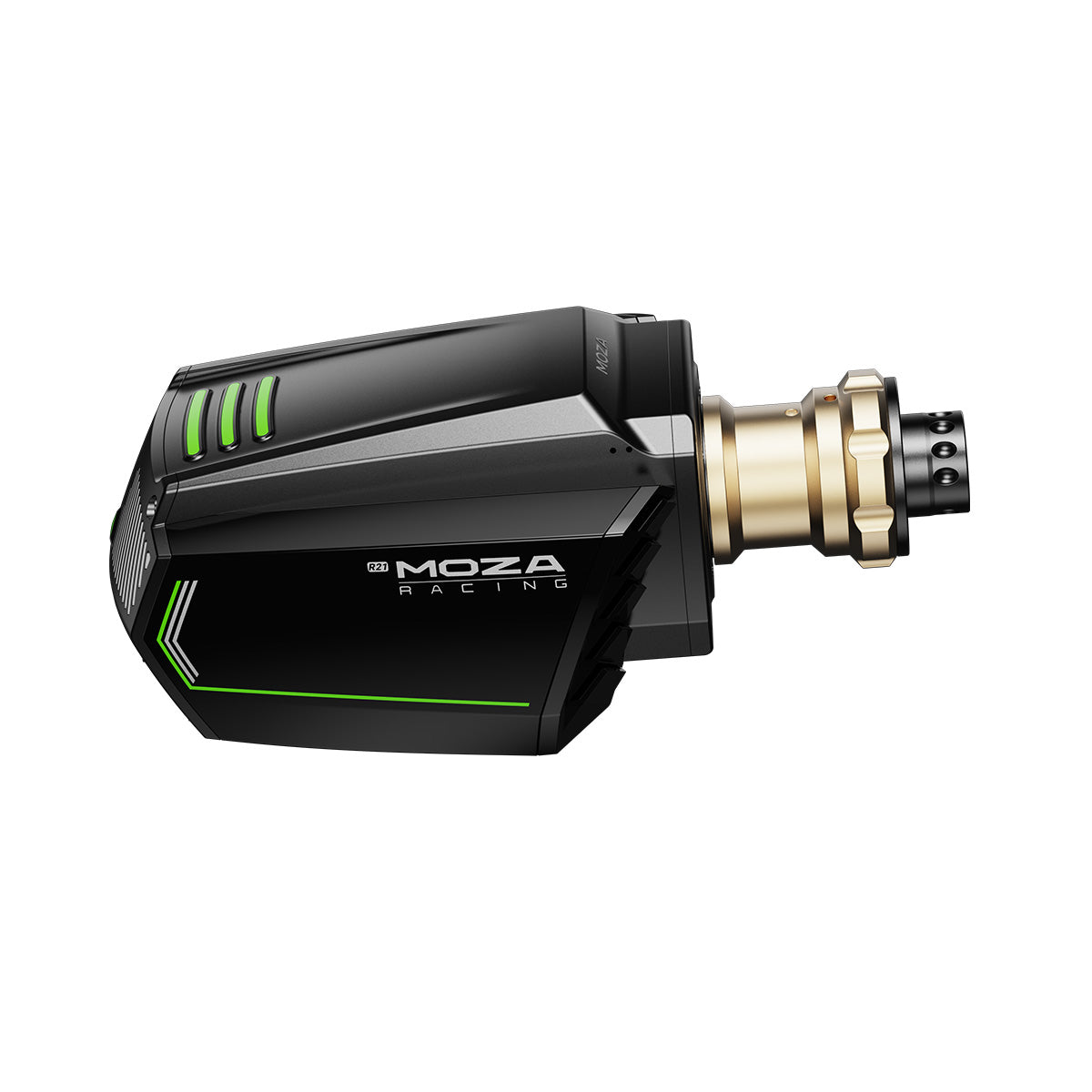

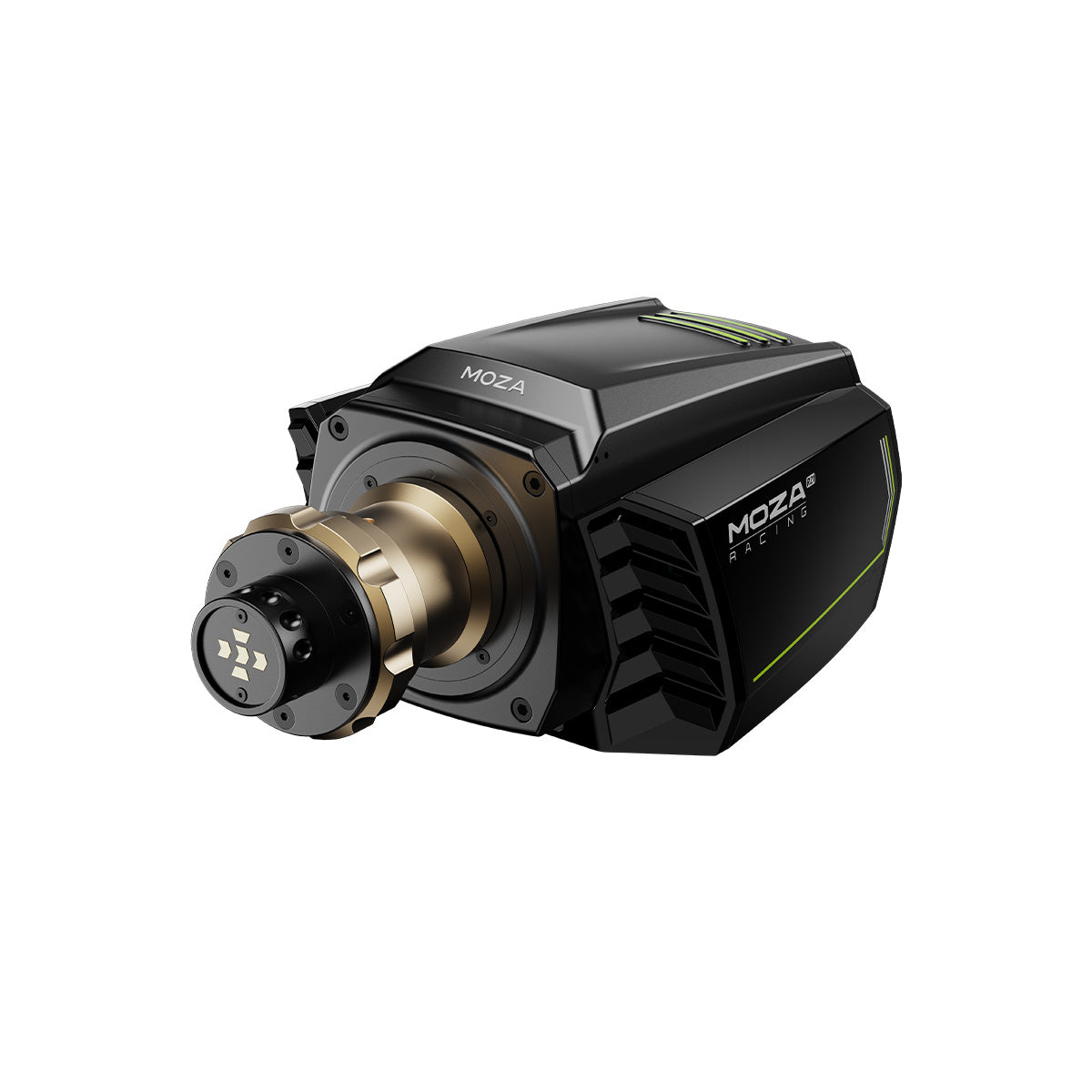

Moza R21 V2 Direct Drive Wheel Base
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
21 NM DIRECT DRIVE TORQUE FROM AN INDUSTRIAL-GRADE MOTOR
With 21Nm of torque on tap, the R21 can lay down an ultra-wide torque range that accurately reproduces the dynamic steering characteristics of top racing cars from F1 to IndyCar. Feel the road through the steering wheel.
SIX KEY TECHNOLOGIES, CRAFTED BY EXPERTS
Designed with great concentration by experts in the field of electric motors, the rotor uses innovative structures with V-shaped utmost point to one side and fractional slot concentrated windings. Under the same volume, the maximum torque of R21 is 30% larger. The torque ripple and cogging are further optimized, giving the ultimate smooth steering feel experience.
BEAUTY IS POWER
Inspired by supercars, the R21 has a 3D sculpted body and a two-color automotive paint finish. It’s the Perfect Fusion of Design and Power.
ALL ALUMINUM ALLOY BODY
Enhancing the realism the R21 is made of aircraft-grade aluminum alloy. Giving the driver the right weight and feel.
SUPERIOR TEMPERATURE CONTROL PERFORMANCE
The R21 has excellent temperature performance. Even under the most strenuous endurance race the R21 will not reduce or attenuate torque output due to motor overheating. The temperature control system monitors the motor temperature in real-time, to avoid any possible temperature abnormalities.
262,144 POINTS OF RESOLUTION
The encoder of the R21 has 262,144 points of resolution. Giving the R21 exceptional ability to understand the position of the wheel to seamlessly reproduce the feeling of racing.
ZERO LATENCY WIRELESS TECHNOLOGY
Wirelessly transmit data and power between the steering wheel and the base.
QUAD-CORE ARCHITECTURE
No matter how complex the force feedback calculations get. The unique Quad CPUs can reliably process the task at maximum precision.
MOZA PIT HOUSE CONTROL SOFTWARE
The MOZA Pit House Control Software is the control center for the MOZA racing simulator. See the status of each device, set the maximum turning angle, force feedback, pedal travel, steering wheel shift indicator, instrument interface, and more. The MOZA Pit House is your exclusive Pit House.
The basic settings help beginners quickly match the right-hand feel, while the professional settings allow you to bring out amazing exclusive power feedback effects.
APP CLOUD CONTROL
The settings of the wheelbase, steering wheel, pedals, etc. can be modified through the MOZA APP. Settings can be imported with one click onto new simulators.
- Applicable Platform - PC
- Driving type - Direct Drive
- Maximum Turning Angle - Limitless
- Cover - Aluminum
- Color - Black/Cyber Green
- Maximum Torque - 21 N·m
- Maximum Power - 480W
- Input voltage - 110V~220V AC —>36V DC
- Encoder Resolution - 262144ppr
- USB Refresh Rate - 1000Hz
- Indicator - YES
- Quick Release - Customized Quick Release
- Cooling - NONE
- Mode Button - NONE

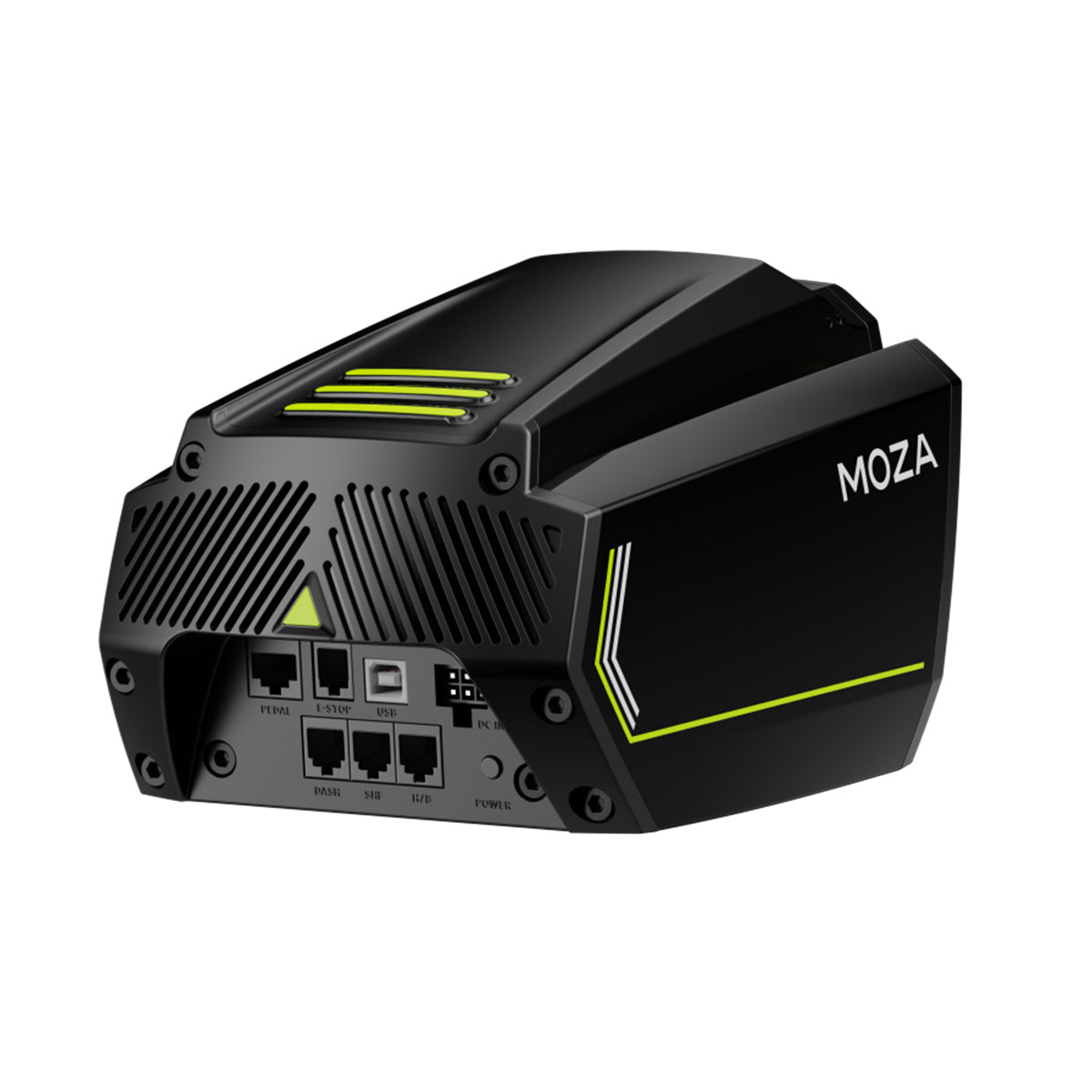

- Interface - Power Supply, Data, General Interface
- Accessories - Instructions, Power Supply, USB Cable, Warranty Card, Screw
- Mounting - 4-Hole Pattern on the Bottom, Side Mounting Support with Special BRKT(Sold Separately)
- Table Clamp - Optional
- Emergency Stop - Optional
- Front Mount - YES
- Firmware Update - YES
- L x W x H - 327mm x 170mm x 130mm
- Mass - 8.9kg
- APP Function - YES
