Description
Description
MOZA HMA150 Haptic Motion Actuators
High-Performance Motion. True-to-Life Dynamics.
Featuring a 48V low-voltage DC power system, four-axis 3DOF motion, ultra-low latency response, a 150mm maximum stroke, 300mm/s maximum speed, over 1G maximum acceleration, and a 0–200Hz vibration frequency range. The HMA150 also supports MOZA Motion Manager software and AI-powered dynamic simulation.
MOZA's First Flagship Motion System
MOZA's first flagship motion system marks a major milestone in the evolution of the MOZA simulation ecosystem. With in-house development across racing simulators, flight simulators, and motion systems, MOZA offers a complete ecosystem covering every aspect of immersive simulation.
Fully In-House Designed and Manufactured
High-Torque-Density Servo Motor
Near-zero cogging torque delivers millisecond-level response with smooth, detailed motion feedback.
Proprietary Motion Control Algorithms
Precisely reproduces realistic vehicle dynamics, delivering immersive motion feedback throughout every moment.
Proprietary Motion Manager Software
Customizable motion settings and official presets provide a seamless plug-and-play experience.
In-House Linear Actuator System
Developed entirely in-house, the system integrates a high-performance servo motor and precision ball screw actuator to deliver accurate motion control and rapid response.
Sleek Design. Intelligent Lighting.
The MOZA HMA150 features a sleek, streamlined design that blends refined aesthetics with a dynamic, modern look. Its customizable 16.7 million-color RGB lighting provides real-time telemetry feedback for ABS, traction control, flag signals, and other in-game events.
48V Low-Voltage DC Power
Powered by a high-performance 48V servo motor, the HMA150 is designed for safe, reliable home use. Low-voltage operation supports enhanced safety, quiet performance, and efficient operation.
Integrated Emergency Stop
An integrated emergency stop switch enables instant motion shutdown when needed. Power-loss protection automatically lowers the platform smoothly in the event of a sudden power interruption.
Integrated Design. Flexible Mounting.
Integrated control electronics save space and simplify installation. Built-in mounting rails allow adjustable height positioning for versatile setups.

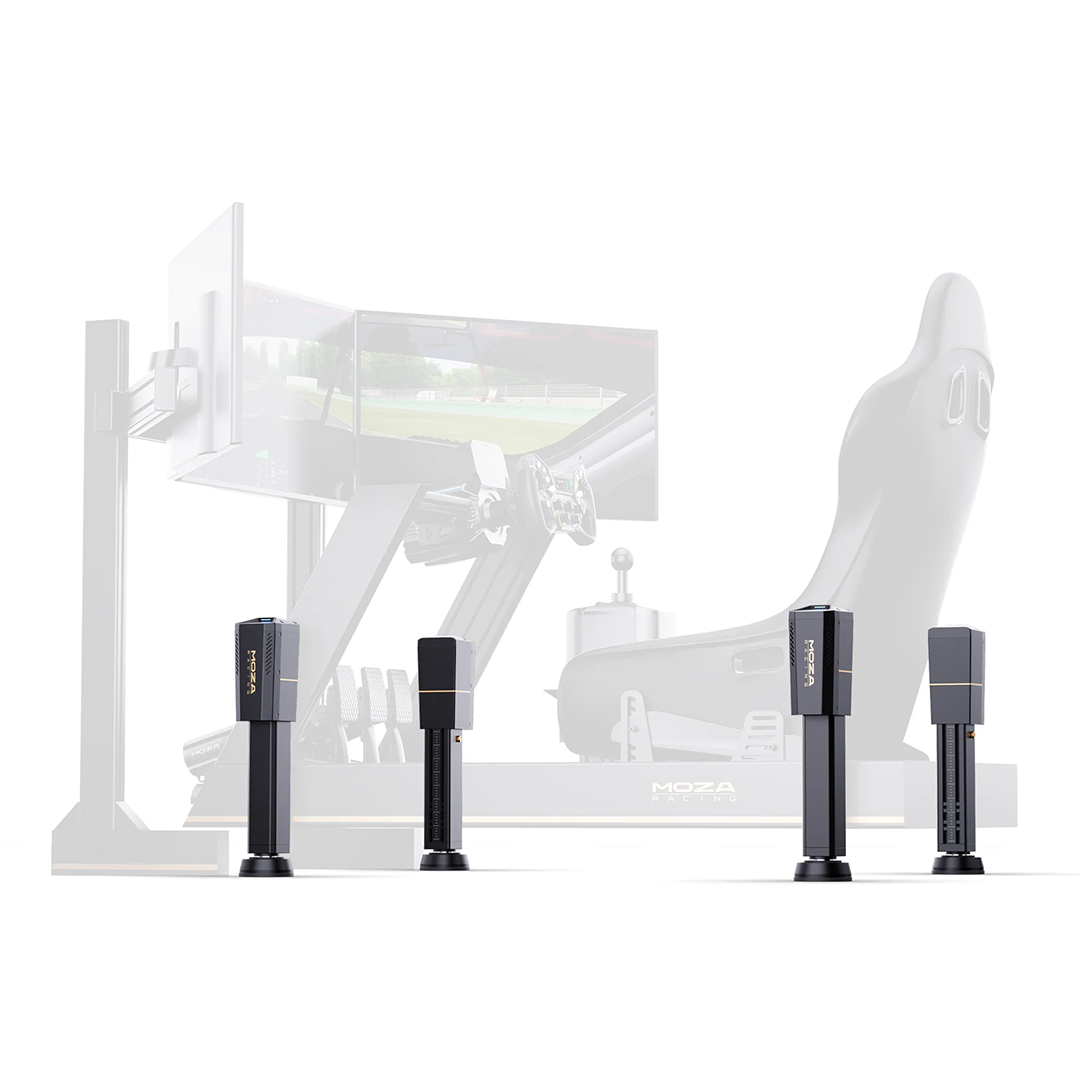

4-Axis 3DOF Motion System
Powered by four actuators, the HMA150 delivers Pitch, Roll, and Heave motion to recreate vehicle dynamics.
Ultra-Low Latency
Millisecond-level actuator response delivers rapid feedback and precise synchronization with in-game visuals.
Exceptional Dynamic Performance. Precise Motion Reproduction.
With high-speed response and accurate motion control, the HMA150 recreates everything from major vehicle movements to subtle driving details. Experience realistic feedback from rally jumps, landing impacts, rough terrain, and aggressive curb strikes.
150mm Maximum Stroke
300mm/s Maximum Speed
Over 1G Maximum Acceleration
0–200Hz Wide-Band Vibration
Supporting vibration frequencies up to 200Hz, the HMA150 delivers engine feedback while reproducing details such as road seams and surface textures.
High Load Capacity. Performance Headroom.
At a 250kg payload, the four-actuator system supports over 1G maximum acceleration and a maximum speed of 300mm/s. At a 350kg payload, it supports 0.45G maximum acceleration and a maximum speed of 150mm/s.
Specifications represent the maximum performance limits of a four-actuator system while maintaining safe operation.
Quiet Operation. Immersive Simulation.
Featuring a high-performance servo motor and precision ball screw actuator, the MOZA HMA150 delivers smooth, quiet operation. Even at maximum speed and acceleration, operating noise remains below 55dB.
Operating at Maximum Speed and Acceleration: measured 1m from the actuator, operating noise is ≤55dB.
Using Racing Simulation Titles with MOZA Official Presets: measured 1m from the actuator, operating noise is ≤58dB.
Data measured in MOZA laboratory tests.
21-Bit Magnetic Encoder and 600MHz Control Processor
The 21-bit magnetic encoder provides 2,097,152 points of resolution for precise motion sensing and detailed feedback. Powered by a 600MHz high-performance control processor and advanced algorithms, the system processes motion data in real time for rapid response and accurate control. Together, they deliver precise motion control and real-time feedback with near-zero latency.
High-Strength Aluminum Alloy Housing
Constructed from high-strength aluminum alloy, the housing combines a lightweight design with exceptional rigidity. Its robust structure provides stable support and long-lasting durability for reliable motion performance.
Rigorously Tested. Built to Last.
The HMA150 has undergone over 5 million full-stroke cycles to assess long-term reliability. After 24-hour high- and low-temperature testing, it maintains stable and consistent performance.
Data measured in MOZA laboratory tests.
MOZA Motion Manager Software
MOZA Motion Manager is a proprietary motion control solution developed for the HMA150 motion system. It provides customization options for motion range, intensity, degrees-of-freedom effects, vibration feedback, and more, allowing users to tailor their simulation experience.
Extensive Game Compatibility
Compatible with a wide range of racing simulation titles, including Assetto Corsa, DiRT Rally, iRacing, Forza Horizon, F1, and more.
Native Telemetry Support
Assetto Corsa Competizione, Assetto Corsa EVO, Assetto Corsa Rally, Assetto Corsa, Euro Truck Simulator 2, DiRT Rally 2.0, iRacing, Le Mans Ultimate, Forza Horizon 5, American Truck Simulator, BeamNG.drive, Automobilista 2, EA SPORTS™ WRC, Forza Motorsport, RaceRoom Racing Experience, F1 25, F1 24, and F1 23.
AI Motion Support
Grand Theft Auto V Enhanced, Cyberpunk 2077, and Red Dead Redemption 2.
Open Ecosystem
Compatible with custom DIY builds and pre-built cockpits featuring European-standard 40 × 80mm or larger aluminum profiles.
