Moondrop FreeDSP Mini Portable USB to 3.5mm DAC/AMP
CS43198 Flagship Encoding Chip
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

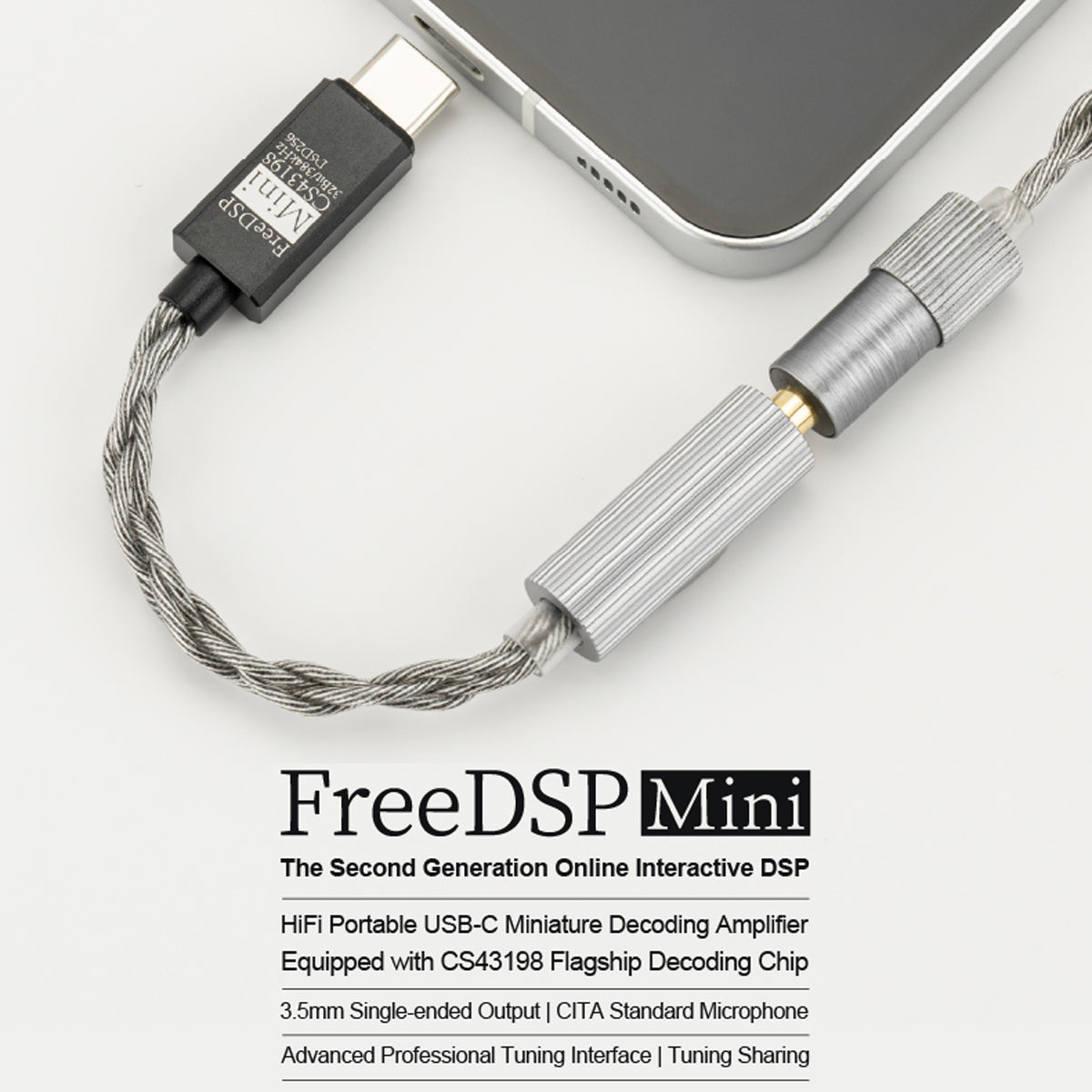

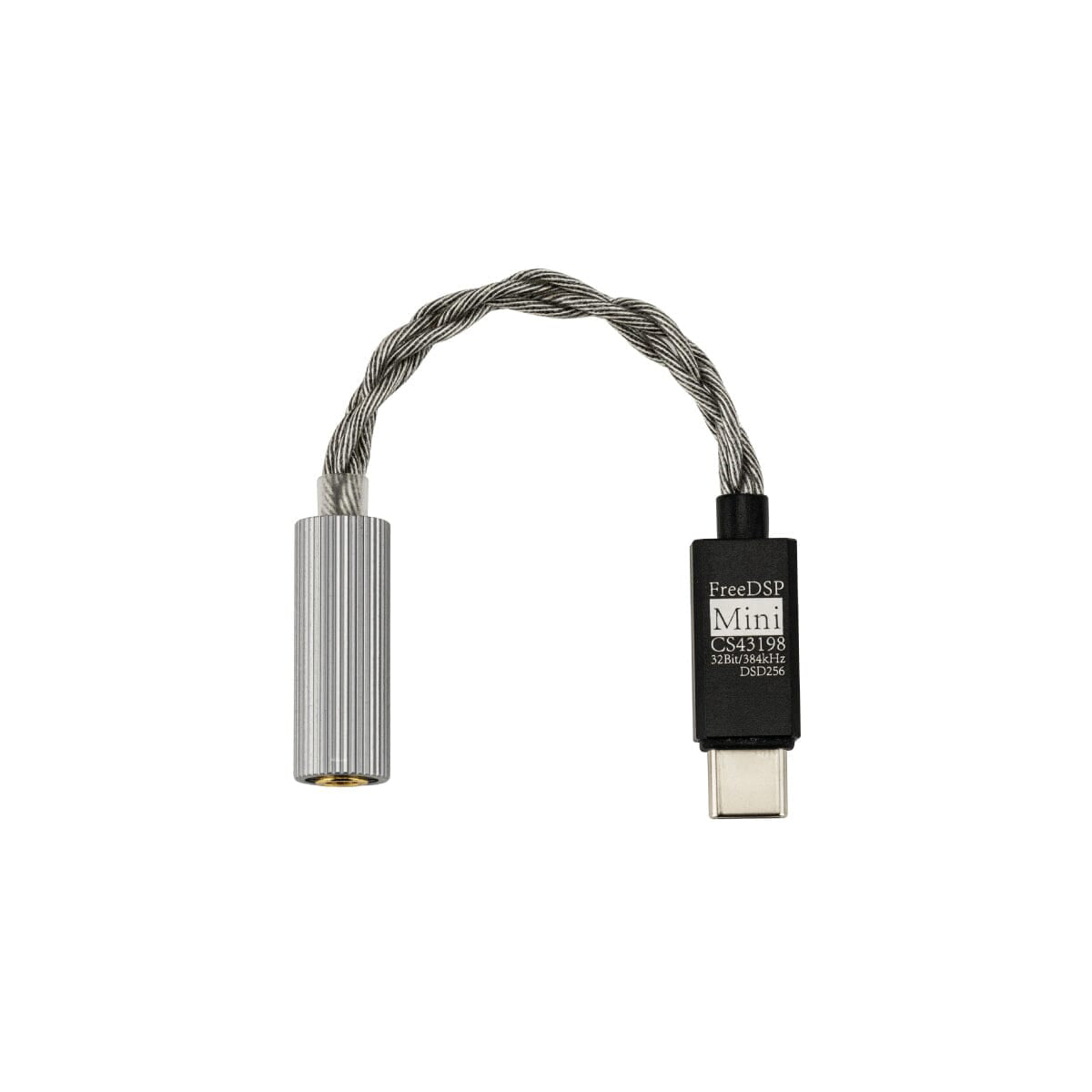

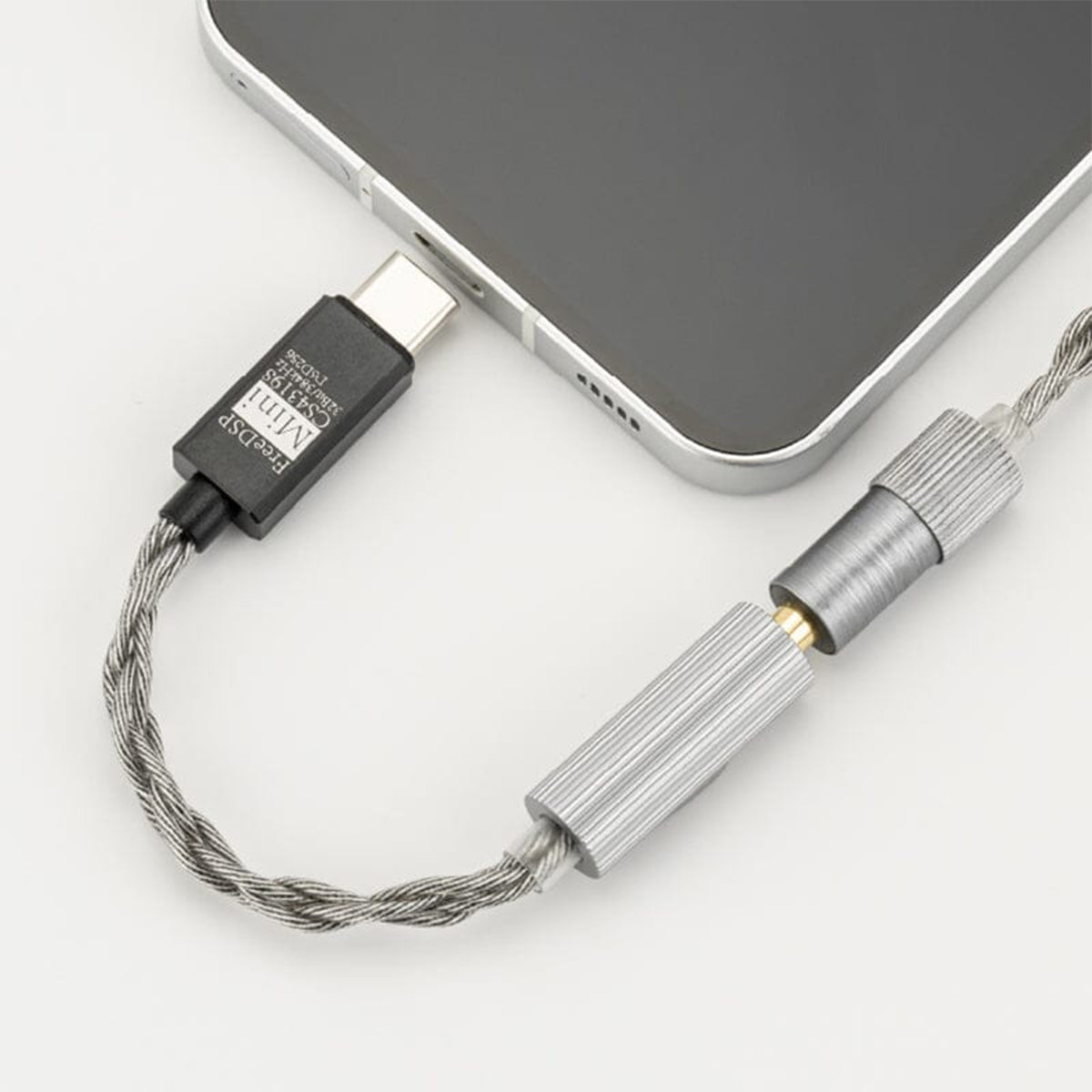

MOONDROP FreeDSP Mini CS43198 Portable DAC & AMP (3.5mm)
Elevate your music experience with the MOONDROP FreeDSP Mini, a compact yet powerful portable DAC and AMP engineered for audiophiles and music enthusiasts. Featuring the flagship Cirrus Logic CS43198 decoding chip, it delivers reference-level HiFi sound with support for PCM up to 32Bit/384kHz and DSD256 playback.
Next-Gen Interactive DSP Tuning
The second-generation online DSP system allows precise adjustments for filter type, frequency, gain, and Q values. With access to a comprehensive headphone frequency response database, you can fine-tune audio playback for unmatched accuracy.
Built-in Tuning Sharing Community
Join the MOONDROP FreeDSP community to download and apply user-created tuning optimizations for different headphones. Whether it’s the FreeDSP Mini or FreeDSP Pro, you can explore countless sound signatures with ease.
One-Click EQ for Effortless Customization

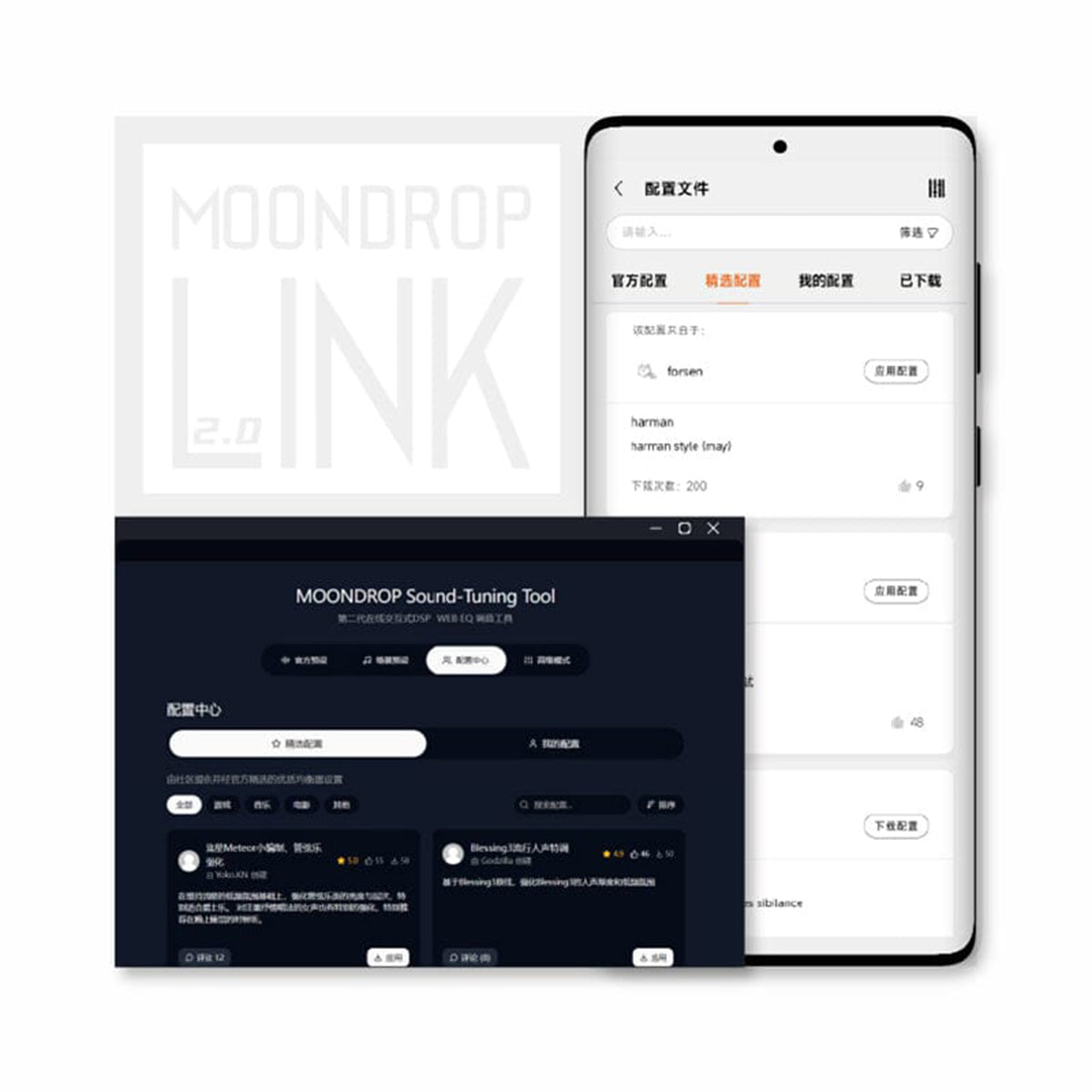

Say goodbye to manual debugging. The FreeDSP Mini supports one-button EQ settings via the MOONDROP Web and Android App. Simply select or upload your preferred frequency curve and enjoy personalized sound instantly.
Compact Yet Powerful
Despite its miniature size, the FreeDSP Mini outputs 80mW + 80mW @16Ω with ultra-low distortion (THD+N 0.00017%). Combined with a 127dB dynamic range, it ensures clean, detailed, and powerful sound. The USB-C input and 3.5mm CTIA earphone jack with mic support make it versatile for everyday listening and calls.
Whether you’re streaming music, gaming, or exploring audiophile-grade sound, the MOONDROP FreeDSP Mini CS43198 DAC & AMP is your ultimate portable audio companion.
Specifications
Specifications
| Product Model | MOONDROP FreeDSP Mini |
| Product Type | HiFi Miniature DAC & AMP |
| Dynamic Range (A-wt) | 127dB @ 1kHz |
| THD+N (A-wt) | 0.00017% @ 1kHz |
| Output Amplitude | 2Vrms @ 0dBFS |
| Output Power | 80 mW + 80 mW @ 16Ω (THD+N < 1%) |
| Earphone Jack | 3.5mm 4-pin (SE + MIC / CTIA) |
| Plug | USB-C |
| Weight (with Packaging) | 106 g |
| Dimensions (with Packaging) | 13 × 13 × 1.7 cm |
| Inside the Box | 1× FreeDSP Mini, 1× Guidance Card, 1× Certificate |
