Lian Li UNI FAN SL Infinity Digital Addressable RGB 120 Fan, Triple pack with controller, Black

LIAN LI UNI FAN SL-INFINITY

Black infinity mirror ARGB fan available in 120mm and 140mm sizes.

Infinity Mirror Lighting

The fan includes a circular infinity mirror in the center with multiple illuminated layers spaced 0.5mm apart.

Frame Lighting

Two thin ARGB strips are positioned on both sides of the fan blades. Additional lighting surrounds the rear LIAN LI logo.

Aluminum Frame Trim

Aluminum trim is installed on both sides of the frame around the infinity mirror sections.

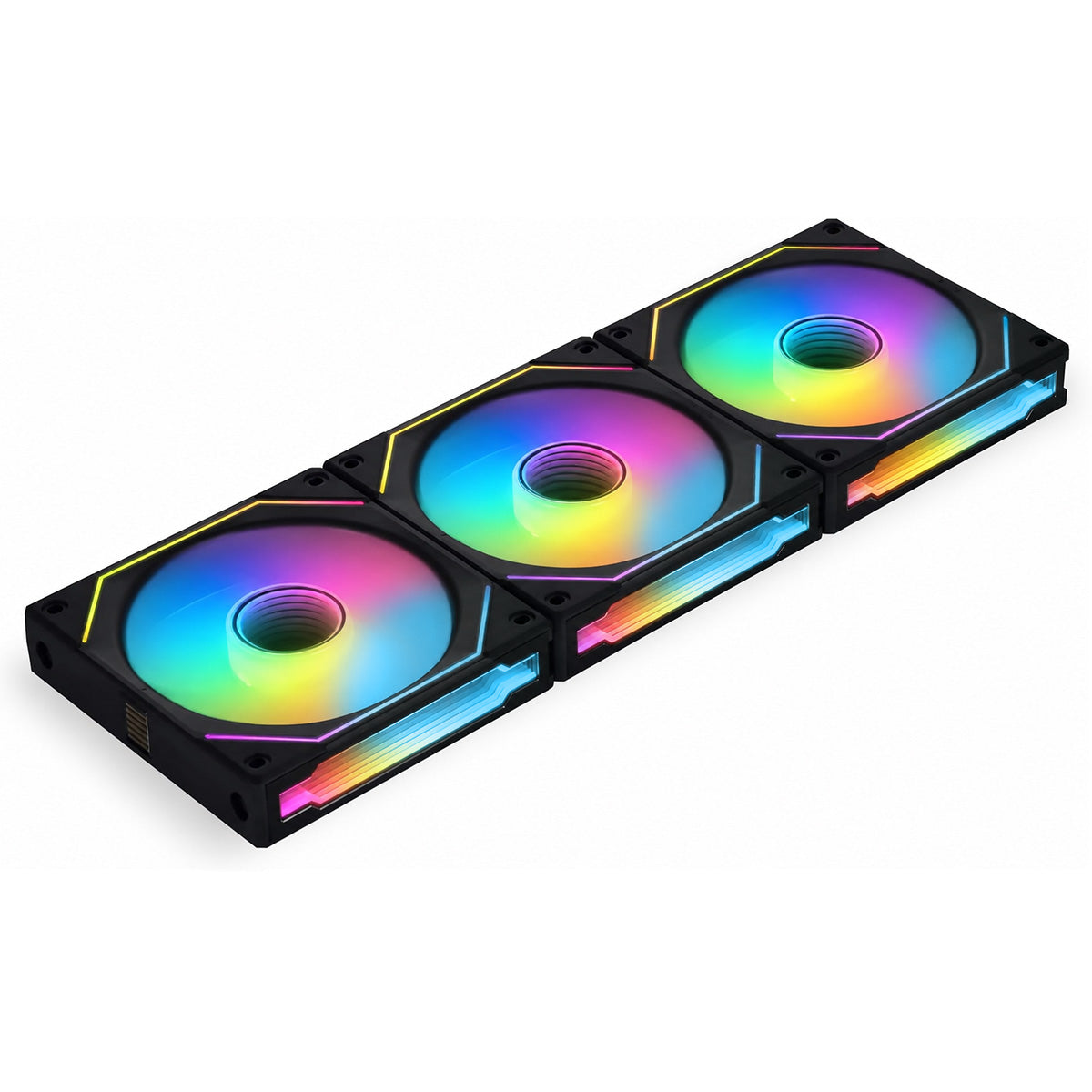

Interlocking Fan Design

Up to four fans can be connected in one cluster using the built-in interlocking system.

Daisy-Chain Connection

Pin-to-pad contact points transfer power and control signals between connected fans.

Removable Interlocking Key

The interlocking key can be removed when additional clearance is required around radiator fittings.

Reversible Cable Module

The cable module is positioned at the center of the fan and can be installed in either direction to avoid radiator inlet and outlet fittings.

SL-INFINITY 120 Performance

The 120mm model provides airflow up to 61.3 CFM, static pressure up to 2.66mmH2O, a speed range of 0 or 200 to 2100 RPM, and a maximum noise level of 29dB(A).

L-Connect 3 Software

L-Connect 3 controls the fan speed, lighting effect, color, brightness, animation speed, and lighting direction.

Separate Lighting Zones

The fan blade, center infinity mirror, frame lighting, and side infinity mirrors can be controlled separately or synchronized using combined effects.

Start and Stop Mode

The fans can stop when the CPU or GPU temperature is below a user-defined value of up to 50°C.

Motherboard PWM Synchronization

Fan-speed control can be transferred from L-Connect 3 to a compatible motherboard through PWM synchronization.

Lighting Synchronization

Lighting can be synchronized with compatible UNI FAN SL, UNI FAN AL, and STRIMER PLUS V1 or V2 devices. Control can also be transferred to compatible motherboard lighting software.

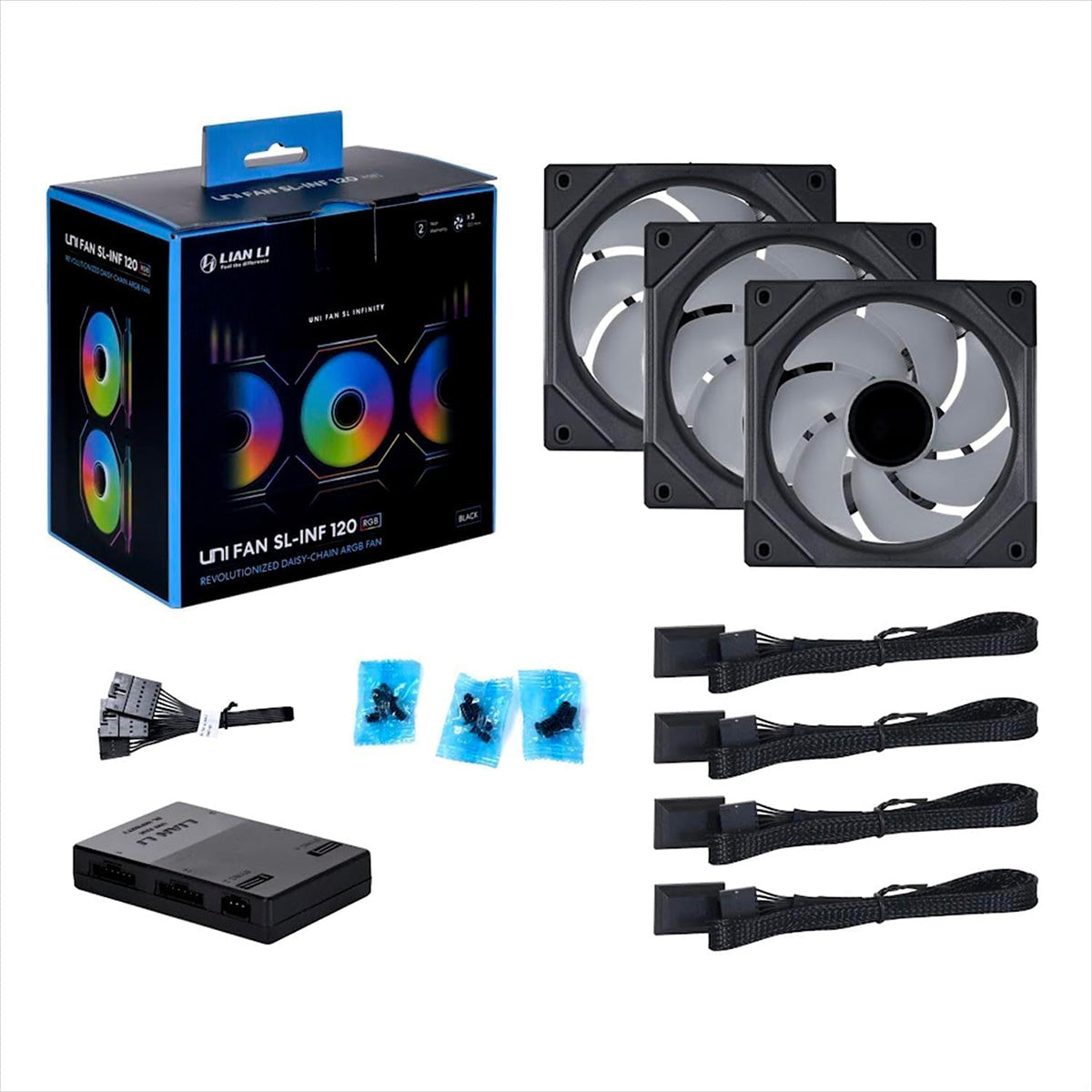

Triple-Pack Controller

The controller included with the triple pack supports up to 16 fans divided into four groups, with up to four fans in each group. It also includes connections for two compatible SM-type devices.

Controller Connections

The controller includes combined ARGB and PWM fan-group ports, SM-type ports, two SATA power connections, an internal 9-pin USB connection, a 5V 3-pin ARGB cable, and a 4-pin PWM cable.

Controller Power

The controller has a maximum input of 29W. The main SATA connection is required, while the second SATA connection is used when connecting more than 12 fans or frequently using static white lighting.

Single-Cable Connection

The cable module combines fan power and lighting control into one 7-pin cable connected to the controller.

Single-Pack Connection

The single-fan pack includes separate 4-pin PWM and 3-pin 5V ARGB connections for direct motherboard installation.

Additional Fan Group

The triple pack includes a Y-type 7-pin splitter for connecting a fifth fan group to the same controller.

Static White Lighting

When more than nine fans are synchronized through the motherboard, the brightness of static white lighting should be reduced to prevent inaccurate colors.
