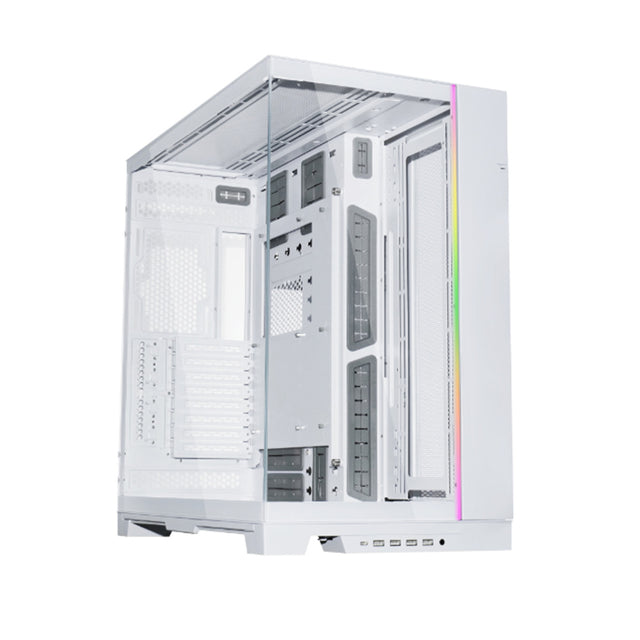

Lian Li O11D EVO XL RGB ATX Mid Tower Case - TG White
Lian-Li
| SKU
62904
$479.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
O11 Dynamic EVO XL
Full-tower chassis with two modes: Normal Mode/ Reverse Mode
- Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting
- Supports up to 3x 420mm radiators and a maximum of 11 fans
- Offers mounting space for 7 storage drives
- Dual-chamber layout with cable management compartment and three cable holders
- Number of PSU supported : 1
- Features a multi-directional power button and movable IO module
- Optional accessories for vertical GPU or upright GPU mounting
Introducing the all-new O11D EVO XL, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC enthusiasts.
TWO COLOR / TWO MODES
Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes with just a few simple steps, allowing for a left or right view.
The ARGB strip in the front dazzles with built in lighting effects and the ability to sync to motherboard.
FINE MESH, EQUISITE TOUCH
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
COMPLETE SEEMLESS VIEW
The O11D EVO XL’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.
BIG SIZE, GREAT COMPATIBILITY
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 × 420mm radiators.
- All 3 sides can hold up to a maximum of 420mm radiator.
- 38% larger than then O11D EVO
FLEXIBLE CONFIGURATION
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination. The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.
TOOL-LESS INSTALLATION
Easily secure the graphics card. Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS
Equipped with quick-release design,
the fan brackets can be easily removed or installed.
Comes with 2 seal plates to ensure no air pressure leak is created when mounting a 360mm radiator or 3 × 120mm fan on the side. The plates can be adjusted and moved around based on the configuration.
RELOCATABLE I/O PORT
To satisfy any need, the modular I/O port includes 1 × USB Type C and 4 × USB Type A ports.
At the bottom of the chassis, the I/O module can be relocated to 3 different locations without the use of any tools.
FRIENDLY STORAGE CAPACITY
Offers multiple easily accessible storage mounting locations that support up to 7 × SSDs or 4 × HDDs + 3 × SSDs.
WITH WATER COOLING IN MIND
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes .
CUSTOMIZABLE CABLE MANAGEMENT
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
OPTIONAL ACCESSORY
The upright GPU bracket allows you to install the GPU outside of the case and then conveniently put back it. The GPU can be flipped with the side bracket, letting you decide to have the GPU ports at the top or bottom.
Specifications
Specifications
| MODEL NAME | O11 DYNAMIC EVO XL |
| MODEL NO. | O11DEXL-X White |
| CASE TYPE | Tower Chassis |
| COLOR | White |
| DIMENSIONS | (D) 522mm x (W) 304mm x (H) 531.9mm |
| MATERIAL | Steel 4.0mm Tempered Glass Aluminum |
| MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX |
| EXPANSION SLOT | 8 |
| STORAGE | Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD |
| GPU LENGTH CLEARANCE | 460mm (Max.) |
| CPU COOLER HEIGHT CLEARANCE | 167mm (Max.) |
| PSU | ATX (Under 220mm) |
| FAN SUPPORT | Top: 3 x 120mm / 3 x 140mm Side: 3 x 120mm / 3 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear: Up to 2x 120mm |
| RADIATOR SUPPORT | Top: 360 / 420 / 240 / 280mm Side: 360 / 420 / 240 / 280mm Bottom: 360 / 420 / 240 / 280mm |
| I/O PORTS | 1 x Power Button 1 x Reset Button 4 x USB 3.0 1 x USB Type C 1 x Audio 1 x LED Color Button 1 x LED Mode Button |
| DUST FILTERS | 1 x Bottom 1 x Top 2 x Side |
| WARRANTY | 1 year |
