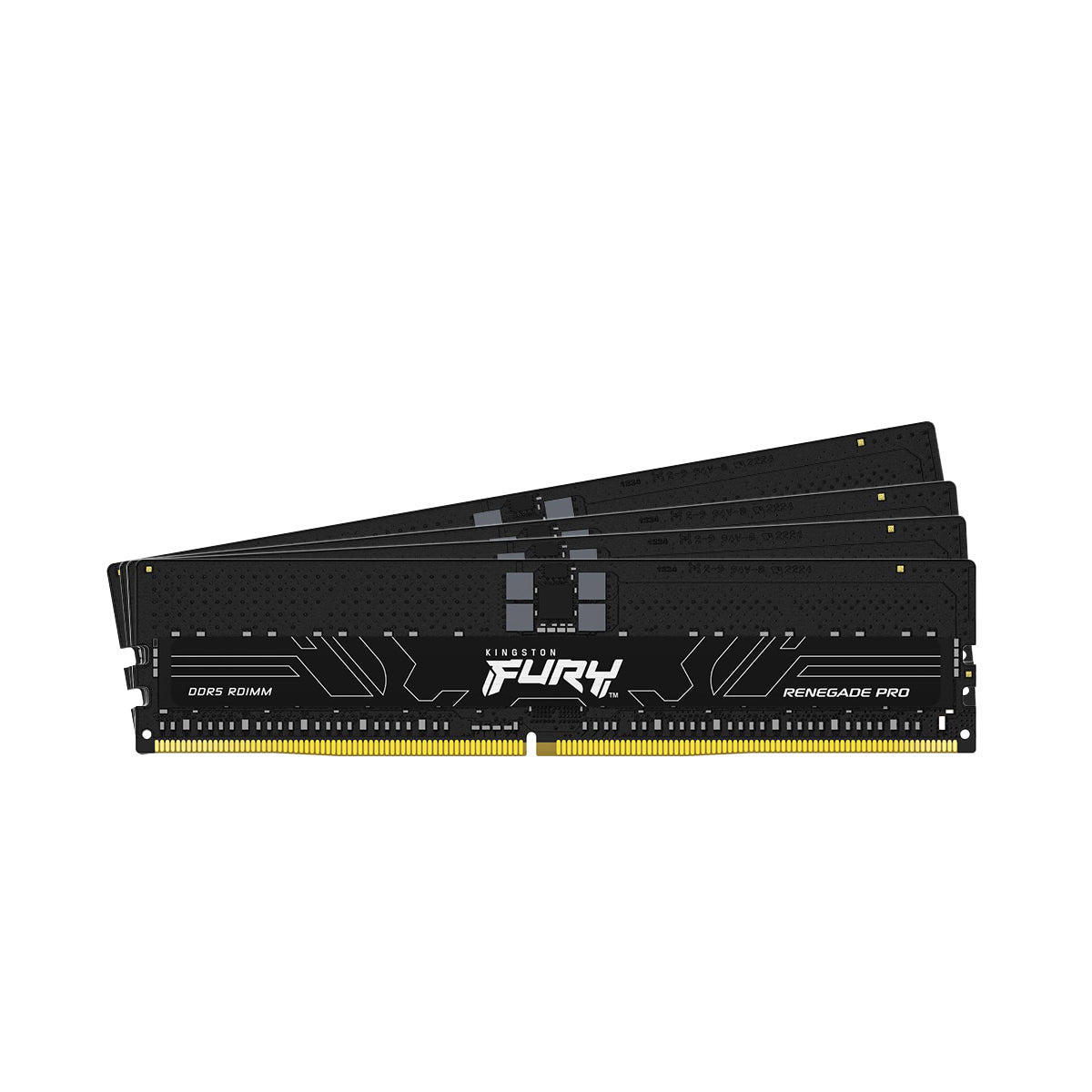

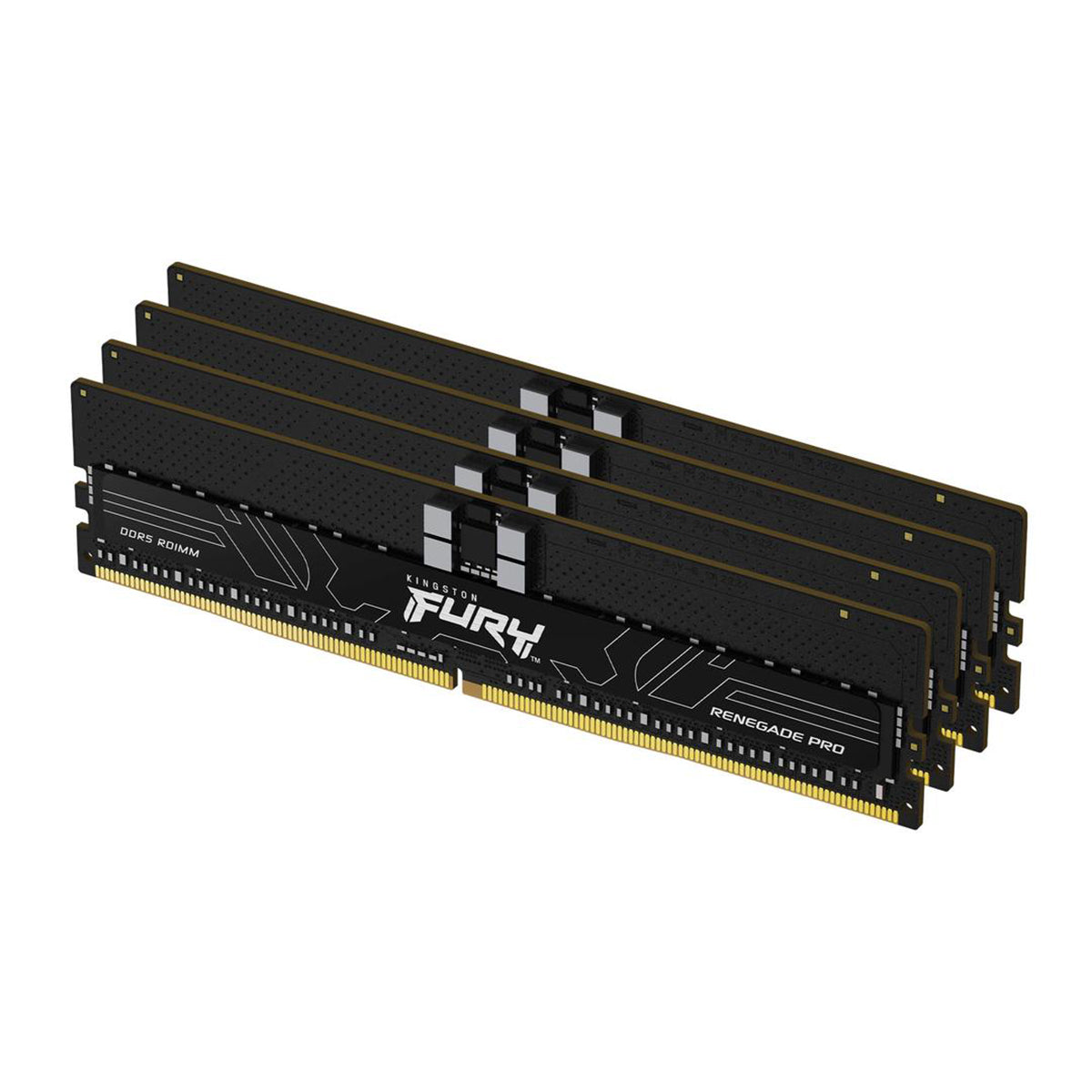

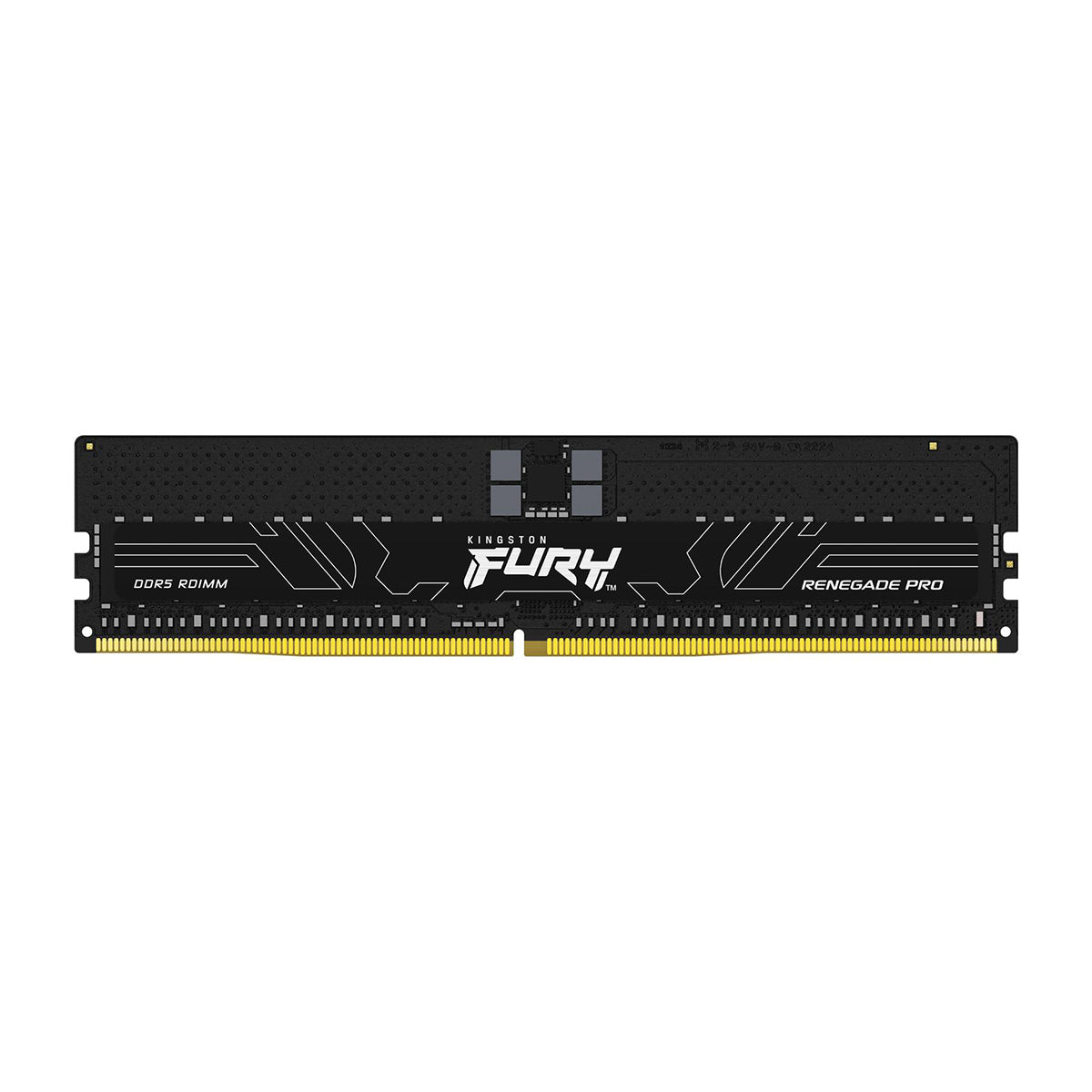

Kingston FURY Renegade Pro 128GB (4x32GB) DDR5-6000 CL32 ECC Registered Memory (KF560R32RBEK4-128)
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
DESCRIPTION

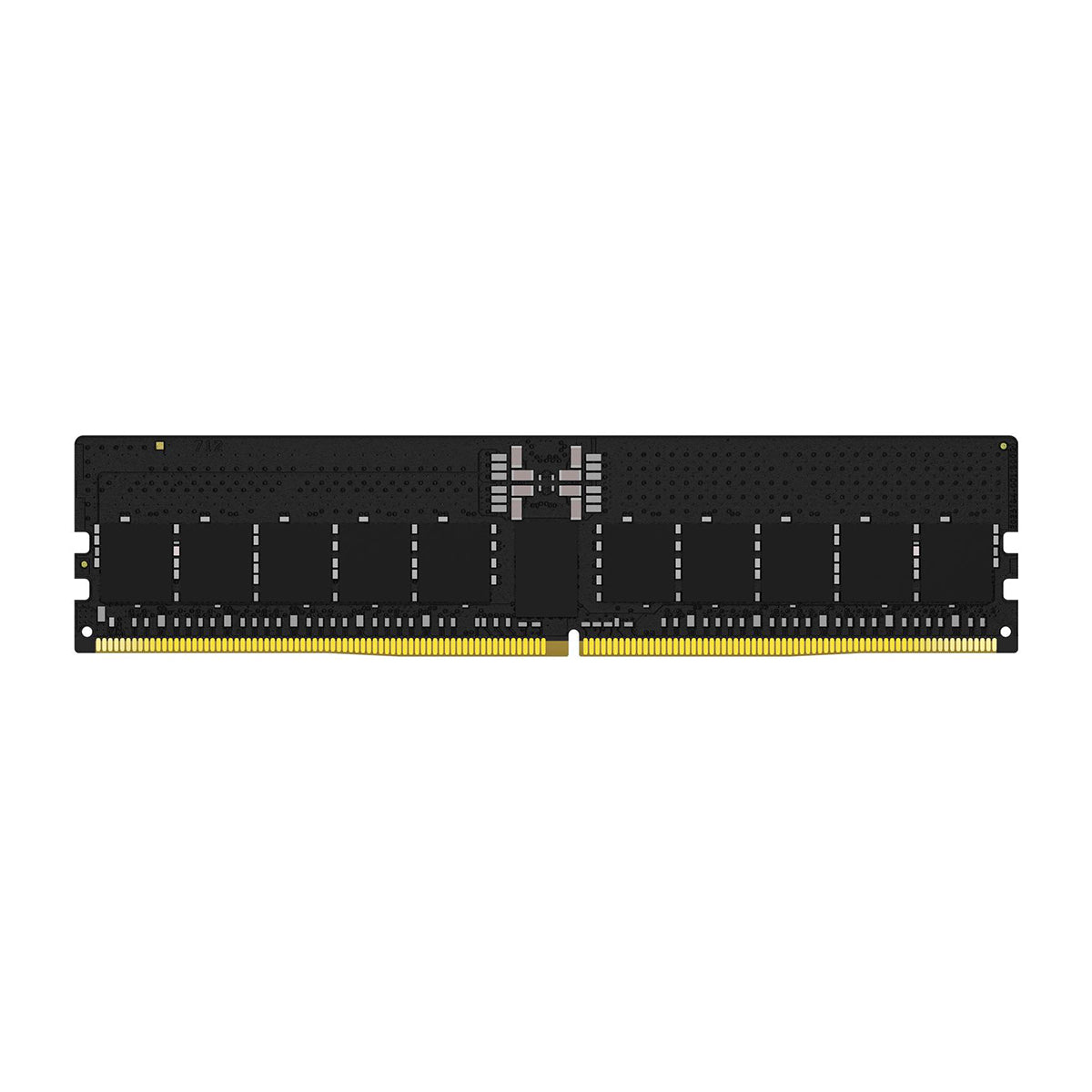

Kingston FURY KF560R32RBEK4-128 is a kit of four 4G x 80-bit (32GB) DDR5-6000 CL32 SDRAM (Synchronous DRAM) 1Rx4, ECC memory module, based on twenty 4G x 4-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 128GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 32-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #1: DDR5-6000 CL32-38-38 @1.35V
• EXPO Profile #2: DDR5-5600 CL36-38-38 @1.25V
• XMP Profile #3: DDR5-6000 CL32-38-38 @1.35V
• XMP Profile #4: DDR5-5600 CL36-38-38 @1.25V
Specifications
Specifications
| Default Specifications |
KF560R32RBEK4-128 128GB (32GB 1Rx4 4G x 80-Bit x 4 pcs.) PC5-6000 CL32 Registered EC8 288-Pin DIMM |
| CL(IDD) | 40 cycles |
| Row Cycle Time (tRCmin) | 48ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns (min.) |
| Row Active Time (tRASmin) | 32ns (min.) |
| Row Precharge Time (tRPmin) | 16ns (min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to +95°C |
| Storage Temperature | -55°C to +100°C |
