Keychron Q6 HE Full Sized RGB Shell White Wireless Mechanical Keyboard - Nebula Switch

RGB Backlight | Hot-Swappable | Aluminium Body | QMK Support | Gateron Double-Rail Magnetic Nebula Switch

Keychron  |  SKU 74007  |  MPN Q6H-P1
$499.00

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

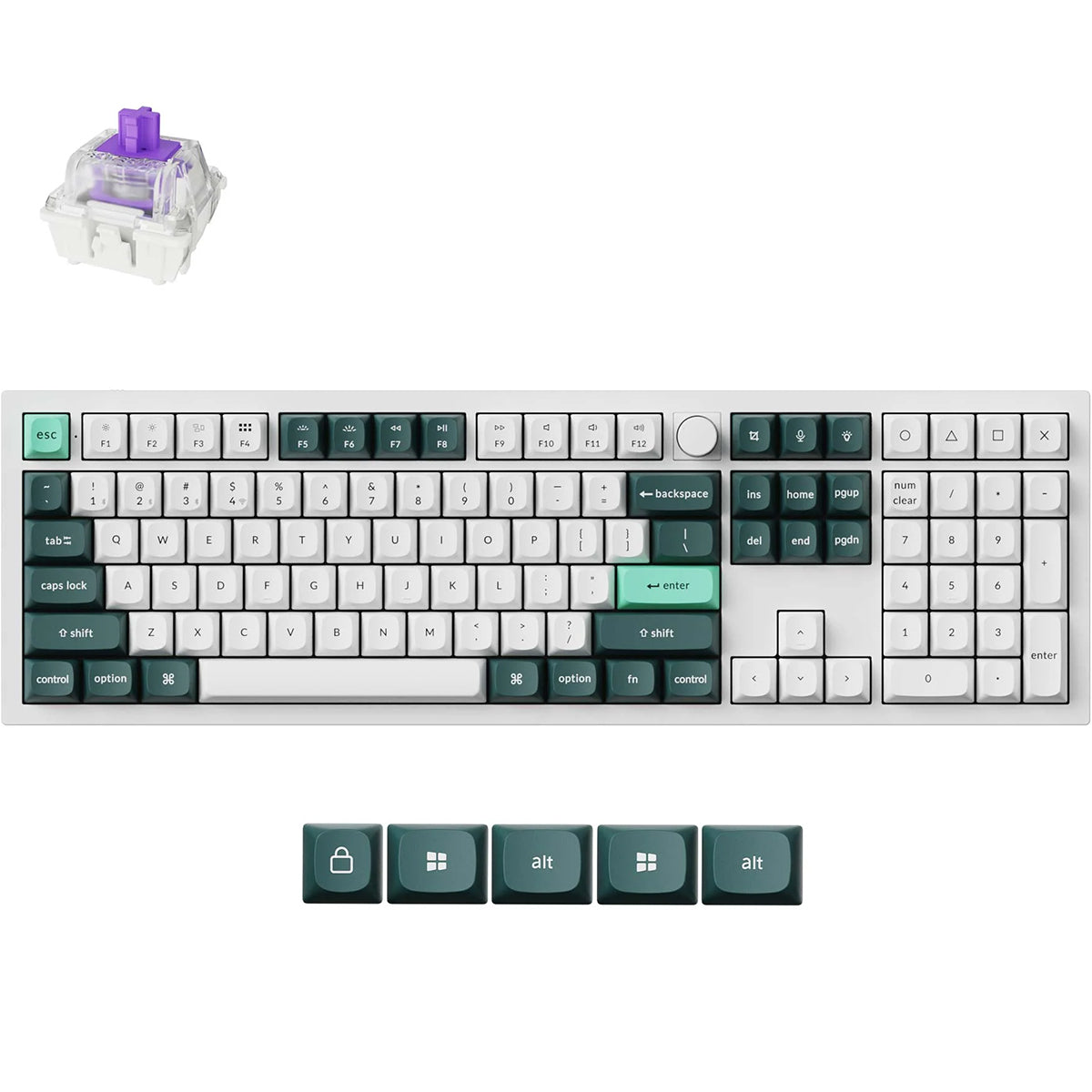

Keychron Q6 HE

Meet the Q6 HE, a full-size (100%) layout wireless QMK custom keyboard equipped with Hall Effect Gateron double-rail magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.

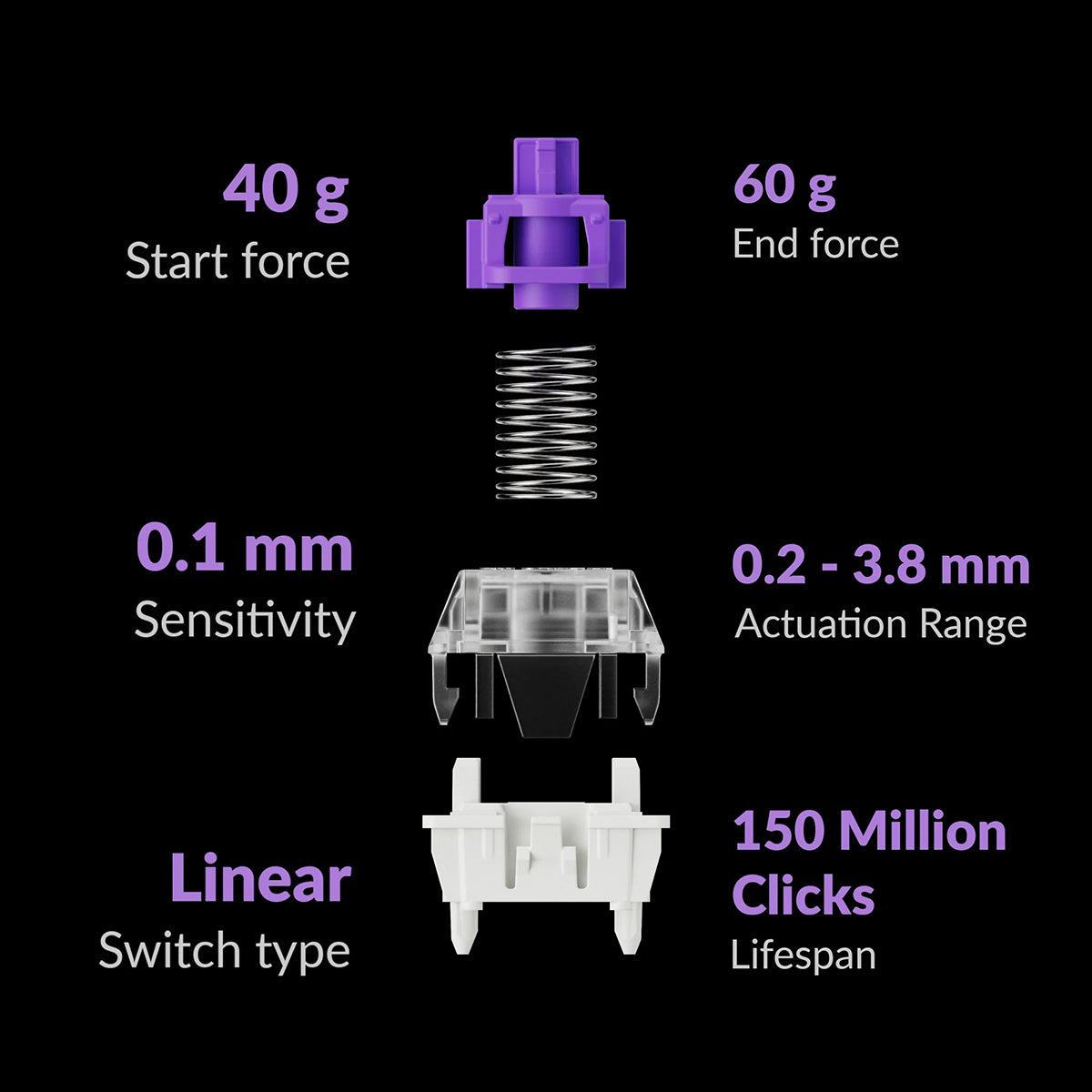

Gateron Double-Rail Magnetic Hall Effect Switches

With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

Adjustable Actuation Point

Customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.2 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.

Dynamic Rapid Trigger

Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.

Multiple Actions, One Keystroke

Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalized combinations that can give you an edge in competitive gaming.

Analog Mode

Experience the power of Analog Mode on your Q6 HE, bringing game controller-like precision to your keyboard. This mode enables variable inputs instead of the usual on/off signals, letting you achieve more fluid and dynamic control.

With each keypress, Q6 HE detects how far you press, translating it into different speeds and intensities. Enjoy nuanced control and heightened responsiveness in racing games, sports simulations, and more.

Program with QMK & Launcher

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app. With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the Q6 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q6 HE via Bluetooth 5.2 to three devices.

A Piece Of Metal Art

The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.

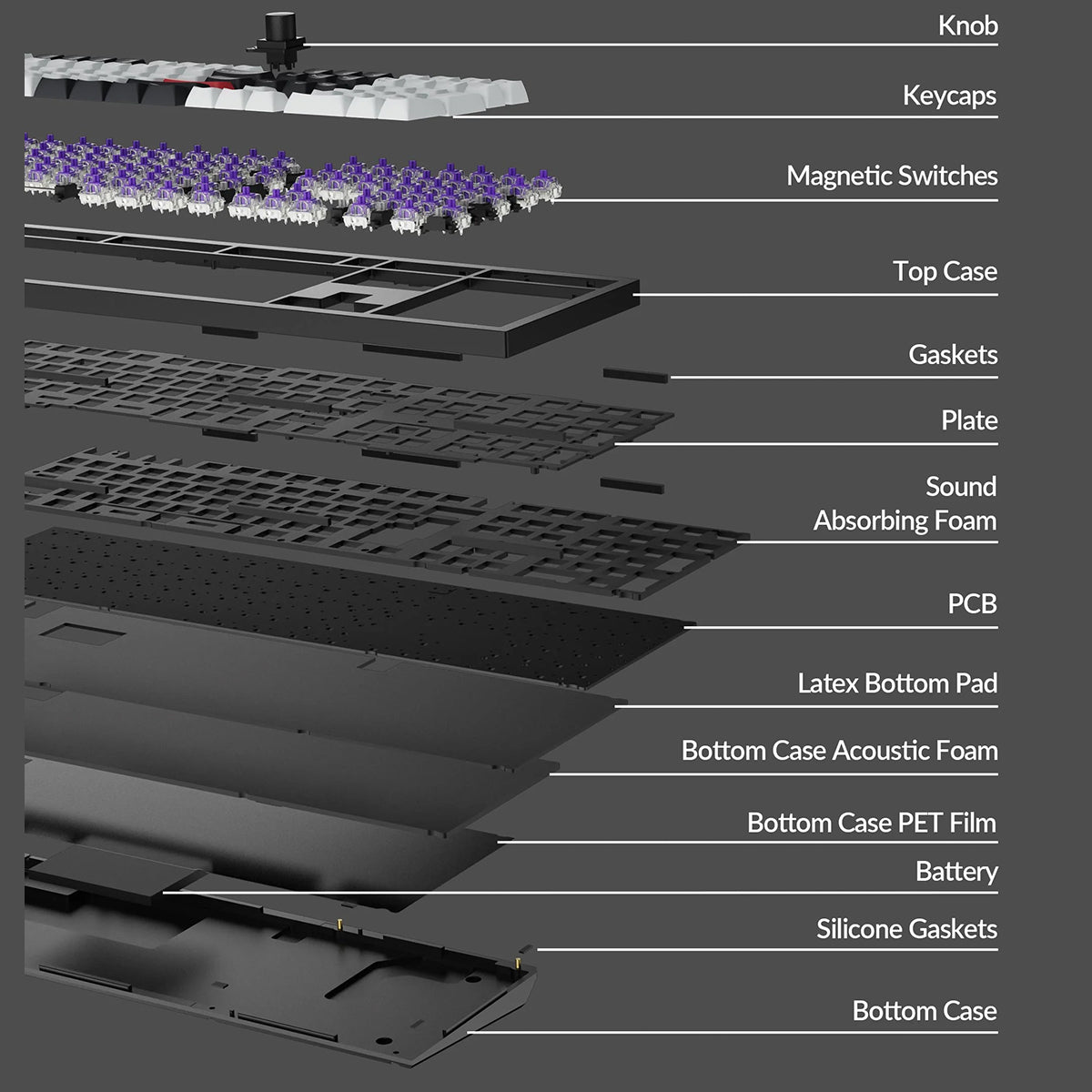

Customize Every Part

To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.

Double-Gasket Design

Silicone pads between the top and bottom cases reduce acoustic resonance, maintaining gasket flexibility and enhancing typing sound. The keyboard's bottom features acoustic foam, PET film, and Latex, improving sound quality while providing a more comfortable typing experience.

An Epic Core Inside The Keyboard

Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.

Suitable for All Devices

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q6 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

OSA Profile Double-shot PBT Keycaps

It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Hot-swappable

Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches.

*The Q6 HE is compatible with the magnetic switches sold on the Keychron website only.

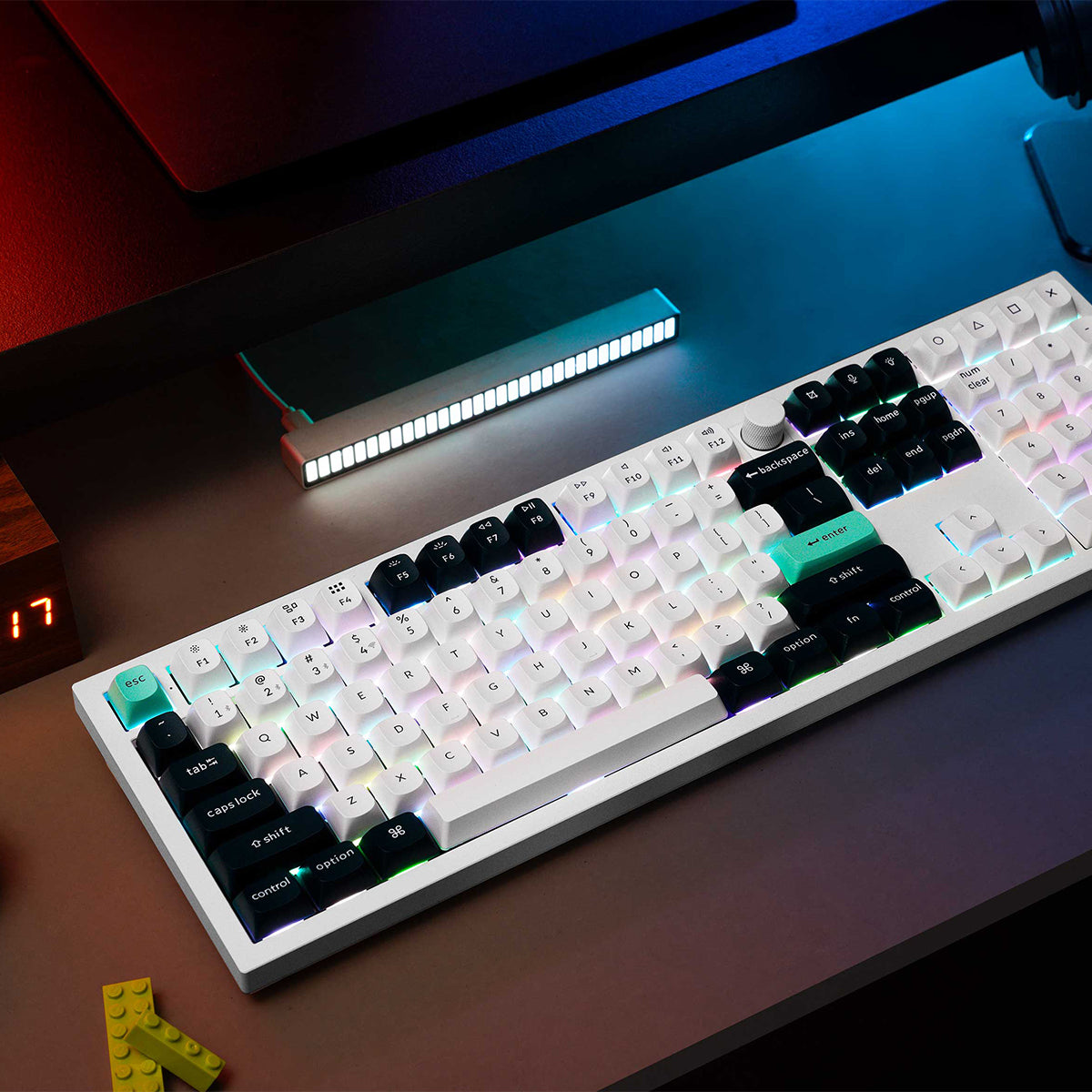

South-facing RGB LED Lights

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

PCB Ultimate Precision and Stability

Our upgraded stabilizers now feature reinforced sidewalls around the stem, providing enhanced protection and significantly improving stability. These "walls" create a stronger connection between the switches and keycaps, ensuring smoother and more reliable typing on larger keys such as the spacebar, shift, enter, and backspace. Precise craftsmanship makes the stabilizers more stable and less wobbly.

Specifications

Width 137.00 mm
Length 446.01 mm
Front Height (without keycaps) 20.6 mm
Back Height (without keycaps) 31.09 mm
Feet Height 2.4 mm
Angle 5.3°
Weight (Fully Assembled version) 2178 g ± 10 g
Body Material Aluminum
Plate Material Aluminum
Polling Rate 1000 Hz (Wired and 2.4 GHz) / 90 Hz (Bluetooth)
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Rapid Trigger Yes
Adjustable Actuation Points 0.2 - 3.8 mm
Dynamic Keystrokes 4-in-1 action keys
Sensitivity 0.1 mm
Keycap OSA Double-shot PBT keycaps, not shine-through
MCU ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
Backlight South-facing RGB LED
Switch Gateron double-rail magnetic switch
Hot-swappable Support Yes, compatible with Gateron double-rail magnetic switch only
Stabilizer Screw-in PCB stabilizer
Cable Type-C cable (1.8 m) + Type-A to Type-C adapter
Connectivity 2.4 GHz / Bluetooth / Type-C wired
Bluetooth Version 5.2
Bluetooth Device Name Keychron Q6 HE
Battery 4000 mAh Rechargeable li-polymer battery
Operating Environment -10 to 50℃
Wireless Working Time (Backlit off) Up to 100 hours
