Keychron Q1 Max 75% RGB Shell White Wireless Mechanical Keyboard - Jupiter Brown Switch

RGB Backlight | Hot-Swappable | Aluminium Body | QMK/VIA Support | Gateron Jupiter Brown Switches

Keychron  |  SKU 66420  |  MPN Q1M-P3
$419.00

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

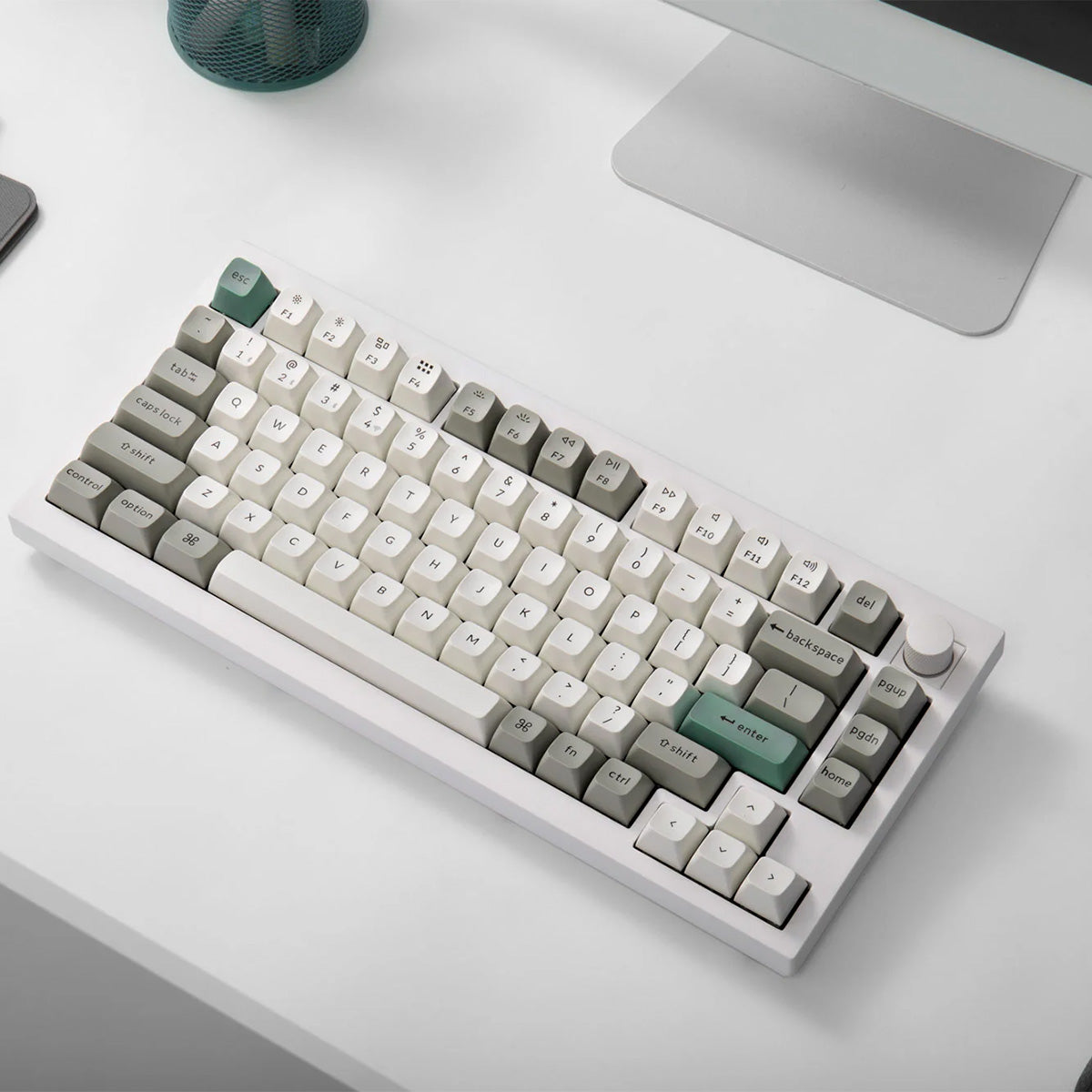

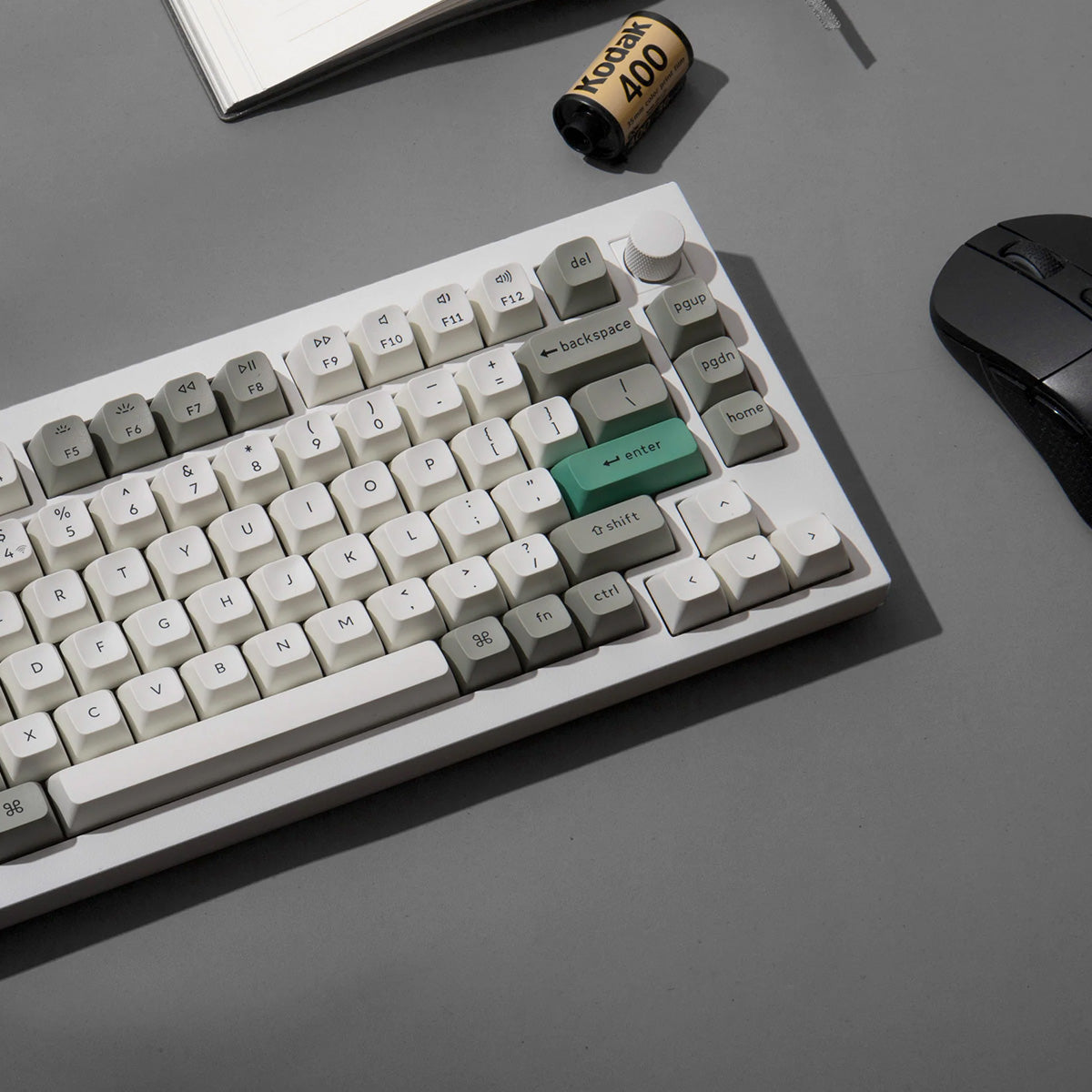

Keychron Q1 Max
Meet the Keychron Q1 Max, a full metal QMK/VIA wireless custom mechanical keyboard upgraded with a 2.4 GHz wireless connection, featuring a 1000 Hz polling rate. Elevating the typing experience further, it has been thoughtfully upgraded with multiple layers of acoustic foams, ensuring a premium sound quality with every keystroke.


Premium Features
Paired with many other premium features, such as the double-gasket design, PBT keycaps, screw-in stabilizers, and more, the Keychron Q1 Max promises an unparalleled typing journey that transcends expectations.

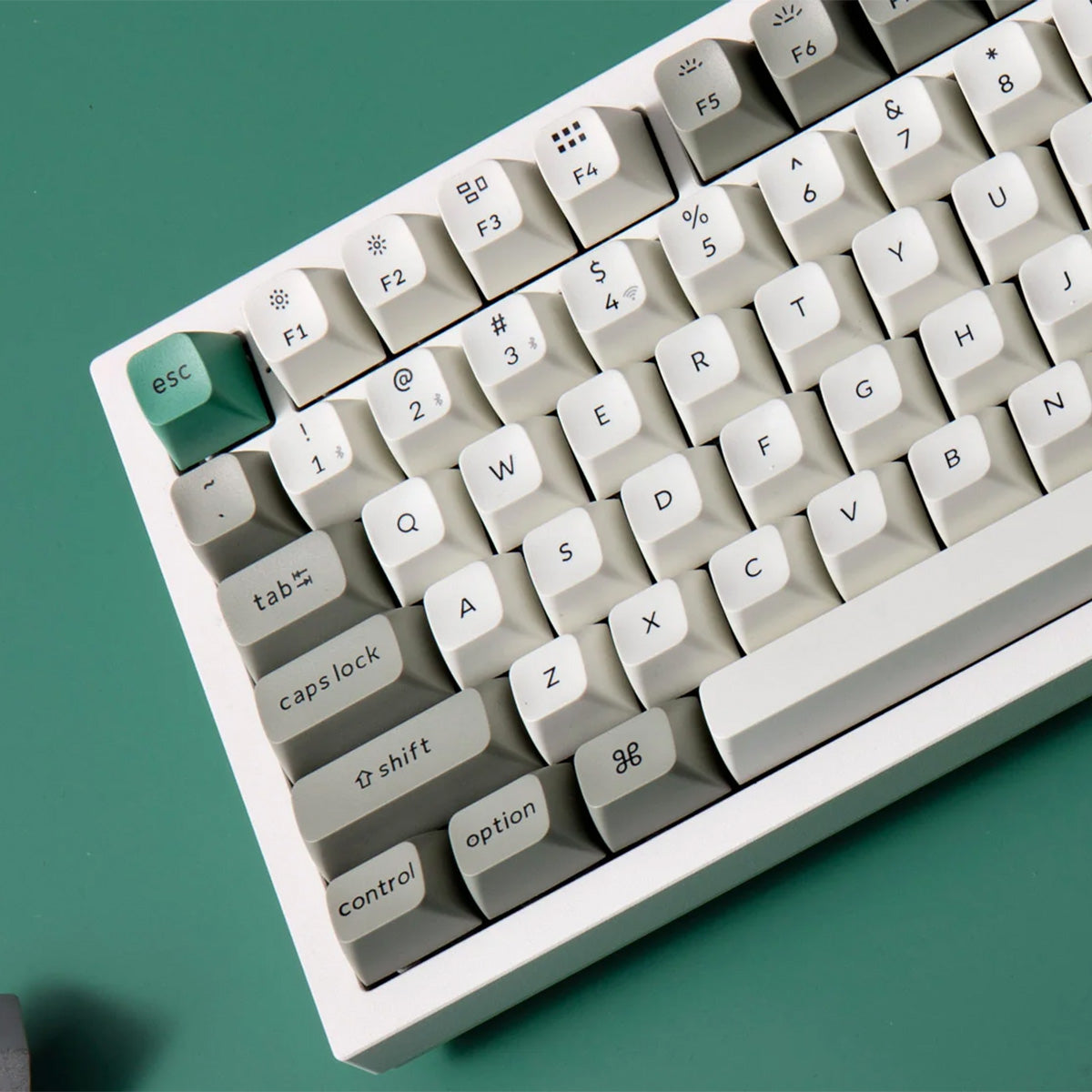

Double-Shot PBT Keycaps
The double-shot PBT keycaps of the Q1 Max provide excellent oil resistance and prevent the legends from fading out. Additionally, the keyboard offers two different keycap options to meet varying preferences and needs.


KSA Keycaps
Adopting an ergonomic design and classic appearance, it's ideal for standard typing situations.


OSA Side-Printed Shine-Through Keycaps
Less distracting during use and provides a fantastic backlight shine-through effect.


2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 Max via Bluetooth 5.1 to three devices.


A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q1 Max.


Significantly Enhanced Acoustic Foams
Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.


Easy Assemble
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.


An Epic Core Inside The Keyboard
A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.


Double-Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.


Suitable for All Devices
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q1 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.


Program The Q1 Max with QMK & VIA
Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the QMK/VIA.


Hot-Swappable
Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q1 Max with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.


South-Facing RGB
Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.

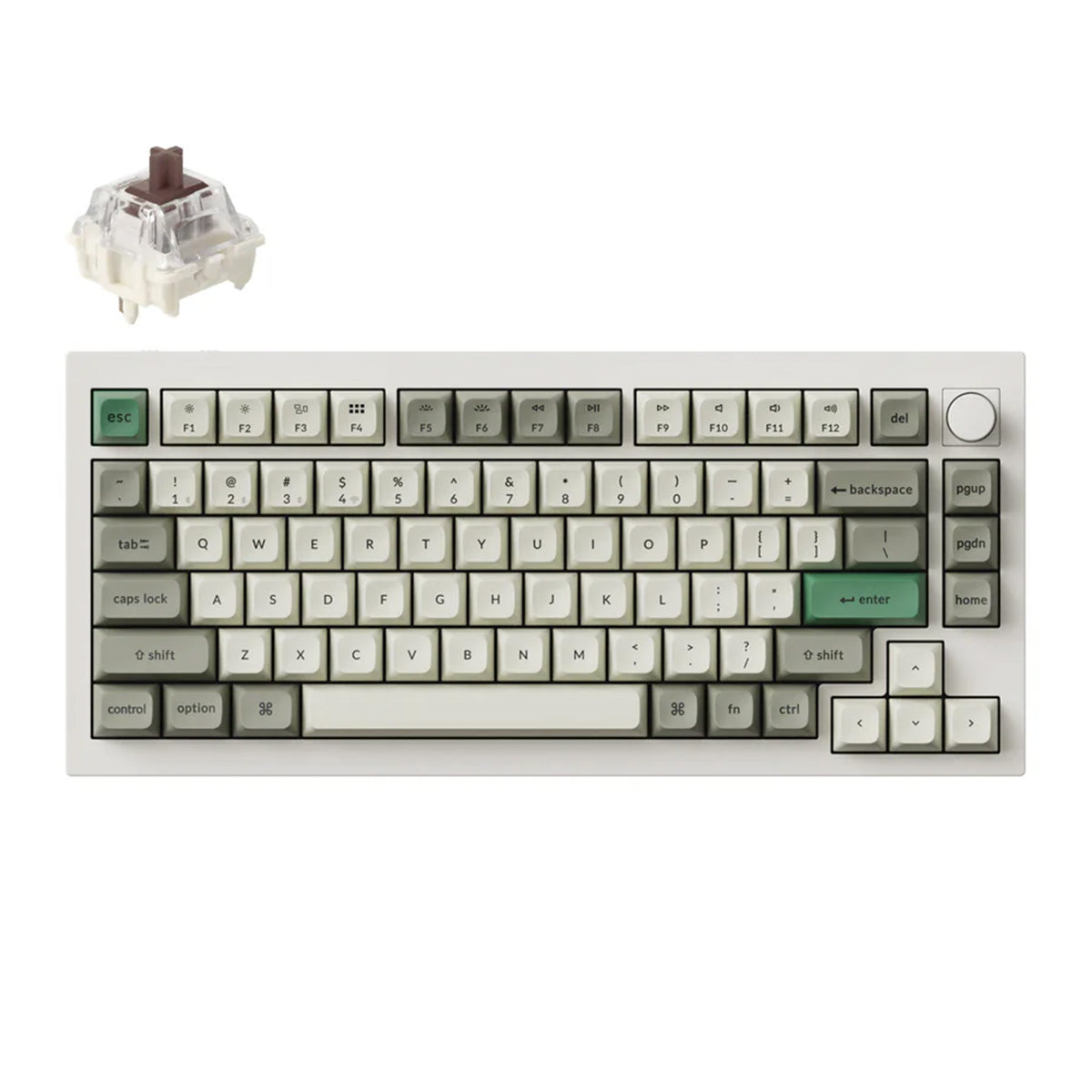

Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.


PCB Stabilizers
No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.

Specifications

Width 145 mm
Length 327.5 mm
Front Height 22.6 mm (without keycaps)
Back Height 35.8 mm (without keycaps)
Feet Height 2.4 mm
Angle 5.2°
Weight 1724 g ± 10 g (Fully Assembled version)
Body Material Aluminum
Plate Material PC
Keycap KSA double-shot PBT keycaps (Fully Assembled version) / OSA side-printed double-shot PBT keycaps (Fully Assembled version)
Switch Gateron Jupiter (Fully Assembled version)
Stabilizer Screw-in PCB stabilizer
Backlight South-facing RGB LED
Hot-swappable Yes. Compatible with most 3 pin & 5 pin MX mechanical switches like Gateron, Cherry MX, Kailh, etc.
MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Polling Rate 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)
N-Key Rollover (NKRO) Yes, for both wireless and wired modes
Battery 4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off) Up to 180 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)
Bluetooth Version 5.1
Compatible System macOS / Windows / Linux
Connectivity 2.4 GHz / Bluetooth / Type-C wired
Bluetooth Device Name Keychron Q1 Max
Operating Environment -10 to 50℃
