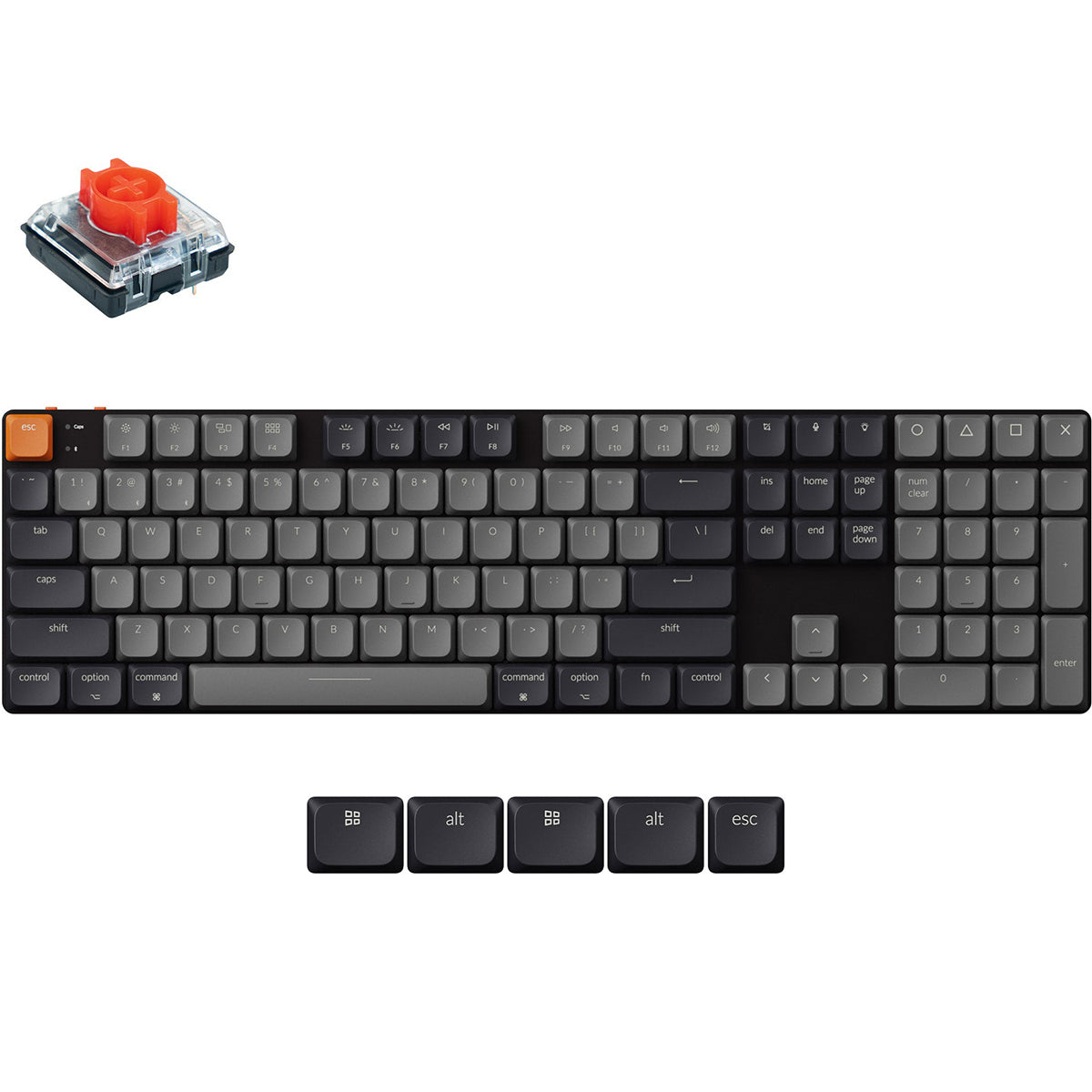

Keychron K5X Full Sized Low Profile Wireless Mechanical Keyboard - Red Switch
White Backlight | Gateron Low-Profile Red Switches
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

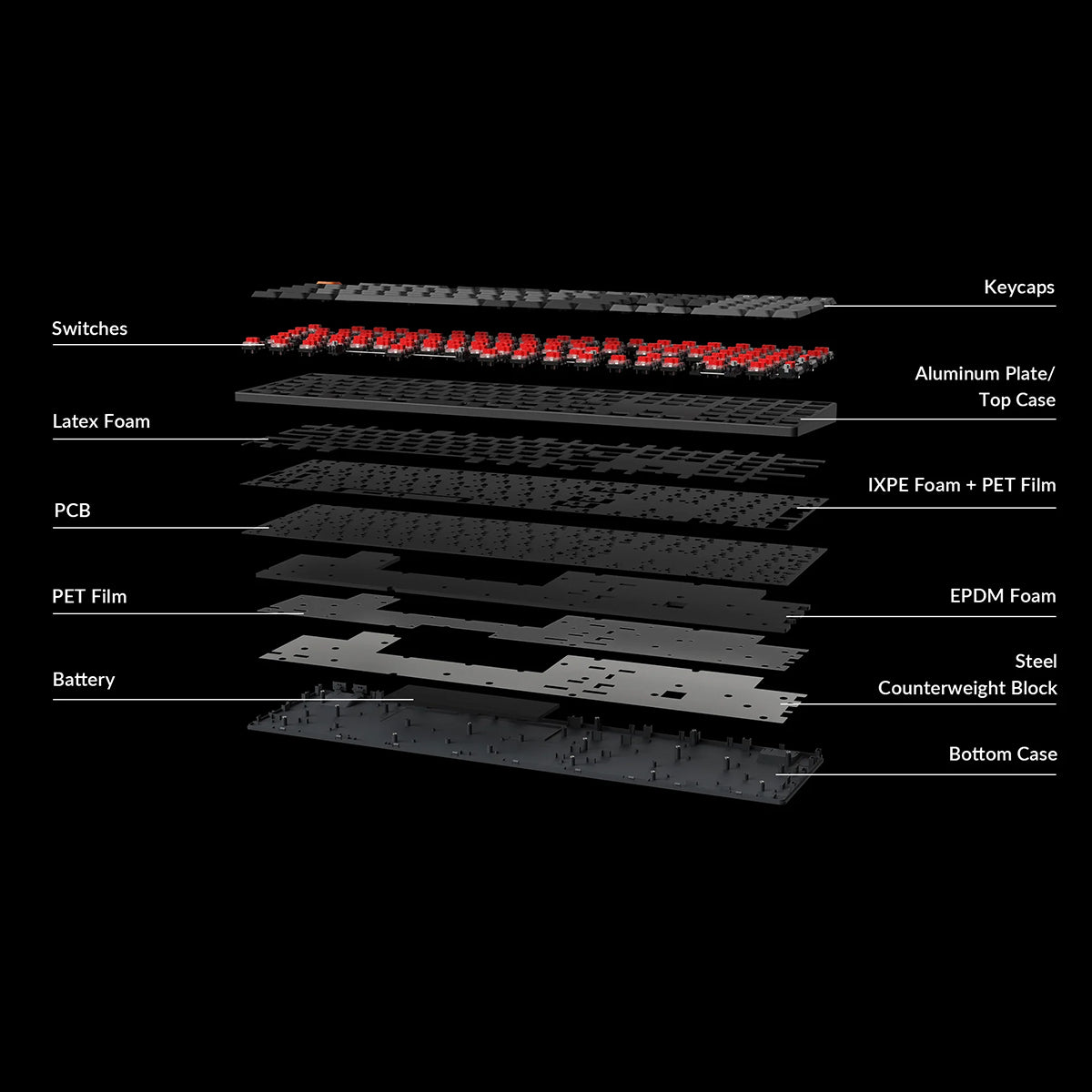

Enhanced Acoustic Foam
Elevate your typing with K5 QMK Version 2 featuring advanced IXPE acoustic foam for enhanced comfort, coupled with EPDM foam and latex foam for superior key switch support, responsiveness, and durability, it redefines quiet, comfortable and responsive typing.
Program with QMK & Launcher
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Wireless Connection
An excellent solution for multitasking. Connects the K5 QMK Version 2 with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.2 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows.

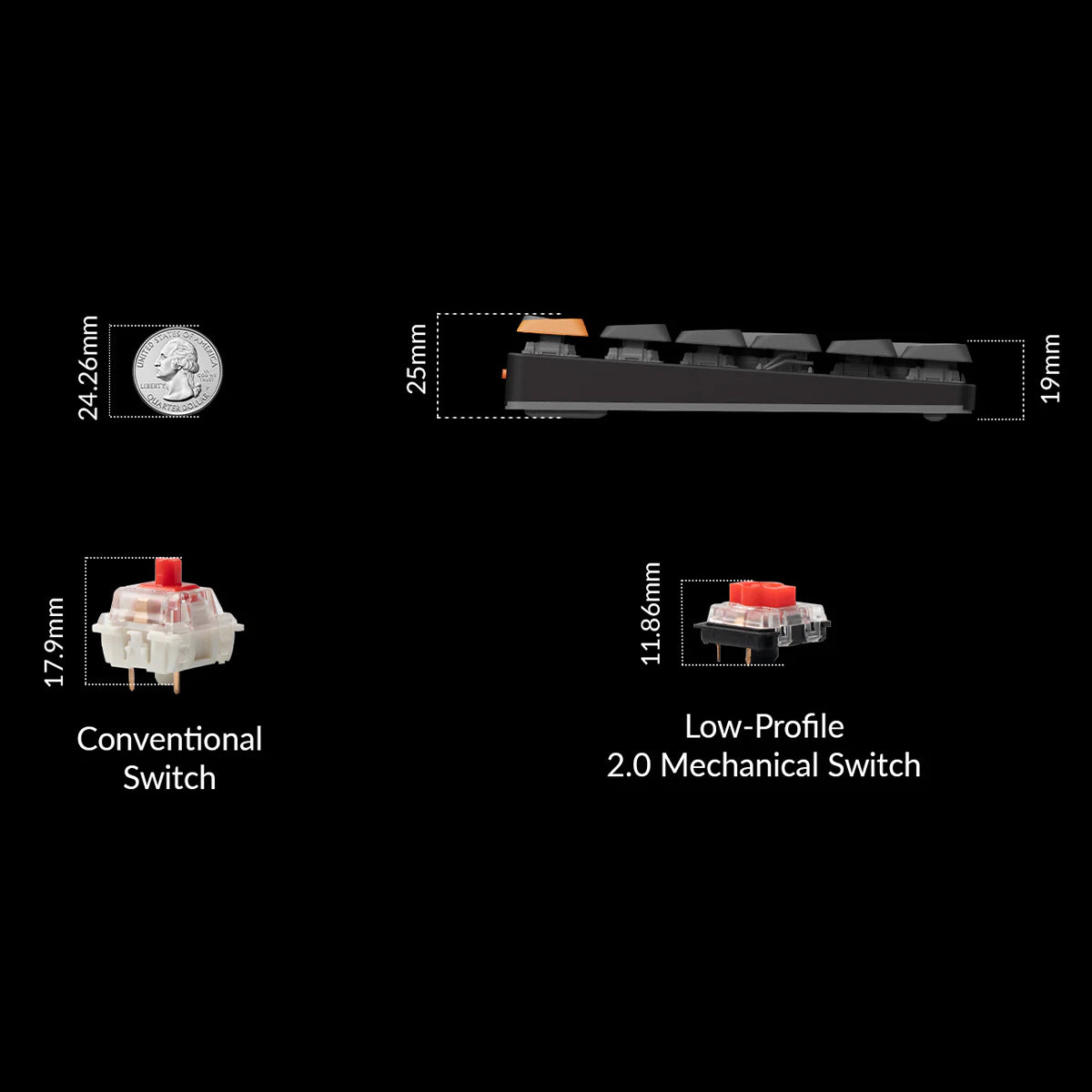

Ultra-Slim
The innovative Keychron Low-Profile 2.0 Mechanical Switch is 33% slimmer than conventional normal profile switches makes the Keychron K5 QMK Version 2 one of the thinnest wireless mechanical keyboards in the world. While still delivering a distinguished tactile response.
Suitable For All Devices
Offers a Mac layout while still being compatible with Windows, the K5 QMK Version 2 is one of the few on the market that has the same multimedia and function key as Apple keyboards for Mac users, but with more tactile feedback.
You can even configure different keymaps for both Mac and Windows devices. While Keychron Launcher web app is compatible with macOS, Windows, and Linux. Includes keycaps for both macOS and Windows to allow you to switch between operating systems with ease.
An Epic Core Inside
An ultra-low-power ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz on wired mode (125Hz on wireless mode) right out of the box, which makes the latency hardly noticeable even in competitive games.
Keychron Low Profile 2.0 Mechanical Switch
The Keychron Low-Profile MX 2.0 Mechanical Switch is engineered for enhanced reliability and performance. Pre-lubed for a precise and smooth feel, they offer a dependable fingertip experience, whether you prefer the linear (red) or tactile (brown) switch options.
Ergonomic Support
Three levels of adjustable typing angle (3.37º, 4.36º and 6.56º) aim to provide long-lasting ergonomic support for your wrist.
Redesigned Stabilizers
We’ve redesigned the stabilizers to make it stay on the level the same way as the switch while making sure it still delivers reliability and less wobble on the big keys like the space bar, left Shift, backspace, and Enter key.
Specifications
Specifications
Number of Keys | 108 (100%) |
Switches | Keychron low-profile mechanical |
Switch Face | North-facing |
Number of Multimedia Keys | 12 |
Frame Material | ABS+Aluminum frame |
Keycap Material | Shine-through ABS |
Layout | ANSI |
Polling Rate (Wired Mode) | 1000Hz |
Polling Rate (Wireless Mode) | 125Hz |
N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
Backlit | 22 types of RGB backlight options plus endless possibilities |
Battery | 2000 mAh rechargeable li-polymer battery |
BT Working Time (Backlit off) | Up to 160 hours (Lab test result may vary by actual use) |
BT Working Time (RGB) | Up to 105 hours (Lowest brightness) |
Connection | Bluetooth and Type-C cable |
Bluetooth Version | 5.2 |
Bluetooth Device Name | Keychron K5 Version 2 |
Compatible System | macOS / Windows / Linux |
Dimension | 424 mm x 119 mm (16.69 x 4.69") |
Weight | 732g / 1.61 lbs |
Height without Keycap (Front) | 9.6 mm (0.38") |
Height without Keycap (Rear) | 16.5 mm (0.65") |
Height incl. Keycap (Front) | 20.6 mm (0.81") |
Height incl. Keycap (Rear) | 25.2 mm (0.99") |
Typing Angle | 3.37º, 4.36º, and 6.56º |
MCU | Low-power 32-bit ARM® Cortex™-M3 MCU WB32F3G71RCT6 (256KB Flash) |
Operating Environment | -10 to 50℃ |
