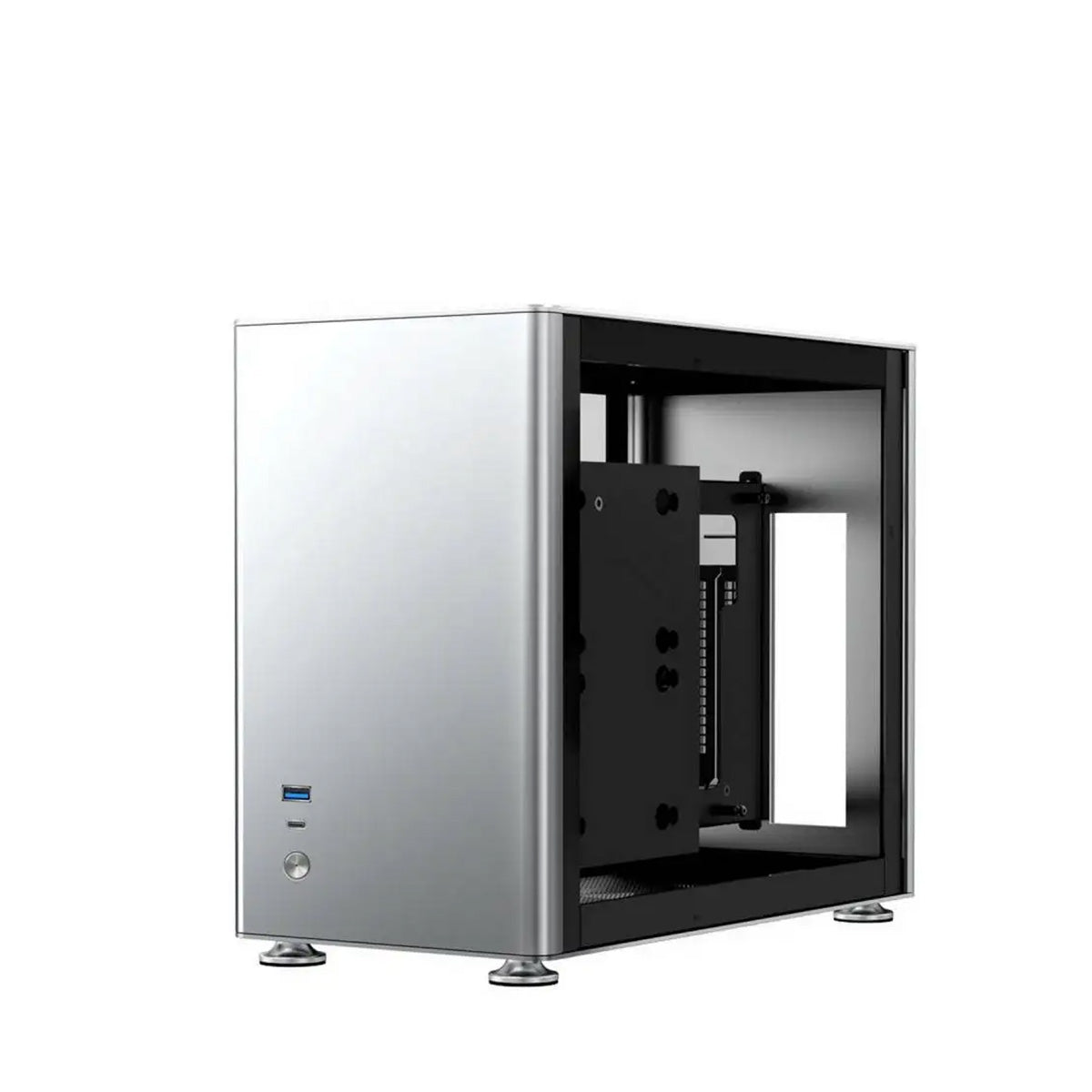

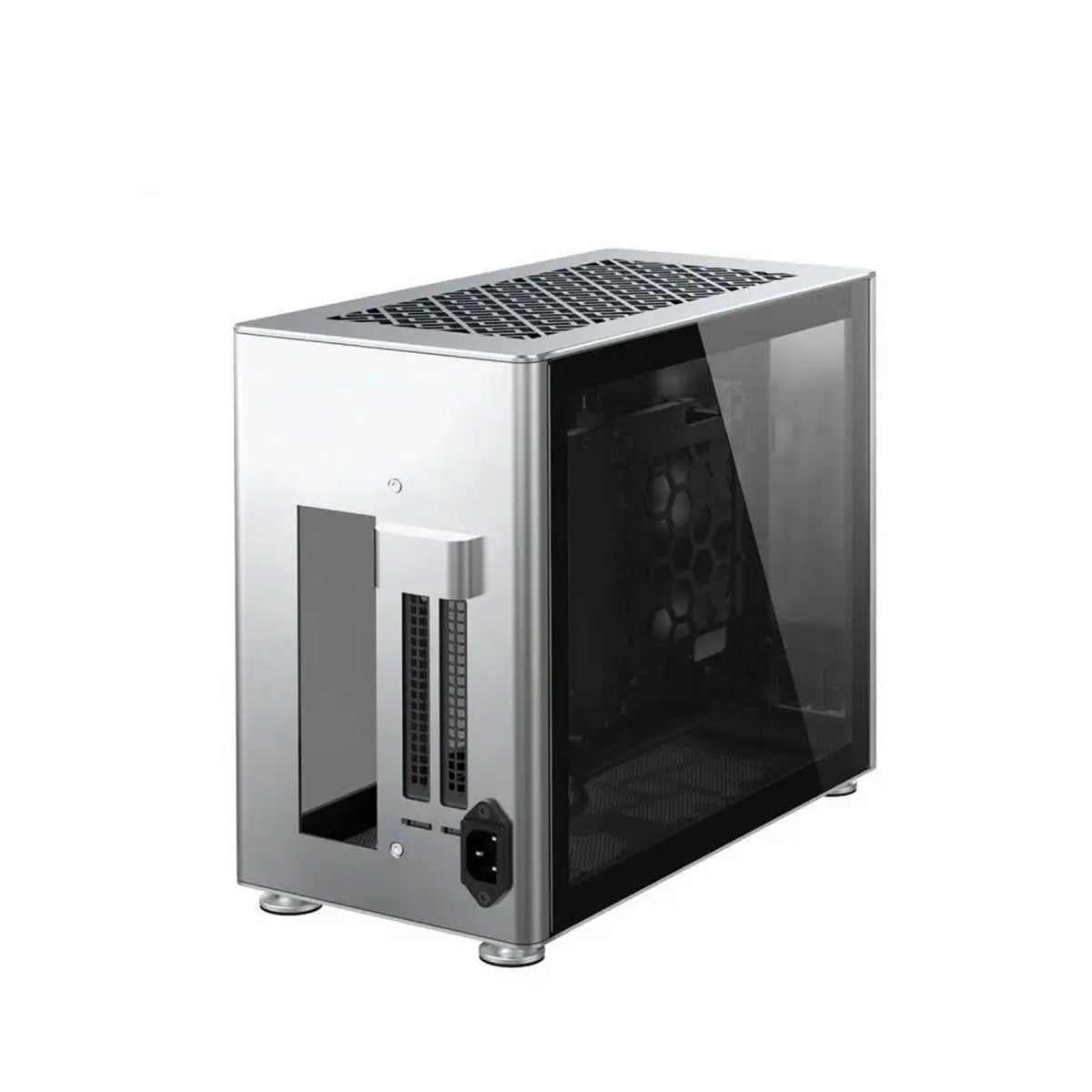

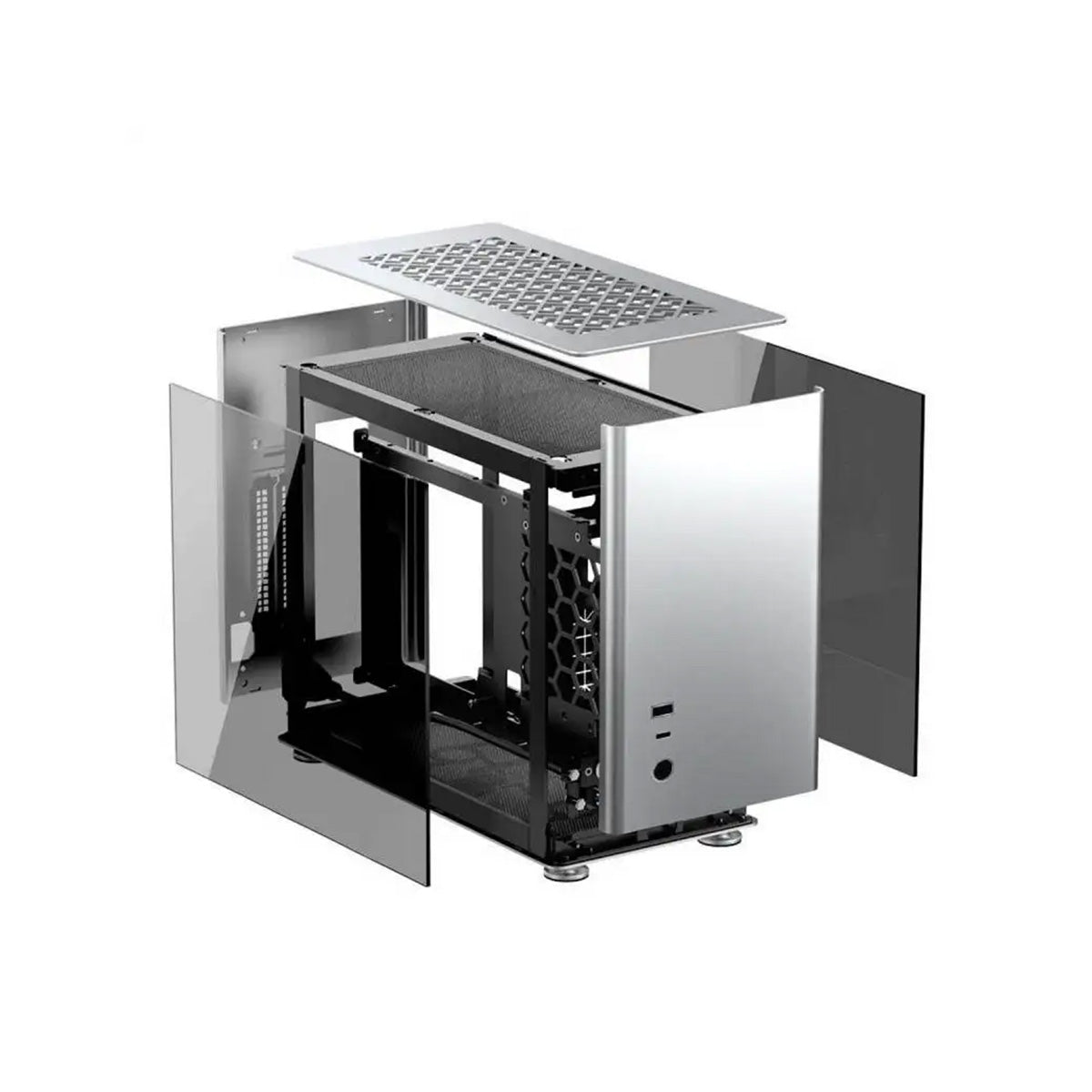

Jonsbo A4 Mini-ITX Case

Computer Lounge  |  SKU 56162

Out of Stock

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Description

The Concept

Designed for Mini-ITX boards with high performance CPU, and full-length dual slot graphics card. Liquid CPU cooler with 240mm radiator can be mounted at the top with two 120mm intake fans at the bottom to form a perfect vertical thermal convection inside the case.* Included high performance ADT-Link PCI-E extension cable for stability


Jonsbo A4 Mini-ITX case

  • Minimalist Aluminum External Design

  • 1.5mm Steel Dual Chamber internal structure

  • Vertical Thermal Convection Design

  • Screw-less Tempered Glass Panel Mounting

  • Removable 3mm Aluminum Top Panel

  • 325mm long Graphics card 240mm radiator support

  • Support SFX & SFXL Power Supply

  • Magnetic Aluminum Case Stand included

  • Included USB 3.0 &USB3.1 Gen2 Type-C connectors

  • Air Filters included for top and bottom openings.


ADT PCI-E raiser card included

Electromagnetic interference shielding covers the cable with conductive or magnetic materials to guard against incoming or outgoing emissions of electromagnetic frequencies, and minimize disturbance and degradation on performance. The cable utilizes a strong and durable PCB on each end to minimize signal loss while ensuring that the signals through PCI-E 3.0 x 16 8G are transmitted as precisely as possible.


ADT PCI-E raiser card/cable only support PCI-E 3.0x16, if needed to use on the PCI-E 4.0 environment, please adjust the BIOS to PCI-E Gen3. (Currently the graphics card has not yet used the full bandwidth of PC-E 3.0, in theory using with ADT raiser card should not cause performance lose)

Handsome Desktop

Screw-less smoked tempered glass panels fully display every RGB component of the system with its sleek, minimalist, sandblasted aluminum panel


Optimized Cooling Performance

TOP: Support 240 liquid cooler Base: Dual 120mm intake fans Cool air is pulled in from the base, and directed upward through the top bring out the heat away from the system.


Removable Filters

Washable high-airflow nylon filters


CNC Vented Top Cover

High-airflow top cover with nylon filter
