JDS Labs El DAC II
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
MEMS OSCILLATOR
EL DAC II's USB engine is clocked by an SiTime MEMS oscillator with ±10ppm frequency stability, delivering pristine jitter.
RELAY MUTING
Microprocessor controlled relays are standard in EL DAC II so that power up and input mode changes are free of audible transients.
USB AUDIO CLASS 2
EL DAC II supports up to 32/384kHz PCM over a custom XMOS XU208 based UAC2 engine. While we claim no measurable superiority of high sampling rates, UAC2 and ASIO support satisfy your pursuit of bitperfect listening.
EXTERNALLY POWERED
EL DAC II is powered by a perfected supply network, with an external AC transformer and 13 regulators that ensure consistent rail voltage and super low ripple. Never be bothered by USB hubs or OS power difficulties again.

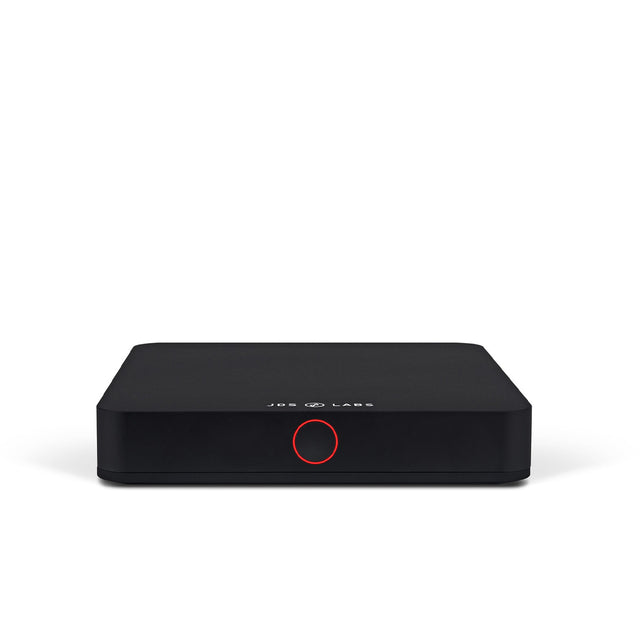

LIGHT RING
Enjoy the presence of your EL DAC II with front and center mode selection via a touch-sensitive light ring.
DIFFERENTIAL SUMMING OUTPUT
Differential output of a AK4493EQ DAC is summed by a low noise NJR output stage, with DC coupling throughout. Drive any load you wish.

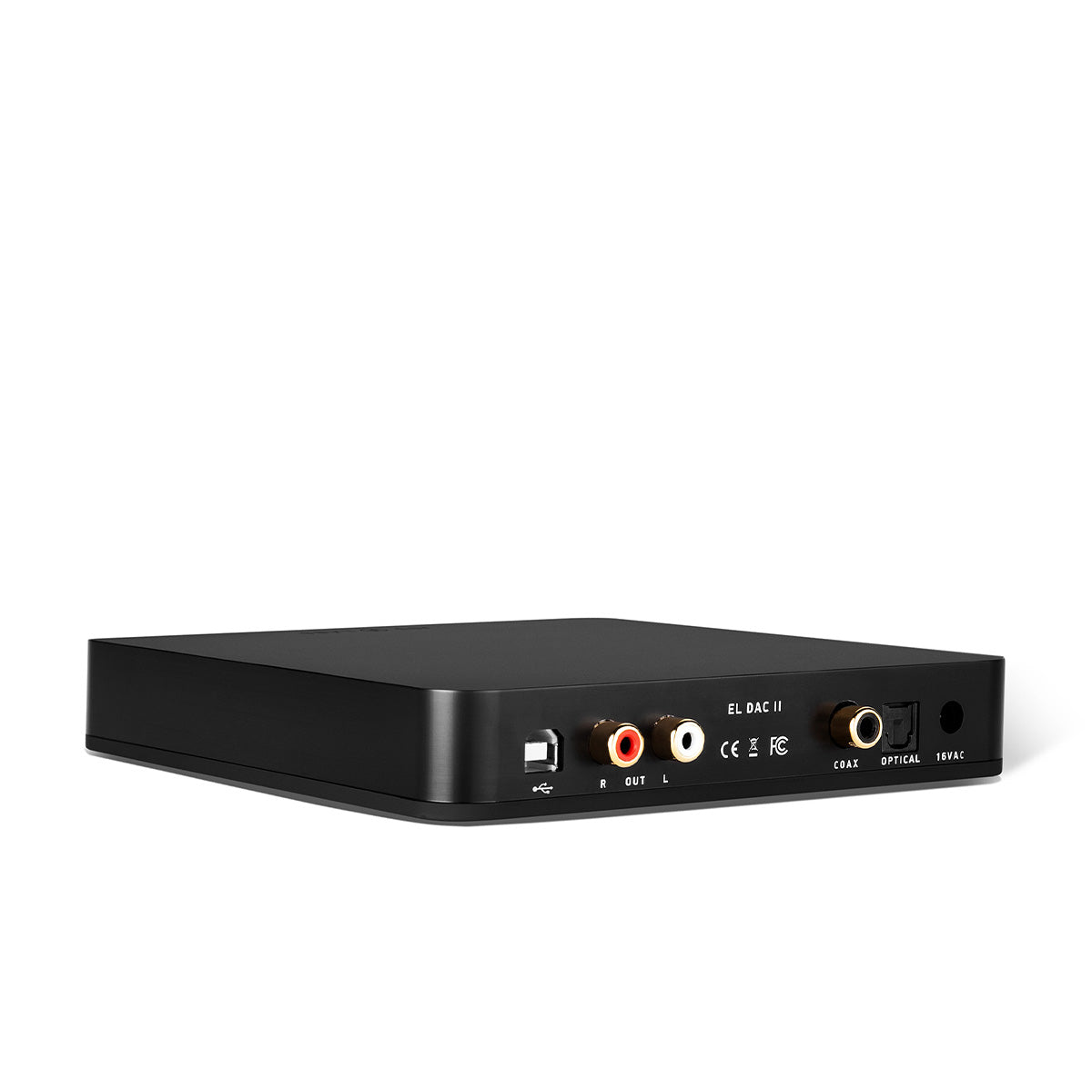

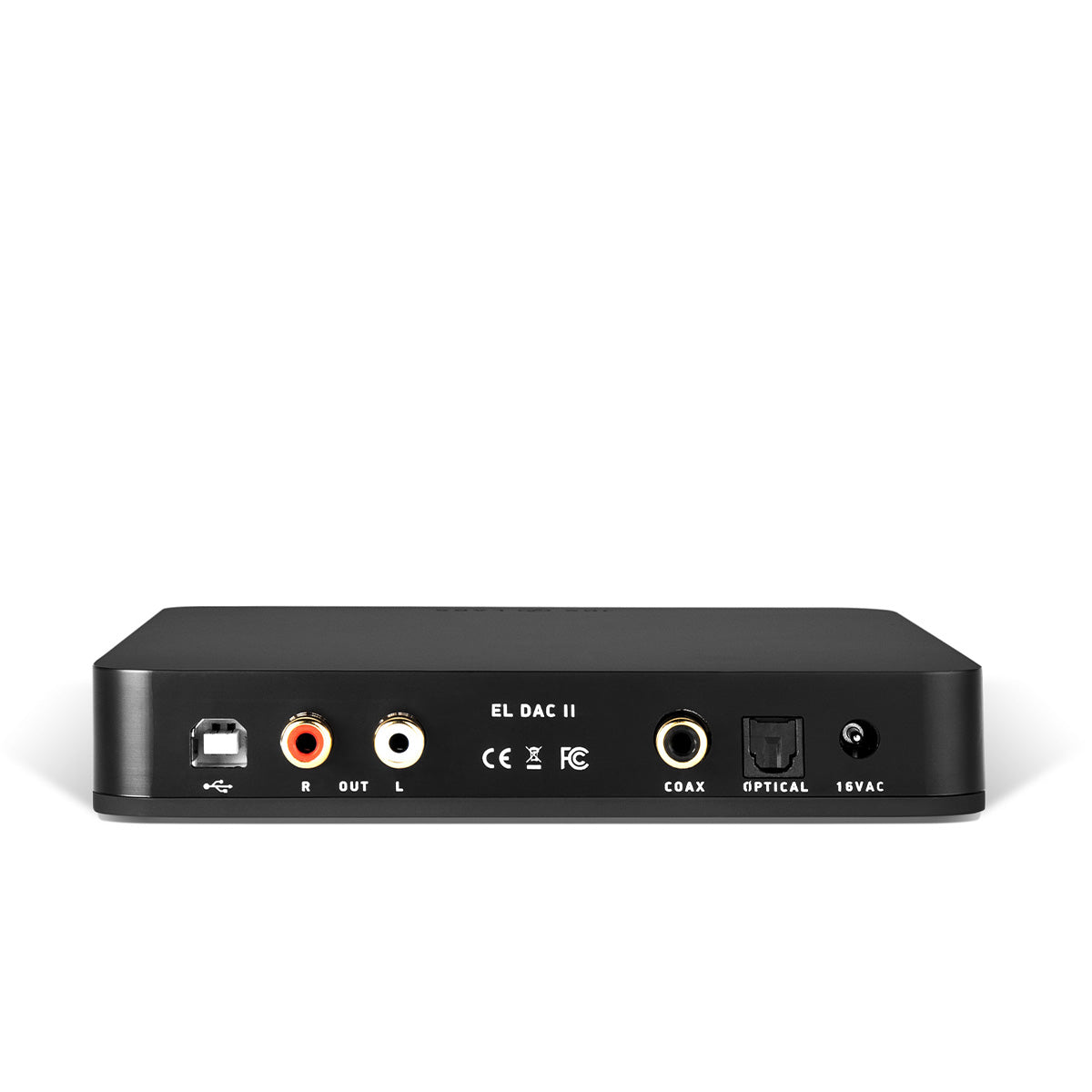

TRANSFORMER ISOLATED S/PDIF
Coaxial S/PDIF input is isolated using a Pulse transformer to minimize the possibility of ground loop noise.
4-LAYER PCB
EL DAC II is built an a 4-layer, star grounded printed circuit board with proper 90-ohm characteristic impedance of its USB input.
UPGRADEABLE FIRMWARE
Our custom XMOS based firmware configures and manages EL DAC II's USB input and AK4493, with DFU support for possible future feature additions.
