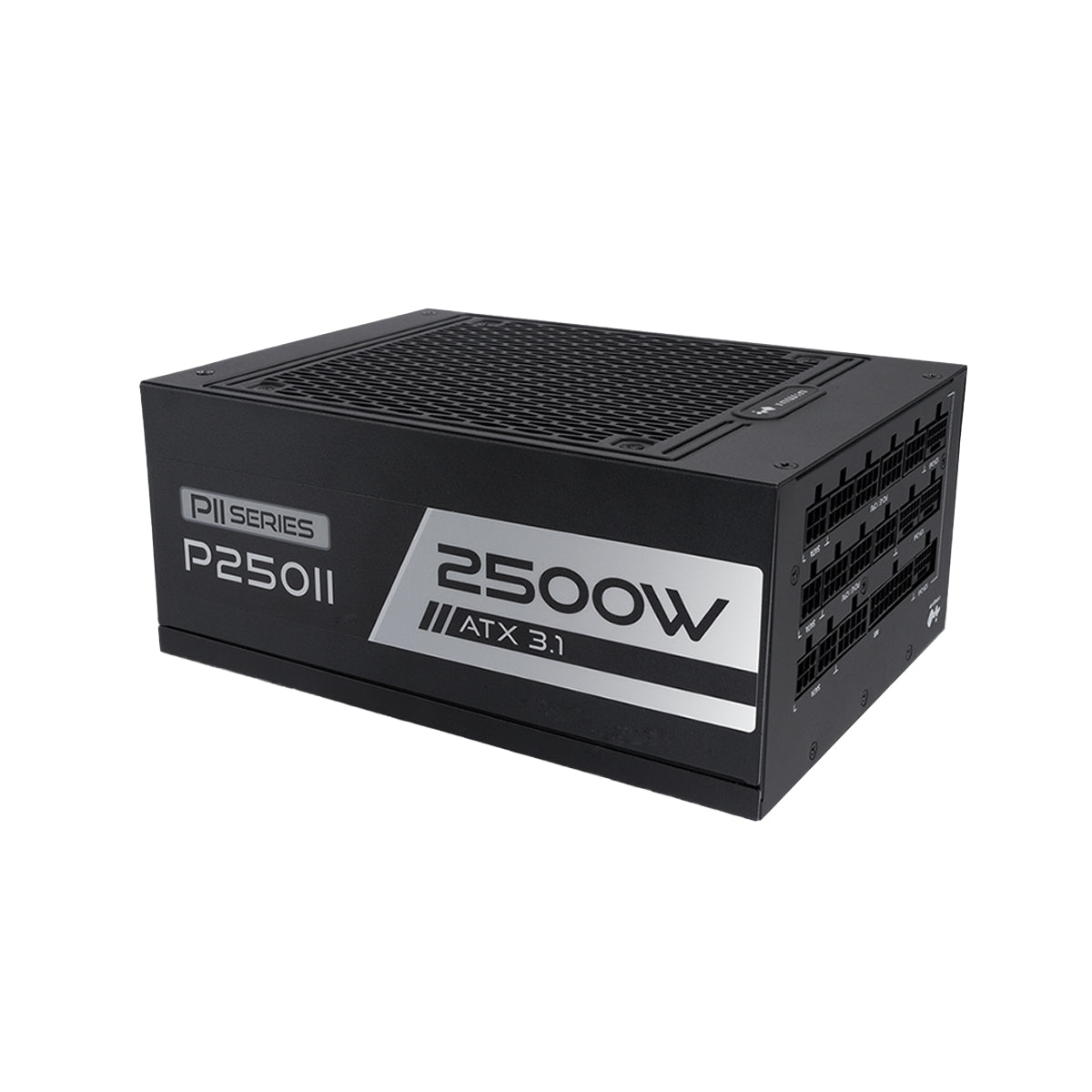

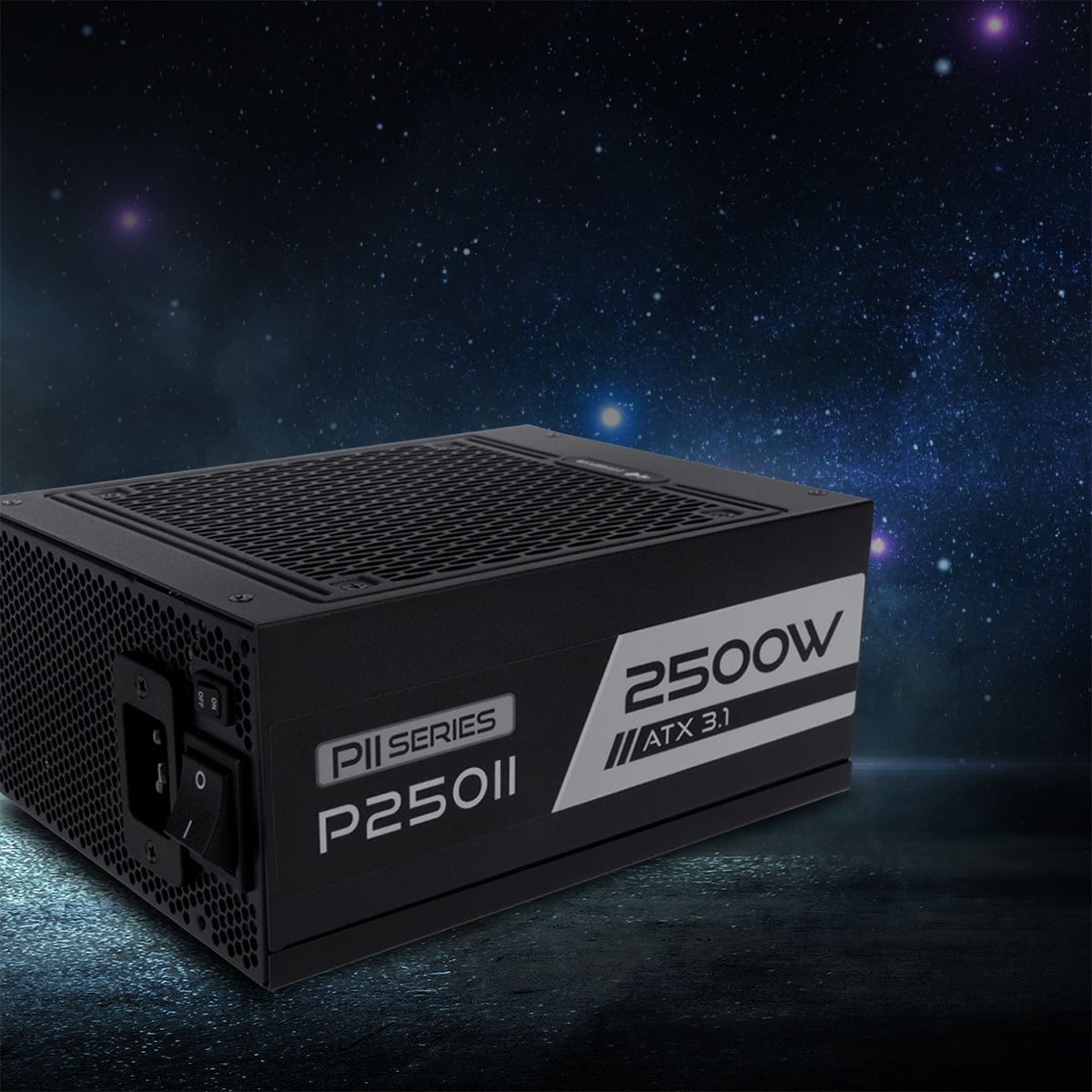

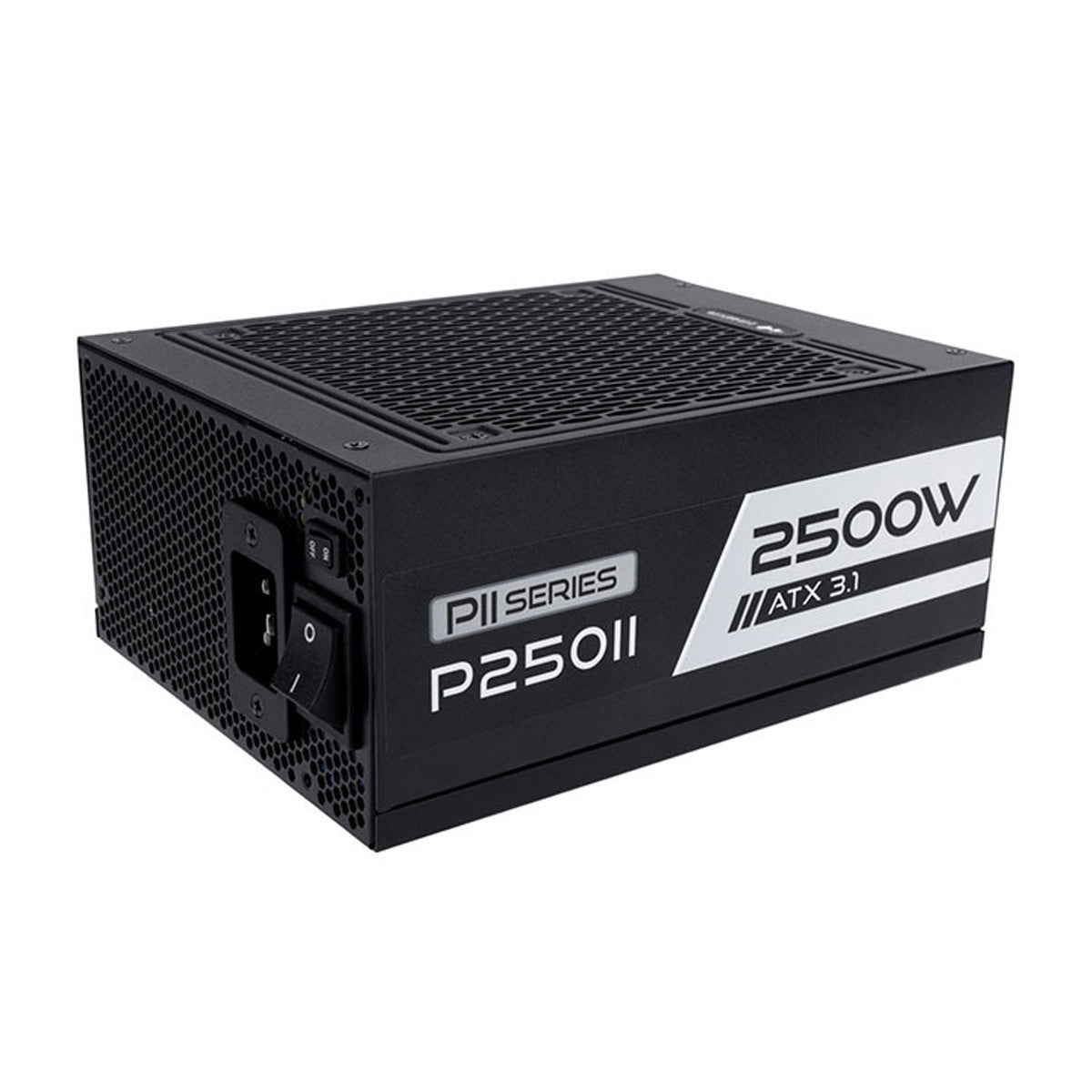

InWin P250II 2500W Fully Modular 80 Plus Platinum ATX3.1 Power Supply
This power supply requires a NZ 15A wall socket and will not connect to standard NZ 10A socket.
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
InWin P250II 2500W Fully Modular 80 Plus Platinum ATX3.1 Power Supply
Note: This power supply requires a NZ 15A wall socket and will not connect to a standard NZ 10A socket.
Fully Meets the Newest Generation (ATX3.1) of Intel’s PSDG
- Includes 16-pin Connector with High-Quality 16 AWG cable
- Fully Modular with High Quality Flat Cables
- Highly Reliable Japanese Aluminium Electrolytic Capacitors
- Multi-Protection Safeguards (OCP, OVP, UVP, SCP, OTP, OPP)
Specifications
Specifications
| Note: This power supply requires a NZ 15A wall socket and will not connect to a standard NZ 10A socket. | |
| Part Number | IW-PS-PII2500W |
| Total Power | 2500W@200-240Vac. 1600W@100-240Vac. |
| Material | SECC |
| Type | ATX12V V3.1 |
| Cable Management | Fully Modular |
| PFC | Active PFC (> 0.95) |
| Efficiency | 80 PLUS® Platinum (Up to 92%) |
| AC Input | 100-240Vac., 15-20A, 50-60Hz |
| Fan | 135 mm Double Ball Bearing Fan |
| Typical Load Fan Noise (dBA) (50% Loading) | < 25 dB(A) |
| Operating Temperature Range (°C) | 0 - 50 °C |
| Full Protection | OCP / OVP / UVP / SCP / OTP / OPP |
| Safety Certifications | cTUVus / TUV / CB / CE / FCC / EAC / RCM / UKCA |
| Warranty | 10 Years |
| Connector |

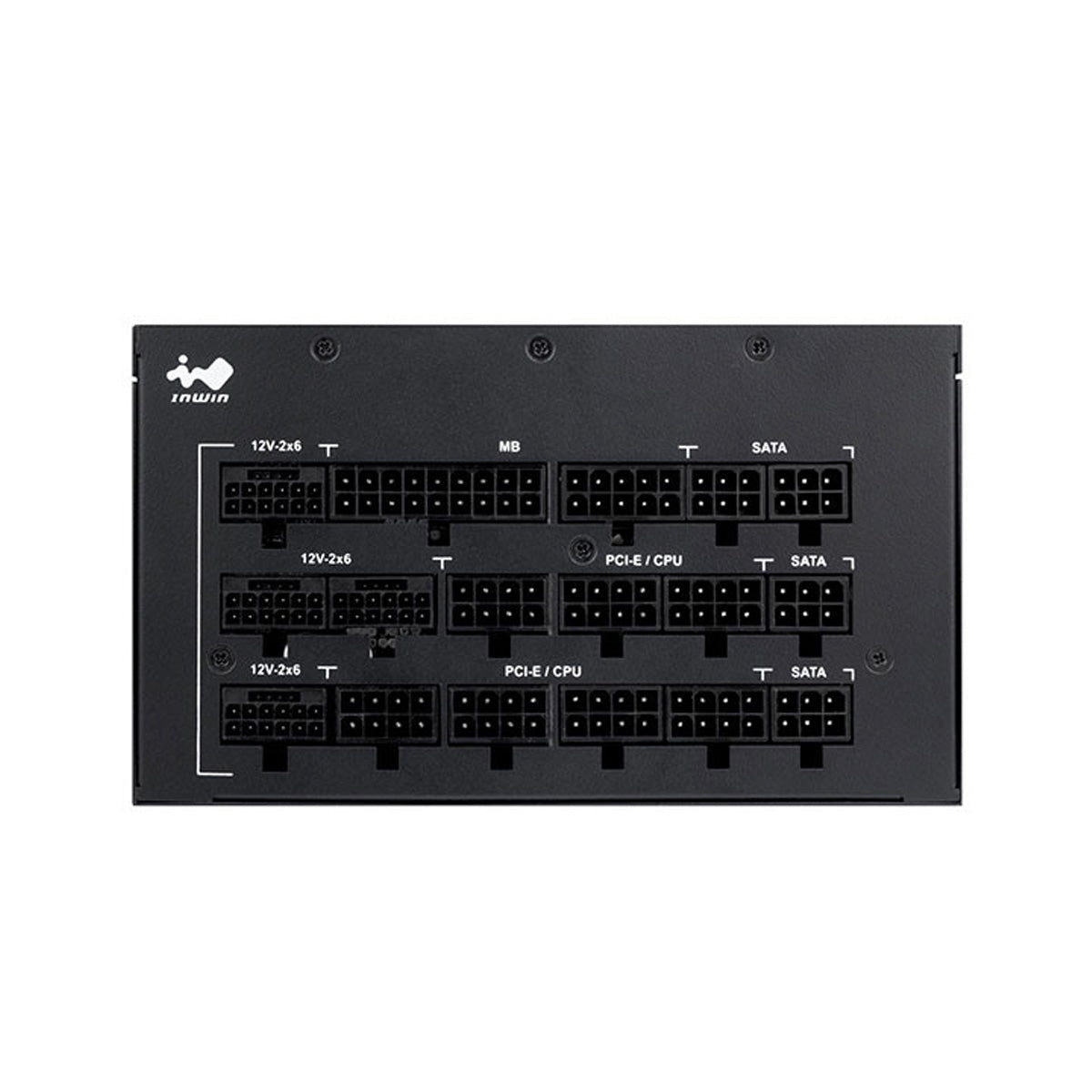

24 Pin Motherboard: 1 8 (4+4) Pin CPU: 2 8 (6+2) Pin PCI-E: 5 12V-2x6: 4 SATA: 12 |
| Compliance | InWin products comply with RoHS regulations |
| Model | P250II |
| AC INPUT | 100-240Vac, 14.8-7.5A, 50-60Hz 2500W@200-240Vac. 1600W@100-240Vac. |
| Max. Output Current | +3.3V: 22A +5V: 22A +12V: 208.3A -12V: 0.5A +5VSB: 3A |
| Max. Combined Power | +3.3V: 120W |
