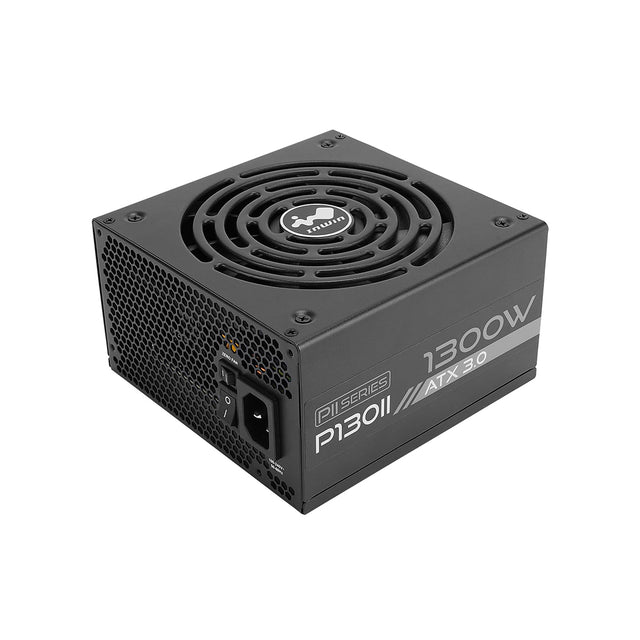

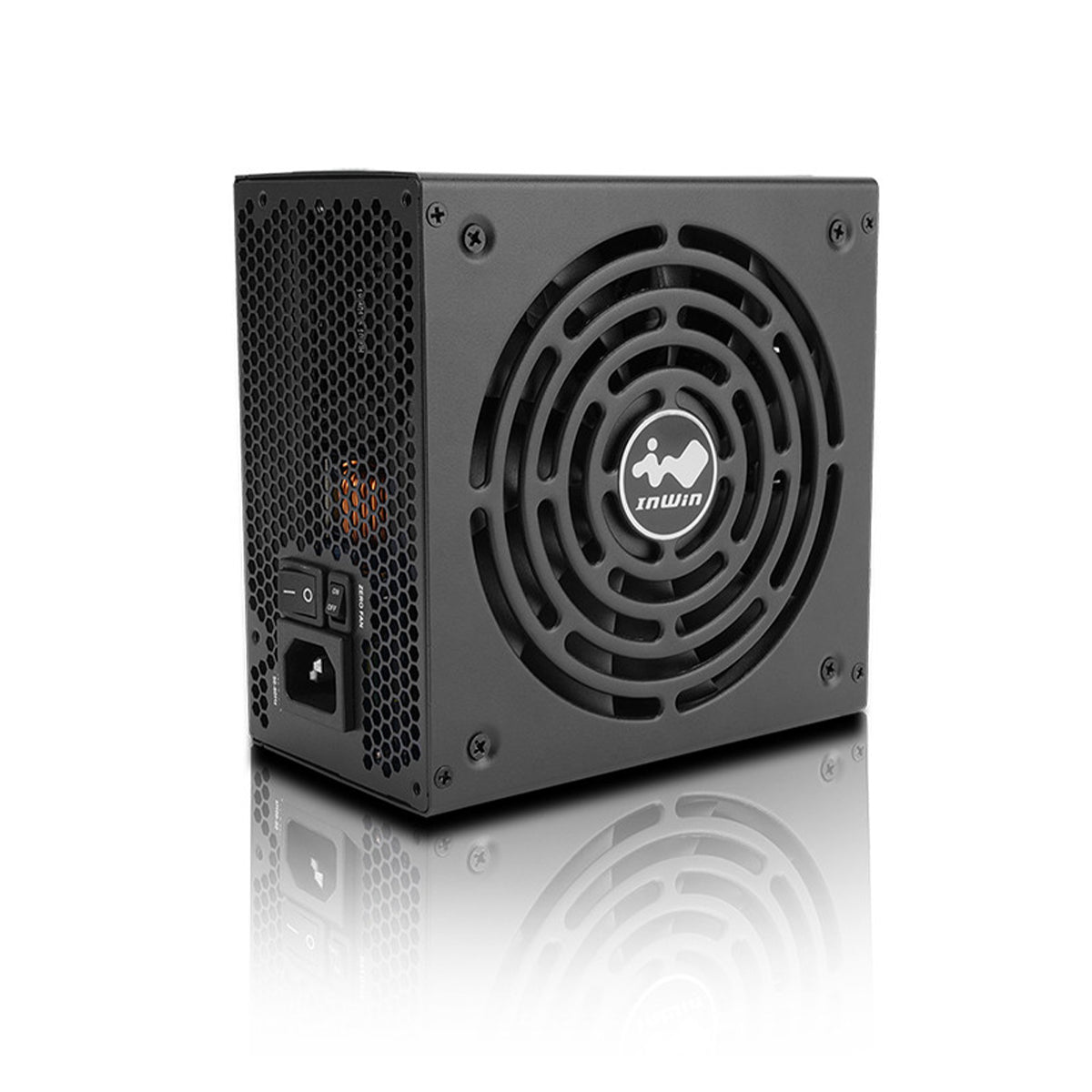

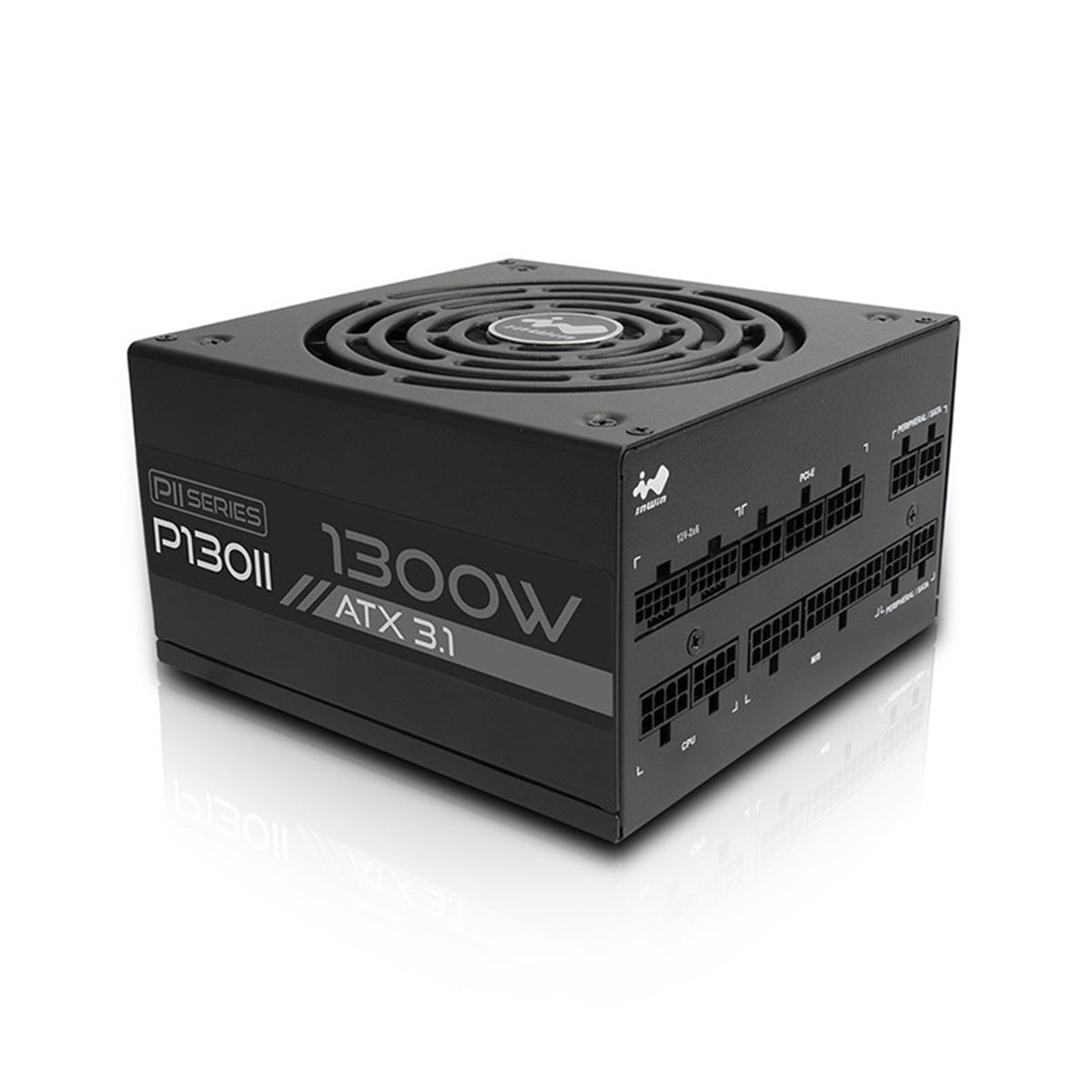

InWin P130II 1300W Fully Modular 80 Plus Platinum ATX3.1 Power Supply
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Flex the ATX 3.1 Specs
The PII Series ATX 3.1 fully meets the newest generation of Intel’s PSDG (power supply design guide). This avoids potential system instability or power failure, provides better output stability, and allows users to game or work with peace of mind.
Fully Modular and Safety First! Up to 600W PCI-E 12V-2x6 Connector
The fully modular and flexible flat cables allow builders to limit cable clutter within a PC. Includes PCI-E 12V-2x6 and a 16-pin connector with high-quality 16 AWG cable. Exclusive for next-generation high-performance graphics cards. Fully unleash your GPU’s powerful performance!
Highly Reliable Japanese Aluminium Electrolytic Capacitor
Premium Japanese capacitors with 105°C rating improve power stability at higher temperatures and provide an ultra-long lifespan.
Cool On Demand

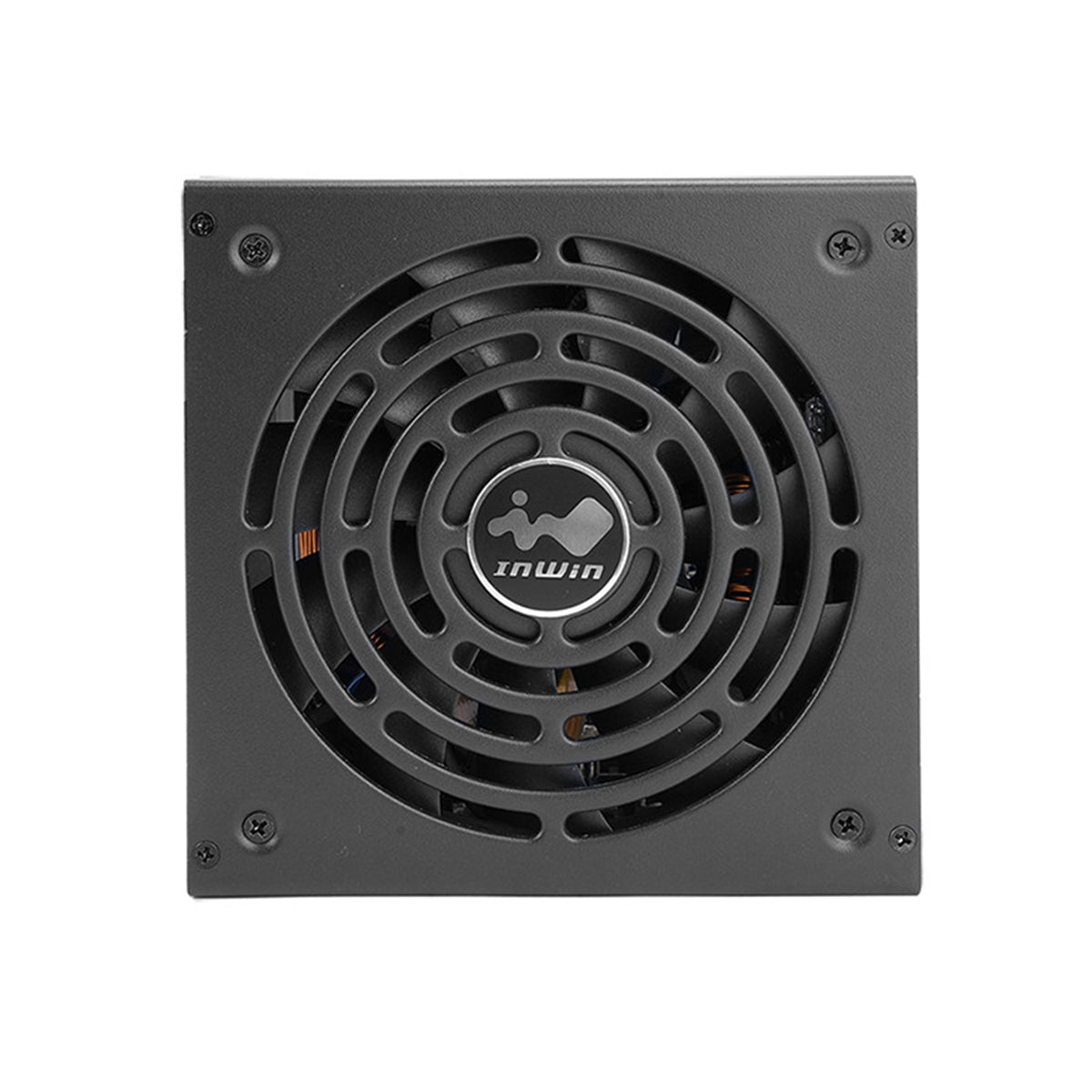

The FDB 135mm fan will switch to hibernation mode automatically once the system’s load is lower than 20%. This maintains the power supply’s stability and noise levels. The fan will begin to rotate when the system’s load is over 20%.
Multi-Protection Safeguards
The PII Series ATX 3.1 comes with multiple safety protections to ensure quality and safe power usage.
80 PLUS® Platinum Certified for High Efficiency
The PII Series ATX 3.1 is 80 PLUS® Platinum certified, delivering up to 92% conversion efficiency. Its new circuit design maintains consistent efficiency even under low load conditions.
5V and 3.3V DC to DC Design
Equipped with a DC to DC converter design, the PII Series provides superior dynamic response and supports greater system stability.
Specifications
Specifications
| Part Number | IW-PS-PII1300W |
| Total Power | 1300W |
| Material | SECC |
| Type | ATX12V V3.1 |
| Cable Management | Fully Modular |
| PFC | Active PFC (> 0.95) |
| Efficiency | 80 PLUS Platinum (Up to 92%) |
| MTBF (Hours) | > 100,000 hrs. |

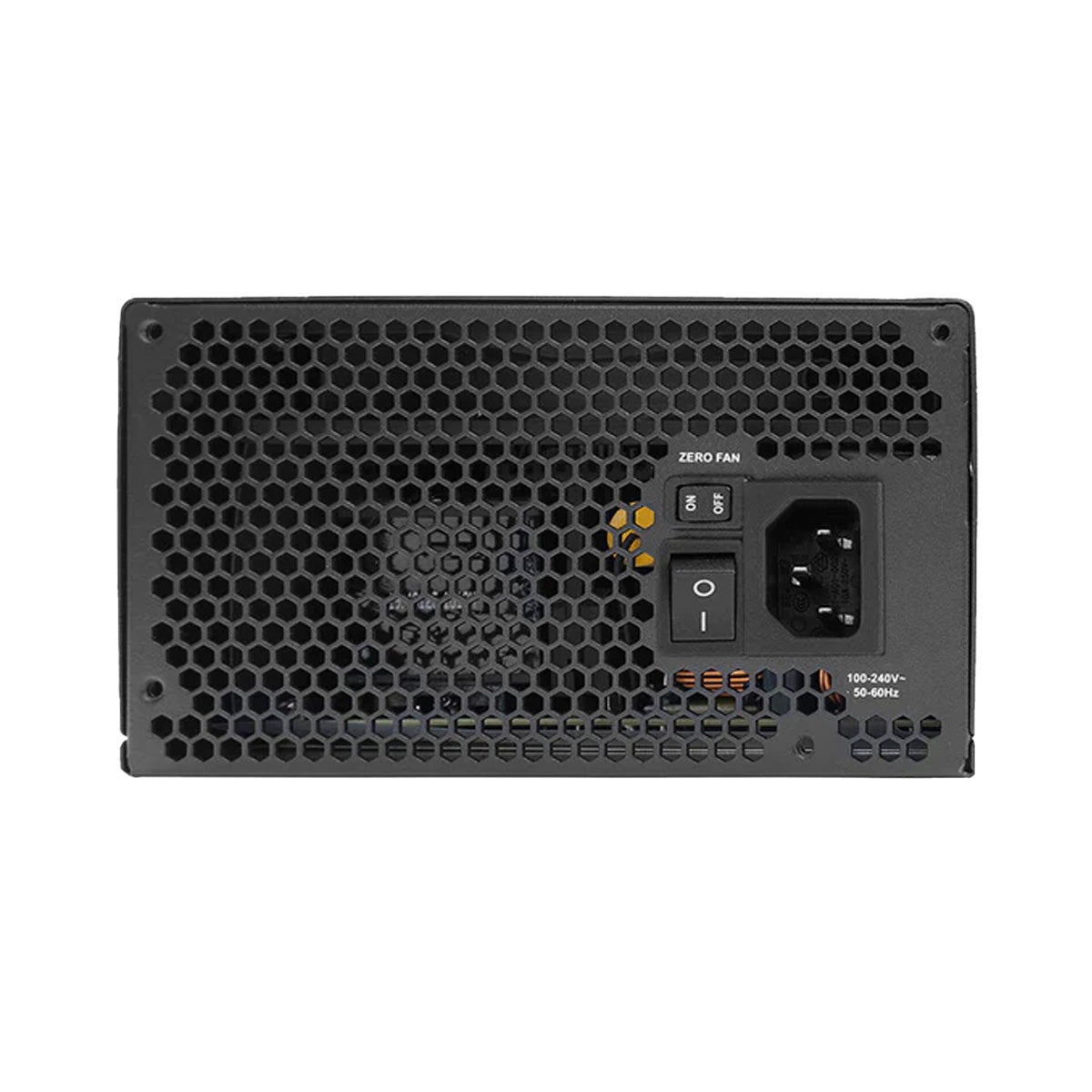

| AC Input | 100-240Vac, 15-8A, 50-60Hz |
| Fan | 135 mm FDB Fan |
| Typical Load Fan Noise (dBA) (50% Loading) | < 25 dB(A) |
| Operating Temperature Range (°C) | 0 - 50 °C |
| Full Protection | OCP / OVP / UVP / SCP / OTP / OPP |
| Safety Certifications | cTUVus, TUV, BSMI, RCM, CE, FCC, UKCA, CB |
| Dimensions (L x W x H) | 150 x 150 x 86 mm |
| Package Dimensions (L x W x H) | 355 x 210 x 105 mm |
| Net Weight | 2.6 kg 2.8 kg |
| Gross Weight | 3.2 kg 3.4 kg |
| Warranty | 10 Years |

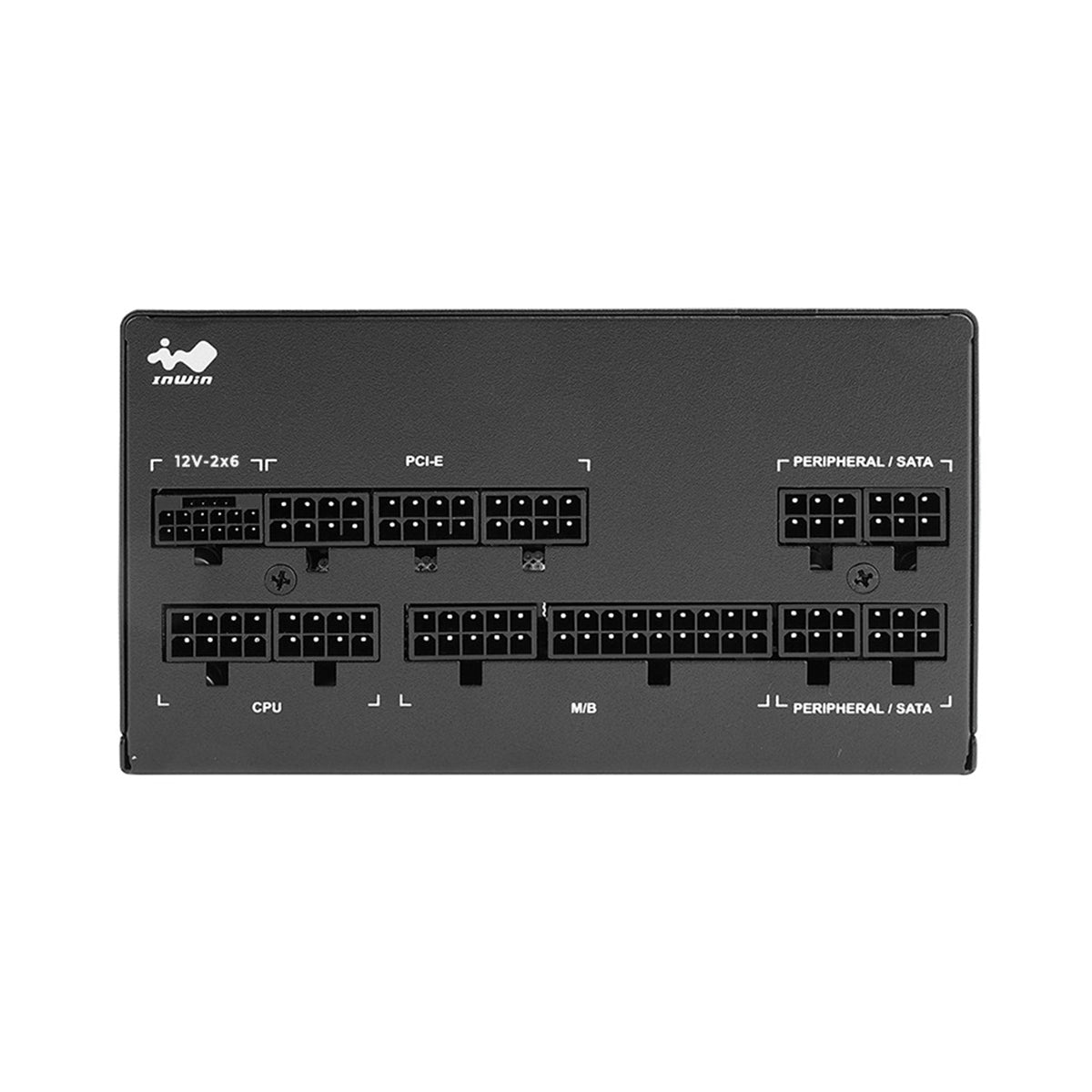

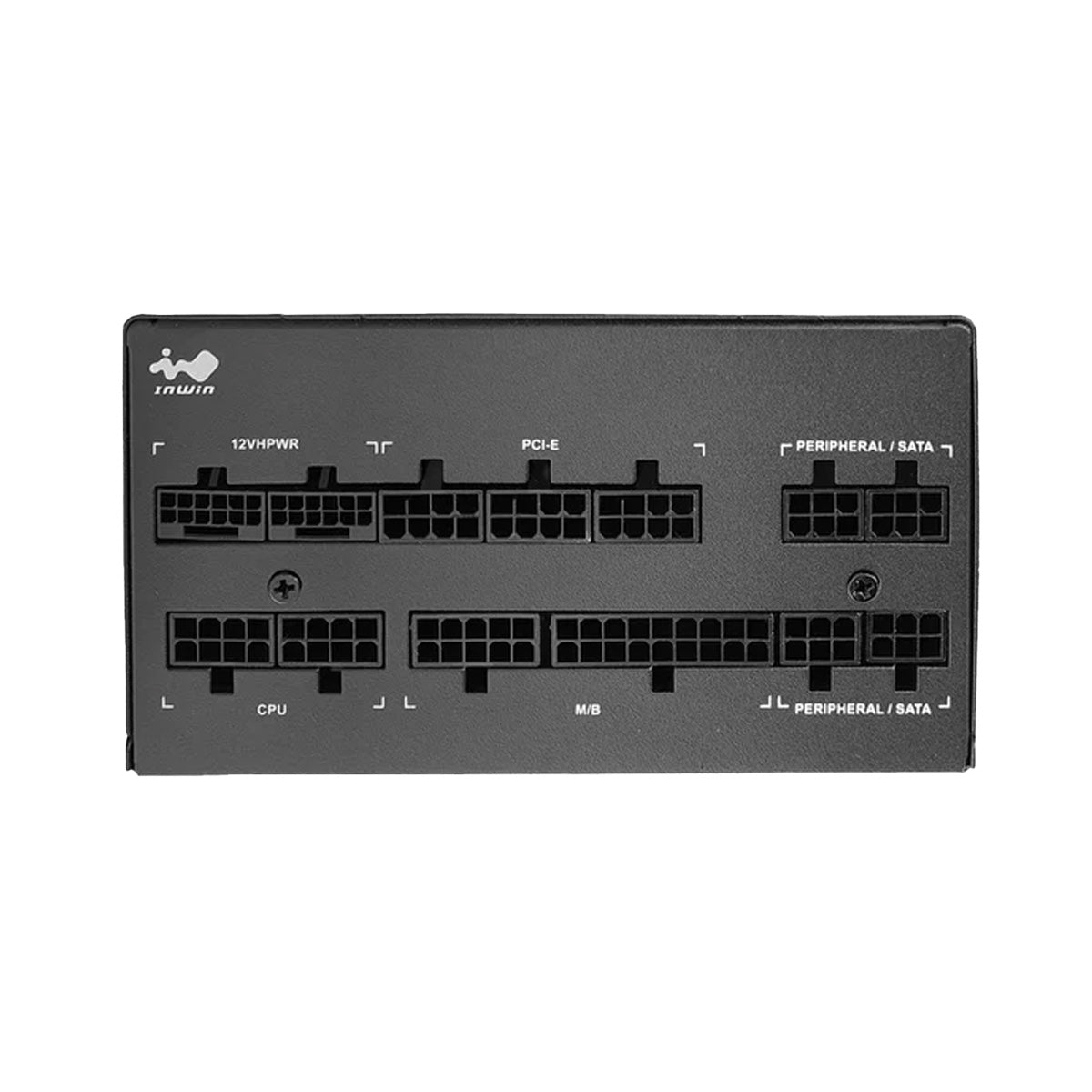

| Connectors |
24 Pin Motherboard: 1 8 (4+4) Pin CPU: 2 8 (6+2) Pin PCI-E: 6 PCI-E 12V-2x6: 1 (600W) PCI-E 12V-2x6: 2 (600W) 4 Pin Peripheral: 3 SATA (90 Degree): 9 Floppy: 1 |
