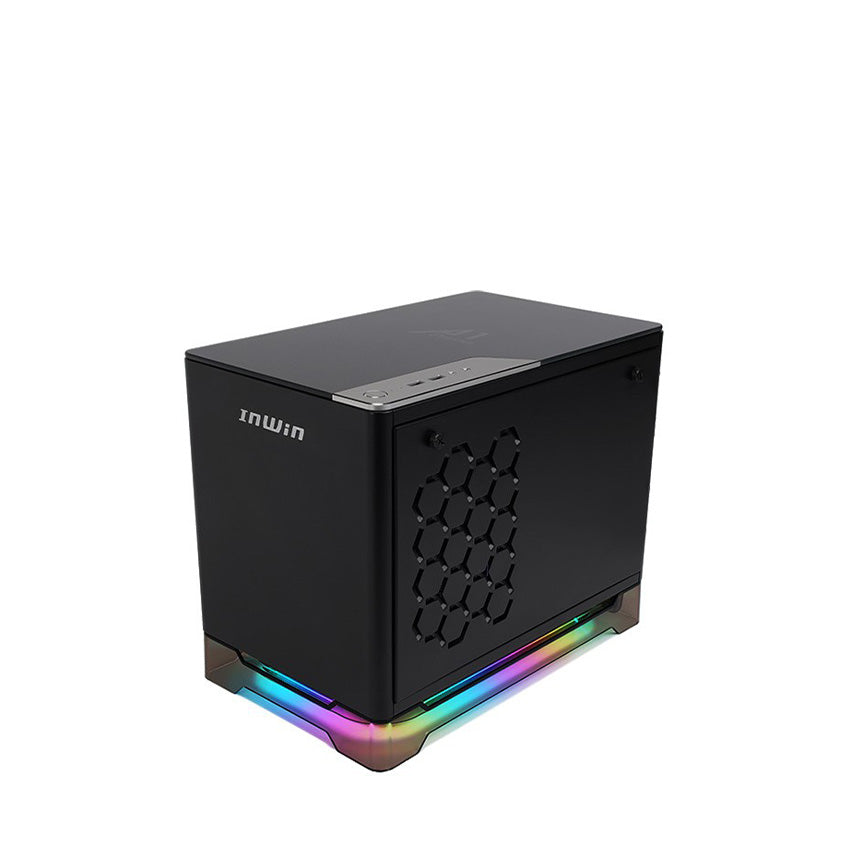

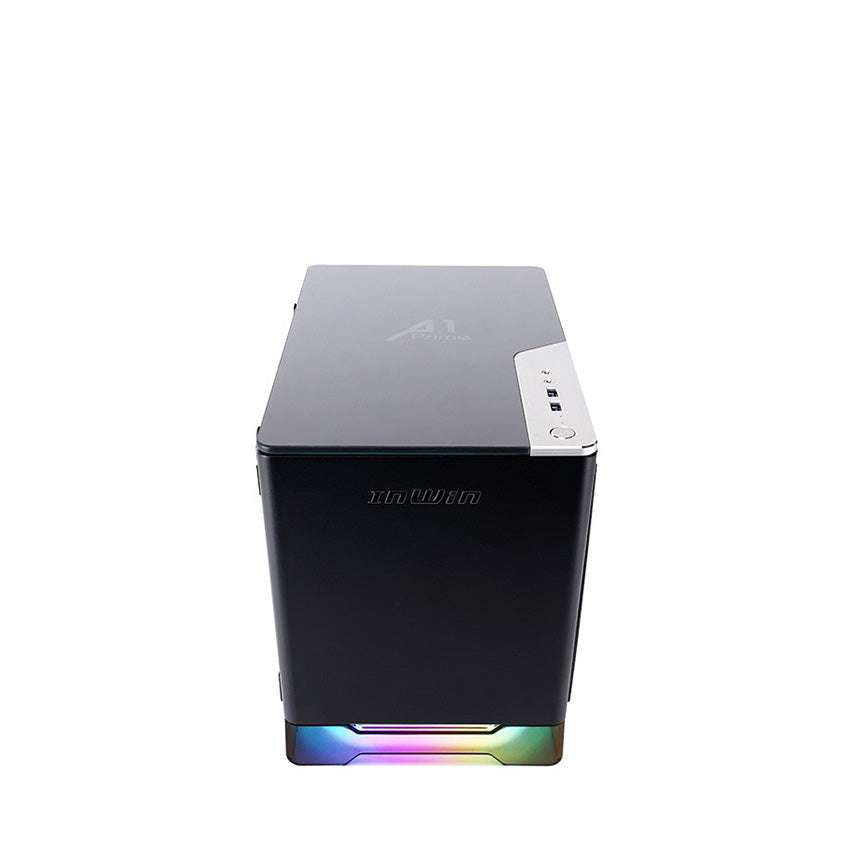

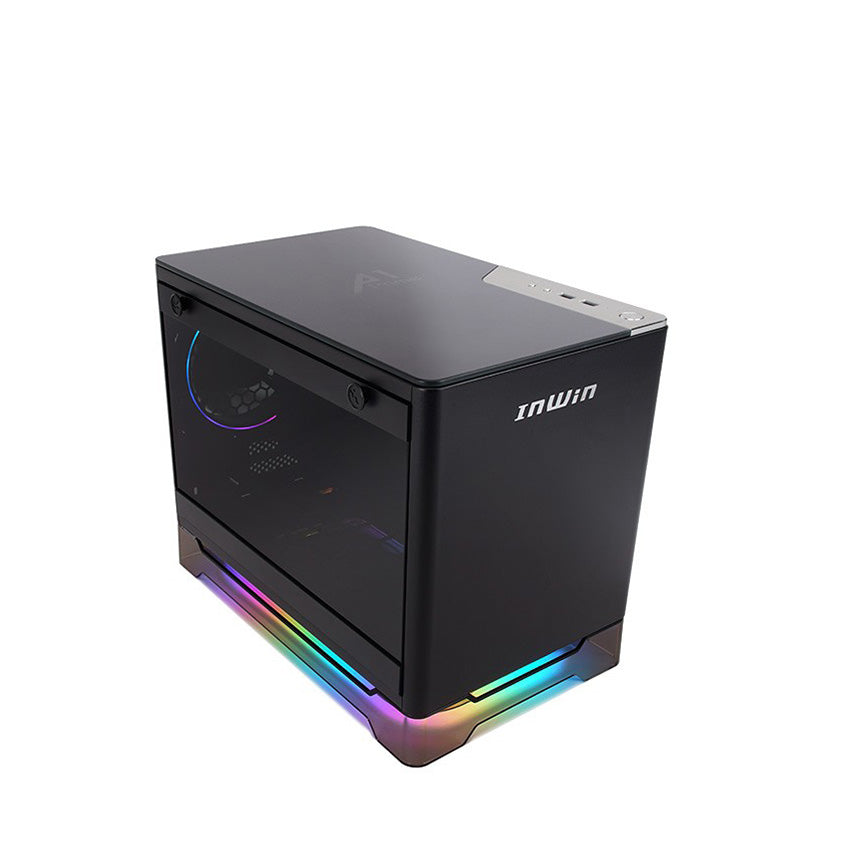

Inwin A1-Prime Mini ITX Case w/ P75F 750W PSU - Black
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Personalize Your Rig
The A1 Prime features a ventilated, tinted transparent stand. The integrated LED module is concealed within the bottom portion of the chassis and the ARGB lights pierce through to create an awesome lighting experience.
Loop in more Colors
The A1 Prime Black comes with two complementary Sirius Loop ASL120 fans. The matte black structure is fitted with dual radiant addressable RGB loops.
Upgraded InWin 750W PSU
The P75F is prebuilt within the A1 Prime with cables managed. It’s an 80 PLUS® Gold certified power supply with up to 90% efficiency, which can fulfill the power consumption requirement for the latest high-end graphics card.
5V and 3.3V DC to DC Design
Equipped with 5V and 3.3V DC to DC converter design, the P75F provides a superior dynamic response, and supports a foundation for greater system stability.
Multi-Protection Safeguards
The PF Series comes with plenty of safeguards against over-currents, over-and-under voltages, short circuits, over-heating and over-power. These precautions are to ensure quality and safe power usage.
Gorgeous ARGB Lighting Effect
The ARGB feature complements other ARGB components and cane be synced together with motherboard software via 3-pin, 5V header.
Squaring Infinite Possibilities
The square structure provides a hassle-free installation, and the capacity to house powerful hardware in its Mini-ITX form. The A1 Prime supports a CPU heatsink height up to 160mm and accommodates up to 320mm length graphics cards.
Specifications
Specifications
Model | A1 Prime |
Model Number | IW-A1PRIME-BLACK |
Color | Black |
Case Type | Mini-ITX Tower |
Materials | SECC, Tempered Glass, Aluminium, Plexiglass |
M/B Compatibility | Mini-ITX |
Expansion Slots | 2 x PCI-E |
Maximum Compatibility | VGA Card Length: 320mm VGA Card Thickness: 55mm CPU Heatsink Height: 160mm |
I/O Ports | 2 x USB 3.0 HD Audio |
Internal Drive Bays | 2 x 2.5” |
Thermal Solution Compatibility | Air Cooling Fans: Rear: 1 x 120mm (Pre-installed) Bottom: 2 x 120mm Side: 1 x 120mm (Pre-installed) Water Cooling Radiator: Rear: 1 x 120mm * Number of fans pre-installed may vary based on different regions. |
Power Supply Compatibility | PSII: Intel ATX12V V2.52 InWin 750W 80 PLUS Gold PSU Included |
Product Dimensions | (L x W x H) 343 x 210 x 231mm 13.5" x 8.3" x 9.1" |
Product Dimensions | (L x W x H) with Screw & Handle Height 357 x 224 x 273mm 14.1" x 8.8" x 10.7" |
Package Dimensions | (L x W x H) 414 x 295 x 344mm 16.2" x 11.6" x 13.5" |
Net Weight | 6.14 kg/ 13.5 lbs |
Gross Weight | 7.2 kg/ 15.8 lbs |
Connectors | 20+4 Pin Motherboard: 1 8-Pin CPU: 1 8 (6+2) Pin PCI-E: 2 SATA: 3 |
