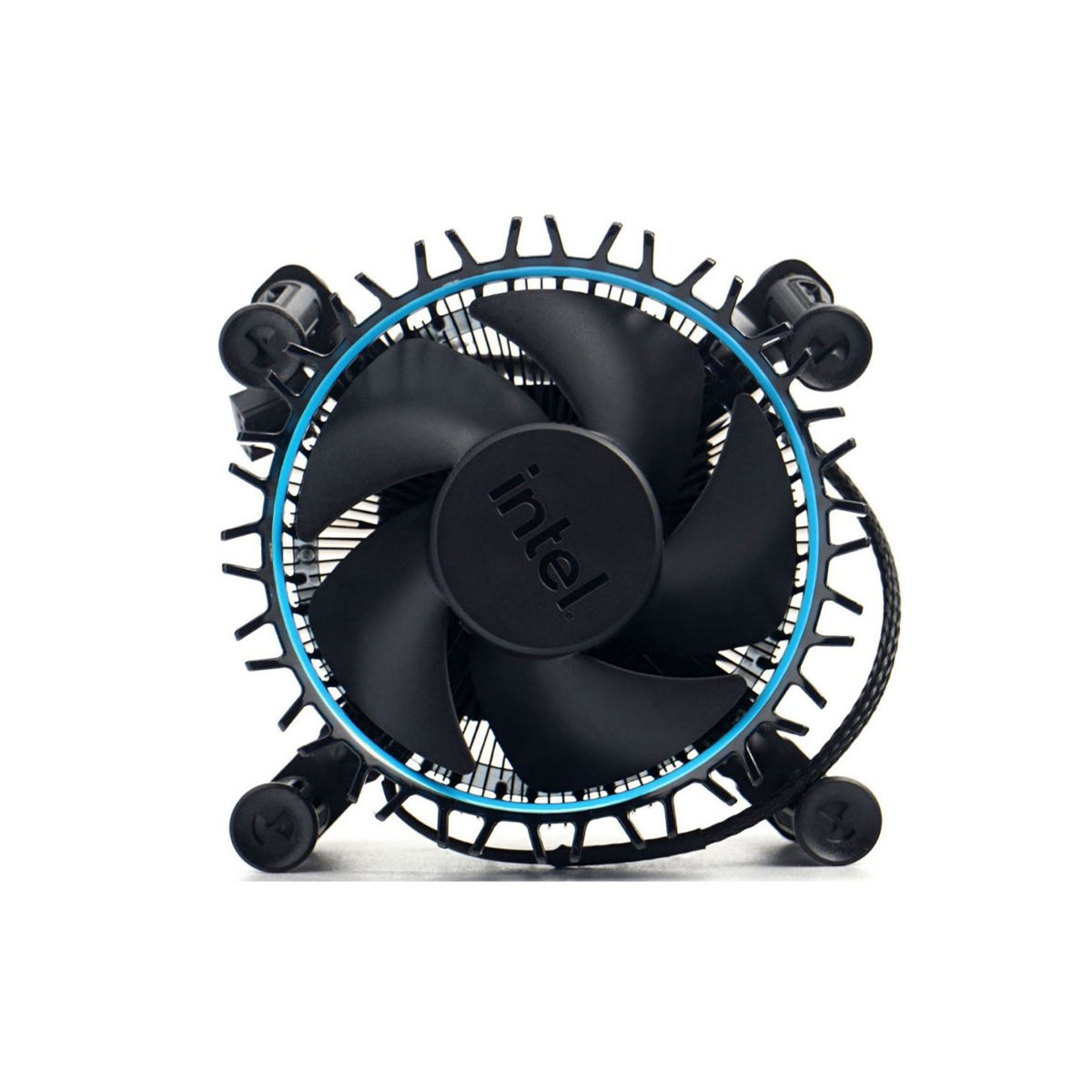

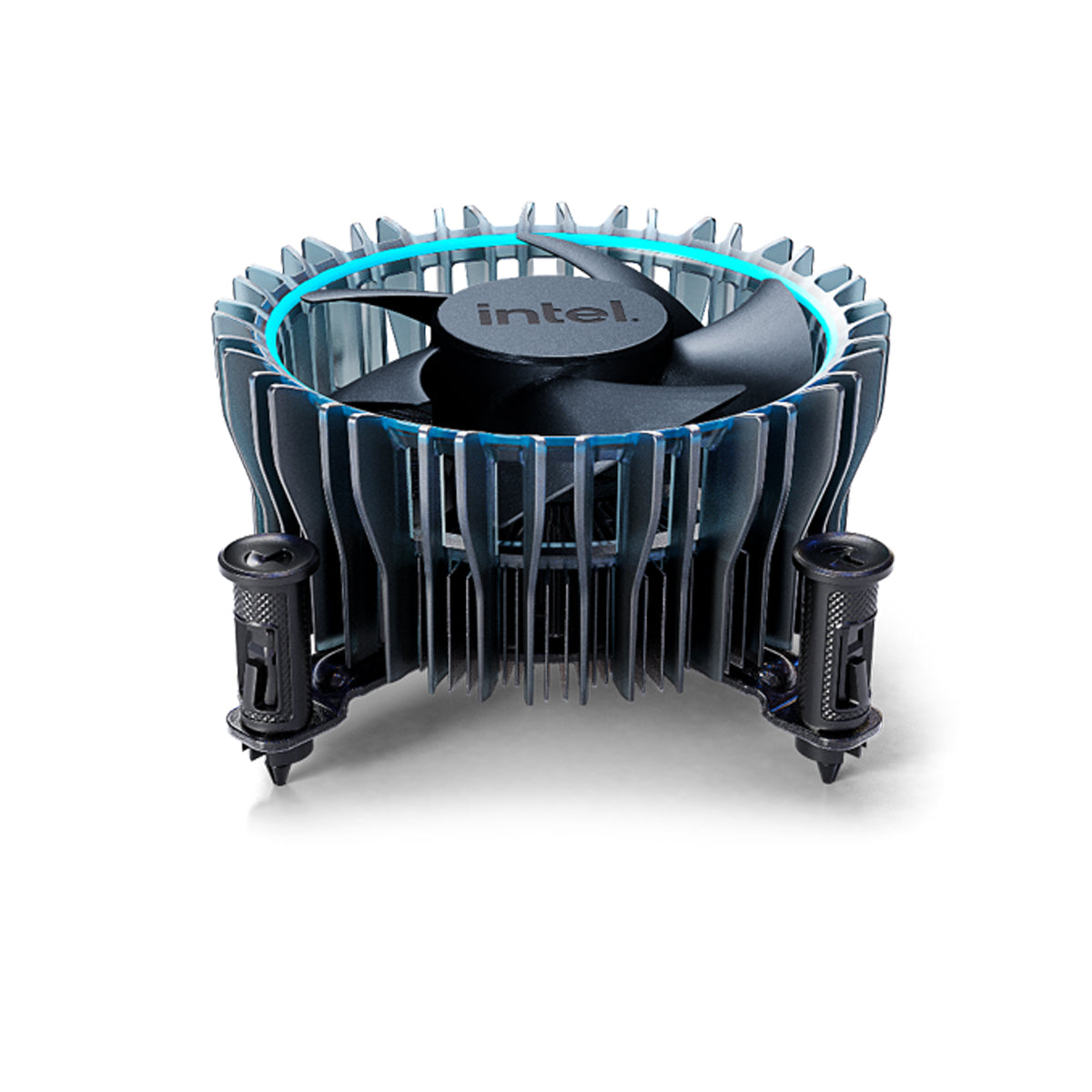

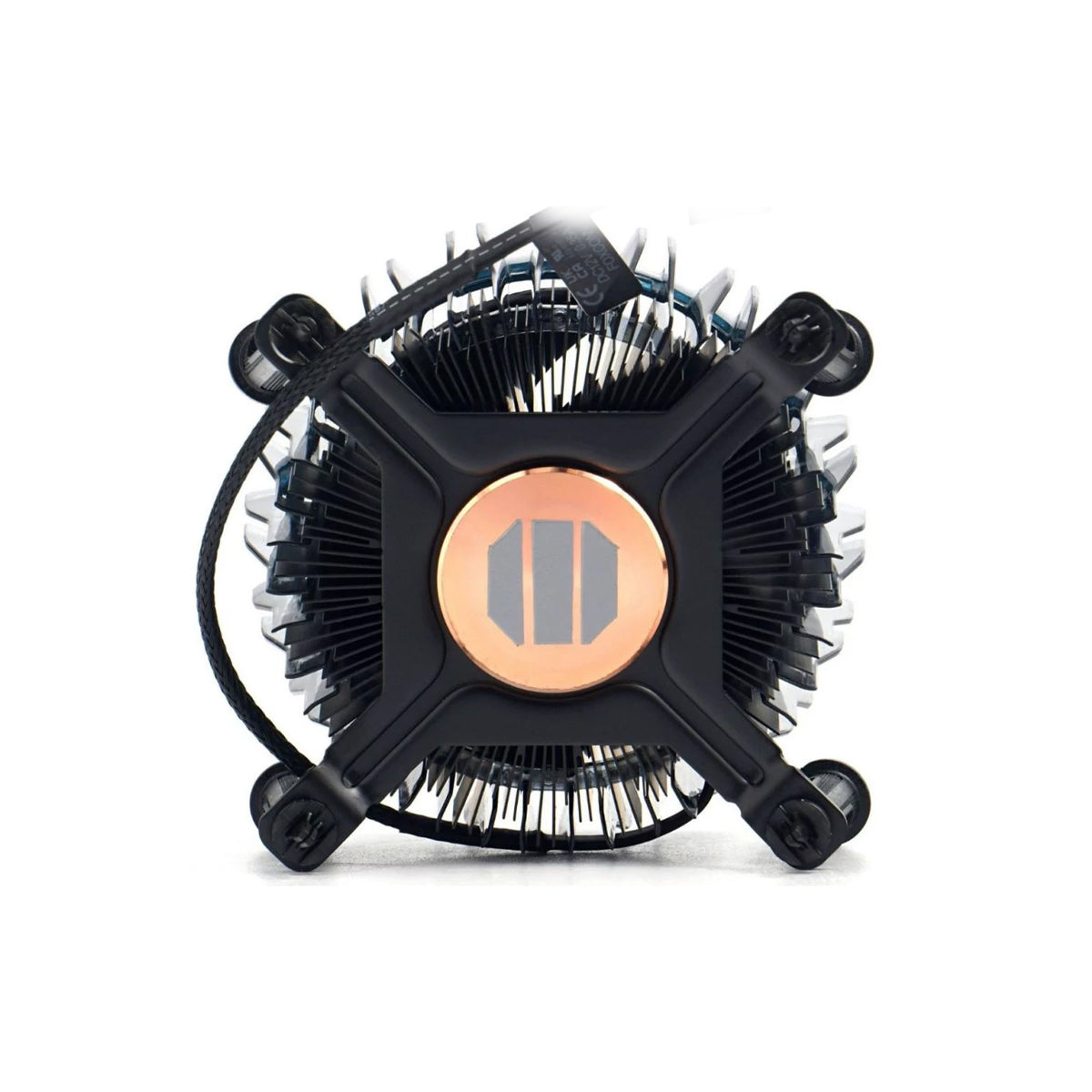

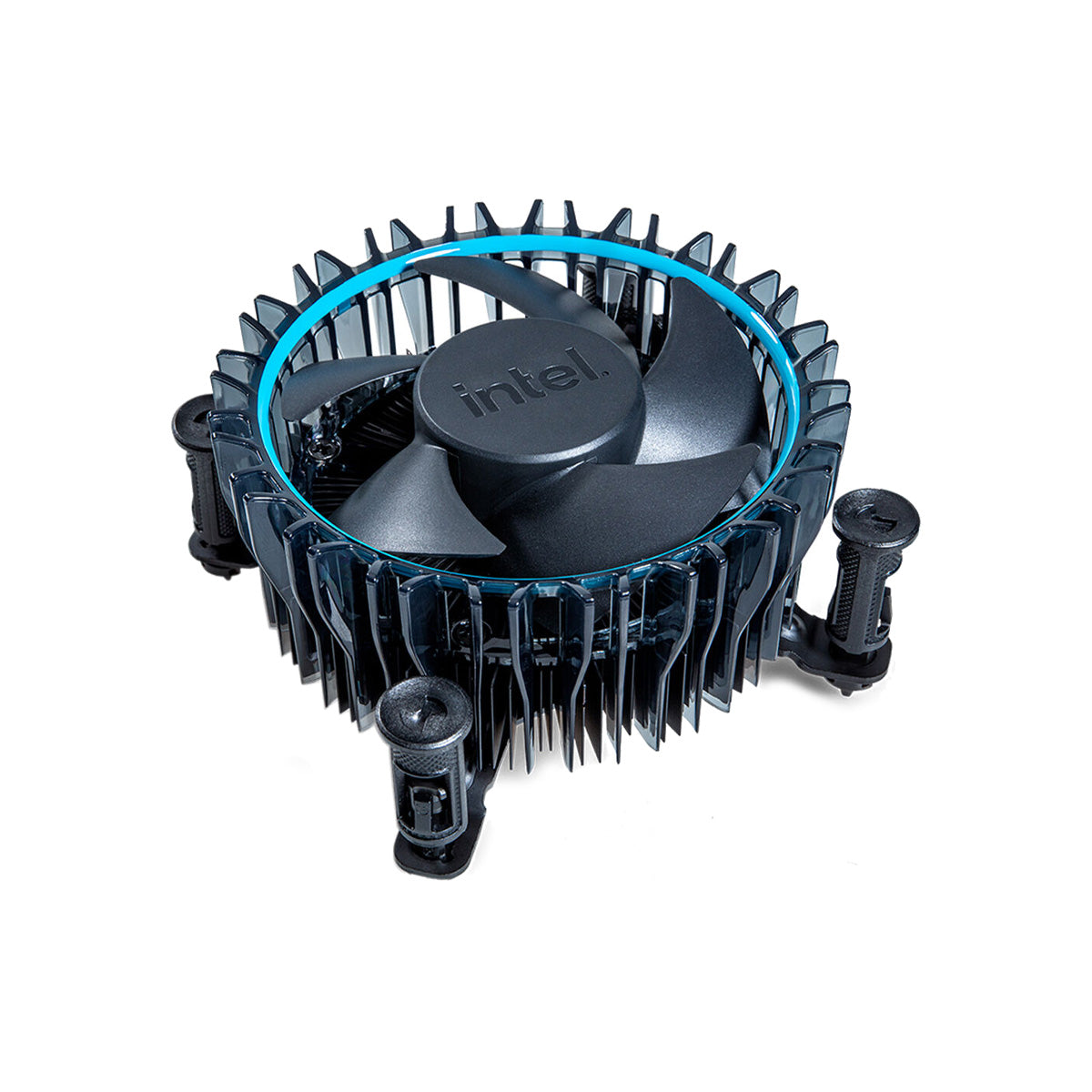

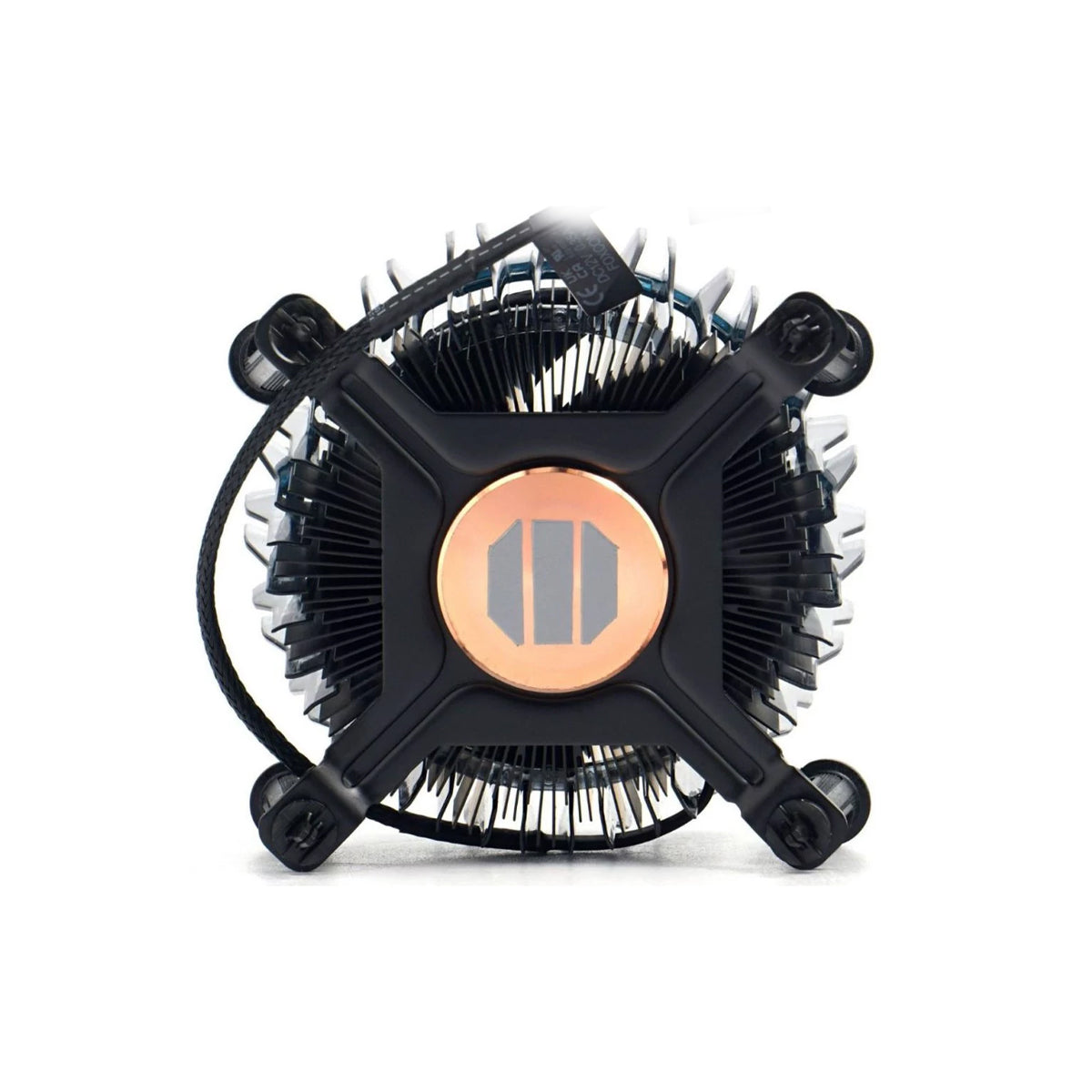

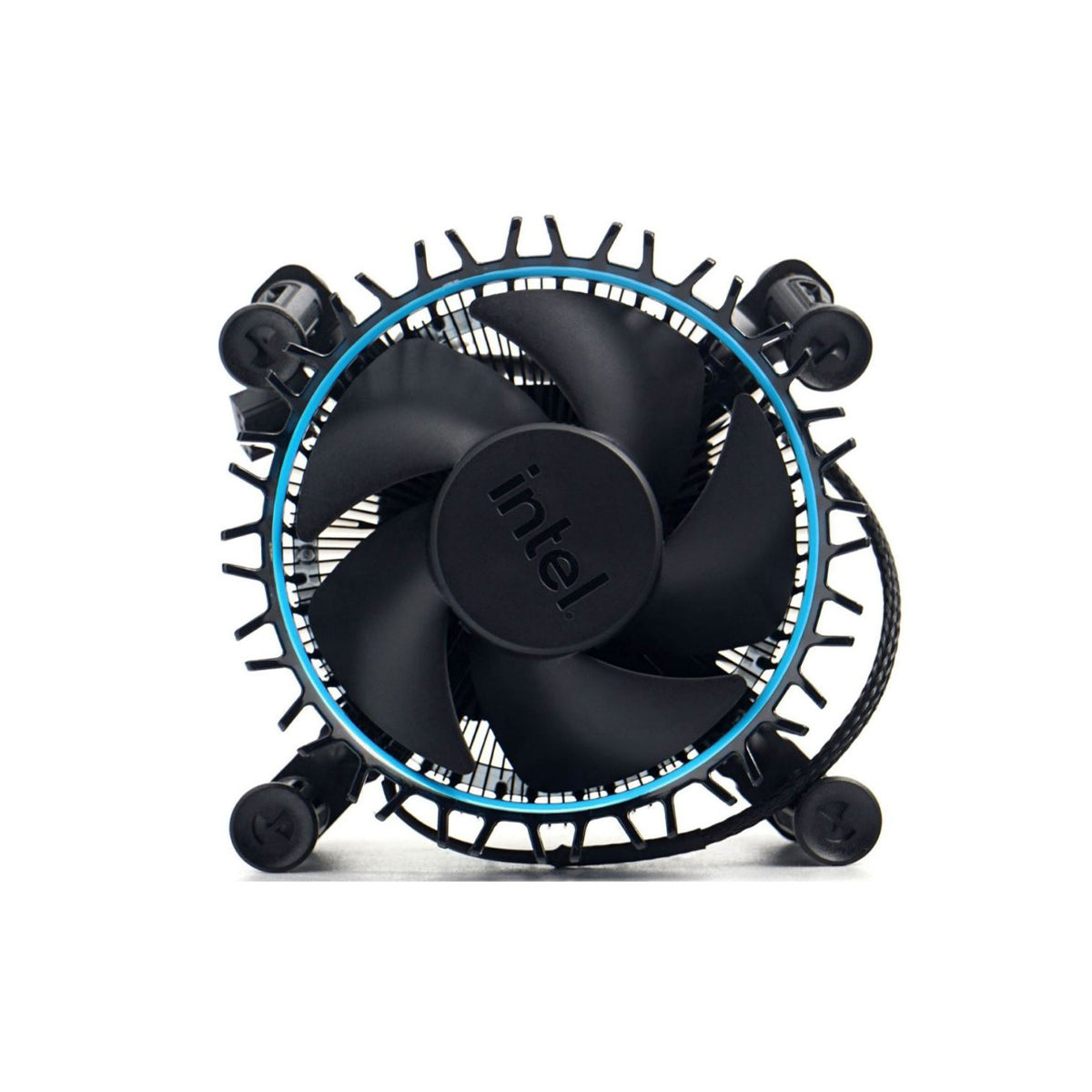

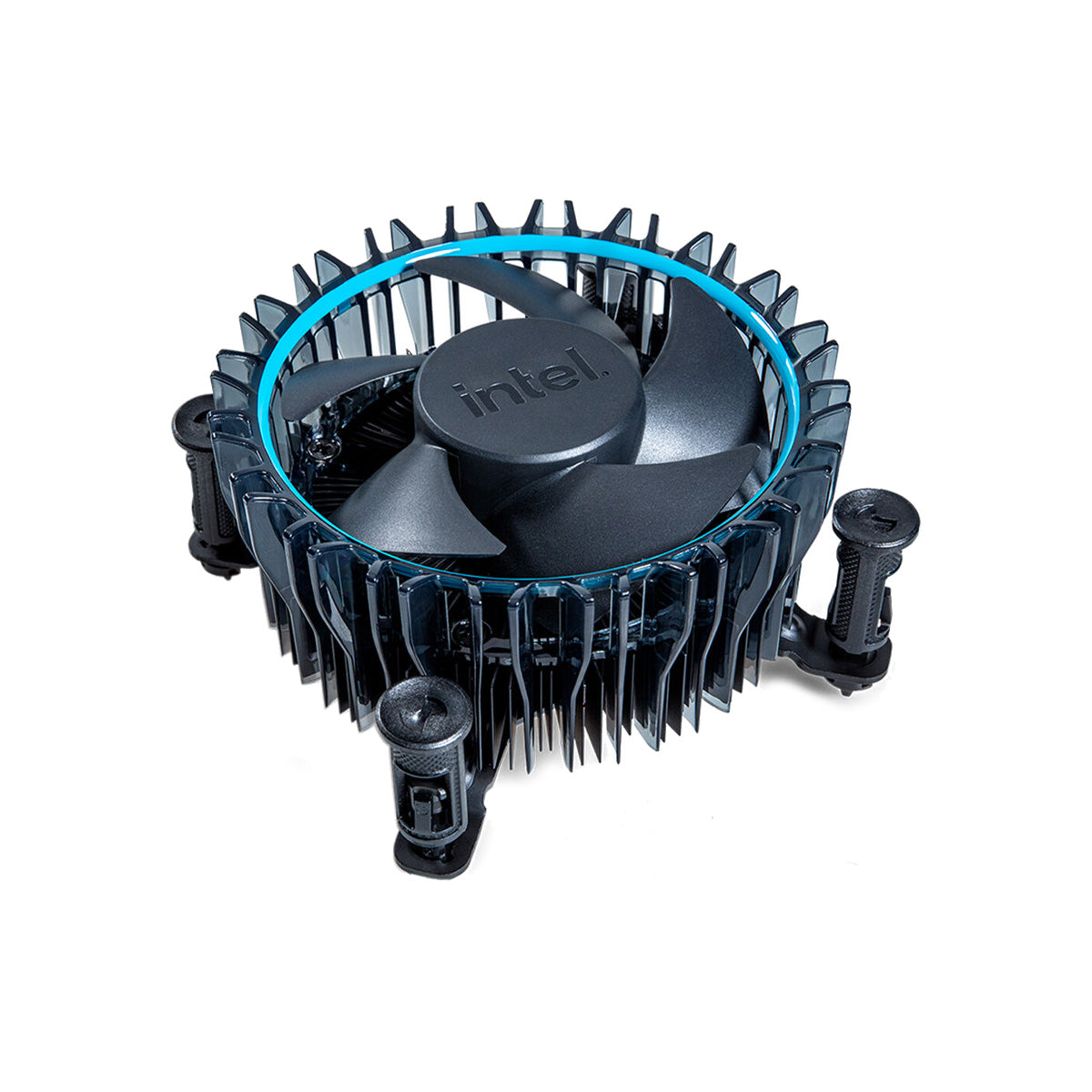

Intel Laminar RM1 Thermal Solution Cooler for LGA1700
Intel
| SKU
39453
$1.90 off
$3.00
$4.90
Unit price
/
Unavailable
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 ā 2 working days
South Island: 2 ā 3 working days
Please allow an additional 1 ā 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
This IntelĀ® Laminar RM1 Cooler comes in the box with i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100 and i3-12100F processors.
Highlights of this cooler
- Standard size
- 3.9 BA Quiet Performance
- Intel Validated Compatibility
Specifications
Specifications
| Socket | LGA1700 |
| Cooling Support | Up to 65W (12th Gen IntelĀ® Coreā¢ Desktop Processors) |
| Fan Type | PWM controlled variable speed fan |
| Connector Type | 4-pin |
| Operating Voltage | 13.2V max, 12.0V rated, 10.8V min |
| Current (Peak) | Up to 400mA |
| Operating RPM | 0 to 3150 RPM (+/- 5%) |
| Operating Temperature | 0 to 70Ā°C |
| Operating Humidity | 85% relative humidity @ 55Ā°C |
| Fan Protection | Locked-rotor / polarity protected |
| Sense Frequency | 2 pulses/Rev, 12V pull-up with 10Kohm PWM |
| PWM Frequency | 25KHz +/- 5KHz |
| PWM Pull-up Voltage | 5.25V max |
| PWM Duty Cycle Range | 0ā100% |
