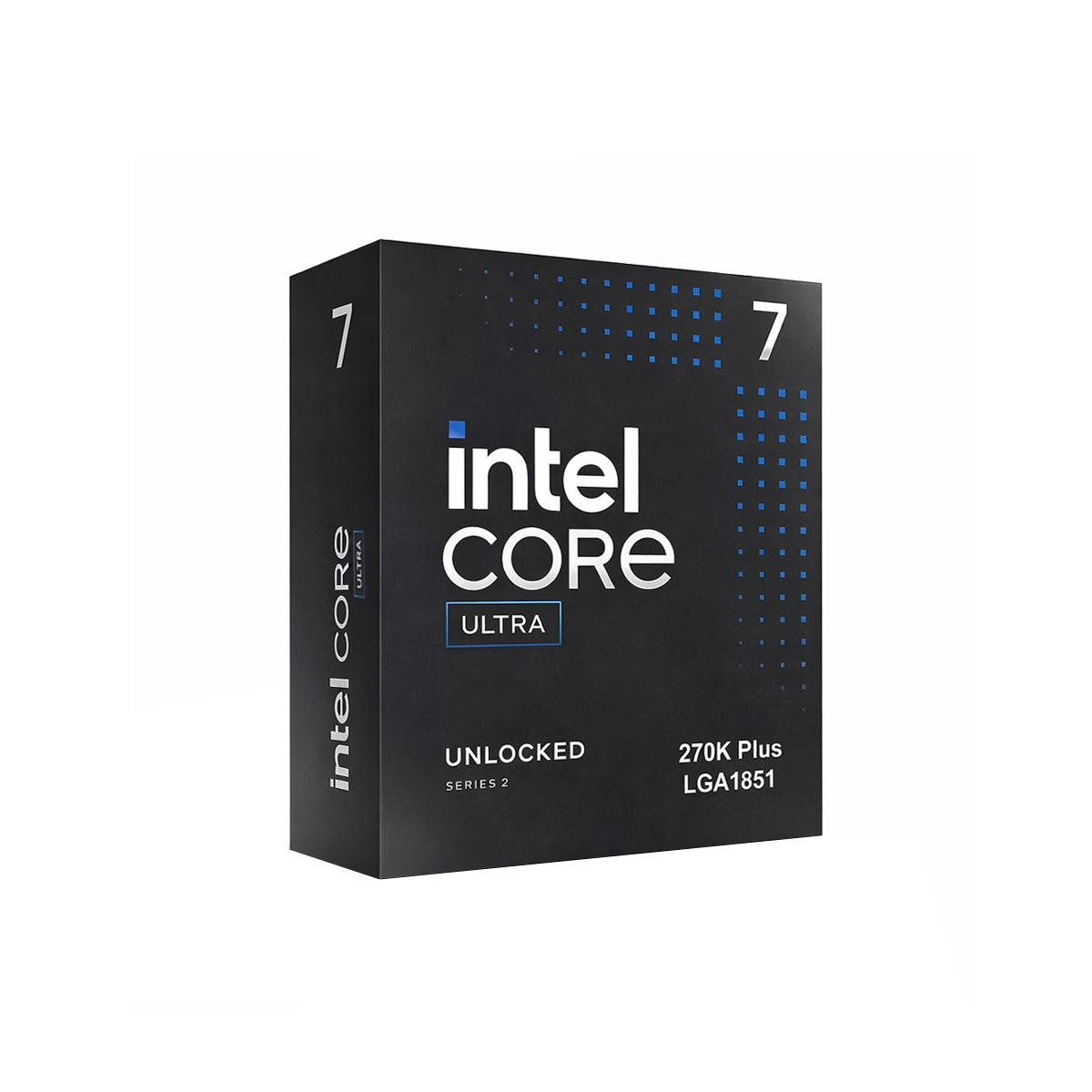

Intel Core Ultra 7 270K Plus Processor

High Performance Desktop Processor

The Intel Core Ultra 7 270K Plus is a powerful desktop processor built with 24 cores (8 P-Cores and 16 E-Cores), designed to deliver strong performance for multitasking, gaming, and demanding workloads. Based on the Arrow Lake Refresh architecture, it operates at a base frequency of 3.7 GHz and can boost up to 5.5 GHz for enhanced speed when needed.

Advanced Architecture & Manufacturing

Built on an advanced 3 nm process node and manufactured by TSMC, this processor features 17,800 million transistors for improved efficiency and performance. It uses the Intel Socket 1851 platform and is part of the Ultra 7 generation, ensuring compatibility with modern systems and chipsets.

Overclocking & Power Capability

The unlocked multiplier allows easy overclocking, giving users flexibility to push performance further. With a TDP of 125W and power limits up to 250W, this processor is designed for high-performance setups and requires efficient cooling solutions for optimal operation.

Memory & Connectivity Support

The processor supports DDR5 memory with dual-channel architecture and speeds up to 7200 MT/s, delivering fast data access and high bandwidth. It also supports ECC memory for improved data reliability. For connectivity, it features PCI-Express Gen 5 with 20 lanes and additional Gen 4 lanes for high-speed component communication.

Integrated Graphics & AI Performance

Equipped with Intel Arc Xe-LPG Graphics 64EU, the processor provides capable integrated graphics performance. It also includes AI Boost NPU 3 delivering up to 13 TOPS, enhancing AI-driven workloads and modern applications.

Virtualization & Advanced Features

Support for hardware virtualization and IOMMU enables efficient virtual machine performance and direct hardware access. The processor supports AVX and AVX2 instruction sets for improved performance in compute-intensive tasks, along with a wide range of advanced technologies for modern computing environments.

Cache & Core Configuration

The processor includes 36 MB of shared L3 cache along with multiple cache layers per core for efficient data handling. Its hybrid core design combines performance and efficiency cores to balance power consumption and processing capability.

Physical Specifications

The processor uses Intel Socket 1851 with a die size of 243 mm² and a maximum temperature (tJMax) of 105°C. It is packaged in FC-LGA18W format and designed for desktop systems requiring high performance and reliability.
