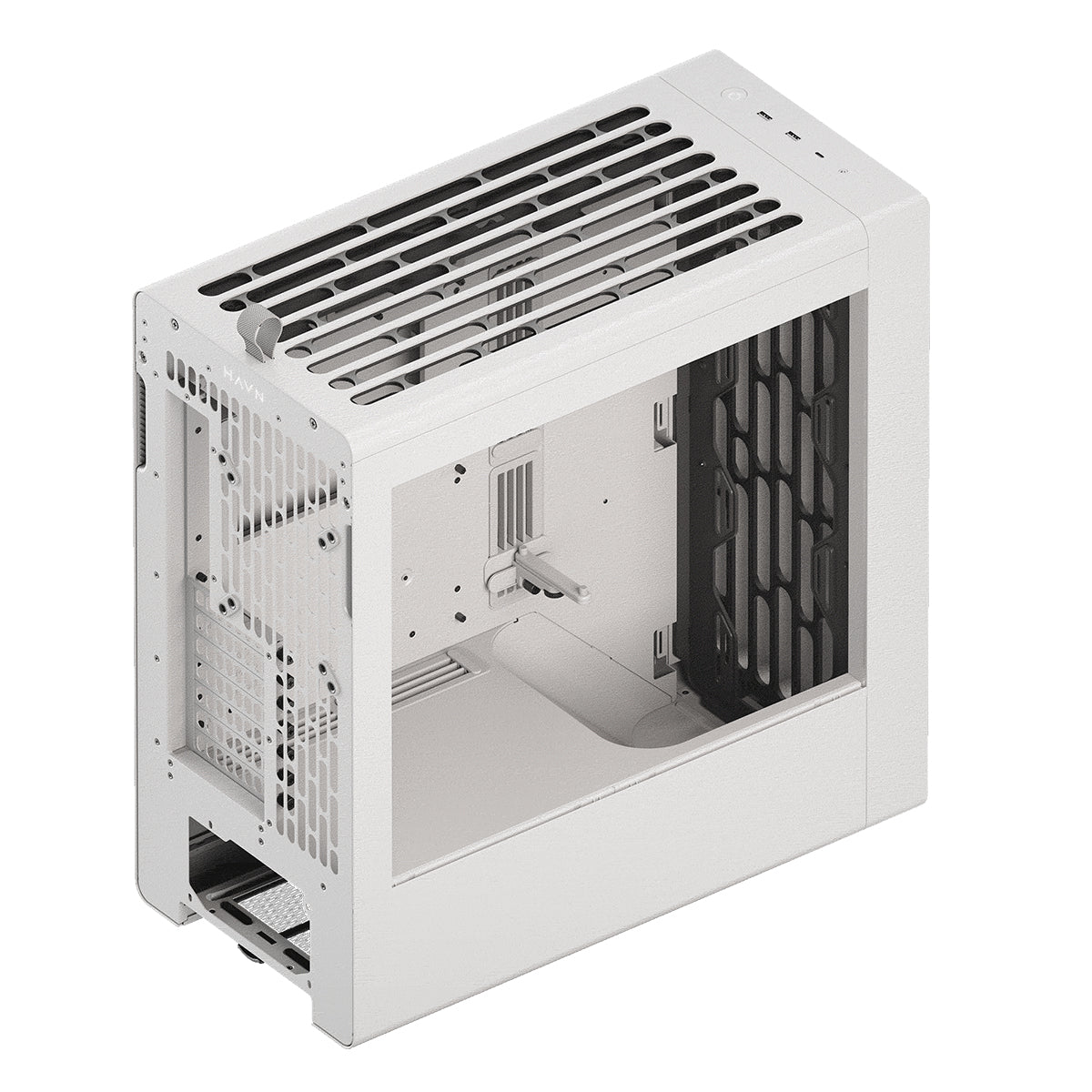

Havn BF 360 ATX Mid Tower Case - White
Optimised for Airflow | Up to 420mm Front Mount Rad Support
Havn
| SKU
90855
New Arrivals
$299.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Specifications
Specifications
| Form Factor | Mid Tower |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| PC Case Dimensions (L x W x H) | 515 x 254 x 522.6 mm |
| Net Weight | 13.63 kg |
| Front I/O | USB 3.2 Gen 2 Type-C x1 USB 3.2 Gen 1 Type-A x2 Audio Jack x1 Power & Reset Button x1 |
| Motherboard Support | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | 7 |
| Fan Support | Maximum Amount: 7 Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm Front: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm Left: N/A Right: N/A Bottom: N/A Rear: 1 x 140 mm / 1 x 120 mm |
| Fan PWM Repeater | Fan Ports: 2 x PWM repeaters, 12 ports total Location: 1 x Cable Management Tray Fan Connectors: 6 ports per repeater x 4-pin PWM (Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.) Fan Rated Voltage: 12V Fan Safety Current: Up to 2.6A across 6 ports Power Connector: 1 x SATA Power Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max) |
| CPU Tower Cooler Clearance | Height: Up to 195 mm |
| Liquid Cooling Support | Top: 240 / 280 / 360 mm Front: 240 / 280 / 360 / 420 mm Left: N/A Right: N/A Bottom: N/A |
| Graphics Card Clearance | Length: Up to 410 mm Width: Up to 195 mm |
| GPU Support | 1 - 4.5 Slots |
| RAM Clearance | If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm |
| Power Supply Support | ATX Length: Up to 200mm (Clearance - 260mm) |
| Storage | Right Mount: 2 Storage Bays: 2 x 3.5'' / 8 x 2.5'' Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' Storage Bay Included: 2x (2 x 3.5'' / 4 x 2.5'') |
| Dust Filter | Front: 1 (Built-in) Top: 1 (Built-in) Rear Bottom: 1 (Removable) |
