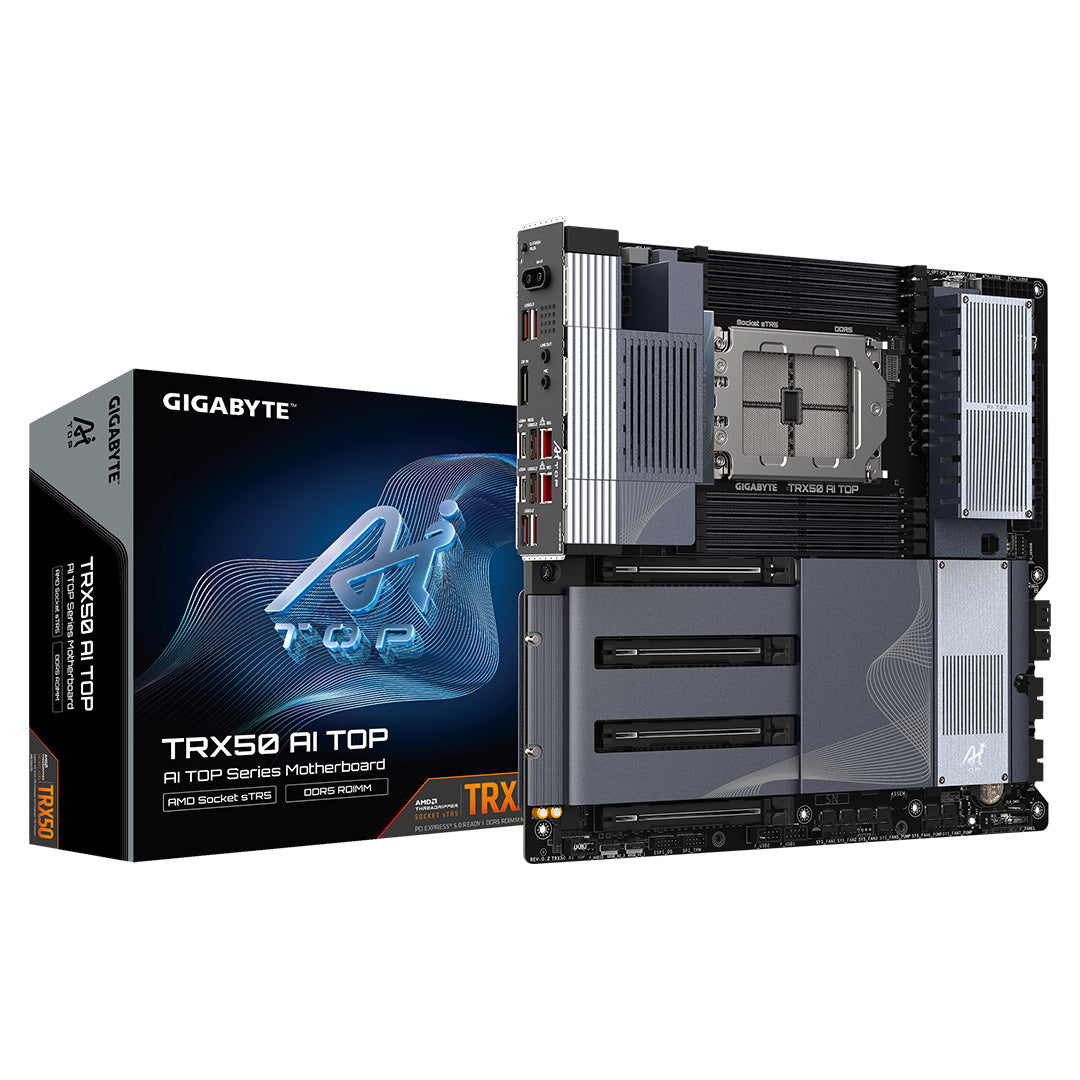

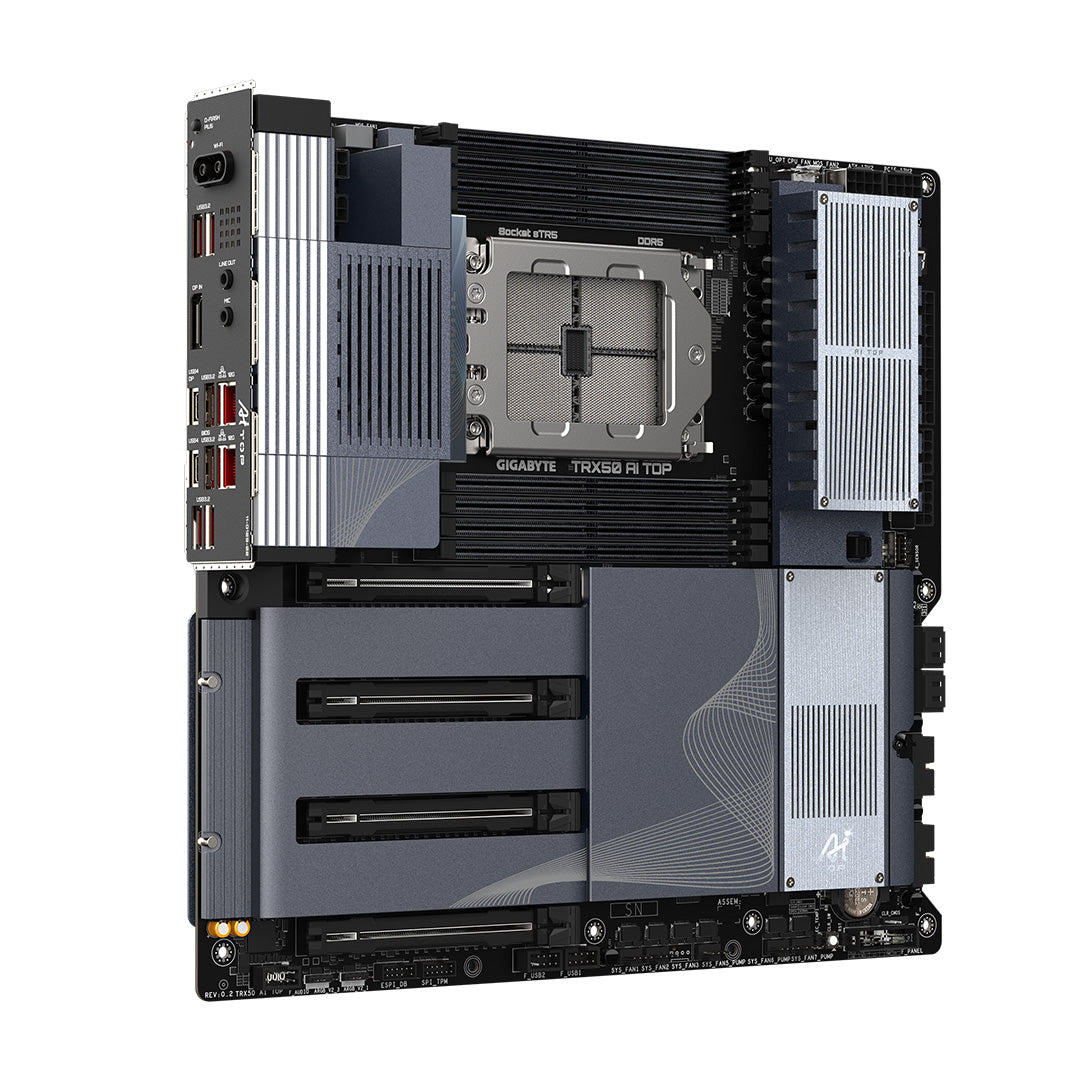

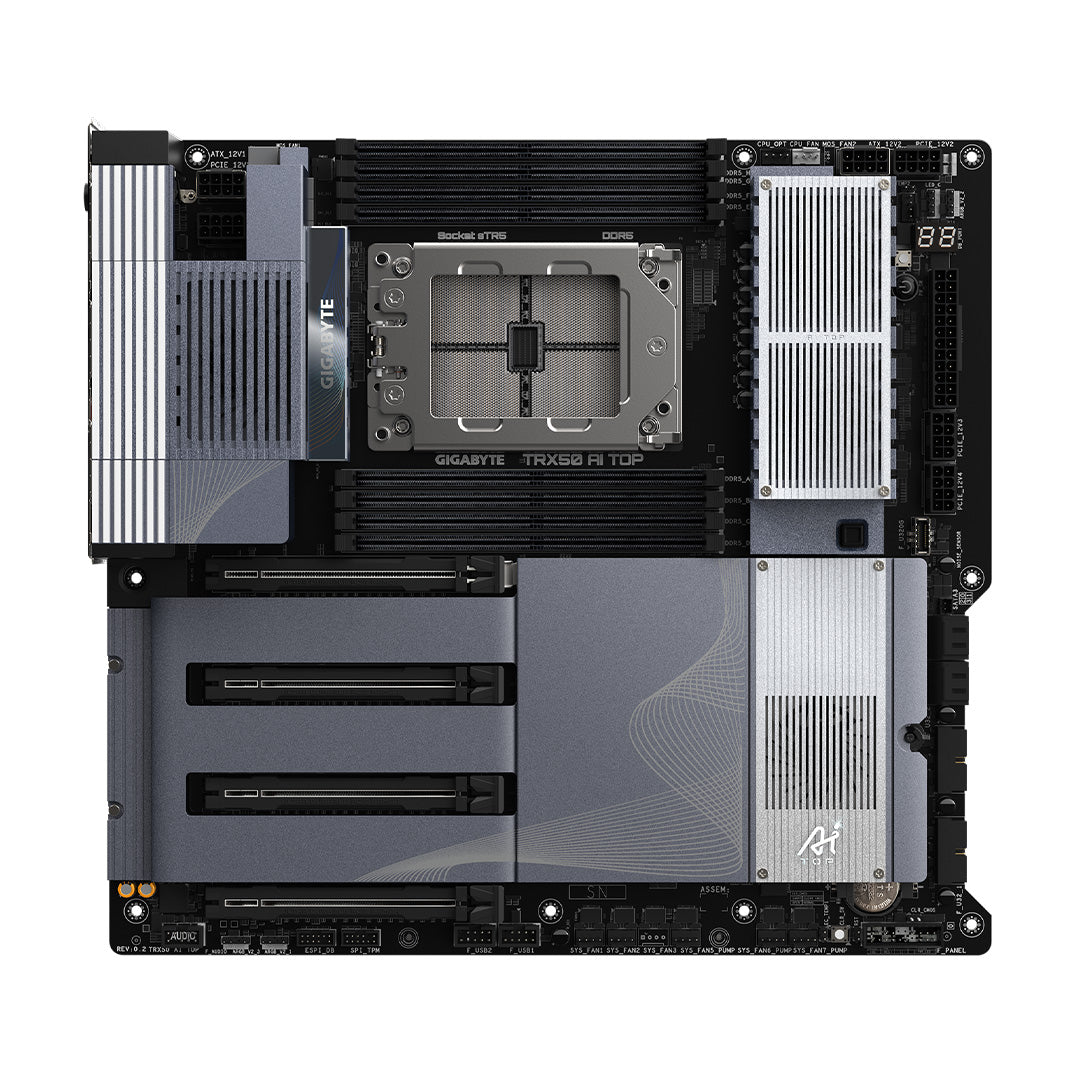

Gigabyte TRX50 AI TOP Motherboard

TRX50 AI TOP

Train your own AI directly on your desk with the TRX50 AI TOP motherboard. It supports AMD Ryzen™ Threadripper™ PRO series and AMD Ryzen™ Threadripper™ series processors through the Socket sTR5 platform.

Advanced Power Design

The motherboard features a 16+8+4 phases digital VRM solution with 110A Smart Power Stages, providing stable high-power delivery for demanding workloads, advanced overclocking, multi-core CPU performance, integrated graphics, memory control, and CPU-connected PCIe lanes.

14-Layer Server-Grade PCB

A 14-layer server-grade, very-low-loss PCB improves signal integrity, EMI shielding, and stability for high-frequency circuits and high-performance computing.

8-Channel DDR5 ECC Memory

Support for eight SMD ECC R-DIMM slots delivers 8-channel DDR5 memory performance with a maximum capacity of up to 2TB, providing high bandwidth and ample temporary storage for AI training, machine learning, and intensive computing tasks.

DDR5 Memory Optimization

DDR5 memory speeds can reach up to 8000 MT/s depending on the installed memory and system configuration. BIOS tools include DDR5 Auto Booster, High Bandwidth, Low Latency, and AMD EXPO™ / Intel® XMP 3.0 User Profile support for easier memory tuning.

Ultimate PCIe Scalability

Four full-length PCIe 5.0 x16 slots support multi-GPU configurations and exceptional computing performance. The double-slot-width layout gives compatible graphics cards additional installation space.

PCIe UD Slot X

The PCIe 5.0 x16 UD Slot X uses a one-piece reinforced design secured to a dedicated backplate, delivering up to 10 times the load-bearing strength for installed graphics cards. A rubber lining helps protect the graphics card PCB from scratches, while zinc alloy construction helps provide electromagnetic shielding for high-speed signals.

High-Speed M.2 Storage

Four PCIe 5.0 x4 M.2 slots support high-speed NVMe SSDs and RAID 0 configurations, helping accelerate storage performance for AI workloads, large project files, and professional applications.

M.2 UD Slot PG5

The M.2 UD Slot PG5 uses a one-piece stainless-steel shielding design to reinforce the M.2 slots and maintain signal integrity. It delivers increased X-axis and Y-axis strength while helping reduce signal degradation through SMD technology.

Advanced Thermal Design

The motherboard uses an enlarged all-metal thermal design to keep high-performance components cool and stable during demanding workloads.

VRM Thermal Armor Advanced

Solid VRM heatsinks, a SYS Wind Blade design, and 7 W/mK thermal pads help dissipate heat from the power delivery area for reliable performance under load.

M.2 Thermal Guard Ext.

M.2 Thermal Guard Ext. with an M.2 Thermal Guard backplate provides thermal coverage for up to three M.2 slots, helping maintain consistent SSD performance during sustained transfers.

Small Vents, Big Cooling Power

Integrated ventilation helps improve airflow and cooling efficiency, supporting lower operating temperatures for key motherboard components.

Smart Fan 6

Smart Fan 6 provides customizable cooling control to help balance system temperature, fan speed, and noise levels.

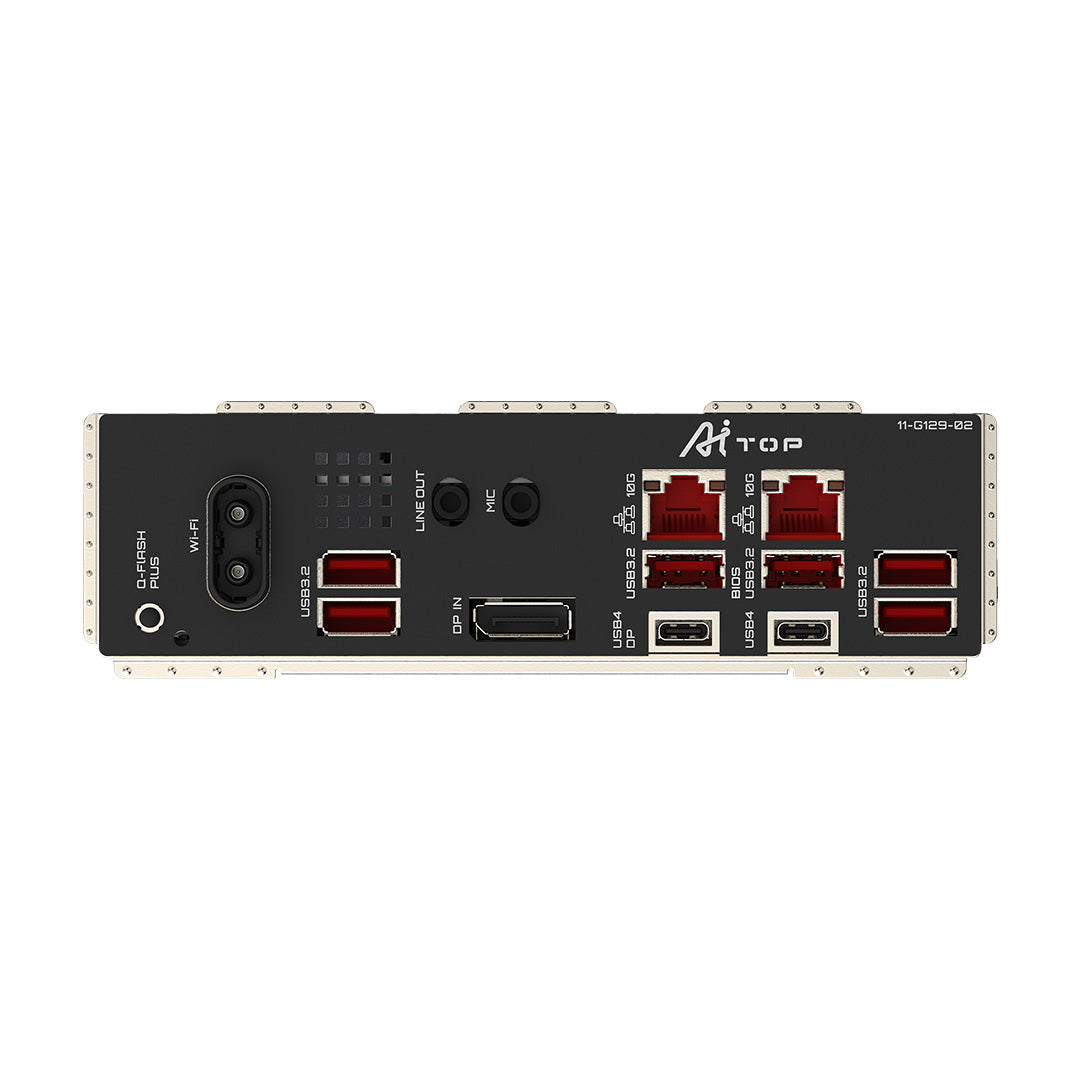

Future Connectivity

Enjoy next-generation connectivity with dual USB4® Type-C ports, dual 10GbE LAN, Wi-Fi 7, and an ultra-high-gain directional antenna for fast data transfers and stable networking.

Dual 10GbE LAN

Dual 10GbE LAN provides fast and stable wired network connectivity, with 25KV surge protection for added protection.

Wi-Fi 7 and WIFI EZ-Plug

Wi-Fi 7 support delivers high-speed wireless connectivity. The WIFI EZ-Plug design combines Wi-Fi antenna plugs into one adapter, making antenna installation easier without individual screw connections.

UD Power Connector

The board includes a 24-pin ATX connector, two 8-pin CPU connectors, and four 8-pin PCIe power connectors with UD Solid Pin construction. Solid pins help improve conductivity, signal transmission, heat dissipation, and durability during repeated plugging.

DIY-Friendly EZ-Latch Designs

EZ-Latch Click provides screwless M.2 heatsink installation, while EZ-Latch Plus enables quick-release M.2 SSD installation. These mechanisms simplify component installation and upgrades.

Sensor Panel Link

Sensor Panel Link provides convenient support for connecting and integrating a compatible system monitoring display panel.

Quick Control Elements

Convenient onboard controls include Multi-Key and Q-FLASH PLUS functionality for easier system setup, BIOS updates, and maintenance.

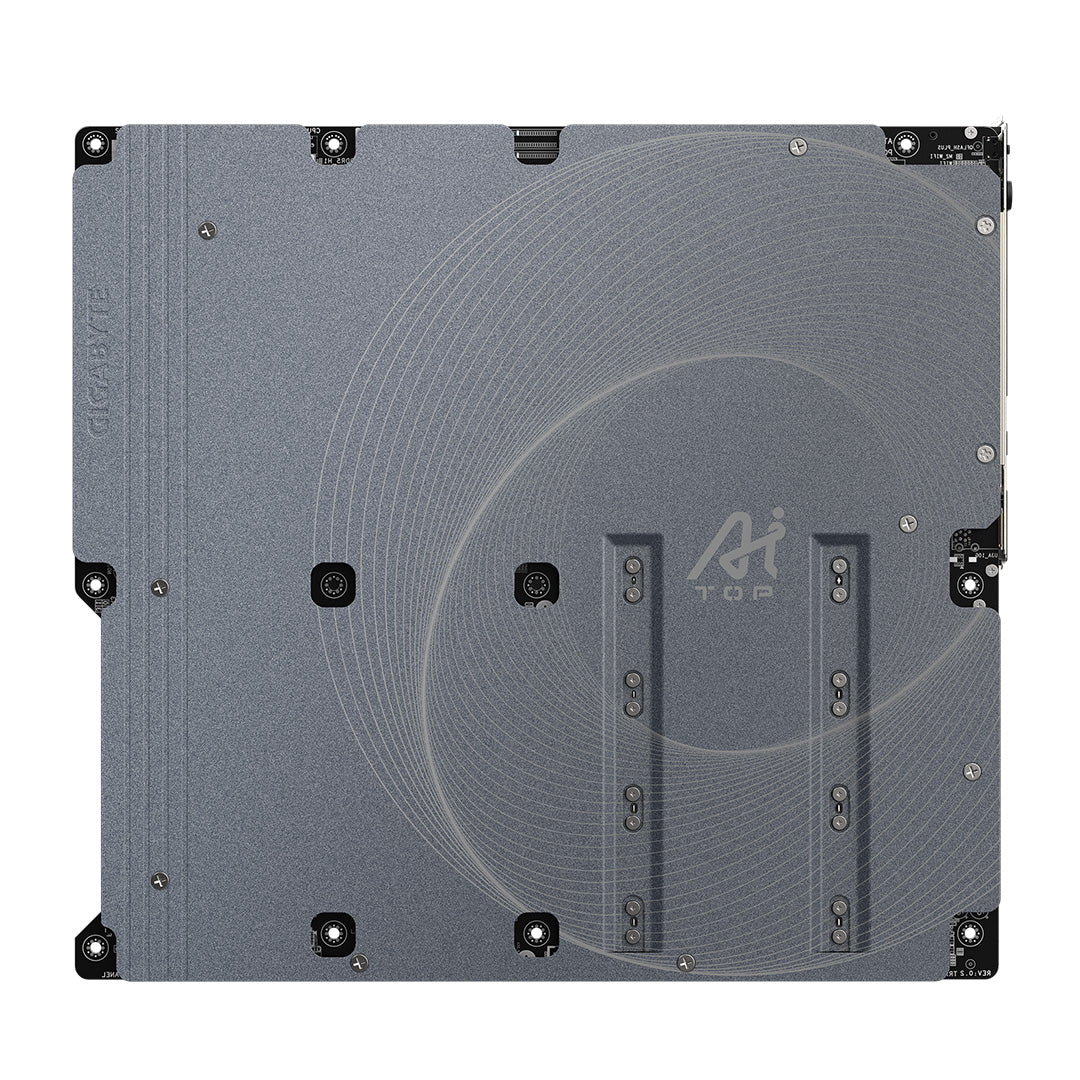

Ultra Durable Construction

GIGABYTE Ultra Durable™ technology combines reinforced slots, solid power connectors, protective materials, and a UD backplate to provide enhanced support, protection, heat dissipation, and long-term reliability.

AI TOP Utility

GIGABYTE’s AI TOP Utility helps users monitor LLM fine-tuning progress and hardware status, while providing quick access to related fine-tuning settings for AI computing workflows.

UC BIOS

The user-centered UC BIOS features a redesigned interface with intuitive performance tuning controls, an updated UI and UX, and customizable Quick Access slots in Easy Mode.

GIGABYTE Control Center

GIGABYTE Control Center provides a unified software platform for supported GIGABYTE products. RGB Fusion allows customization of motherboard lighting and compatible connected RGB devices.

HWiNFO Integration

HWiNFO integration introduces monitoring features designed for computer enthusiasts and professional users who want to track hardware information and system status.

Hi-Fi Audio

Hi-Fi audio is powered by ALC4080 and ALC897 CODECs with DTS:X® Ultra support for an enhanced audio experience.
