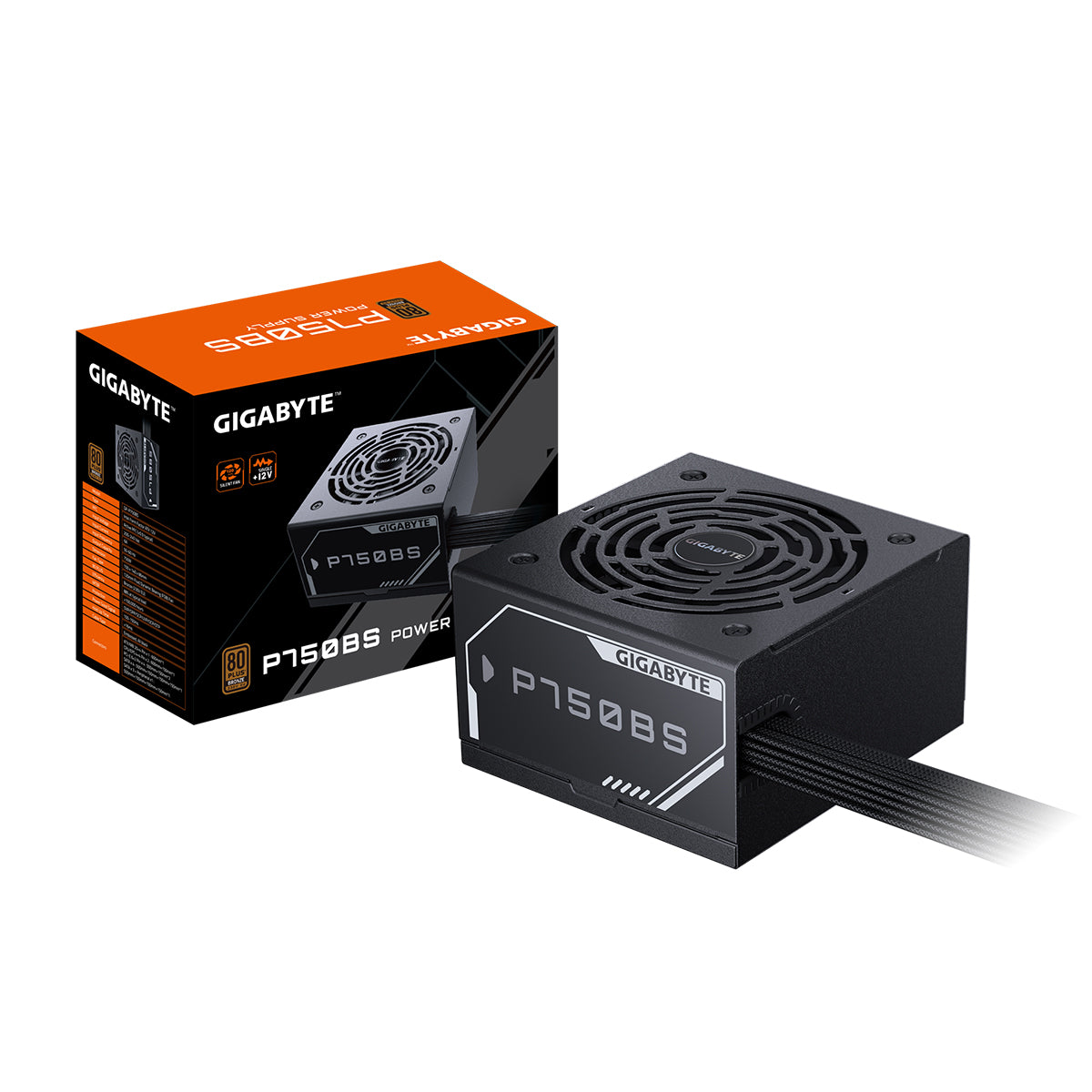

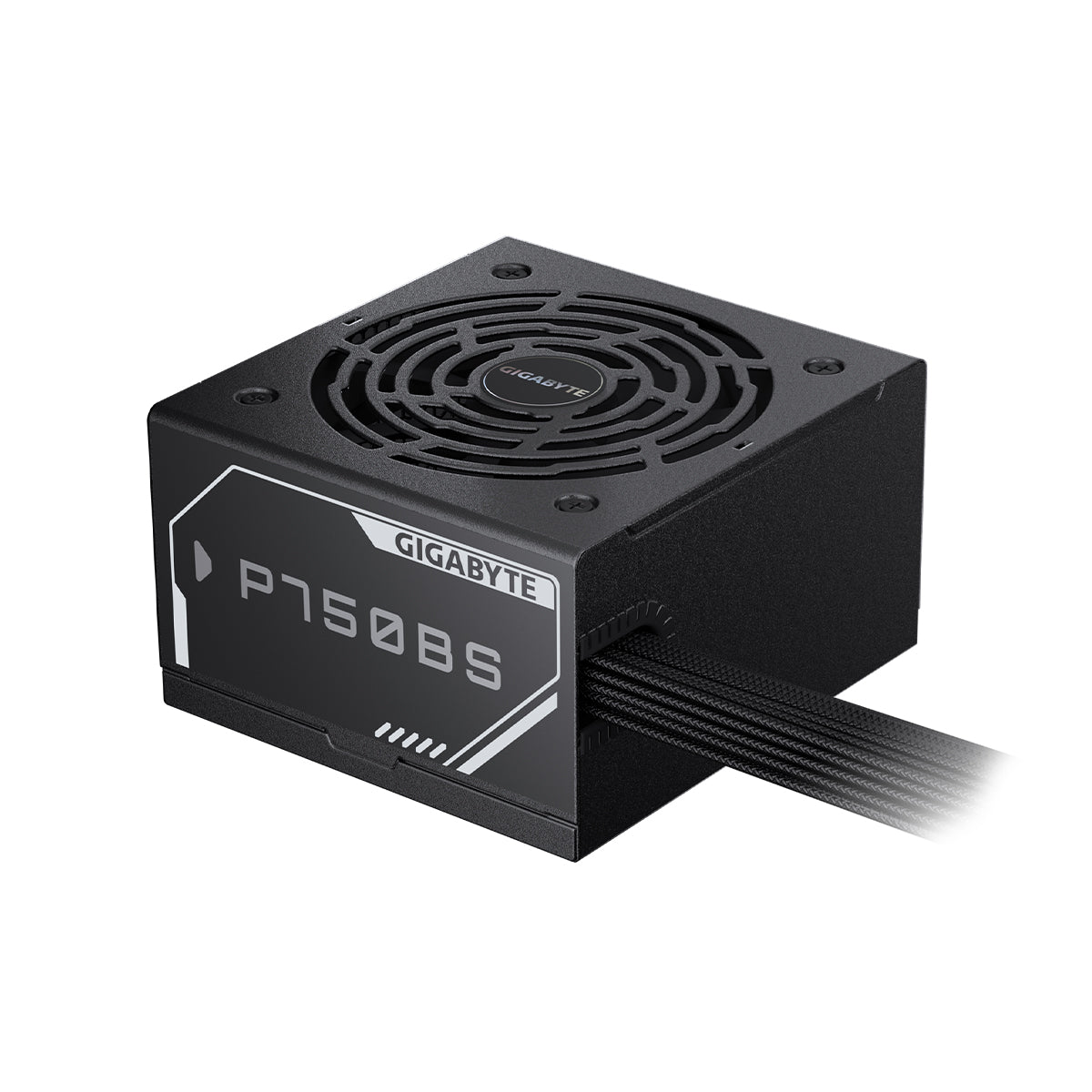

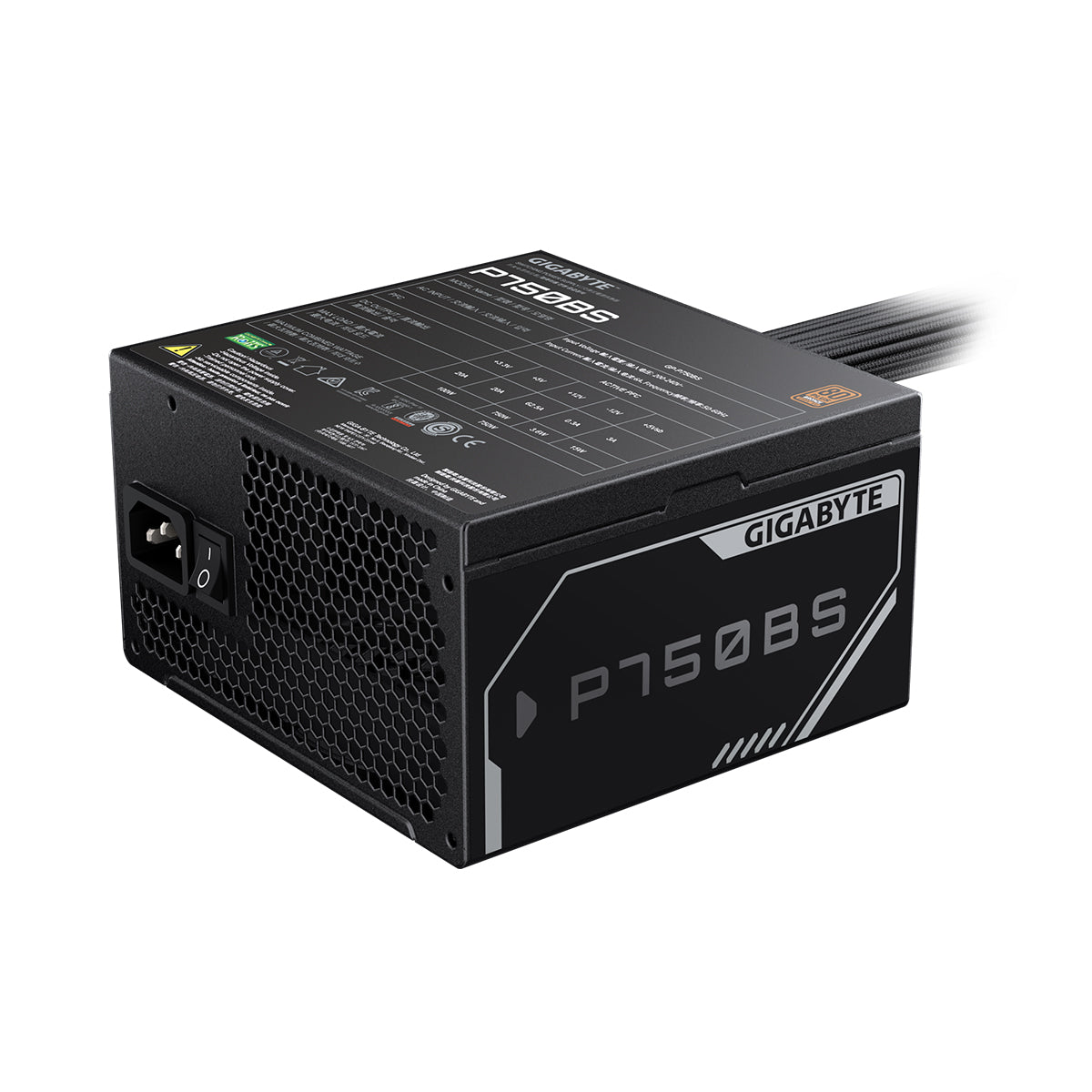

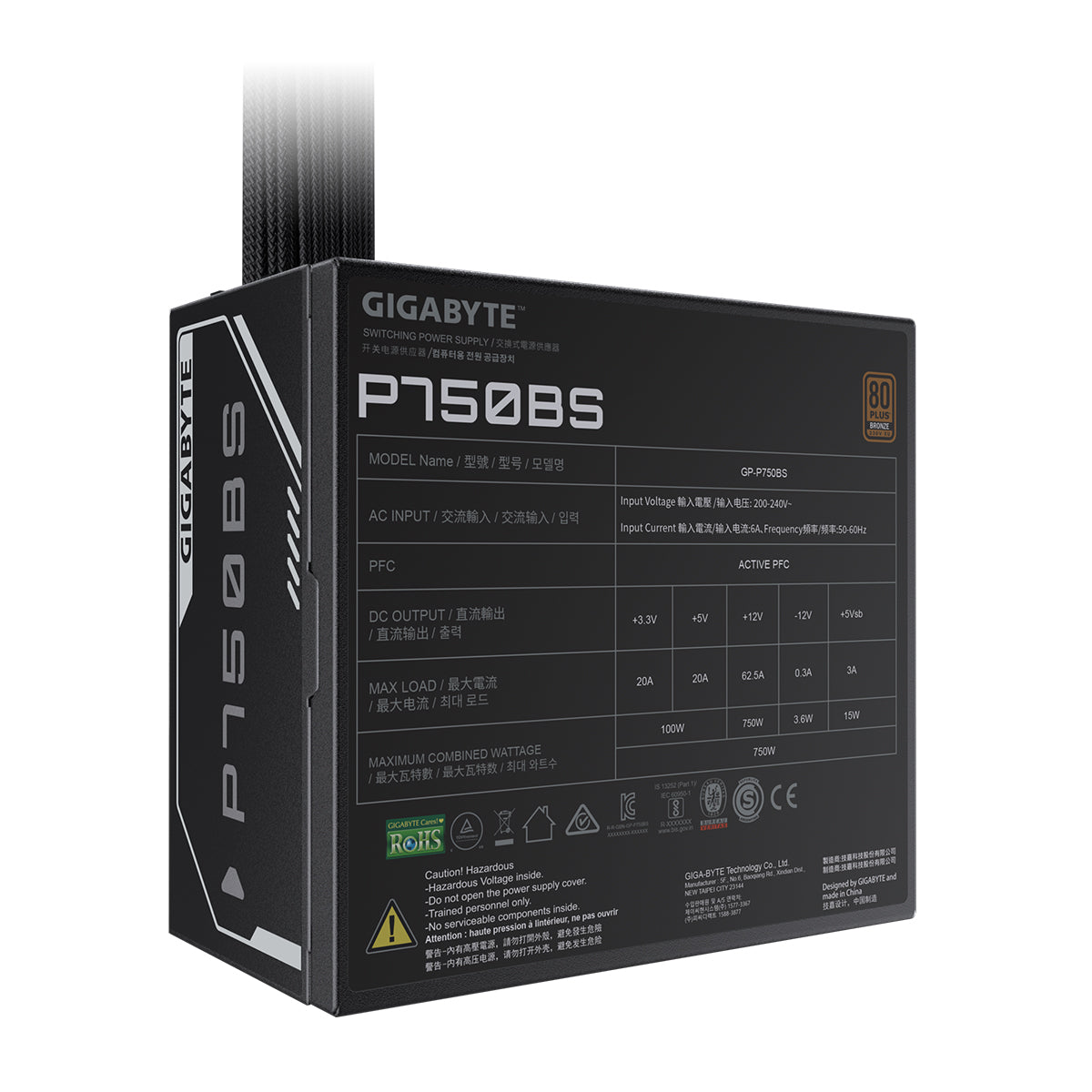

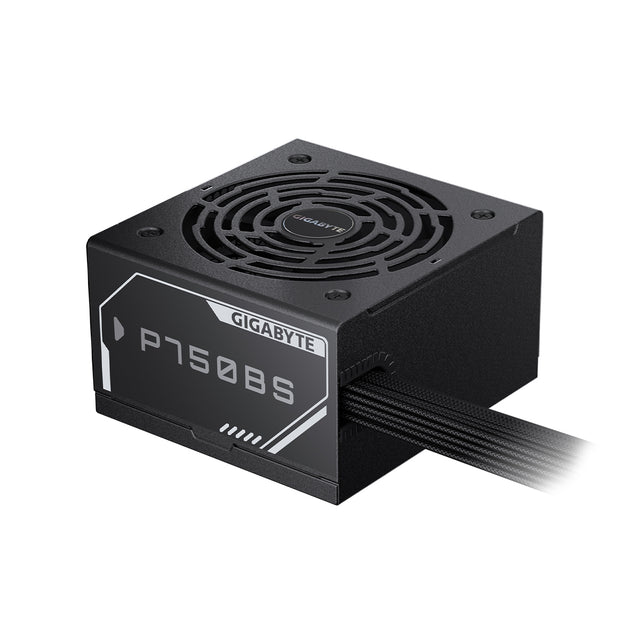

Gigabyte GP-P750BS 750W 80Plus Bronze Power Supply
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Key Feature
80 PLUS Bronze certified (230V EU)
120mm Silent Fluid Dynamic Bearing (FDB) fan
Soft-textured embossed cables
Single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Bronze Certified
The 80 Plus Bronze certification (230V EU) guarantees a 88% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.
Fan
Acoustic

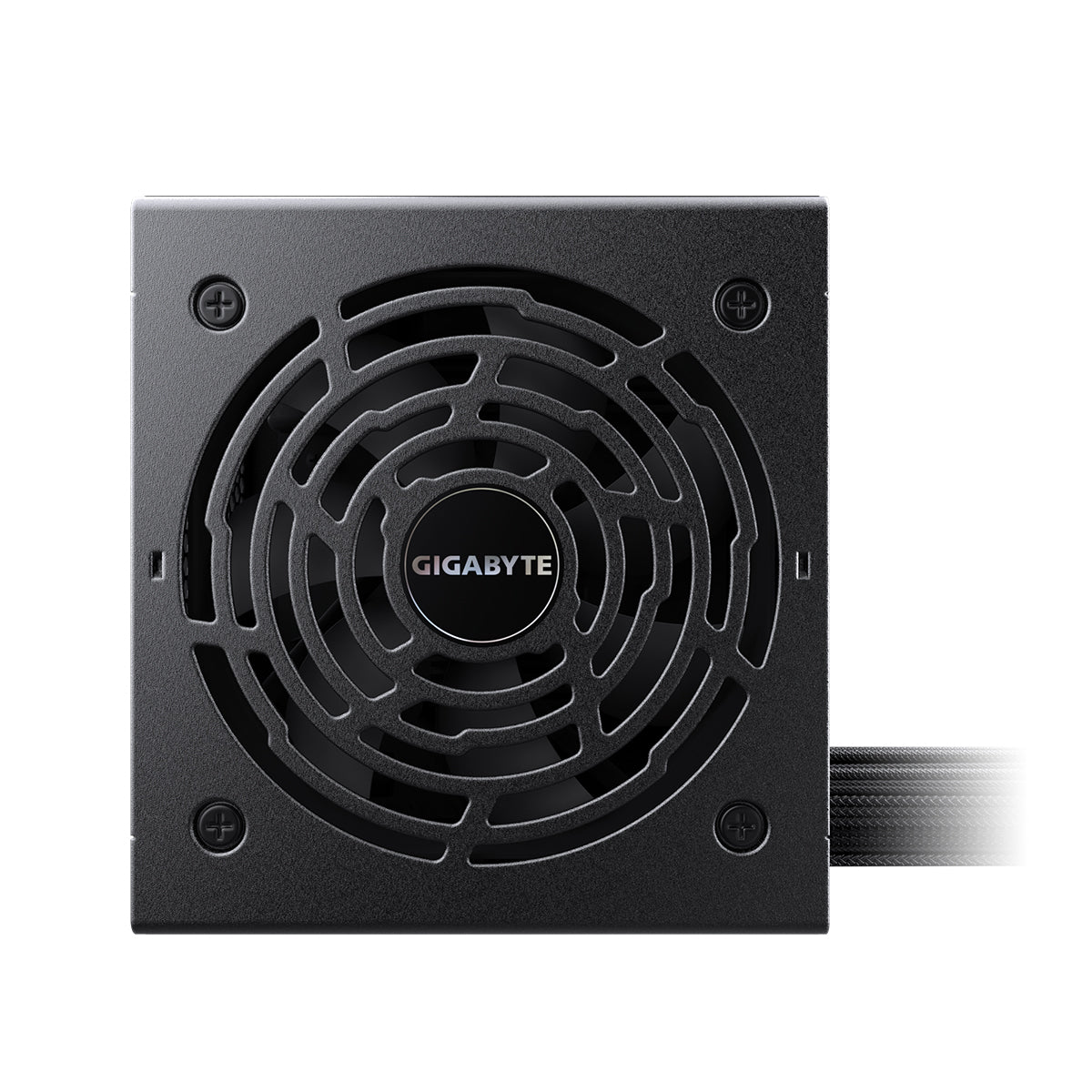

120mm Fluid Dynamic Bearing (FDB) Fan
High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fans and providing more than twice the lifespan. In addition, the fan detects current power usage and temperature, automatically adjusting fan speed to minimize noise.
Soft-Textured Embossed Cables
The embossed design of soft-textured cables enhances friction between the cable and surfaces, reducing wear and tear for a longer lifespan. It also effectively prevents tangling and knotting, keeping cables neat and tidy. The soft material provides a comfortable touch, while the variety of embossed patterns adds a touch of aesthetics to the product.
Single +12V Rail
The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design simplifies power cable installation and is ideal for overclocking purposes.
Protection
To guarantee stable operation of your entire computer system under any circumstances, a range of protective features are incorporated including OCP, OTP, OVP, OPP, UVP, and SCP. Additionally, safety certifications from various countries ensure consistent and secure functioning of your system.
Specifications
Specifications
| Model | GP-P750BS |
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 200-240 Vac |
| Input Current | 6 A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 750W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS | Bronze (230V EU) |
| Efficiency | 88% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Embossed, All black |
| Connectors | ATX/MB 20+4 Pin x1 : 600mm*1 CPU/EPS 4+4 Pin x2 : 600mm+150mm*1 PCI-E 6+2 Pin x4 : 500mm+150mm*2 SATA x4 : 500mm+150mm+150mm+150mm*1 SATA x3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1 |
