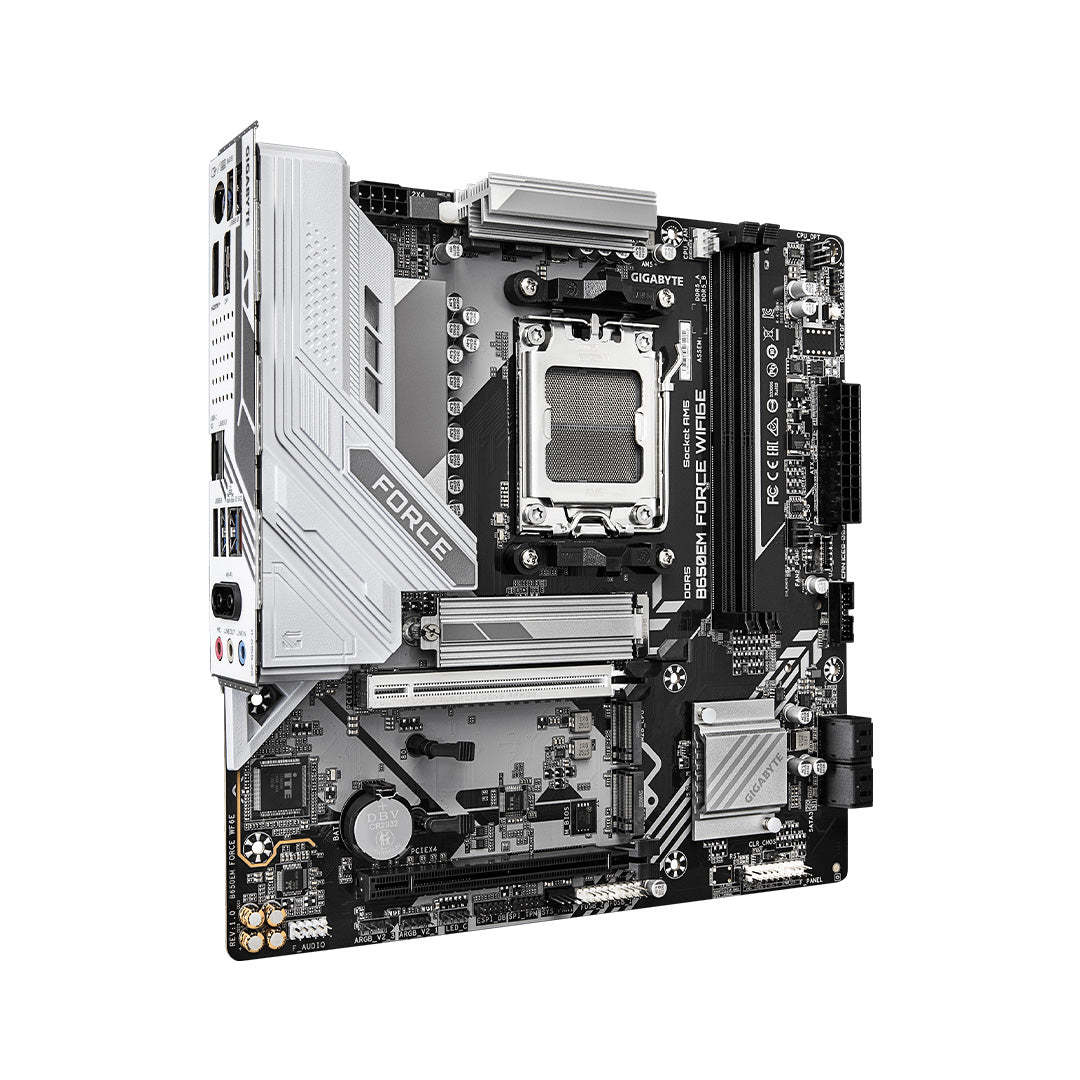

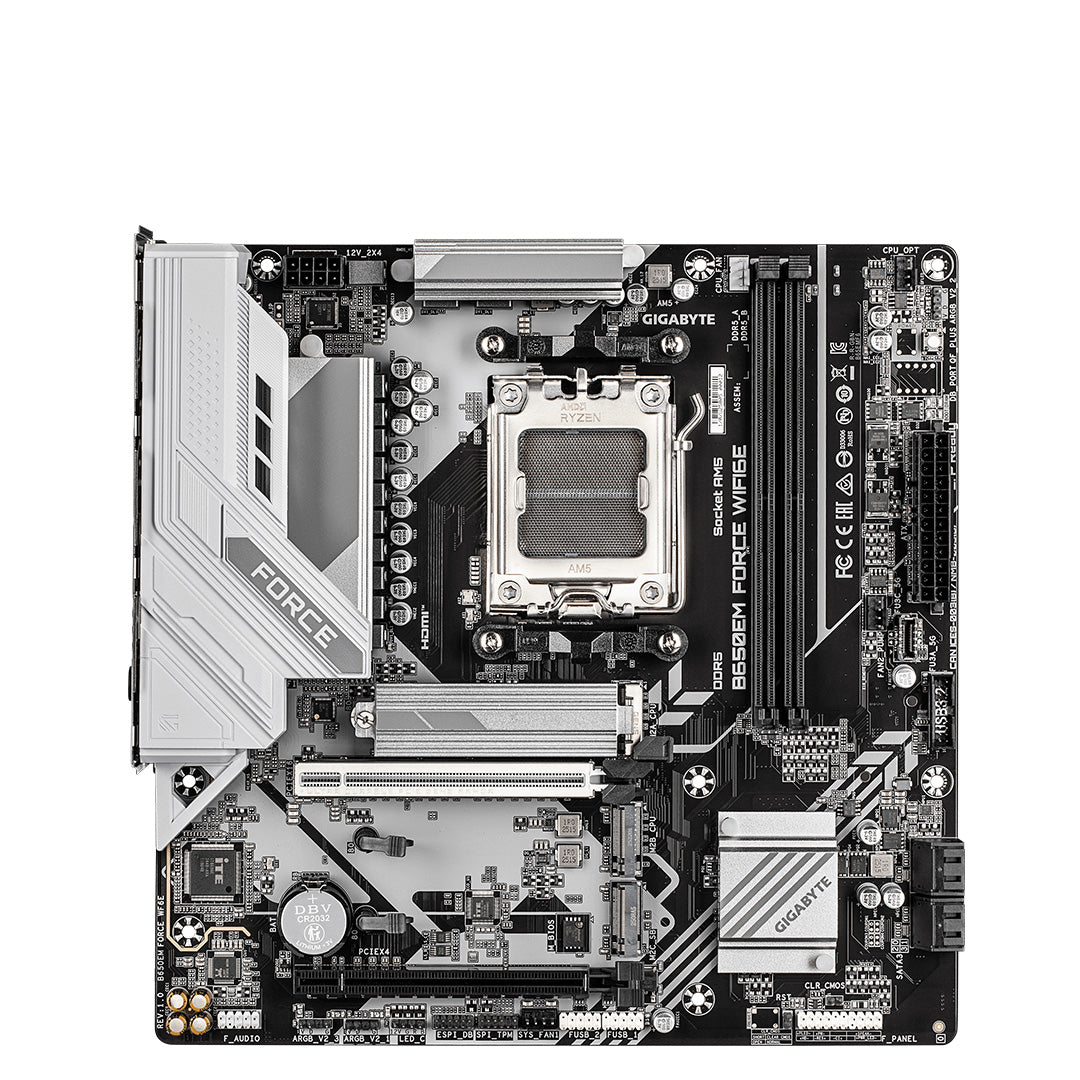

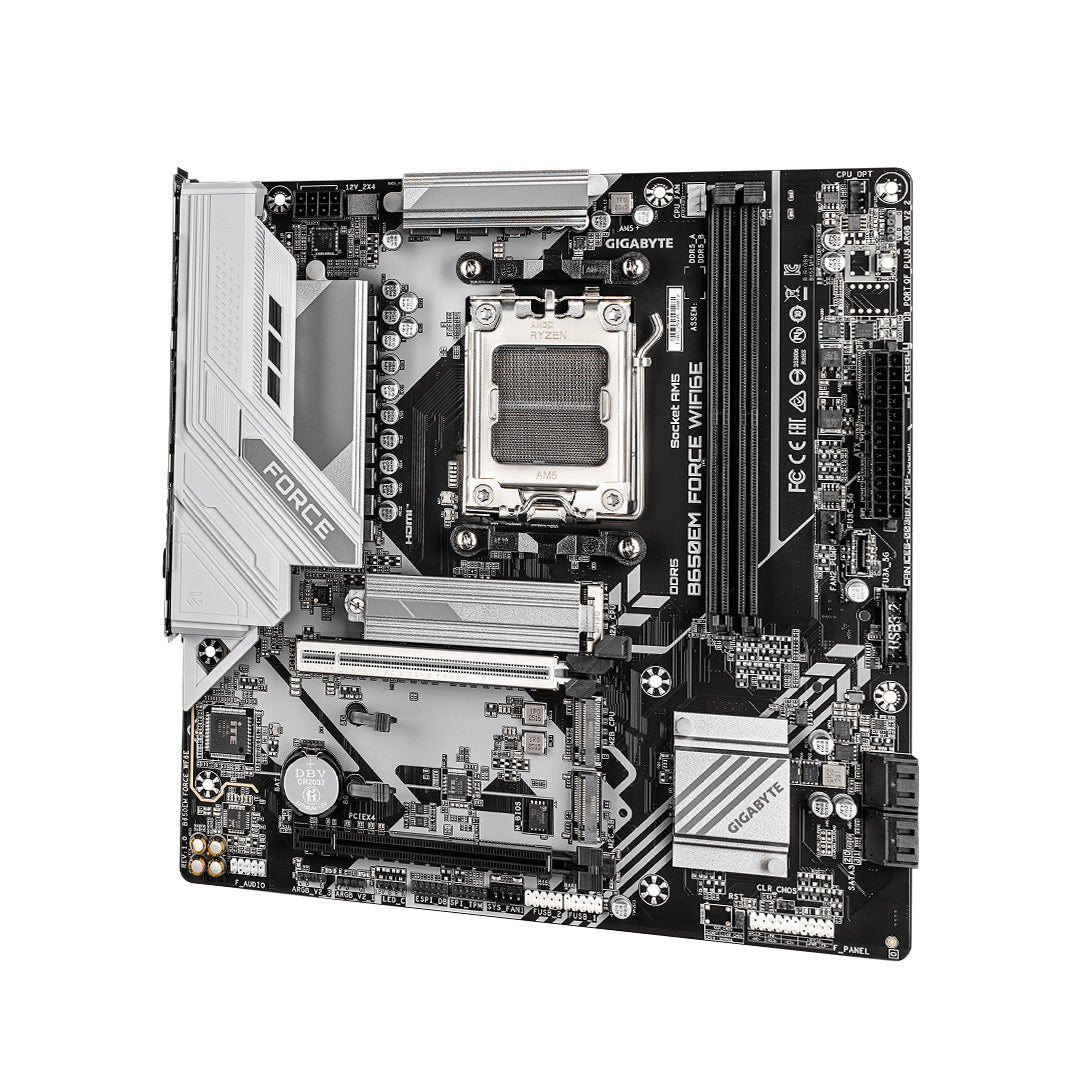

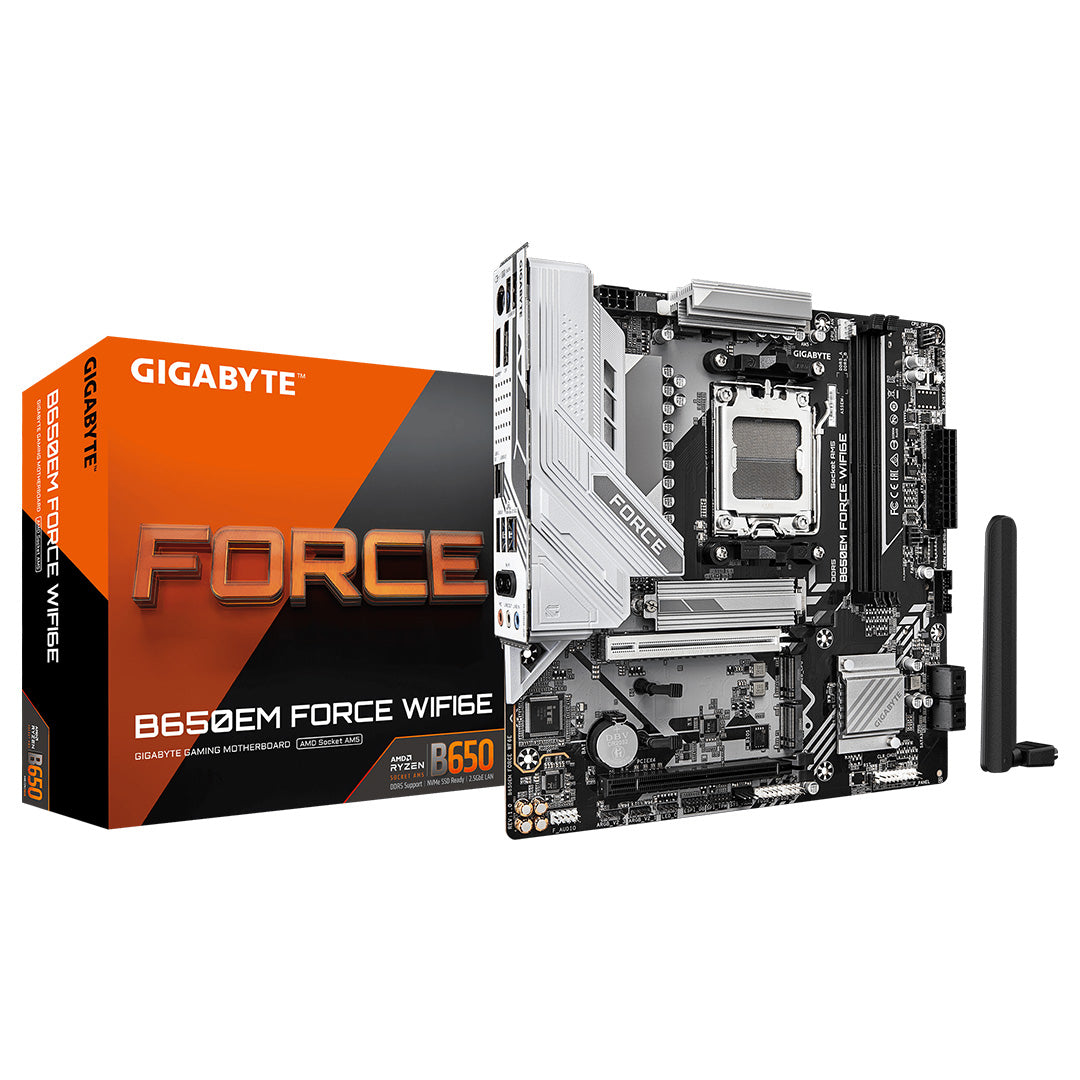

Gigabyte B650EM FORCE WIFI6E mATX Motherboard

B650EM FORCE WIFI6E

AMD Socket AM5

Supports AMD Ryzen™ 7000, Ryzen™ 8000, and Ryzen™ 9000 Series processors.

Digital VRM Design

The 8+2+2-phase digital VRM solution is designed to deliver consistent, high-powered performance. The digital PWM and DrMOS design supports the latest CPUs and provides system performance and hardware scalability.

Dual-Channel DDR5 Memory

Features two SMD DIMM slots with support for AMD EXPO™ and Intel® XMP memory modules. GIGABYTE AM5 motherboards support both profiles, which can be selected in the BIOS.

DDR5 Overclocking Support

The tested memory platform supports DDR5 EXPO and XMP overclocking up to 9600 and beyond, depending on the hardware configuration. Memory routing is shielded within the PCB by a large ground layer to help protect against external interference.

DDR5 Voltage Control

GIGABYTE’s DDR5 circuit design supports memory overclocking. In Secure Mode, the motherboard provides 5V to native DDR5 memory while the built-in PMIC supplies 1.1V to the memory IC. The motherboard can also unlock native DDR5 PMIC Secure Mode for programmable voltage control and supports PMICs from multiple vendors.

DDR5 Auto Booster

With a single click, the system can automatically boost native DDR5 memory frequency to 5000 MHz under heavy loading.

AMD EXPO™ and Intel® XMP 3.0 User Profiles

Create and save custom SPD profiles for native and XMP 3.0 memory modules, or apply pre-tuned profiles. Performance simulation is based on user-entered clock and timing parameters. Profiles can be saved, cleared, loaded locally or from external storage, transferred to another computer, and shared online.

PCIe 5.0 Performance

The PCIe 5.0 x16 slot provides up to 32 GT/s per lane, doubling the 16 GT/s per-lane transfer rate of PCIe 4.0. This increased bandwidth supports high-performance graphics cards, storage devices, and AI accelerators.

High-Speed Storage

Includes a PCIe 5.0 x4 M.2 connector, an M.2 Thermal Guard, and four SATA 6Gb/s connectors. The M.2 Thermal Guard helps dissipate heat from high-speed M.2 SSDs to help prevent thermal throttling.

Comprehensive Thermal Design

The motherboard features a fully covered MOSFET heatsink and durable cooling components to help keep the system cool and efficient.

Fully Covered MOSFET Heatsink

The heatsink provides up to three times the surface area of traditional heatsinks to improve heat dissipation from the MOSFETs.

One-Piece Heatsink Design

The TMOS heatsink uses a single-piece design with a larger surface area to improve cooling performance.

Multi-Cut Heatsink Design

Channels and inlets in the TMOS heatsink allow airflow to pass through and help improve heat transfer.

Wi-Fi 6E and Bluetooth 5.3

The 802.11ax Wi-Fi solution supports wireless speeds of up to 2.4 Gbps for video streaming and gaming. Bluetooth 5.3 offers up to four times the range of Bluetooth 4.2 with faster transmission.

2.5GbE LAN

The 2.5GbE LAN connection supports high-speed networking with low latency for gaming and other network activities.

Hi-Fi Audio

High-end audio capacitors support high-resolution, high-fidelity audio. Audio Noise Guard separates sensitive analog audio components from potential noise at the PCB level.

Audio and Connectivity

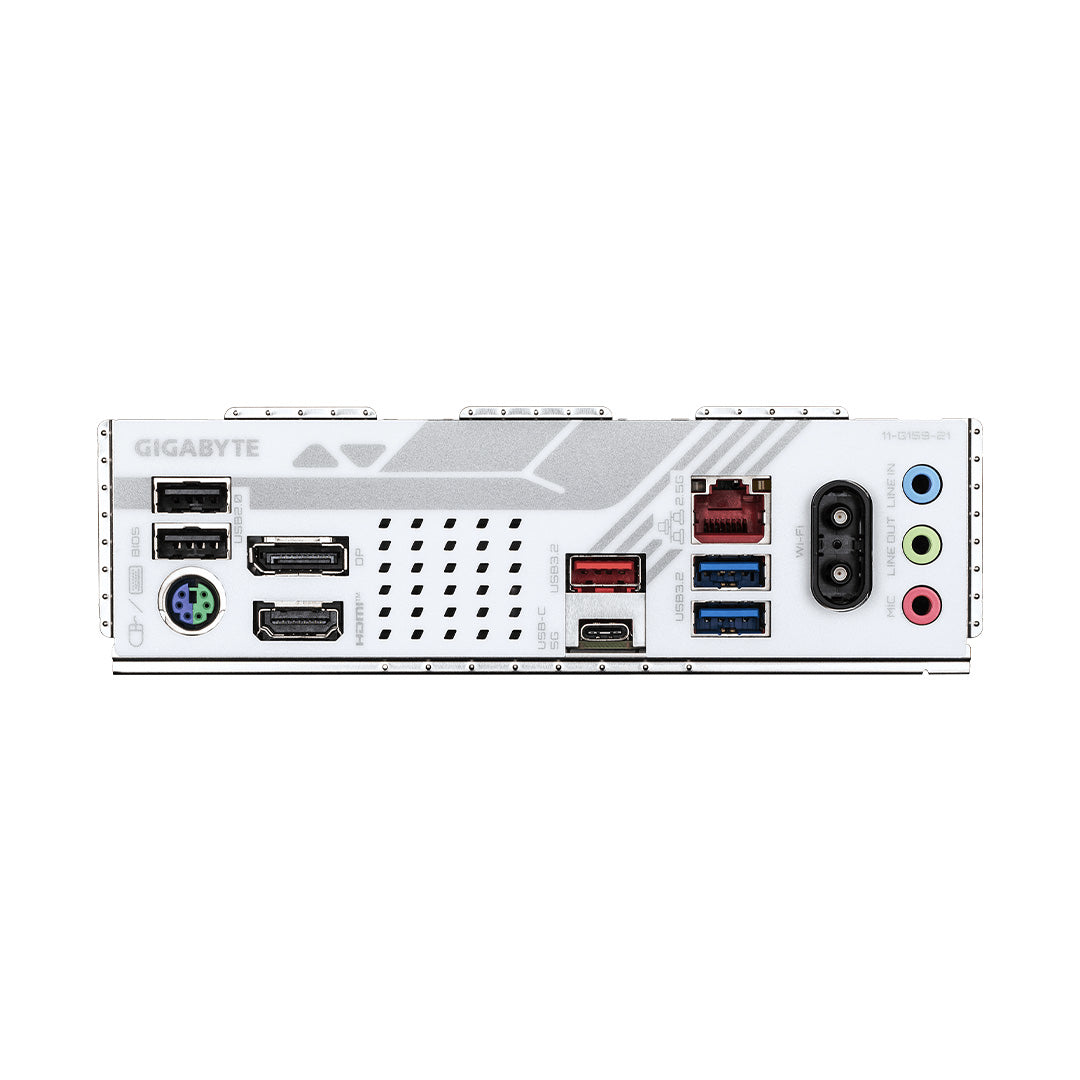

Includes HDMI, DisplayPort, one USB 3.2 Gen 1 Type-C port, one USB 3.2 Gen 2 port, two USB 3.2 Gen 1 ports, two USB 2.0 ports, 2.5GbE LAN, Wi-Fi 6E, eight-channel HD audio, and Hi-Fi audio components.

Expansion and Internal Headers

Features one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot operating at x4, four PWM/DC fan headers, three addressable LED headers, one RGB LED header, and four SATA 6Gb/s connectors. RGB FUSION supports lighting customization.

EZ-Latch

The PCIe EZ-Latch quick-release design makes it easier to release and remove a graphics card from the PCIe slot.

WIFI EZ-Plug

The WIFI EZ-Plug combines the Wi-Fi antenna connections into one adapter for easier installation.

Q-Flash Plus

Update the BIOS without installing the CPU, memory, or graphics card. Connect the 24-pin and 8-pin power cables, save the renamed BIOS file “gigabyte.bin” to a FAT32-formatted USB flash drive, insert it into the Q-Flash Plus USB port, and press the Q-Flash Plus button to begin the update.

Smart Fan 6

Smart Fan 6 supports PWM/DC fans and water-cooling pumps, customizable settings, and temperature monitoring. Each fan header supports up to 24W (12V x 2A) with over-current protection. Multiple temperature and fan-speed control points allow precise fan curve adjustments.

Smart Fan 6 Controls

Choose Slope or Stair dual curve mode for different usage scenarios. The BIOS fan curve interface provides up to seven control points and a larger speed graph. Advanced users can enter fan speeds manually, or use EZ Tuning to create a fan curve from four temperature and speed points. Customized fan curve profiles can be saved in the BIOS ROM.

Reinforced Structure

The motherboard features a reinforced structure designed to support durability and stable performance.

GIGABYTE Control Center

GIGABYTE CONTROL CENTER (GCC) is unified software for supported GIGABYTE products. It provides an intuitive interface, modular controls for installed hardware, and automatic updates to keep the system current and support future products.

Product features and images may vary by model. Memory overclocking support depends on the hardware configuration. Images are for reference only.
