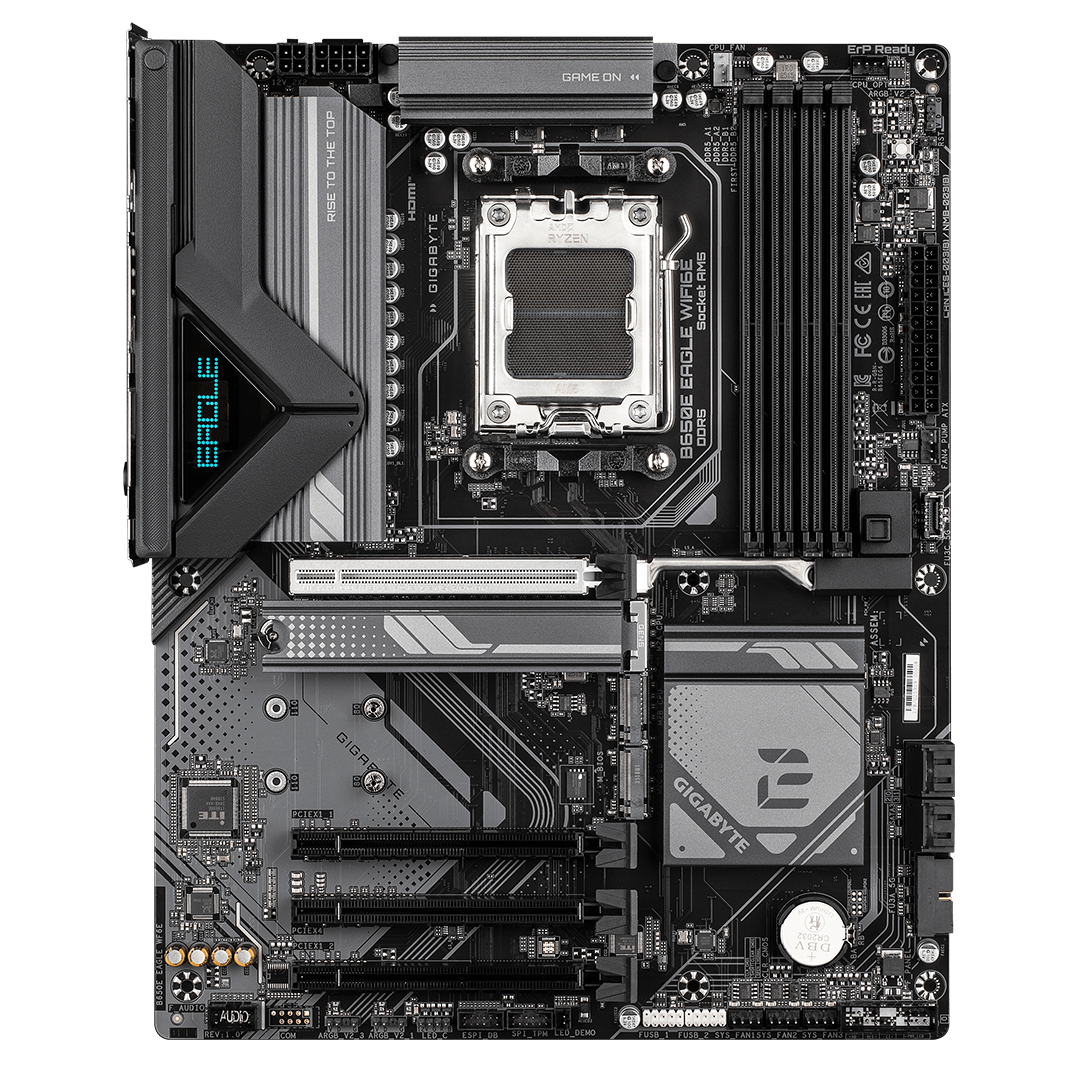

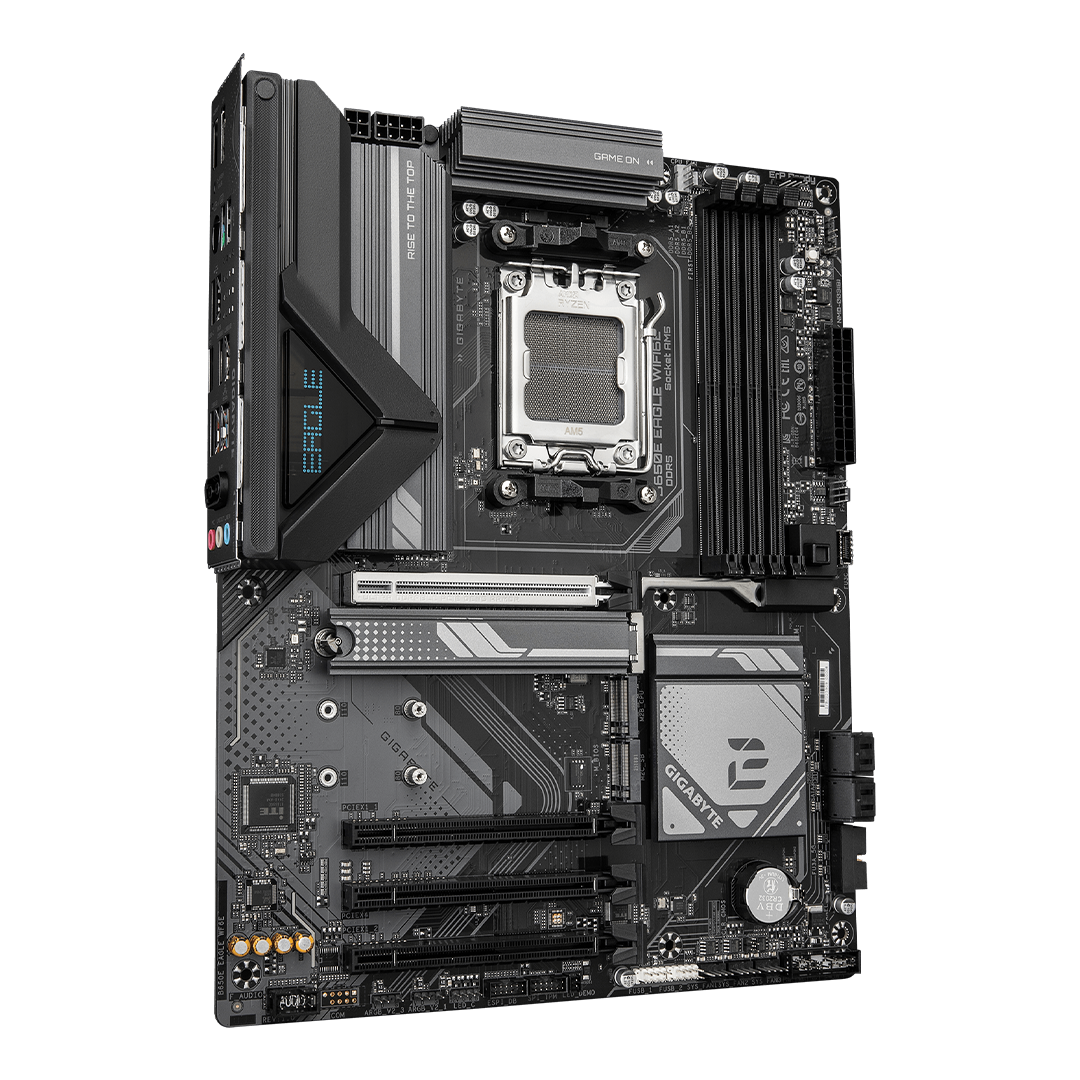

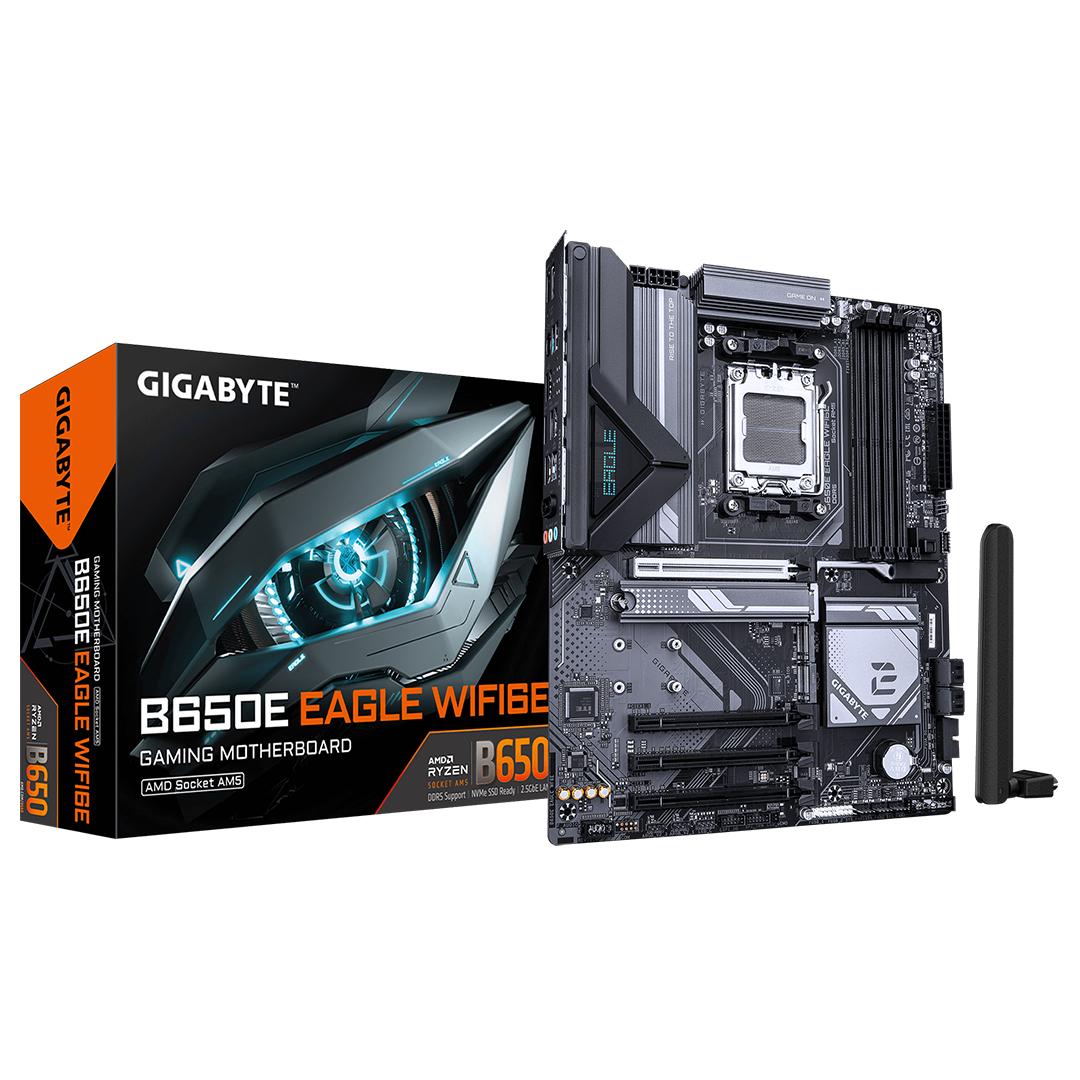

Gigabyte B650E EAGLE WIFI6E Motherboard
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
AMD Ryzen Processor Support
The AMD Socket AM5 supports AMD Ryzen™ 7000, Ryzen™ 8000, and Ryzen™ 9000 Series processors.

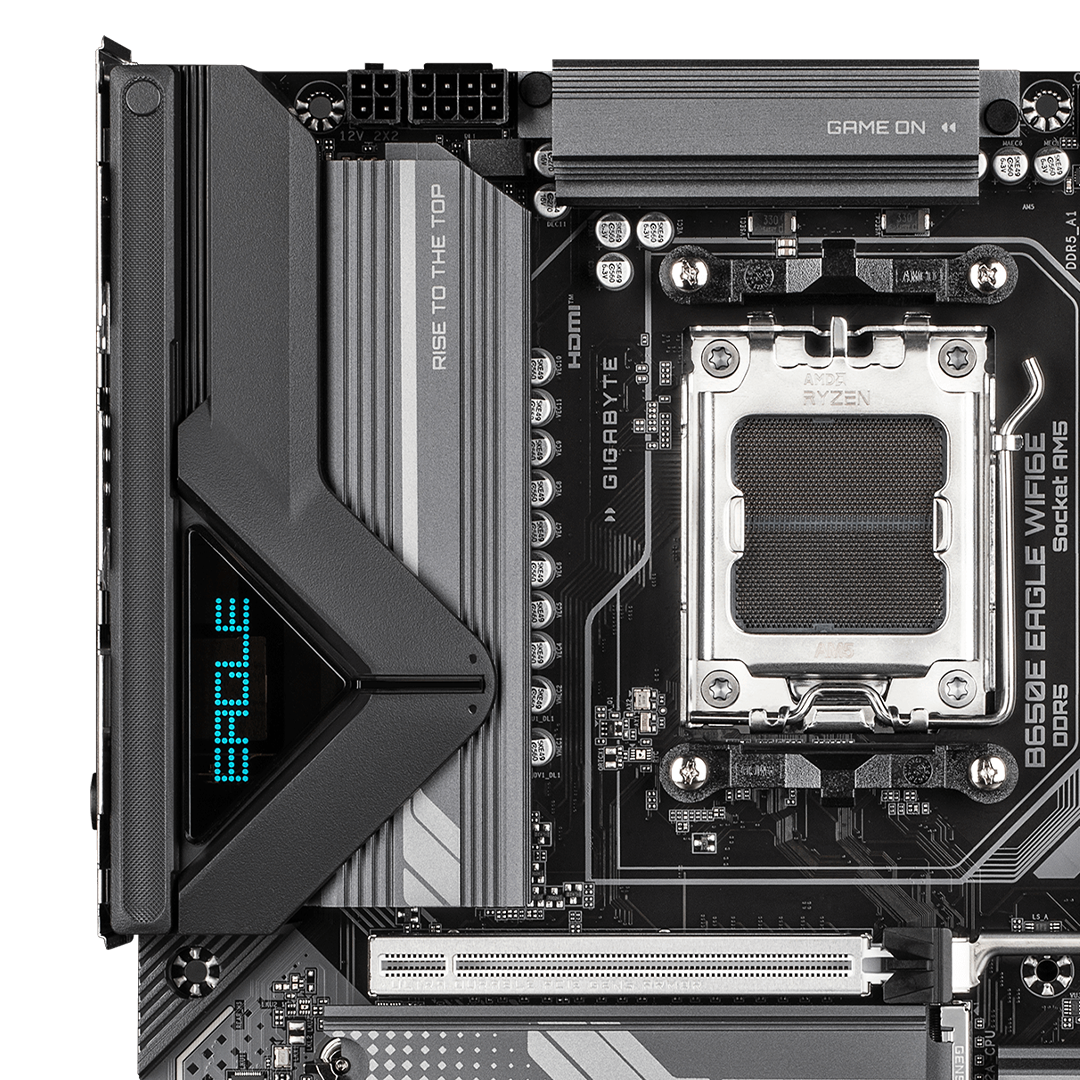

Digital VRM Design
The 8+2+2-phase digital VRM solution combines digital PWM with DrMOS to deliver stable power for supported processors. The motherboard features a 6-layer PCIe 5.0-ready PCB.
DDR5 Memory Support
Four dual-channel SMD DDR5 DIMM slots support AMD EXPO™ and Intel® XMP memory modules. Memory overclocking is supported up to 8200 MT/s and beyond, depending on the memory modules and system configuration. The BIOS also includes DDR5 Auto Booster and user profile options.
Advanced Thermal Design
Fully covered MOSFET heatsinks and 5 W/mK thermal pads help manage heat around the VRM. The M.2 Thermal Guard helps dissipate heat from compatible M.2 SSDs to reduce throttling. Smart Fan 6 provides temperature monitoring and customizable fan control.
High-Speed Storage and Expansion
Three M.2 connectors include one PCIe 5.0 slot and two PCIe 4.0 slots. The motherboard also features four SATA 6Gb/s connectors, one PCIe 5.0 x16 slot, one PCIe 4.0 x4 slot, and two PCIe 3.0 x1 slots.
Wi-Fi 6E and Network Connectivity
Wi-Fi 6E 802.11ax supports the 6GHz band, and the motherboard includes Bluetooth 5 and 2.5GbE LAN. WIFI EZ-Plug combines the Wi-Fi antenna connections into one adapter for easier installation.
Display and USB Connections
Display connections include DisplayPort and HDMI. USB connectivity includes rear USB 3.2 Gen 2 ports, USB 3.2 Gen 1 Type-A and Type-C ports, and USB 2.0 ports. The motherboard also supports front USB 3.2 Gen 1 and front USB Type-C connections.
High-Resolution Audio
8-channel HD audio includes high-end audio capacitors and Audio Noise Guard to help separate sensitive analog audio components from potential PCB noise.
DIY-Friendly Features
PCIe EZ-Latch Plus supports quick-release graphics card removal. Q-Flash Plus lets you update the BIOS without installing the CPU, memory, or graphics card.
Smart Fan 6 Cooling Control
Six PWM/DC fan headers support fans and water-cooling pumps, with over-current protection. Smart Fan 6 offers multiple temperature sensors, customizable fan curves, slope and stair modes, and Fan Stop.
RGB Lighting and Software
RGB Fusion supports motherboard and compatible component lighting through three addressable LED headers and one RGB LED header. GIGABYTE Control Center provides a unified interface for supported products, modular controls, and automatic updates.
Specifications
Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B650 |
| Memory | Support for DDR5 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Refer to the ""Memory Support List"" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz Support for DisplayPort 1.4 version and HDR 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR Support for native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.) |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | MediaTek Wi-Fi 6E MT7902 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) (Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, install it in the PCIEX16 slot.) Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) (The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the SATA3 0 and SATA3 1 connectors. The SATA3 0/1 connector becomes unavailable when a device is installed in the PCIEX1_1 or PCIEX1_2 slot.) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.) RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

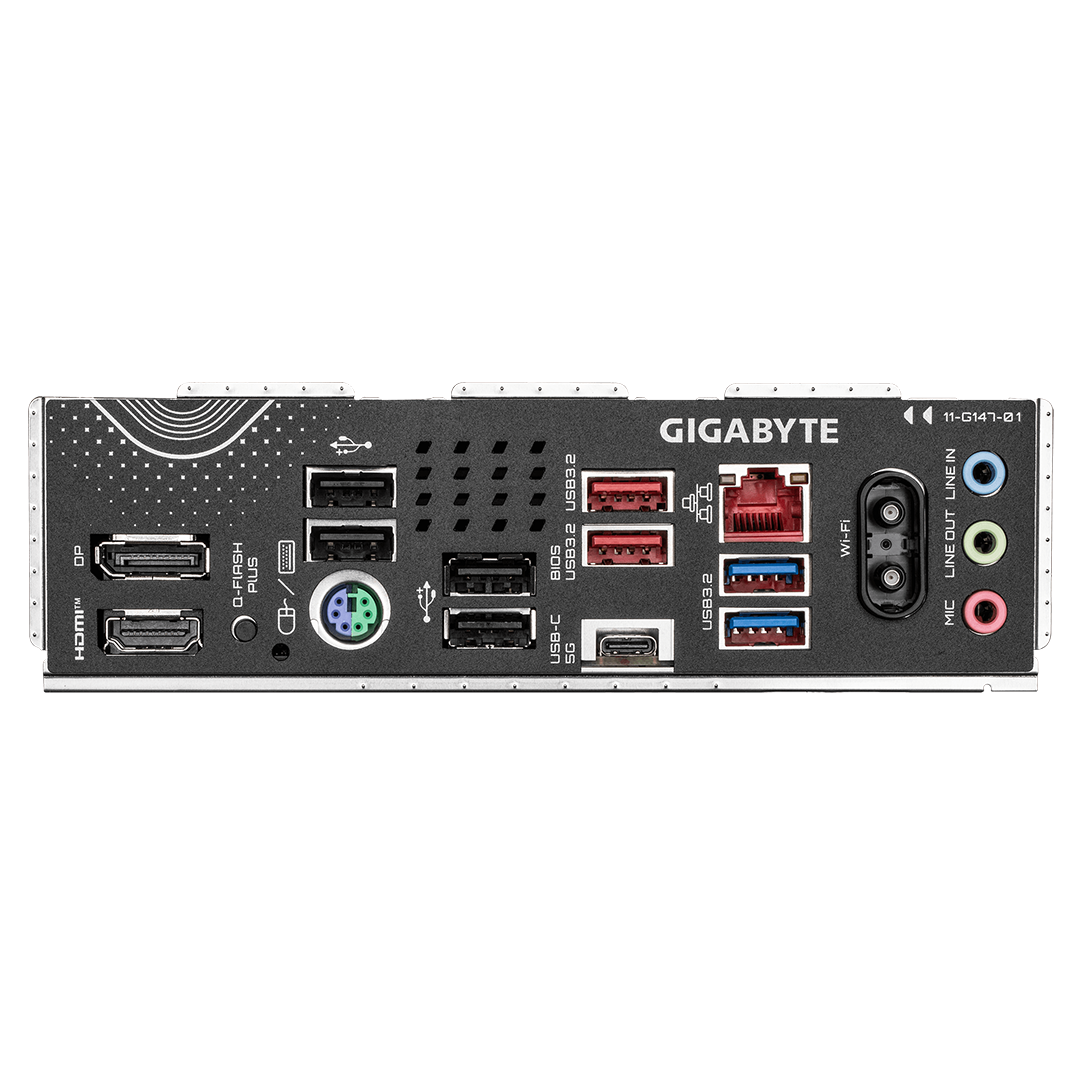

| Back Panel Connectors | 1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (1T1R) 3 x audio jacks (Note) Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control (Whether the fan or pump speed control function is supported depends on the fan or pump installed.) |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) (Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
