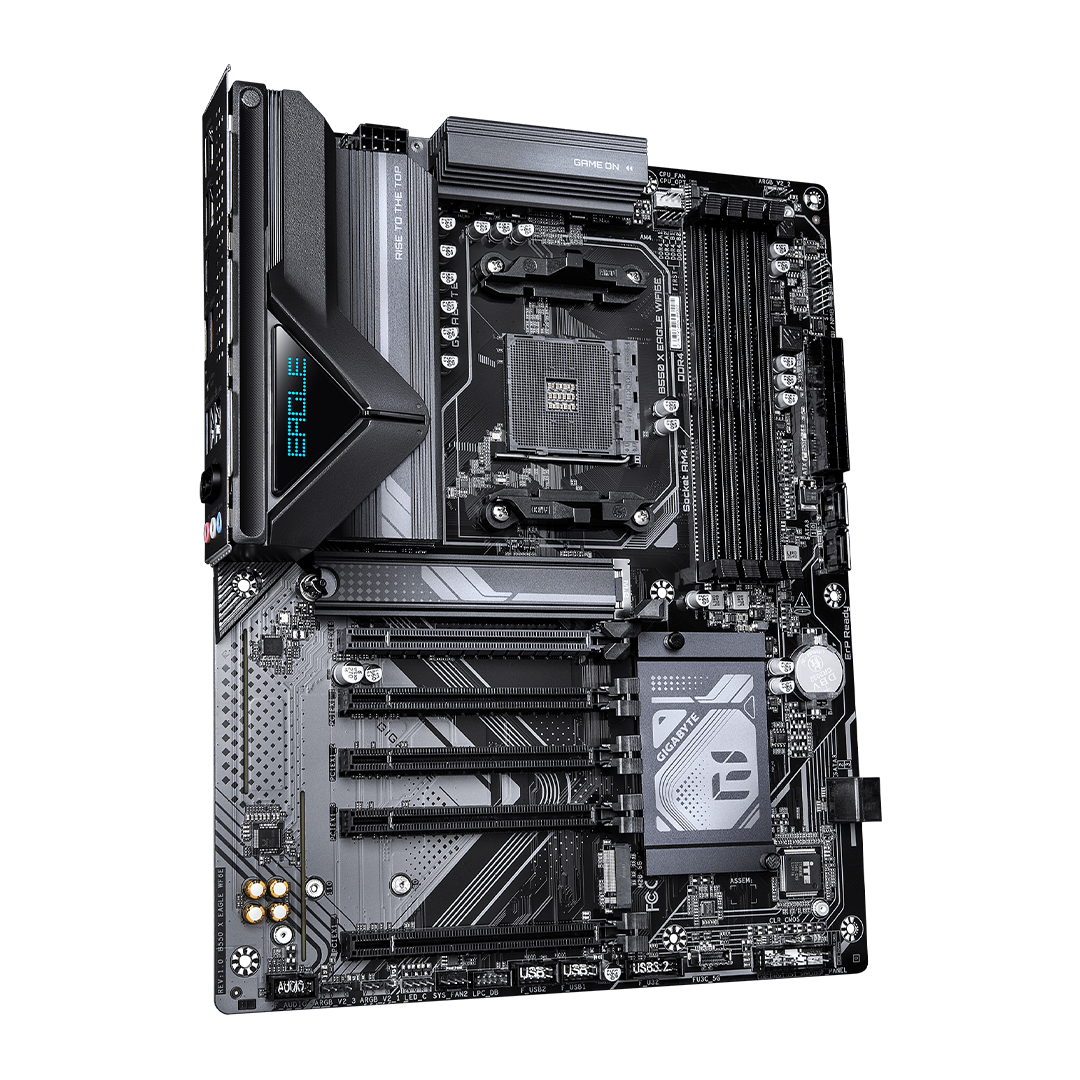

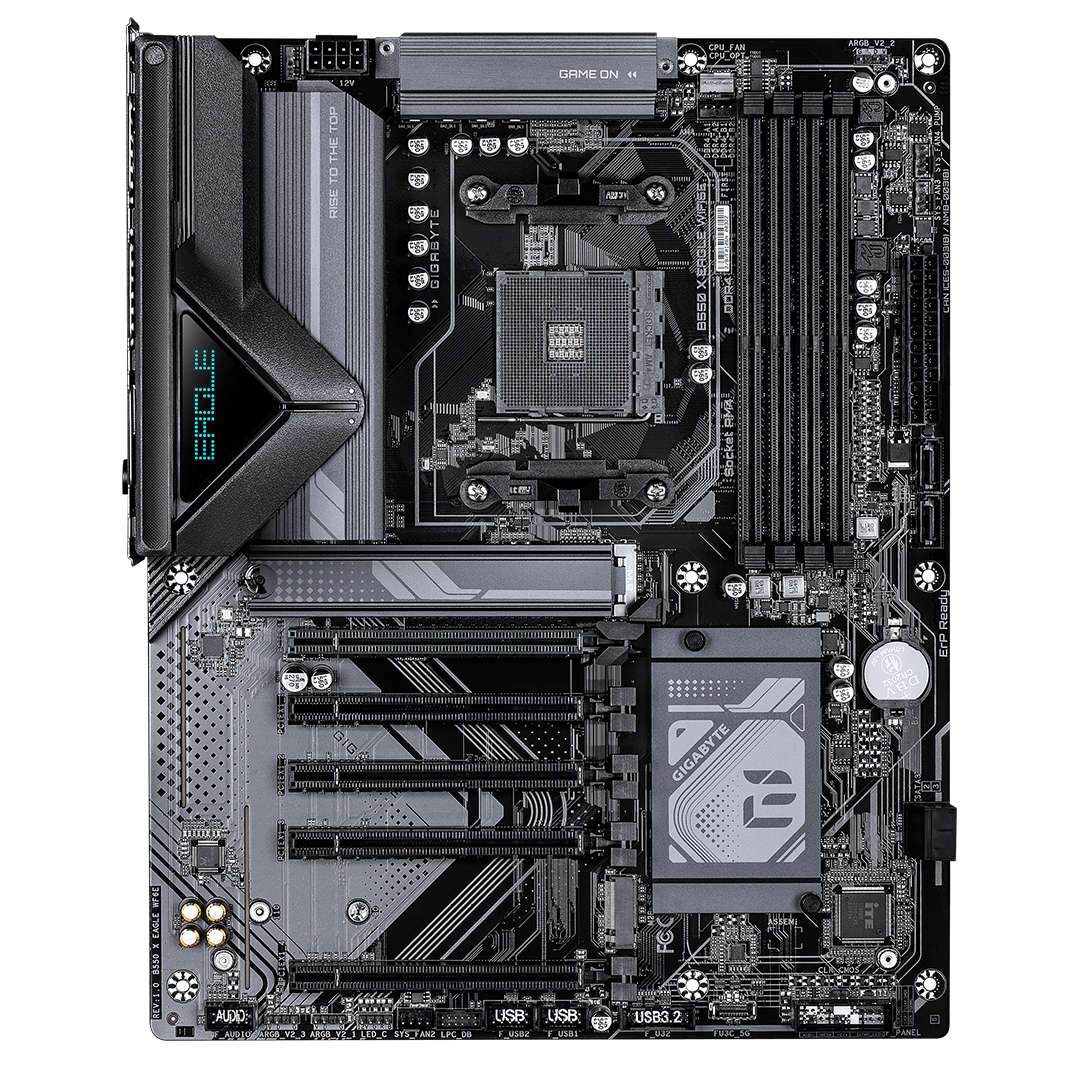

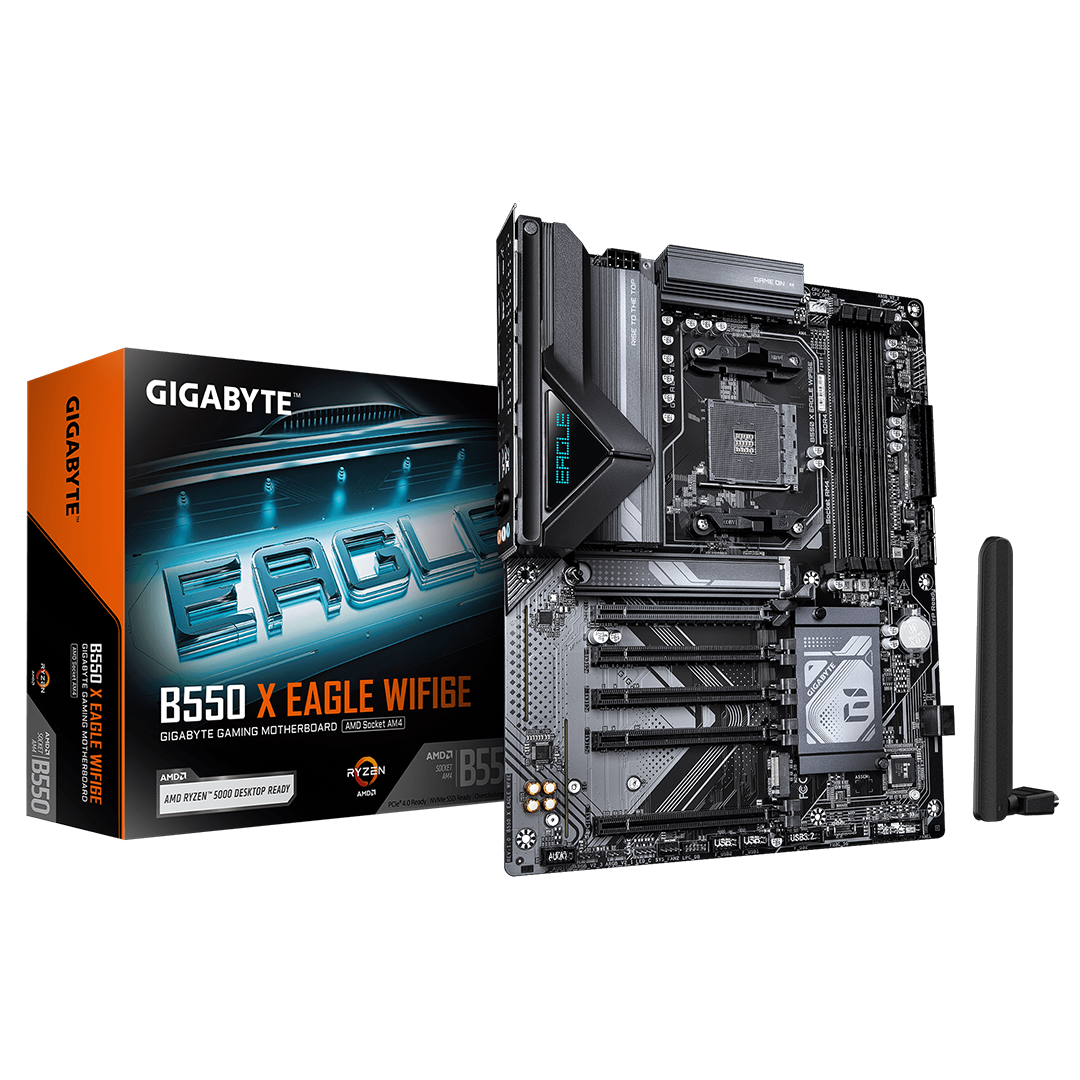

GIGABYTE B550 X EAGLE WIFI6E Motherboard
Built for smooth gaming and reliable performance, this motherboard features an AMD Socket AM4 platform, a hybrid digital twin 8+2-phase VRM design, DDR4 memory support, fast storage, and Wi-Fi 6E connectivity.
AMD Ryzen Processor Support
The AMD Socket AM4 supports AMD Ryzen™ 5000, 4000, and 3000 Series processors.
Hybrid Digital Twin VRM Design
The 8+2-phase hybrid digital VRM solution includes 8 VCORE phases with 60A DrMOS and 2 SOC phases with 60A DrMOS. Its parallel power design helps deliver consistent power for multi-core processor performance.
DDR4 Memory Support
Four DIMM slots support dual-channel DDR4 memory and XMP memory modules.
Efficient Cooling
The motherboard features VRM Thermal Armor Advanced, large VRM heatsinks, 5 W/mK thermal pads, an M.2 Thermal Guard, and Smart Fan 6 for customized cooling.
Fast Storage and Expansion
Two M.2 slots include one PCIe 4.0 x4 slot and one PCIe 3.0 slot. The expansion slots include one full-length PCIe 4.0 x16 slot and four PCIe 3.0 x1 slots.
Fast Networking and Audio
Connect with 2.5GbE LAN and Wi-Fi 6E. Audio features include high-end audio capacitors and Audio Noise Guard.
DIY-Friendly Design
WIFI EZ-Plug makes Wi-Fi antenna installation easier. PCIe EZ-Latch provides quick-release graphics card removal, while M.2 EZ-Latch Click and M.2 EZ-Latch Plus simplify M.2 drive and heatsink installation. The board also supports GIGABYTE Control Center and Q-FLASH Plus.
Ultra Durable Construction

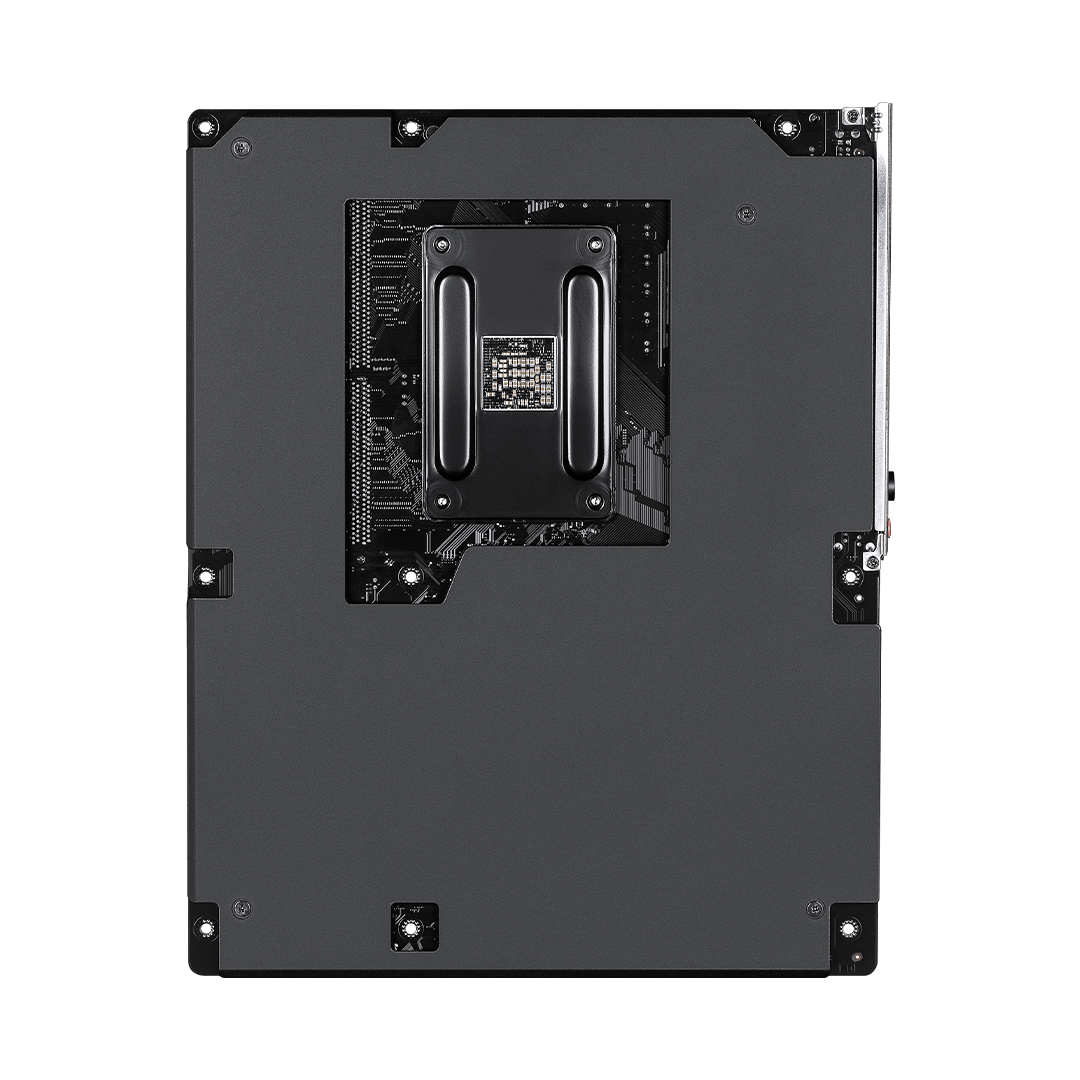

A metal UD Base Plate adds stability and support. The UD Power Connector is designed for improved power conductivity and heat dissipation, while solid pins support conductivity and signal transmission.
Specifications
Specifications
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors AMD Ryzen™ 5000 Series Processors AMD Ryzen™ 4000 G-Series Processors AMD Ryzen™ 3000 G-Series Processors AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Refer to the ""Memory Support List"" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR Support for native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.) |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | MediaTek Wi-Fi 6E MT7902 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) (Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If installing one graphics card, install it in the PCIEX16 slot.) Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |

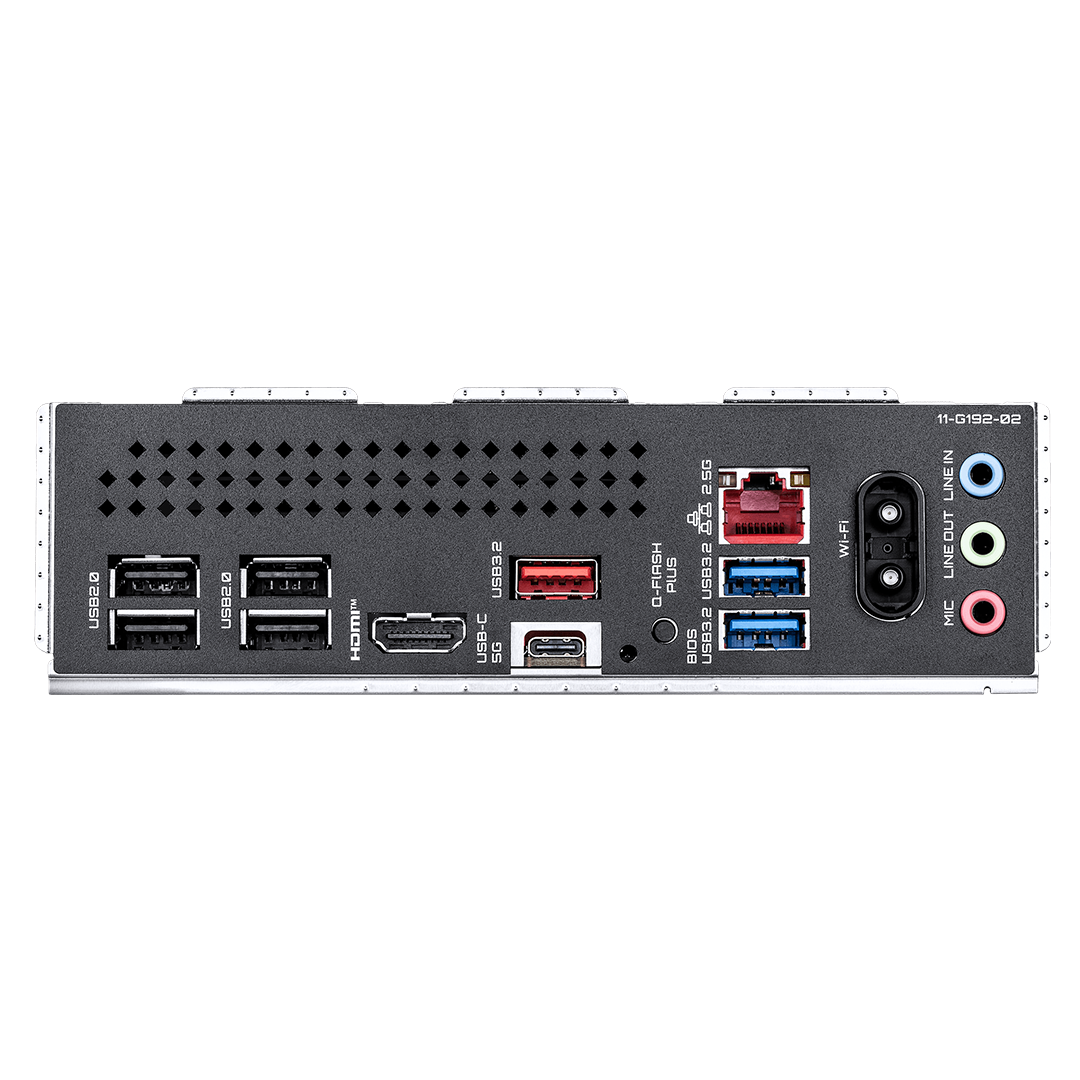

| Back Panel Connectors | 4 x USB 2.0/1.1 ports 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (1T1R) 3 x audio jacks (Note) Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control (Whether fan or pump speed control is supported depends on the fan or pump installed.) |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) (Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
