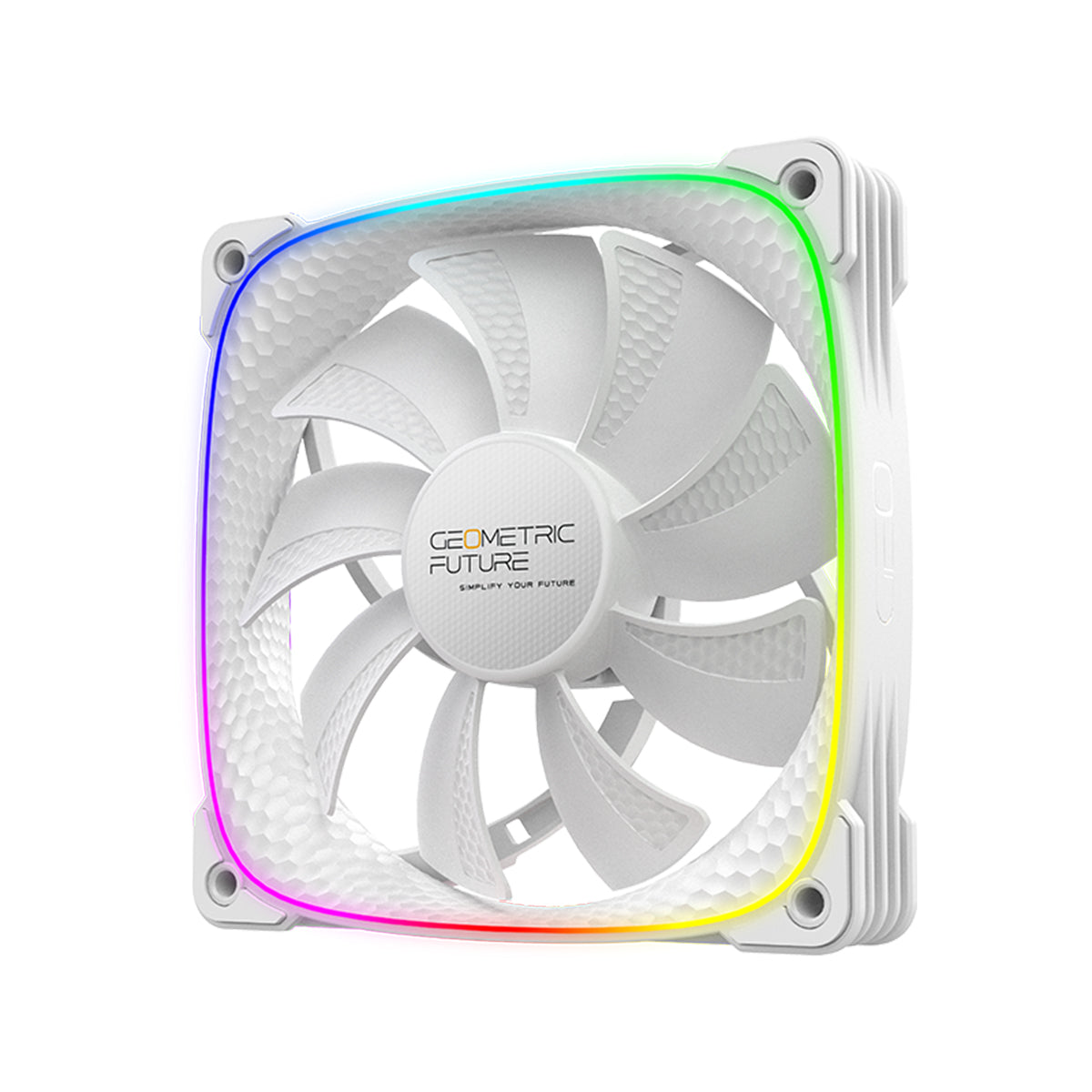

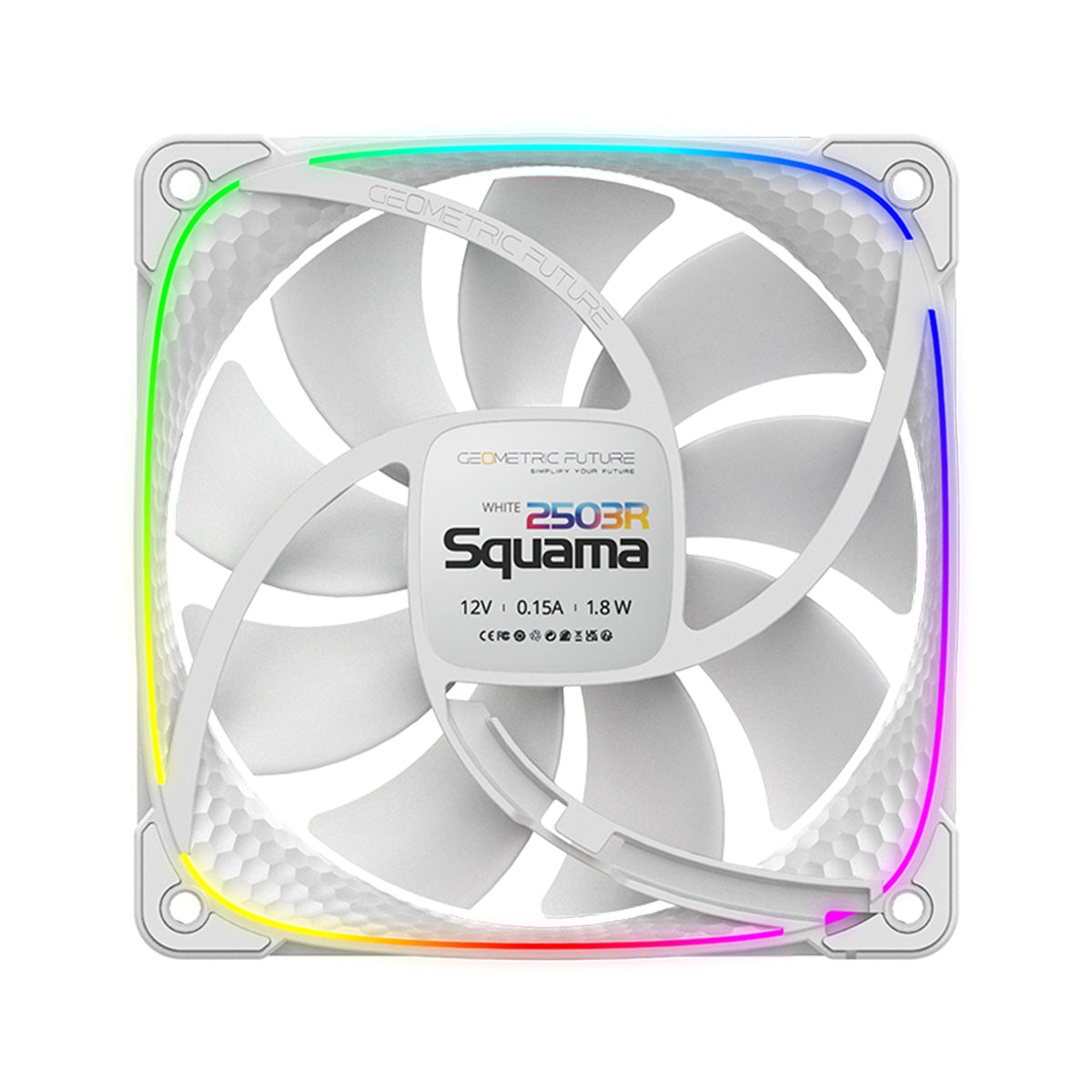

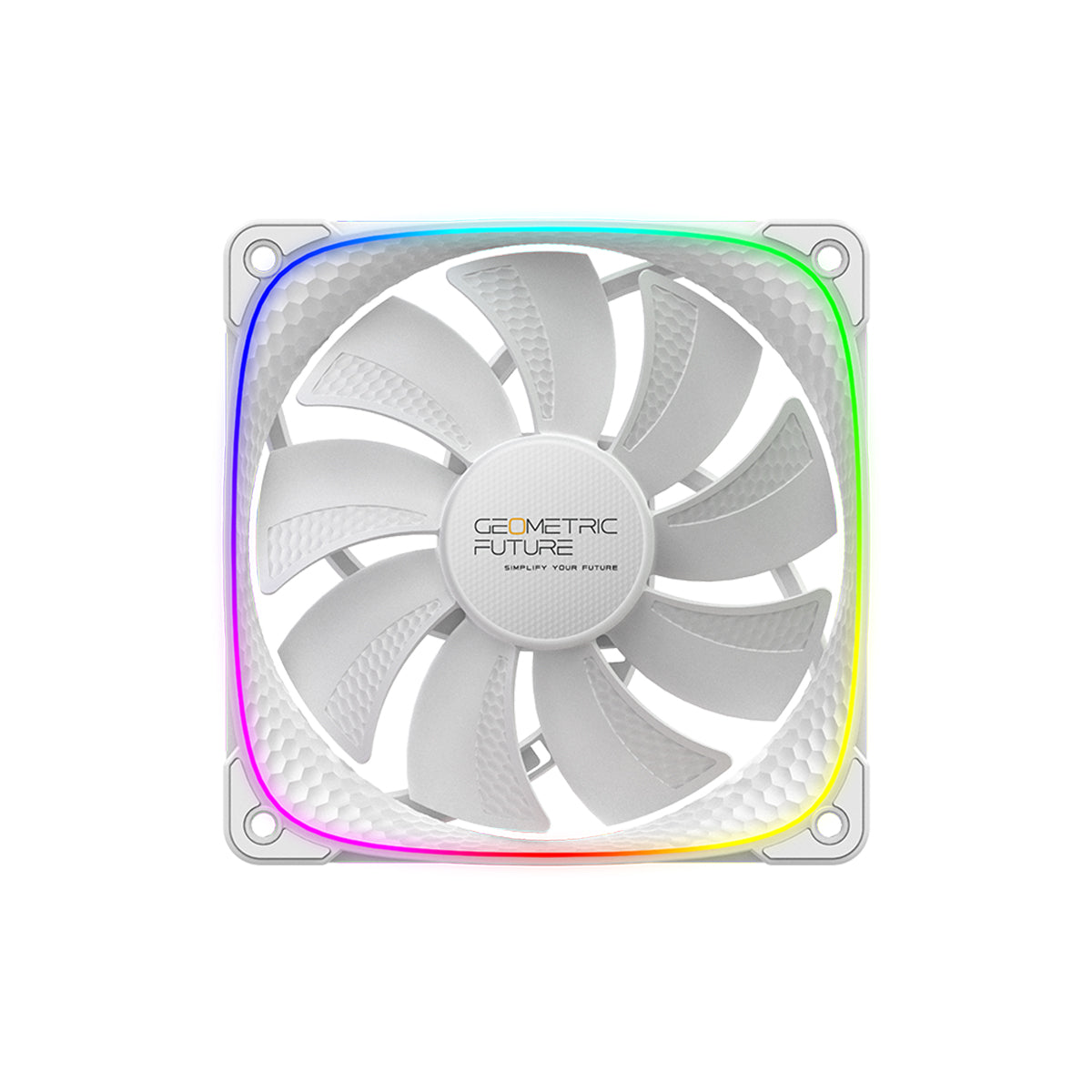

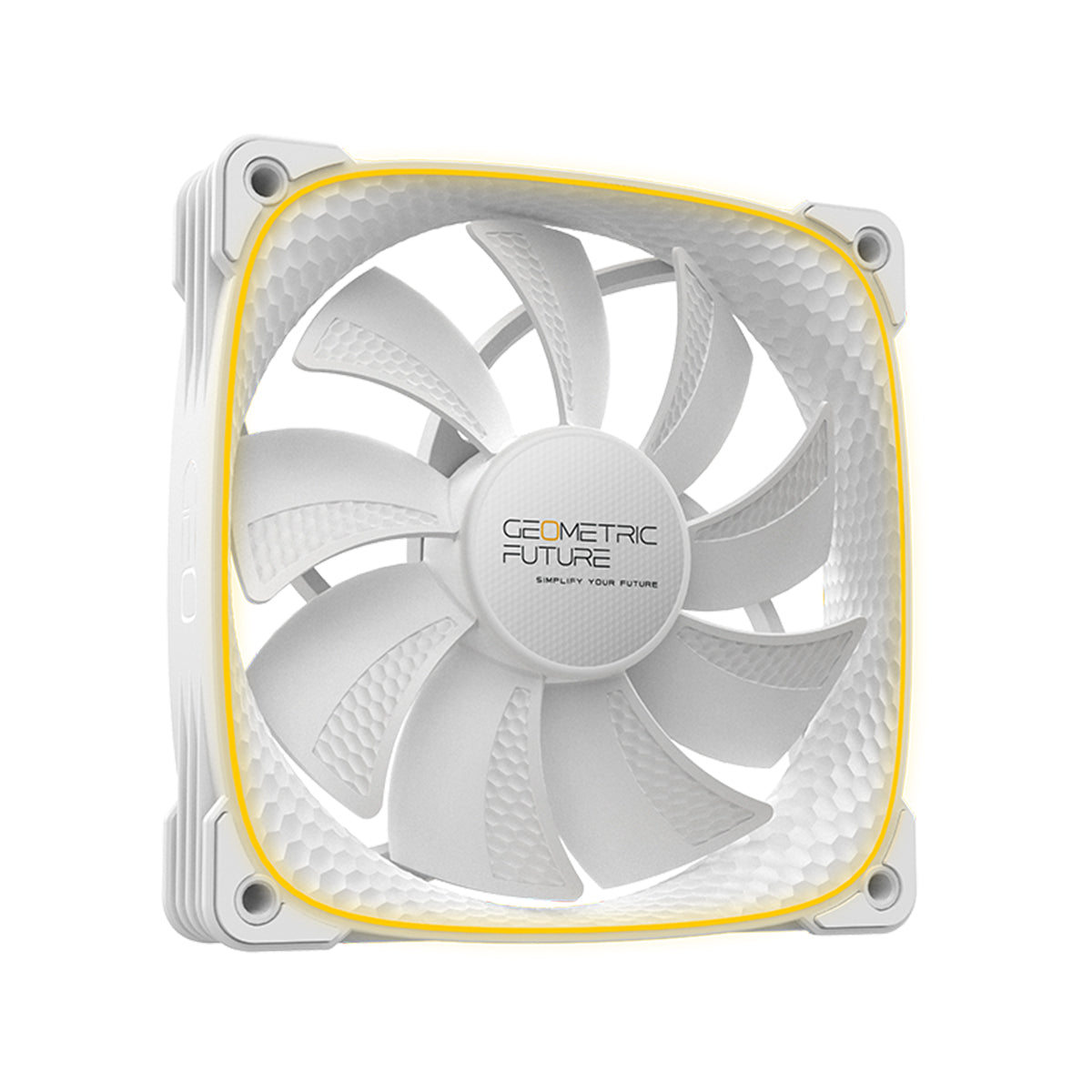

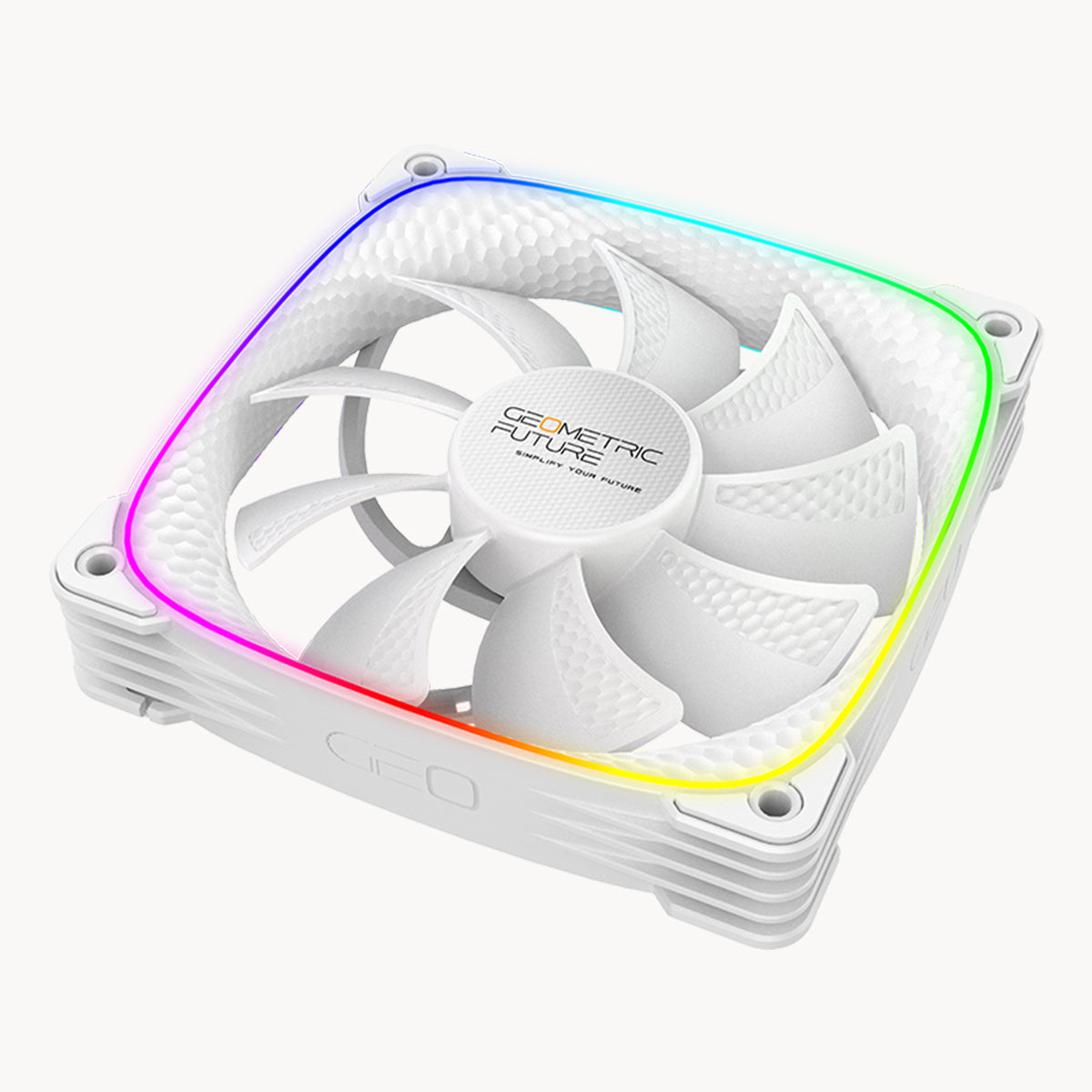

Geometric Future Squama 2503 Reverse Blade 120mm RGB PWM Case Fan - White
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
DYNAMIC BALANCE ADJUSTMENT
The fan is adjusted by global dynamic balance for better protection of product performance and service life.
DURABLE HYDRAULIC BEARING
Long lifespan durable hydraulic bearing with efficient oil seal effectively improves service life.
INTELLIGENT CABLE CONNECTION
Special short-series cables eliminate long wiring loops for a streamlined connection. PWM and ARGB cables daisy-chain easily to keep your build tidy.
PATENTED SQUAMA PARTICLES
TPE soft-rubber inner frame and nine fan blades with high air pressure are covered with unique aerodynamic dragon-scale particles for enhanced texture and efficiency. The Squama dimples promote turbulent transition, reducing airflow resistance and noise. Patent Nos: ZL 2021 2 0297777.4, ZL 2021 3 0074876.1
DIRECTIONAL AIRFLOW INDICATOR
The fan blade rotates counterclockwise, and the face of the blade indicates the direction of the air outlet.
REVERSE AIR OUTLET DESIGN
Panoramic lighting effect showcases the double-sided ARGB accents while taking in everything at a glance.
Specifications
Specifications
| Package | Single Pack |
| Type | Squama 2503R |
| Fan Dimensions (L×W×H) mm | 120 x 120 x 25 mm |
| Color | Black/White |
| Materials | PBT/PC/TPE |
| Speed Mode | 1500 RPM (max) |
| Airflow | 57.67 CFM |
| Air Pressure | 1.73 mmH₂O |
| Noise Level | 29.87 dBA (max) |
| Motor Rated Voltage | 12 V |
| Motor Rated Current | 0.15 A |
| Motor Rated Power | 1.8 W |
| ARGB Rated Voltage | 5 V |
| ARGB Rated Current | 0.53 A |
| ARGB Rated Power | 2.65 W |
| LED Interface | 3-PIN |
| Power Interface | 4-PIN |
| Packing Includes |
Squama 2503R Fan × 1 Screws × 4 PWM extension cord × 1 ARGB extension cord × 1 |
