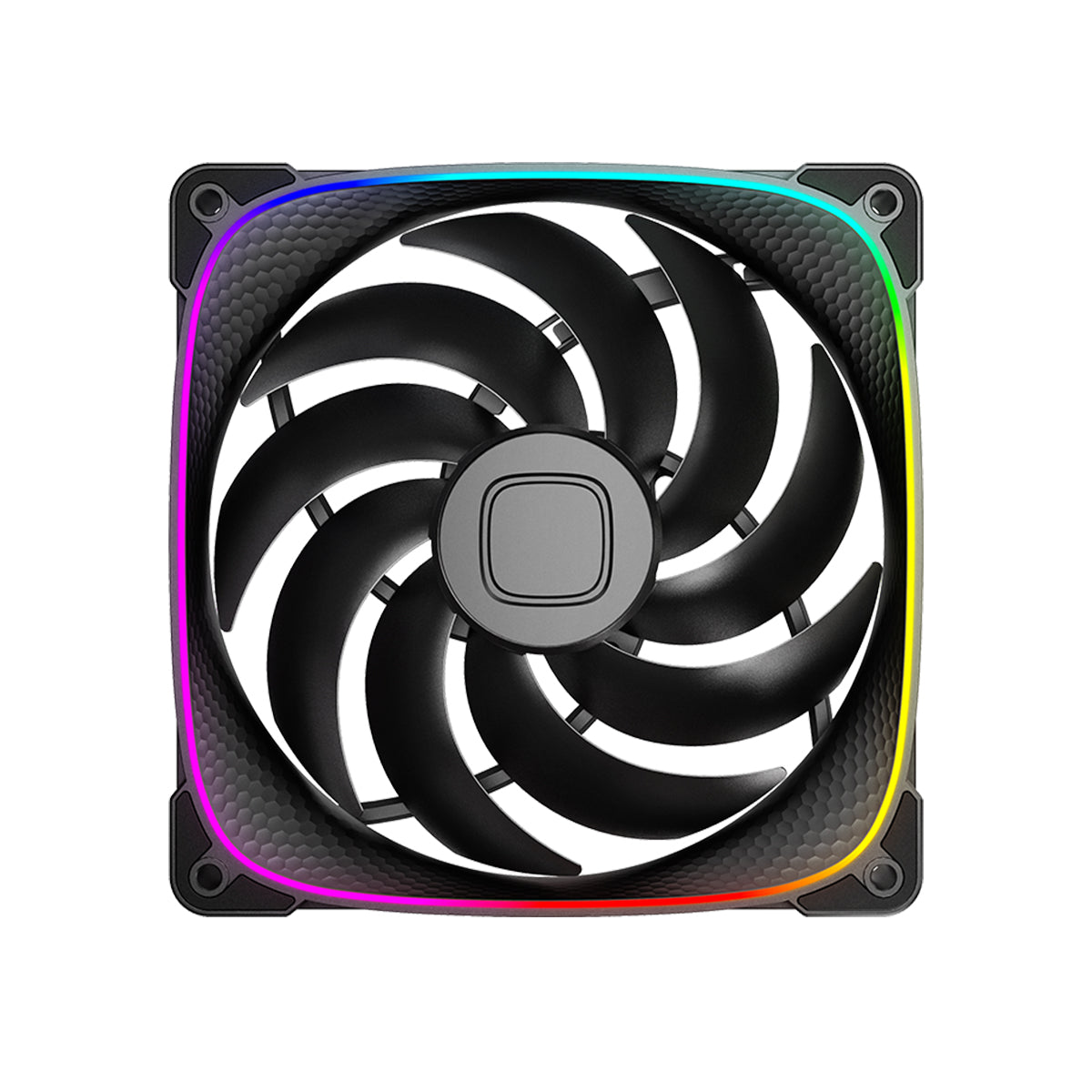

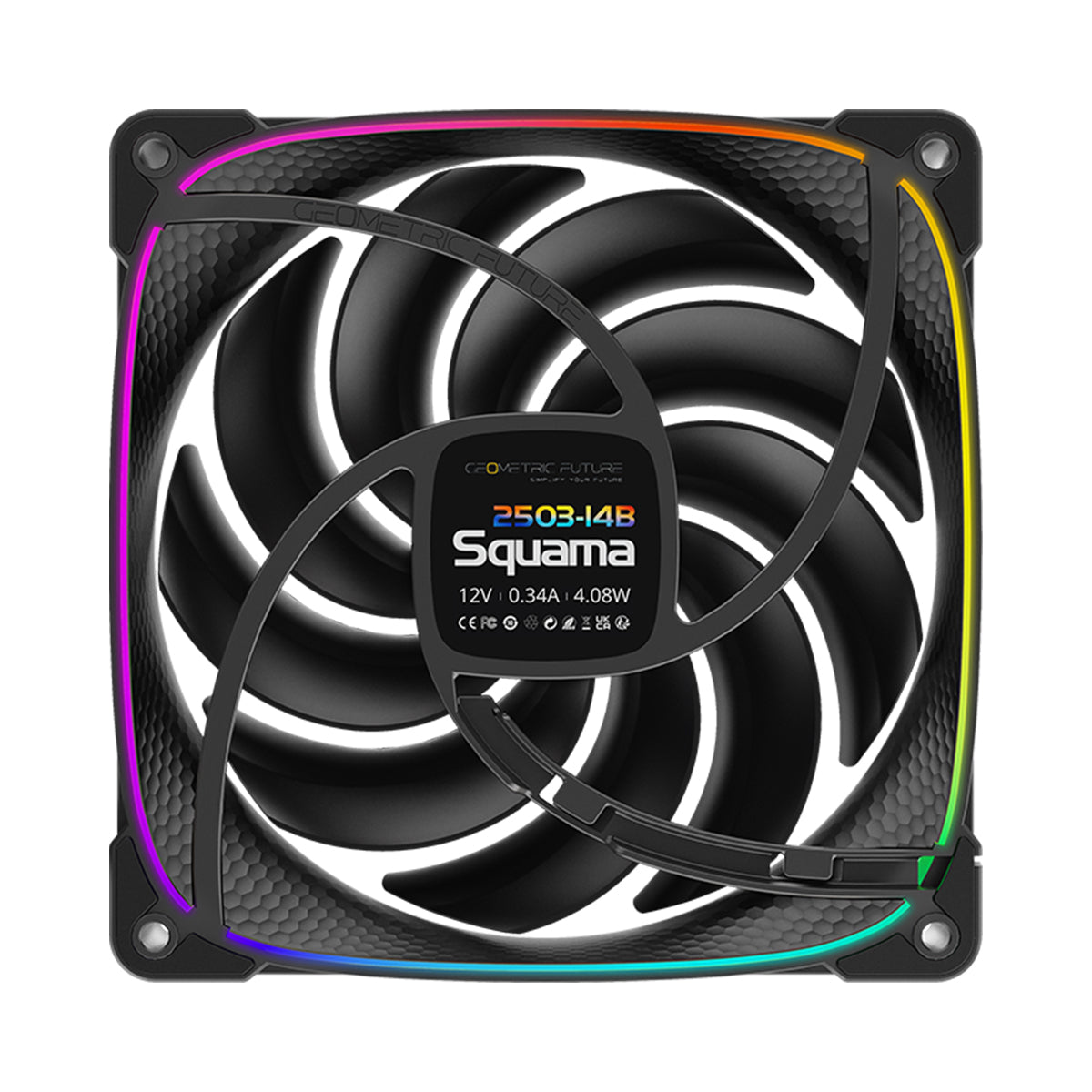

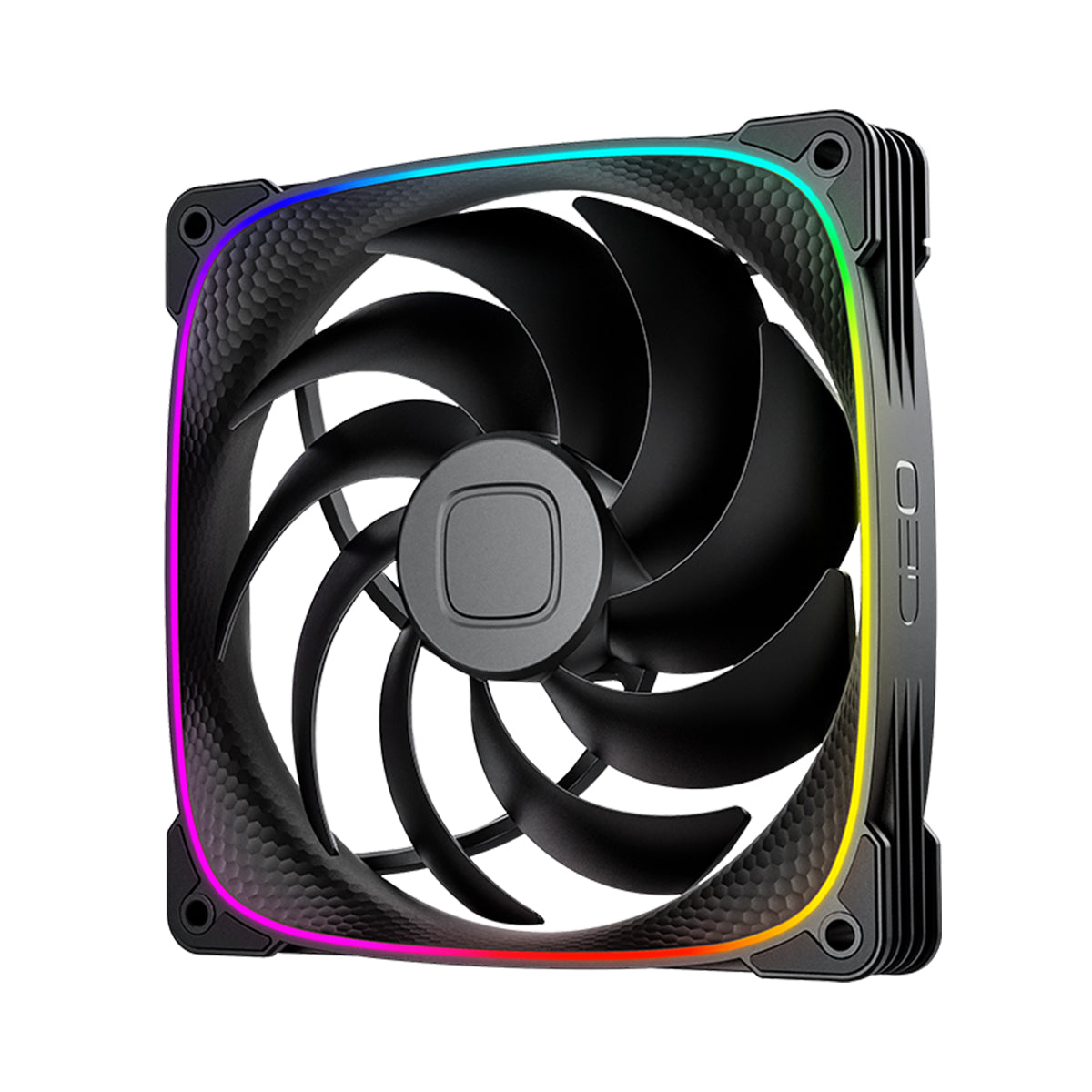

Geometric Future Squama 2503 140mm RGB PWM Case Fan - Black
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
RGB 2503-14 Squama – 140 mm PWM ARGB Fan
- 140 mm PWM fan with 9-blade design for up to 91 CFM airflow
- Max speed 2,400 RPM, noise level as low as 34 dBA
- Edge-lit ARGB accents on front & back—addressable LEDs + translucent diffuser
- Double-sided ARGB glow visible from both sides
- Patented dragon-scale frame for turbulent-flow stability & noise damping
- Full motherboard ARGB synchronization (Aura Sync, Mystic Light, Polychrome Sync, etc.)
- Intelligent PWM control (800–2,400 RPM) for adaptable cooling
- Quiet hydro-dynamic bearing with AVC oil-supply circuit
- Anti-vibration silicone pads on all four corners
- Smart daisy-chain cables: PWM & ARGB extensions included
ADVANCED AIRFLOW PERFORMANCE
Optimized with CFD-modeled 9-blade geometry, Squama delivers massive airflow of up to 91 CFM while maintaining low noise at high RPM.
DRAGON-SCALE FRAME
Geometric Future’s patented dragon-scale dimples create turbulent air transition, reducing flow separation and resistance for greater intake stability and noise dampening.
Product utility model patent: ZL 2021 2 0297777.4
Product appearance patent: ZL 2021 3 0074876.1
DOUBLE-SIDED ARGB EDGE ACCENTS
Unique ARGB edge accents with addressable LEDs and a translucent layer diffuse synchronized RGB glow on both sides of the fan.
MOTHERBOARD ARGB SYNCHRONIZATION
Full control with all major software (ASUS Aura, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome) for dynamic lighting effects.
SUPERIOR AIRFLOW & RPM CONTROL
Intelligent PWM adjusts fan speed dynamically between 800–2,400 RPM, delivering optimized airflow and efficient cooling performance.
DYNAMIC BALANCE ADJUSTMENT
Each Squama 2503-14 design undergoes dynamic balance tuning to remove imbalances, reducing noise and wear for long-lasting reliability.
QUIET HYDRO-DYNAMIC BEARING
Patented hydraulic bearing with unique annular oil supply circuit minimizes oil leakage, surpassing traditional bearings for quieter operation and extended lifespan.
ANTI-VIBRATION DESIGN
Silicone shockproof pads on both front and rear corners absorb vibrations, reduce noise, and prevent wear—ensuring smooth, quiet operation.
SMART CABLE CONFIGURATION
Specially designed short-run PWM & ARGB cables eliminate long wiring loops, simplify daisy-chaining, and provide a clean cable management solution.
Specifications
Specifications
| Packing Quantity | Single Pack |
| Product Name | Squama 2503-14B/W |
| Fan Size | 140 x 140 x 25 mm |
| Color | Black/White |
| Material | PBT/PC/ABS |
| PWM Speed | 800–2400 RPM (max) |
| Airflow | 91.15 CFM |
| Air Pressure | 2.63 mmH₂O |
| Noise Level | 34 dBA (max) |
| Motor Rated Voltage | 12 V |
| Motor Rated Current | 0.34 A |
| Motor Rated Power | 4.08 W |
| ARGB Rated Voltage | 5 V |
| ARGB Rated Current | 0.9 A |
| ARGB Rated Power | 4.5 W |
| LED Interface | 5v3-PIN |
| Power Interface | PWM 4-PIN |
| Packaging Content |
Squama 2503-14B/W Fan × 1 Screws × 4 PWM extension cord × 1 ARGB extension cord × 1 |
