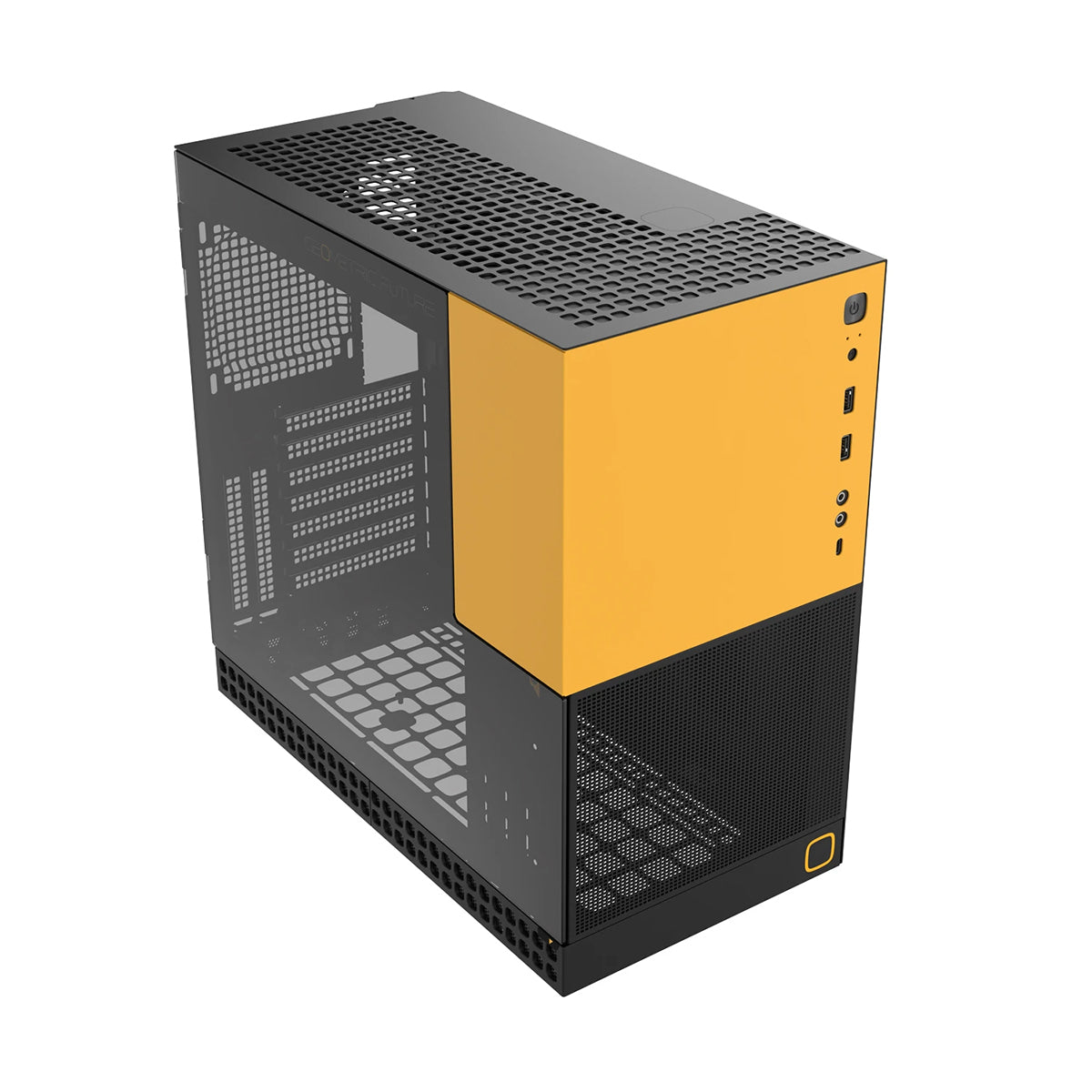

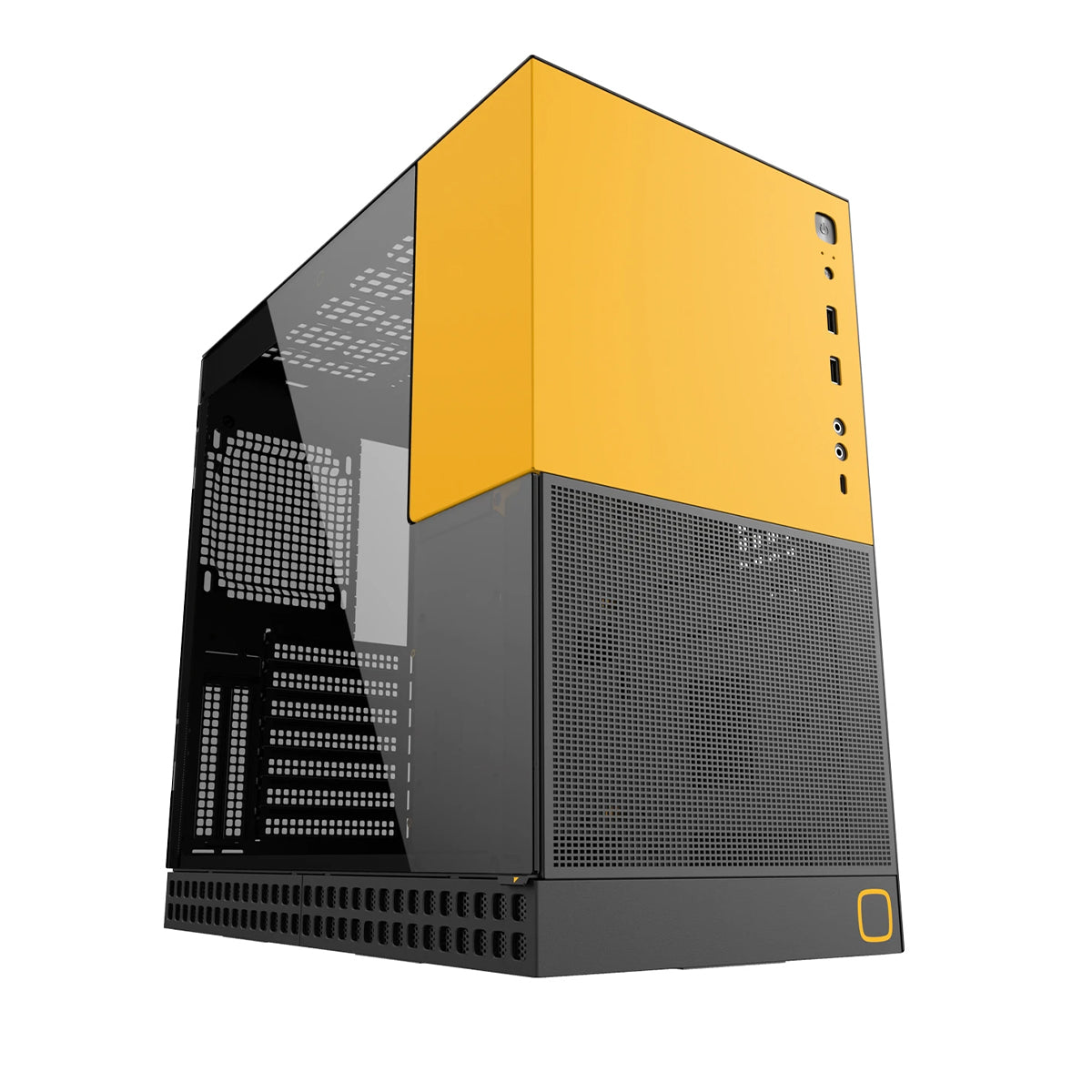

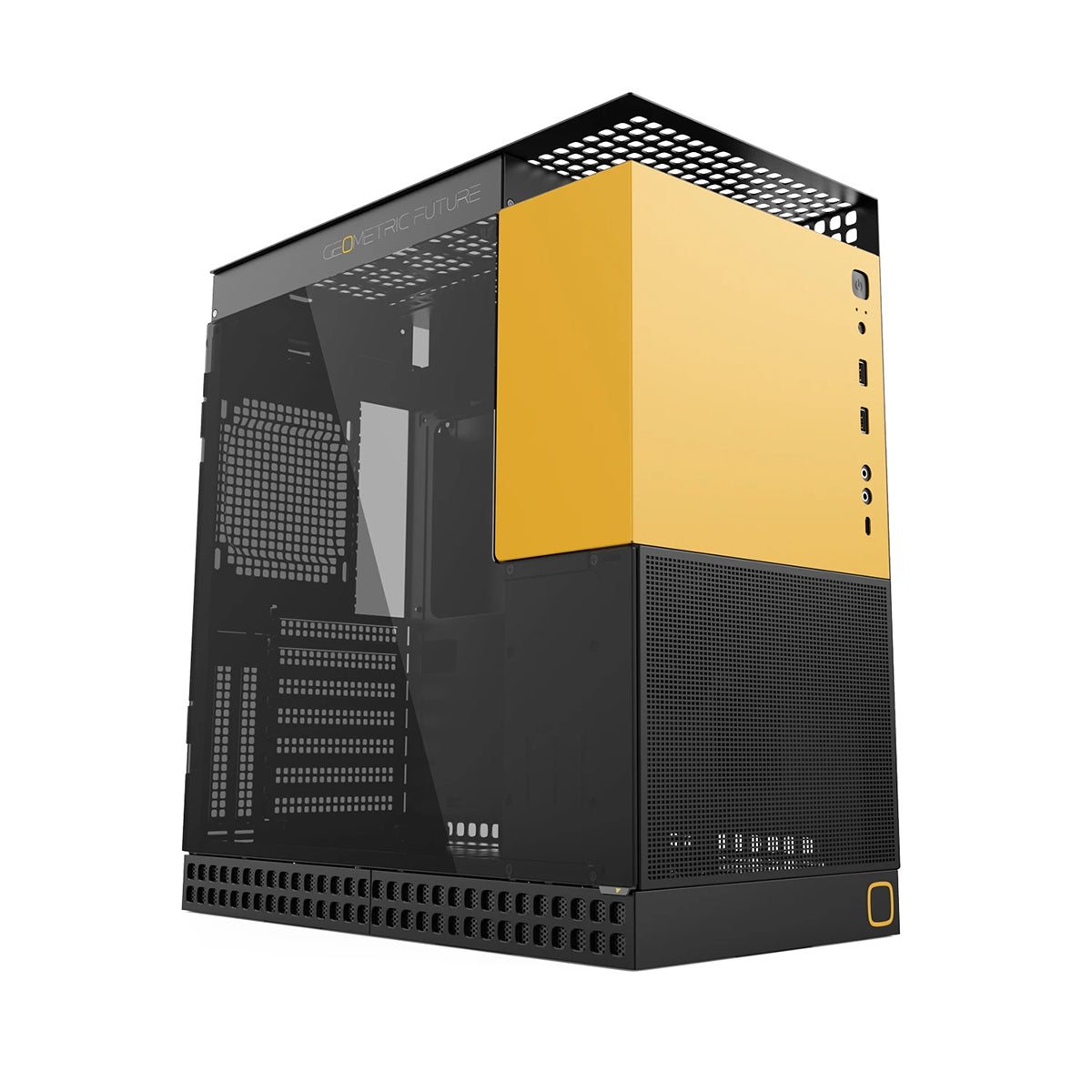

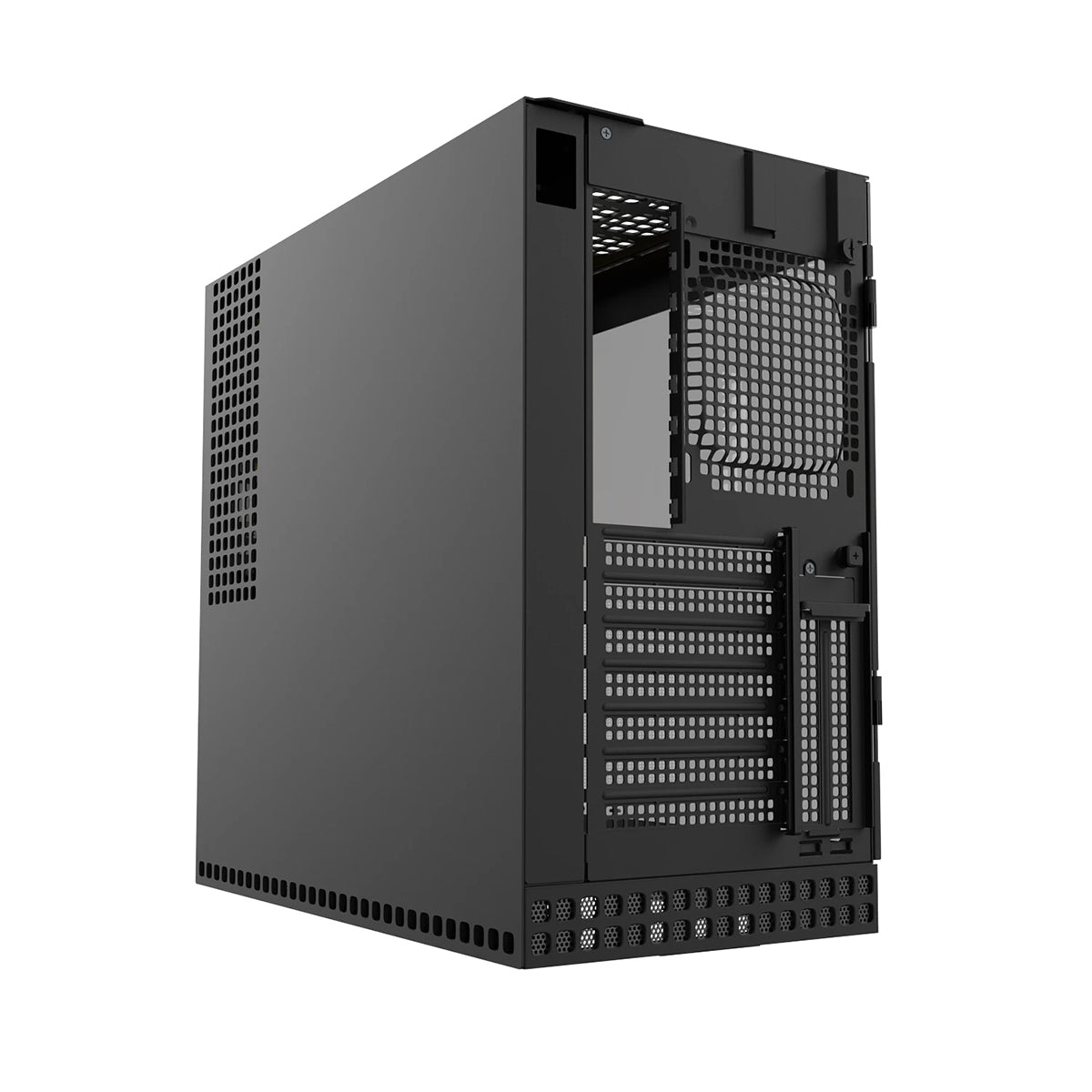

Geometric Future Model 4 King Arthur ATX Mid Tower Case - Black/Yellow
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
OPTIMIZED VERTICAL AIR DUCT
No fear of heat! Features a mesh footstand that acts as dust-filters on three sides, providing ample airflow.
- Supports 3 × 120mm fans as intake at the bottom and 2 × 120mm fans at the top for chimney-style airflow
- Lifted mode allows mounting of up to 2 × 120/140mm fans and a 240mm radiator on the top bracket
- Additional airflow: add a 120mm fan or 120mm radiator at the rear
- Inner footstand supports 3 × 120mm or 2 × 140mm fans
- Matrix mesh front panel with +50% airflow rate
PRODUCT FEATURES
- 4 installation modes (large or small configurations)
- MATX volume with E-ATX motherboard compatibility (up to 280 × 305 mm)
- Rich I/O extension ports: USB Type-A ×2, USB Type-C, MIC/SPK port
- Durable build: 1.0 mm + 1.2 mm steel panels
- Supports graphics cards up to 405 mm in length and 168 mm in width
- Cooling options for 360 mm + 240 mm radiators

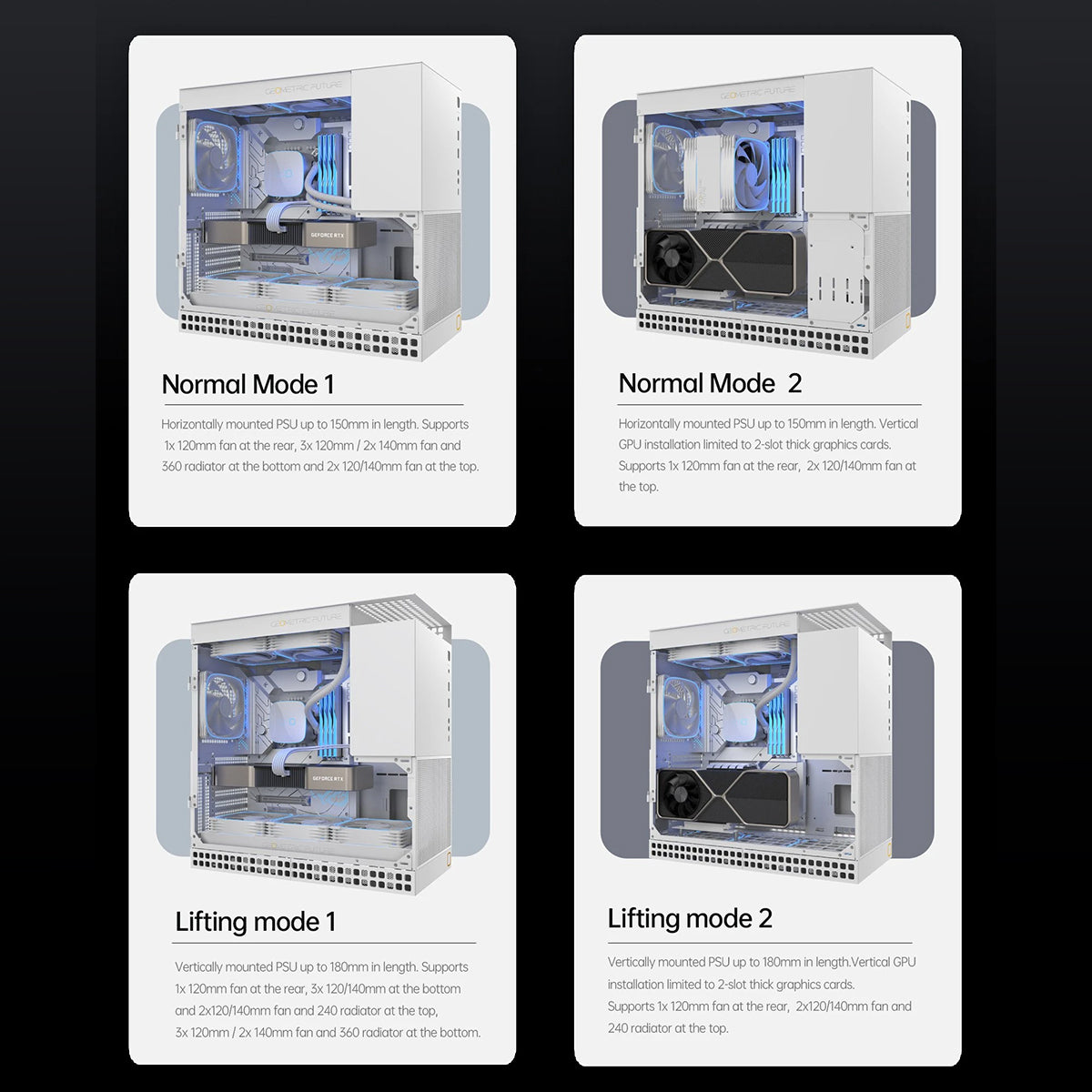

INSTALLATION MODES
Normal Mode 1
- Horizontally mounted PSU up to 150 mm
- 1 × 120 mm rear fan
- 3 × 120 mm / 2 × 140 mm bottom fans + 360 mm radiator
- 2 × 120/140 mm top fans
Normal Mode 2
- Horizontally mounted PSU up to 150 mm
- Vertical GPU installation (max 2-slot thickness)
- 1 × 120 mm rear fan
- 2 × 120/140 mm top fans
Lifting Mode 1
- Vertically mounted PSU up to 180 mm
- 1 × 120 mm rear fan
- 3 × 120/140 mm bottom fans + 360 mm radiator
- 2 × 120/140 mm top fans + 240 mm radiator
Lifting Mode 2
- Vertically mounted PSU up to 180 mm
- Vertical GPU installation (max 2-slot thickness)
- 1 × 120 mm rear fan
- 2 × 120/140 mm top fans + 240 mm radiator
PSU COMPATIBILITY
- Horizontal: up to 150 mm
- Vertical: up to 180 mm (supports GPUs up to 405 mm)
PREMIUM MATERIALS & QUALITY BUILD
- Manufactured with 1.0 mm steel plate and 1.2 mm L-shaped one-piece side panel
- 3.0 mm tempered glass panel with hinged magnetic door for easy access
ULTIMATE HARDWARE COMPATIBILITY
- Supports large GPUs up to 405 mm length × 168 mm width
- Includes standoffs for vertical GPU mounting (2-slot thickness max)
- CPU heatsink height support up to 164 mm
DUAL WATER COOLING INSTALLATION
- Bottom supports up to 360 mm radiator
- Top supports up to 240 mm radiator
STORAGE OPTIONS
- Supports four 2.5″ or two 3.5″ HDD brackets
- Pre-installed with 3 HDD brackets
Specifications
Specifications
| Case Type | Mid Tower |
| Material | Steel 1.0mm / 1.2mm, Tempered Glass 3.0mm |
| Dimensions (HxWxD) | (395–430)mm x 215mm x 410mm (15.6"–16.9") x 8.5" x 16.1" |
| Drive Bays | Max: 2x 3.5" or 4x 2.5" trays |
| Motherboard Support | E-ATX (12" x 11"), ATX, M-ATX, ITX |
| Power Supply Support |
Horizontal installation <150mm Vertical installation <180mm If PSU >180mm, GPU length must be <310mm |
| Expansion Slots |
PCI-E x7: Length <405mm / Width <168mm Lateral PCI-E x2: Length <405mm (no bottom fans) / Thickness <50mm |
| I/O Ports |
USB 3.0 x2 USB 3.1 (10Gbps) Type-C MIC/SPK Combo Port Separate MIC Port |
| Thermal Solution |
Top: 2x 120/140mm fans or 240mm radiator (Lifting mode: Length <306mm / Width <173mm / Thickness <66mm) Rear: 1x 120mm fan or 120mm radiator Bottom: 3x 120mm or 2x 140mm fans, 360mm radiator (Length <400mm / Width <126mm / Thickness <77mm) In the footstand: 3x 120mm or 2x 140mm fans |
| CPU Cooler Height Limit | <164mm |
