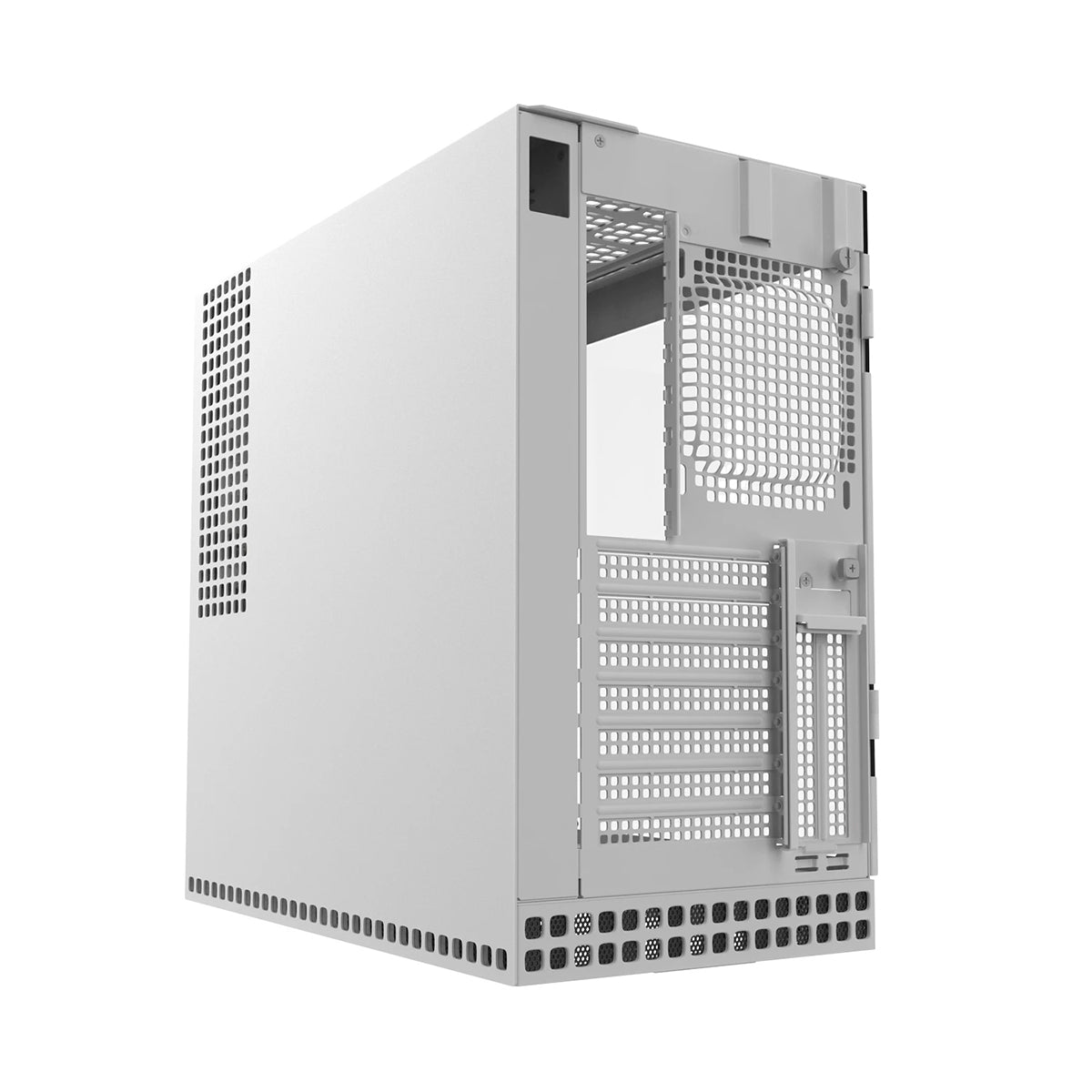

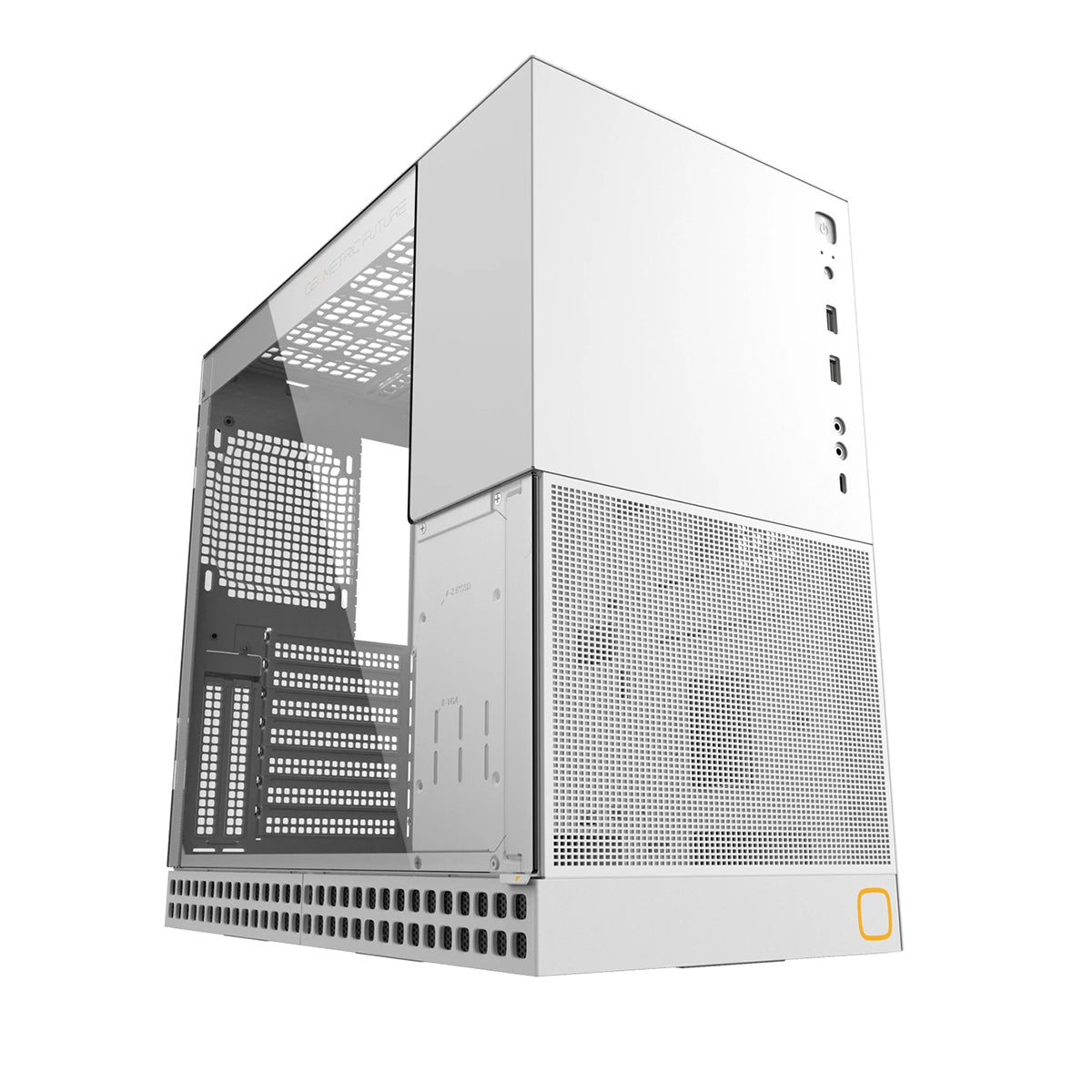

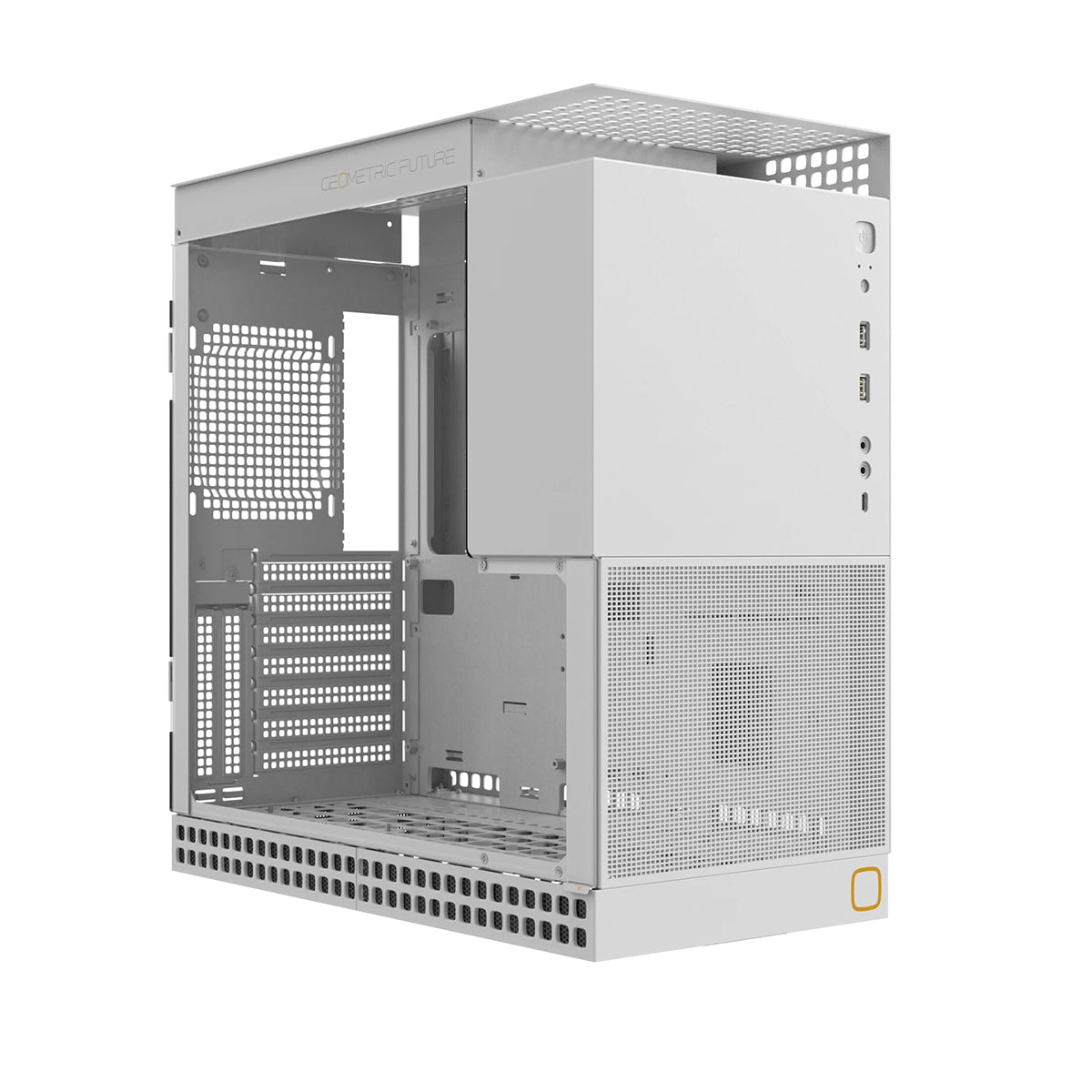

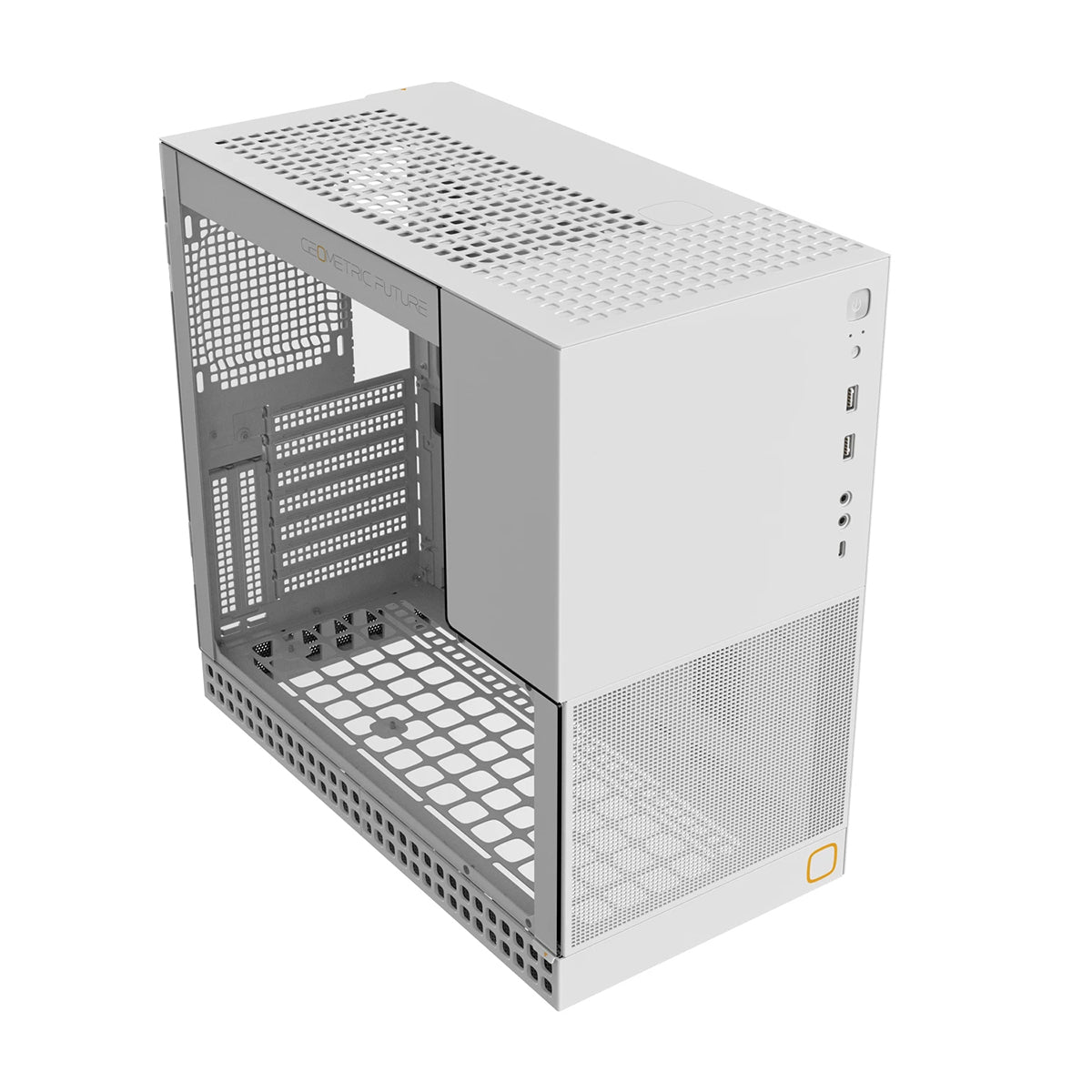

Geometric Future Model 4 King Arthur ATX Mid Tower Case - White

Geometric Future  |  SKU 75720  |  MPN GEO-M4-KAW
$139.00
Geometric Future Model 4 Caliburn ATX Compact Case - Black Mirror Geometric Future Model 4 King Arthur ATX Mid Tower Case - Black/Yellow Geometric Future Model 4 King Arthur ATX Mid Tower Case - White

In stock at Computer Lounge

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

OPTIMIZED VERTICAL AIR DUCT

No fear of heat! Features a mesh footstand that acts as dust-filters on three sides, providing ample airflow.

  • Supports 3 × 120mm fans as intake at the bottom and 2 × 120mm fans at the top for chimney-style airflow
  • Lifted mode allows mounting of up to 2 × 120/140mm fans and a 240mm radiator on the top bracket
  • Additional airflow: add a 120mm fan or 120mm radiator at the rear
  • Inner footstand supports 3 × 120mm or 2 × 140mm fans
  • Matrix mesh front panel with +50% airflow rate

PRODUCT FEATURES

  • 4 installation modes (large or small configurations)
  • MATX volume with E-ATX motherboard compatibility (up to 280 × 305 mm)
  • Rich I/O extension ports: USB Type-A ×2, USB Type-C, MIC/SPK port
  • Durable build: 1.0 mm + 1.2 mm steel panels
  • Supports graphics cards up to 405 mm in length and 168 mm in width
  • Cooling options for 360 mm + 240 mm radiators

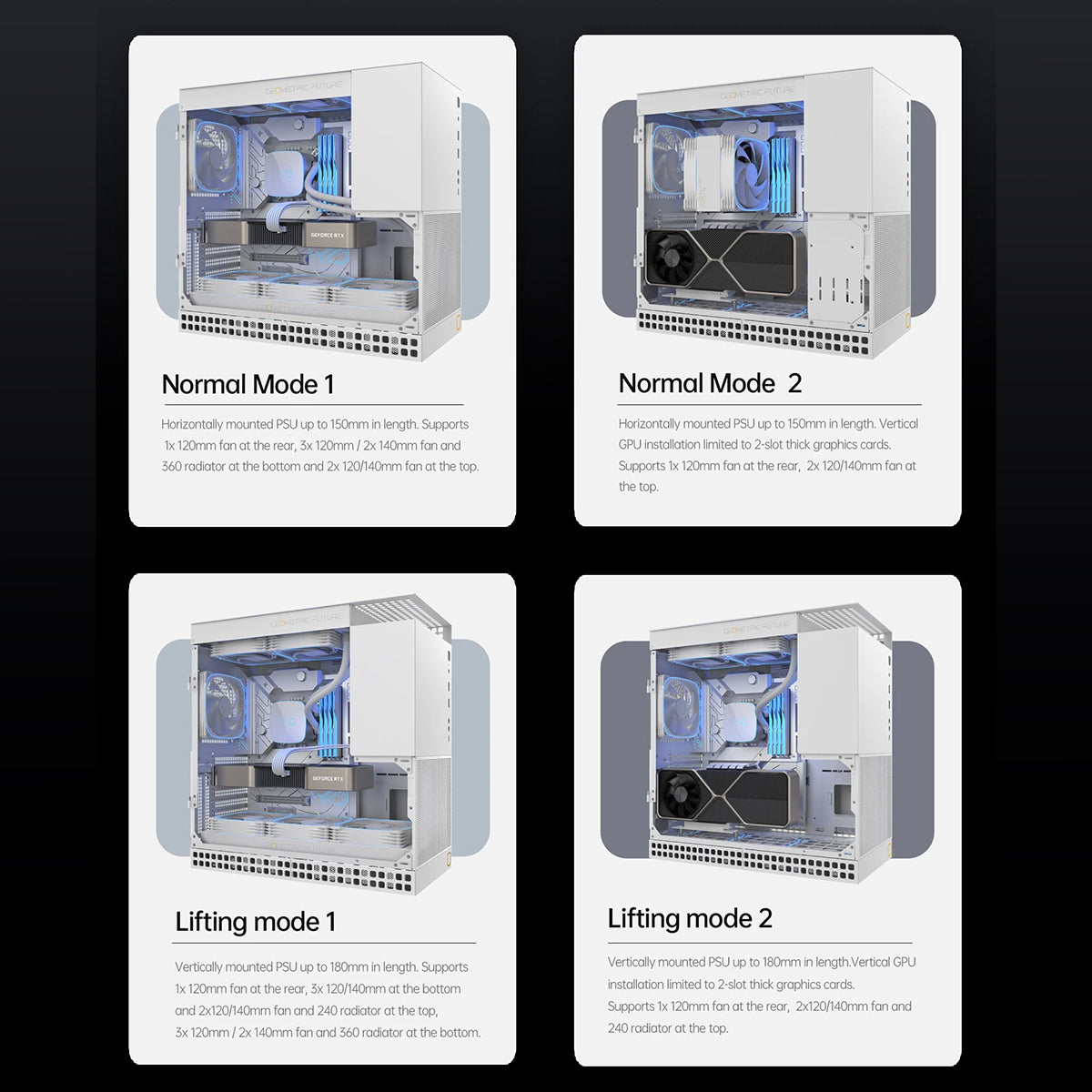

INSTALLATION MODES

Normal Mode 1

  • Horizontally mounted PSU up to 150 mm
  • 1 × 120 mm rear fan
  • 3 × 120 mm / 2 × 140 mm bottom fans + 360 mm radiator
  • 2 × 120/140 mm top fans

Normal Mode 2

  • Horizontally mounted PSU up to 150 mm
  • Vertical GPU installation (max 2-slot thickness)
  • 1 × 120 mm rear fan
  • 2 × 120/140 mm top fans

Lifting Mode 1

  • Vertically mounted PSU up to 180 mm
  • 1 × 120 mm rear fan
  • 3 × 120/140 mm bottom fans + 360 mm radiator
  • 2 × 120/140 mm top fans + 240 mm radiator

Lifting Mode 2

  • Vertically mounted PSU up to 180 mm
  • Vertical GPU installation (max 2-slot thickness)
  • 1 × 120 mm rear fan
  • 2 × 120/140 mm top fans + 240 mm radiator

PSU COMPATIBILITY

  • Horizontal: up to 150 mm
  • Vertical: up to 180 mm (supports GPUs up to 405 mm)

PREMIUM MATERIALS & QUALITY BUILD

  • Manufactured with 1.0 mm steel plate and 1.2 mm L-shaped one-piece side panel
  • 3.0 mm tempered glass panel with hinged magnetic door for easy access

ULTIMATE HARDWARE COMPATIBILITY

  • Supports large GPUs up to 405 mm length × 168 mm width
  • Includes standoffs for vertical GPU mounting (2-slot thickness max)
  • CPU heatsink height support up to 164 mm

DUAL WATER COOLING INSTALLATION

  • Bottom supports up to 360 mm radiator
  • Top supports up to 240 mm radiator

STORAGE OPTIONS

  • Supports four 2.5″ or two 3.5″ HDD brackets
  • Pre-installed with 3 HDD brackets

Specifications

Case Type Mid Tower
Material Steel 1.0mm / 1.2mm, Tempered Glass 3.0mm
Dimensions (HxWxD) (395–430)mm x 215mm x 410mm (15.6"–16.9") x 8.5" x 16.1"
Drive Bays Max: 2x 3.5" or 4x 2.5" trays
Motherboard Support E-ATX (12" x 11"), ATX, M-ATX, ITX
Power Supply Support Horizontal installation <150mm
Vertical installation <180mm
If PSU >180mm, GPU length must be <310mm
Expansion Slots PCI-E x7: Length <405mm / Width <168mm
Lateral PCI-E x2: Length <405mm (no bottom fans) / Thickness <50mm
I/O Ports USB 3.0 x2
USB 3.1 (10Gbps) Type-C
MIC/SPK Combo Port
Separate MIC Port
Thermal Solution Top: 2x 120/140mm fans or 240mm radiator
(Lifting mode: Length <306mm / Width <173mm / Thickness <66mm)
Rear: 1x 120mm fan or 120mm radiator
Bottom: 3x 120mm or 2x 140mm fans, 360mm radiator
(Length <400mm / Width <126mm / Thickness <77mm)
In the footstand: 3x 120mm or 2x 140mm fans
CPU Cooler Height Limit <164mm
