Fractal Design Terra Mini ITX Case - Jade

Crafted to elevate

Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details, and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 Riser cable and features a step-less slidable central wall for build flexibility, providing space for a high-performance GPU up to 322 mm long.

Engineered for SFF gaming

Enjoy powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case.

Elegantly crafted

Featuring panels cut from FSC-certified solid walnut and anodized aluminum, including an 8 mm-thick aluminum front.

Easily accessible

Slide open the top with an integrated tab and lift open the side panels for easy access to your components

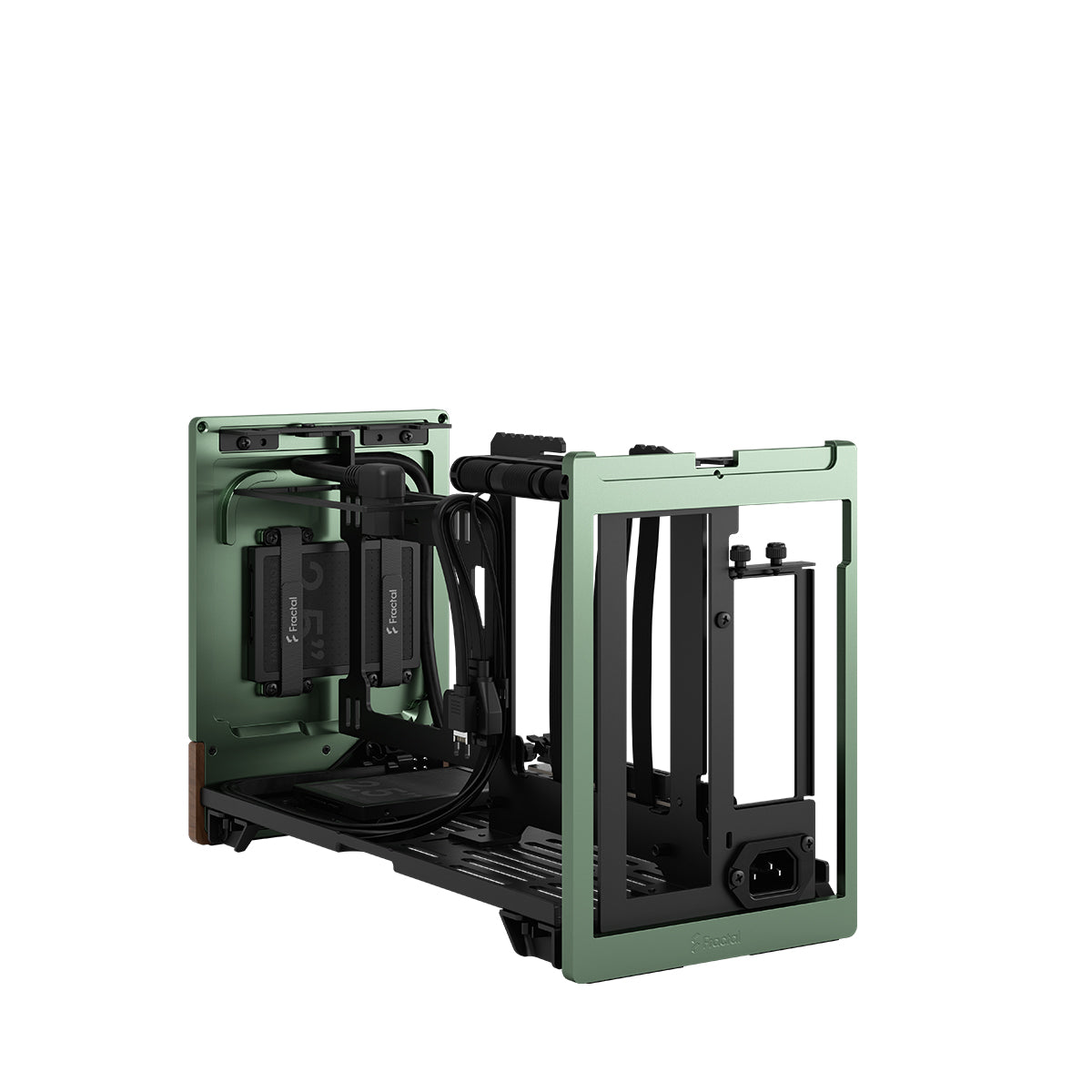

Adjustable motherboard plate

Discover your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, slidable central wall.

Ready to connect

Includes a PCIe 4.0 Riser cable and features dedicated storage space for up to two 2.5” SDD drives.

Transportable

Features the ability to lock the top and side panels for safer transportation of your build.

Key Features

• Install your choice of high-performing GPU up to 322 mm in length, in a space-saving 10.4 L case
• Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
• Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front

•  Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, slidable central wall

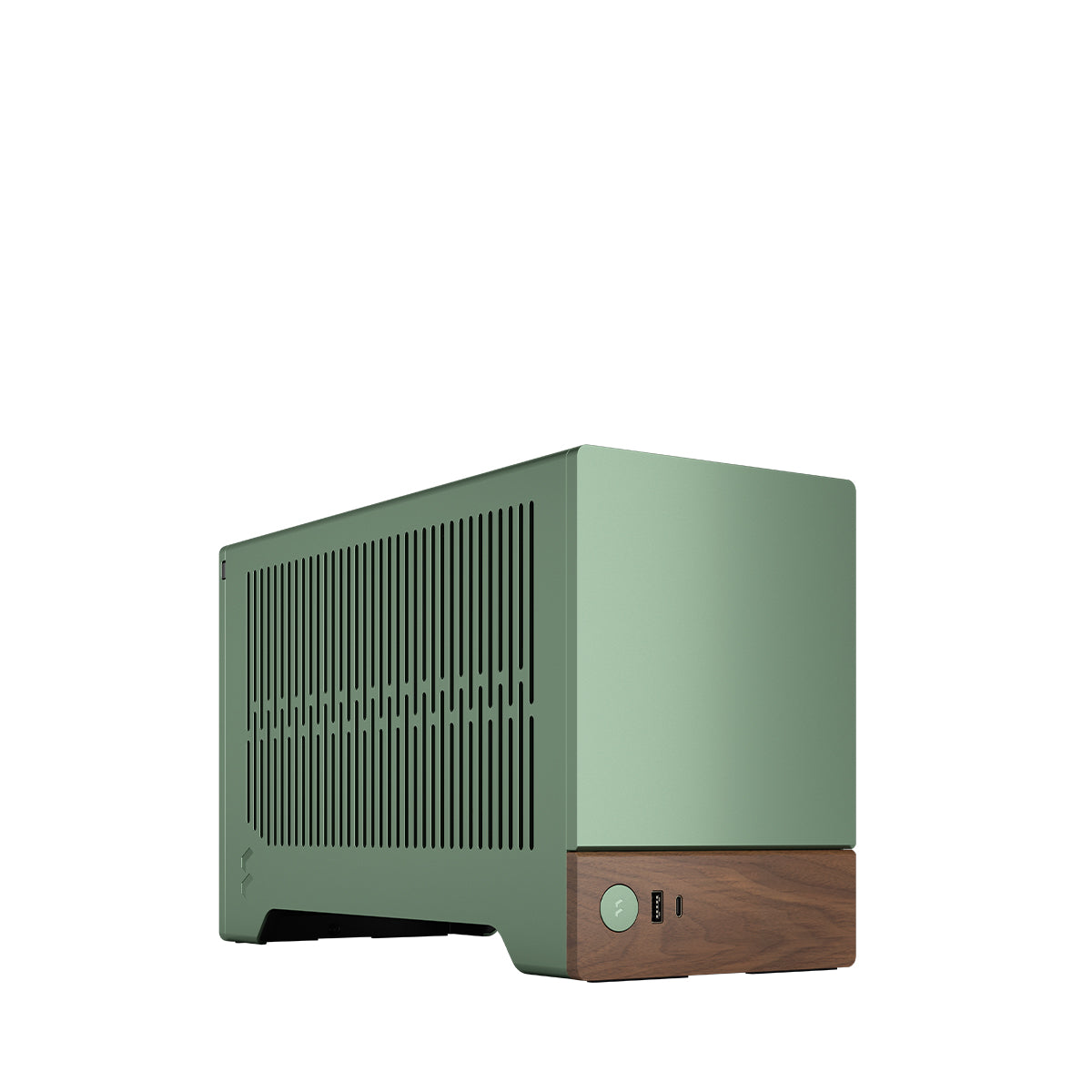

• Front-facing I/O featuring an aluminum power button and two USB ports including one USB Type-C 20Gbps
• Get a head start on your build with the included PCIe 4.0 Riser cable
• Store up to two SSDs in the dedicated 2.5” drive mounts
• Swing open the side panels or slide off the top with an integrated tab for easy access

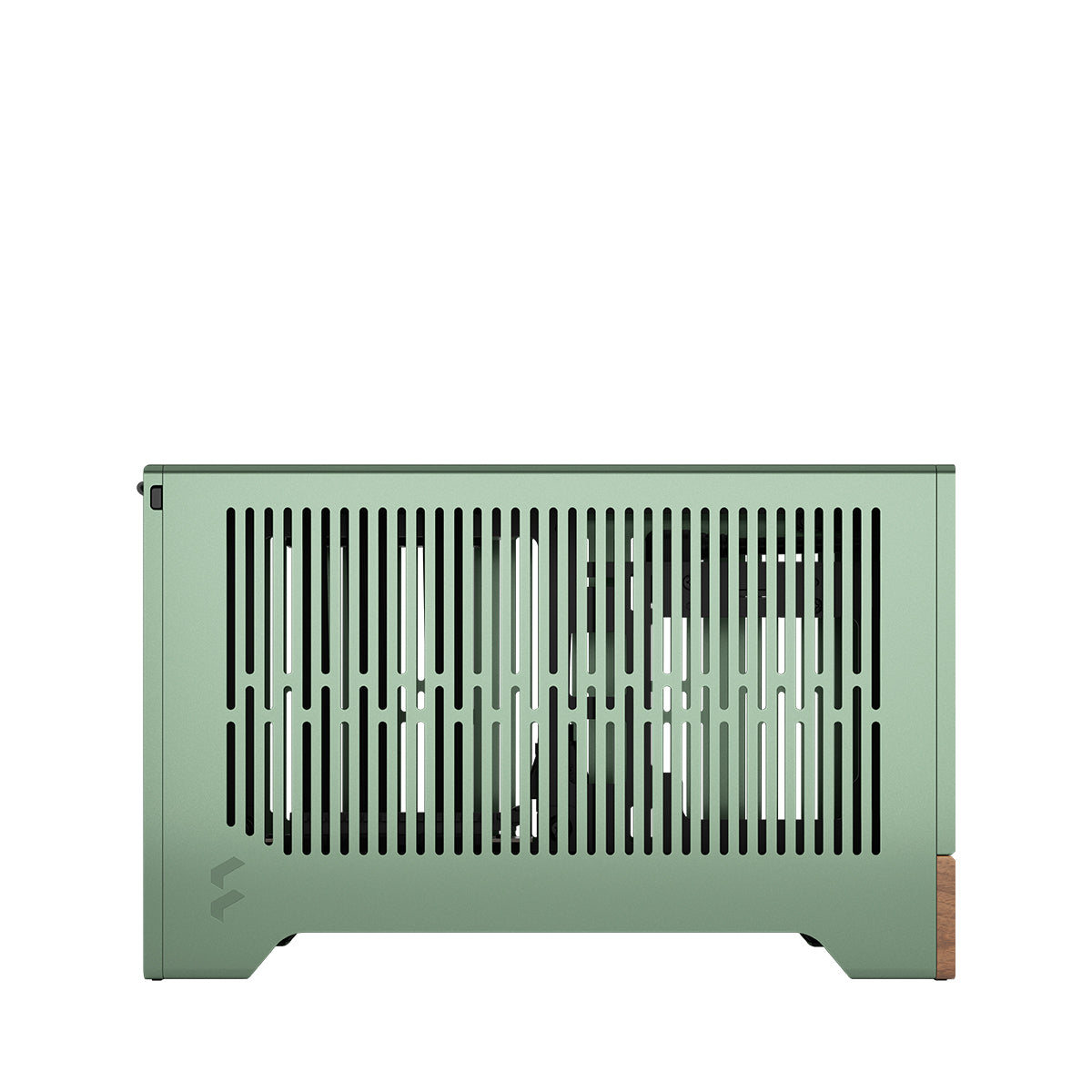

• Make the most of natural airflow through the ventilated top, side and bottom panels
• Transport your finished build safely with lockable top and side panels


Compatibility:

Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.

GPU max width (if GPU height is lower than 131 mm)

72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)

GPU max width (if GPU height 131-145mm)

62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)

GPU max height

145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)

CPU cooler max height

48 mm (Configured for Max GPU) / 77mm (Configured for Max CPU-Cooler)
