Fractal Design Meshify 3 XL Full Tower Case - Black TG Light Tint

Fractal Design  |  SKU 71017  |  MPN FD-C-MES3X-02
$369.00

Warranty and Support

Warranty: 2 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

SHOP STORE:

Description


Advanced airflow

Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.

Evolved design

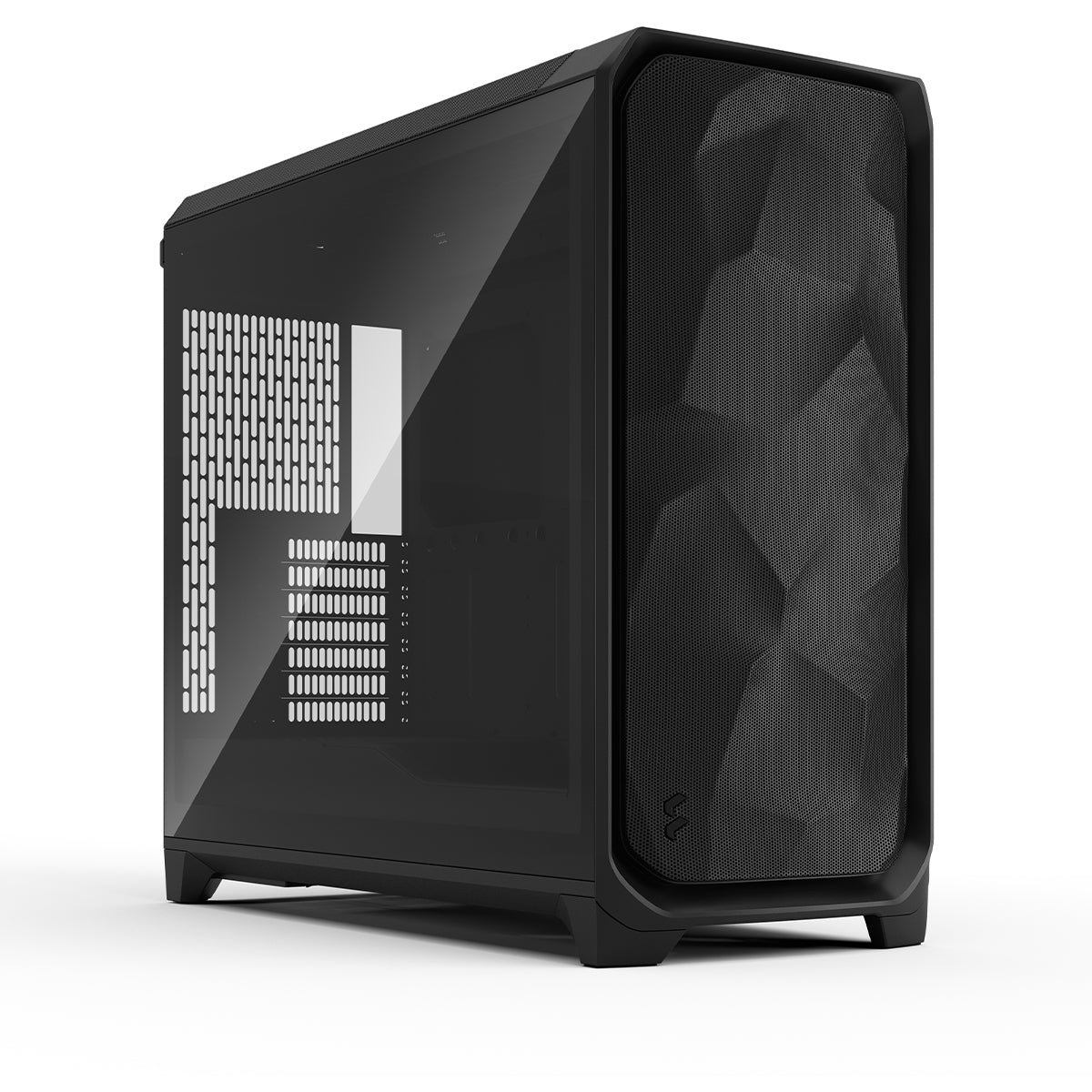

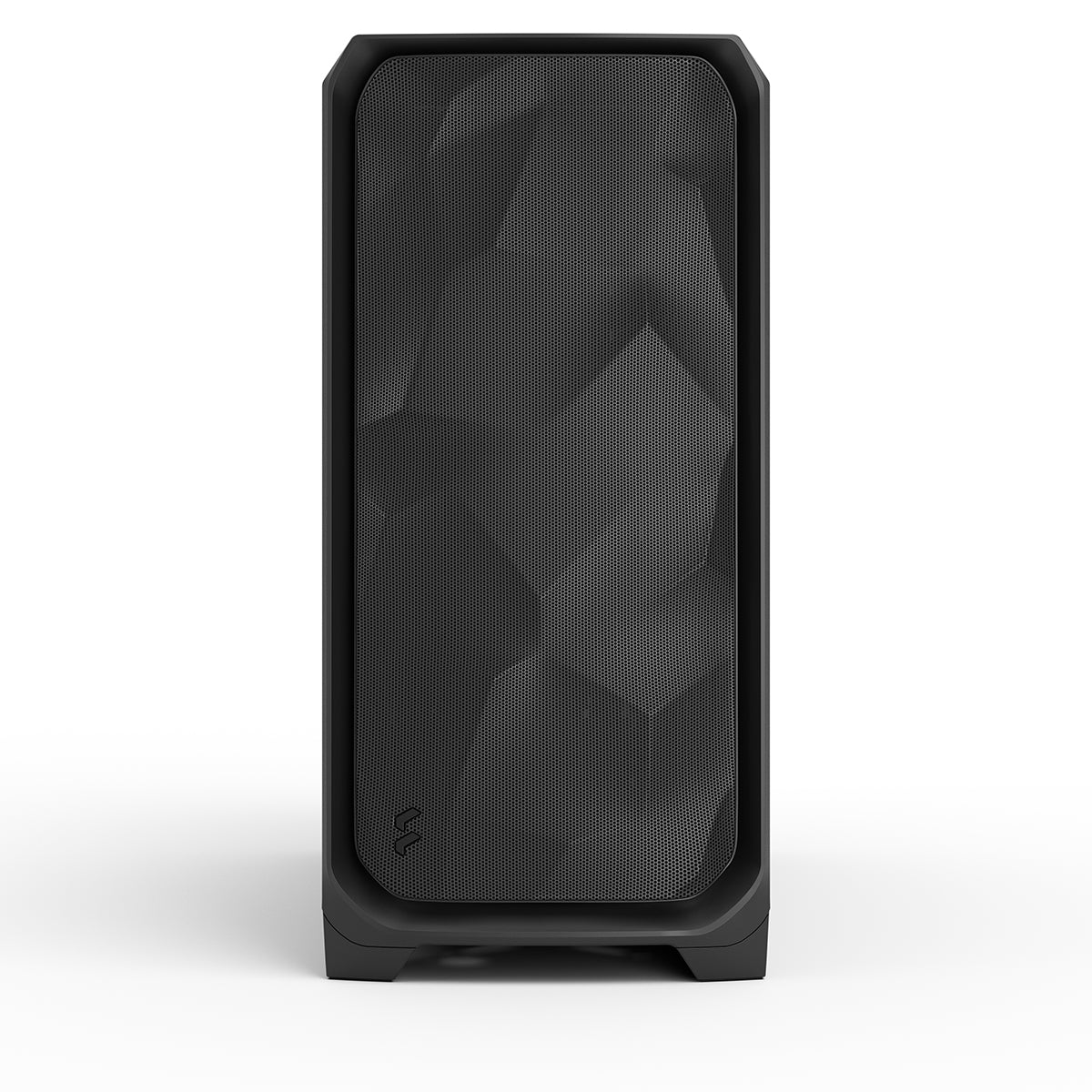

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.

Designed for gaming

Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX (330 mm) motherboard compatibility.

Ambience Pro RGB Version - Enhanced lighting

Create the right atmosphere with advanced ARGB Gen 2 ambient lighting, including an animated PC startup effect.

Ambience Pro RGB Version - Tailored experience

Customize your lighting and fans easily with a download-free configuration tool, accessed via the included Adjust Pro Hub.

Easily accessible

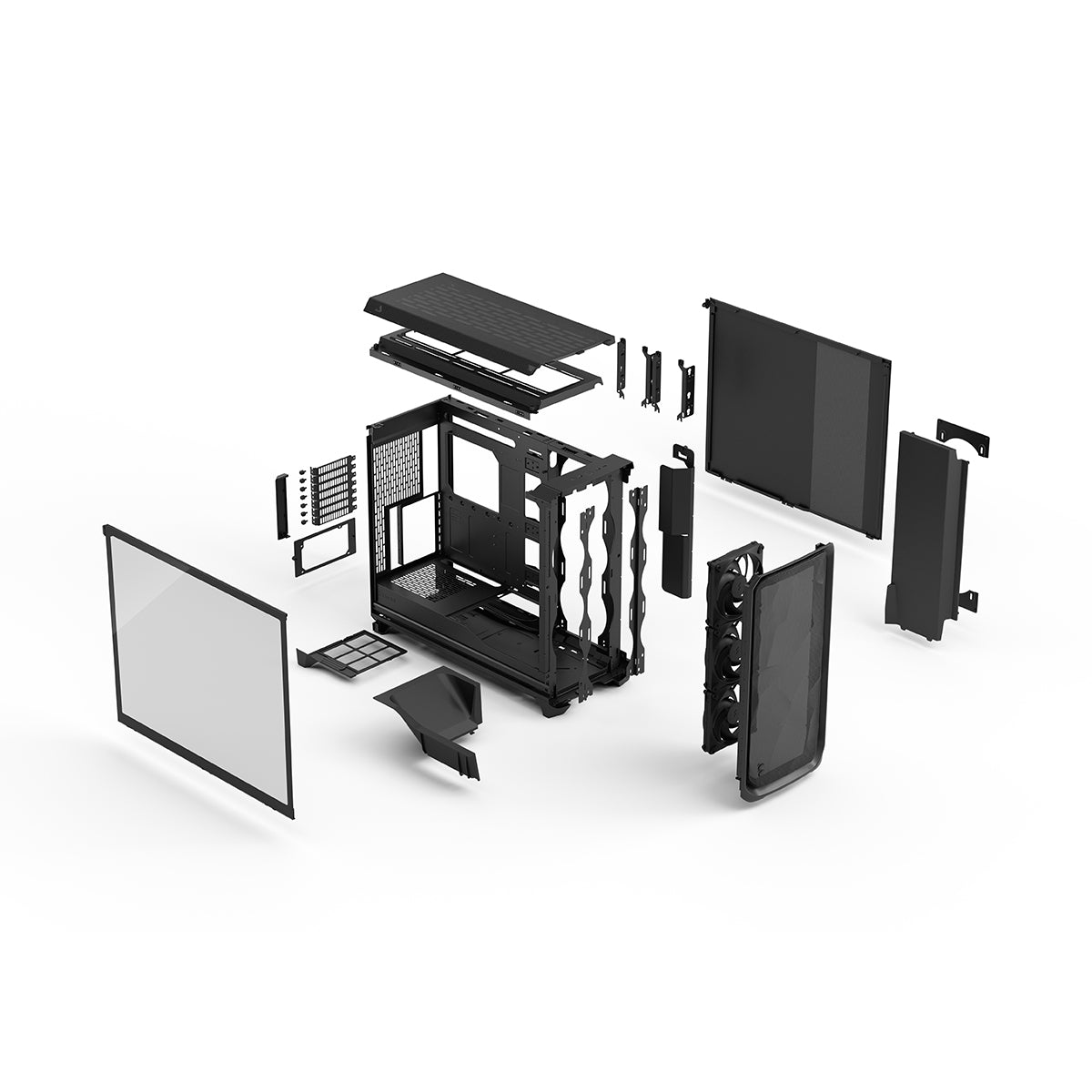

Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.

Powerful fans included

Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.

Ideal for custom loops

Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.

Accessible I/O

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.

Clean finish

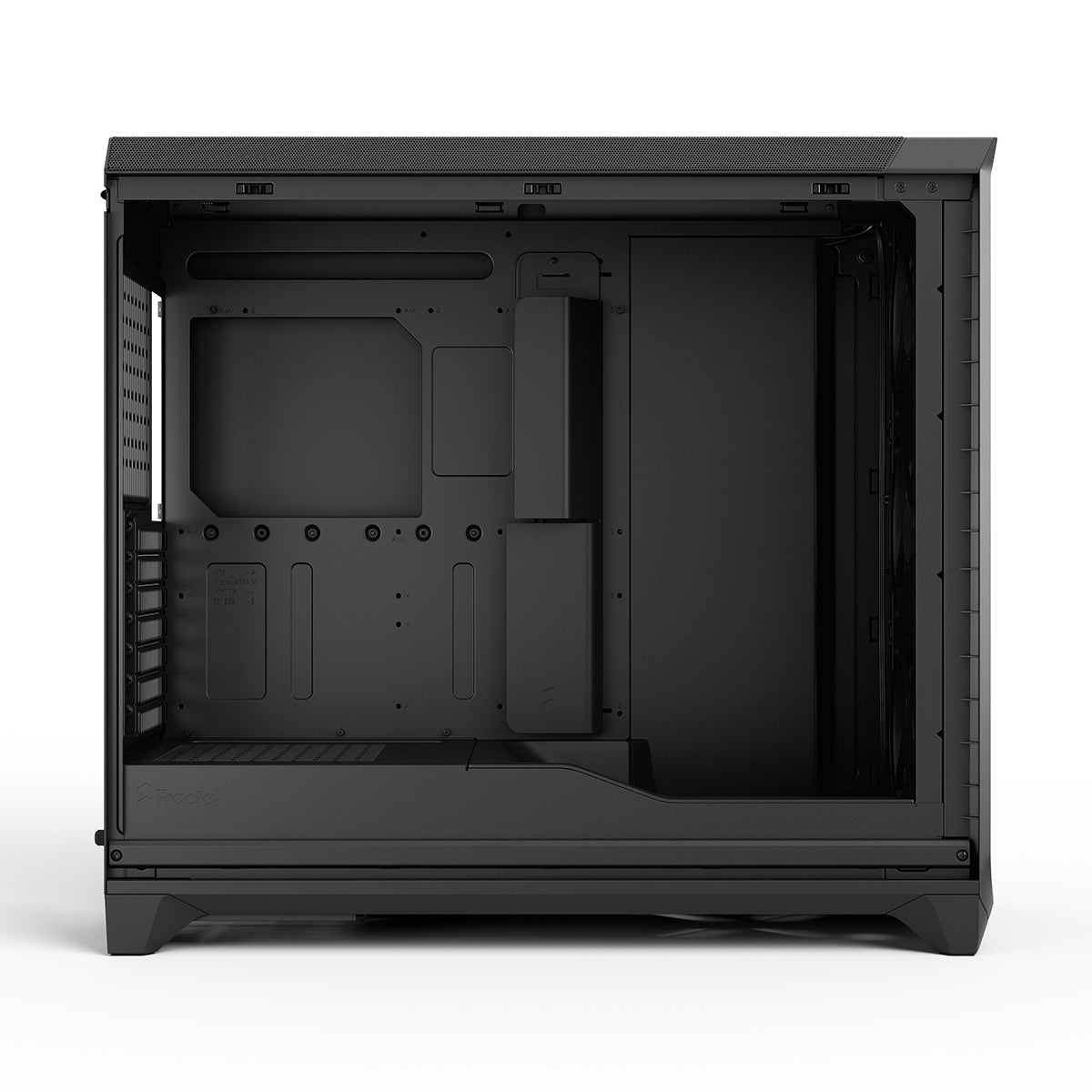

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.

Specifications

3.5"/2.5" drive mounts2/4
Dedicated 2.5" drive mounts1
5.25” drive mounts-
Expansion slots7
Adjust Pro HubIncluded in Ambience Pro RGB version
Ambience Case LightingAmbience Pro RGB version
Front interface1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
Total fan mounts10 (120 or 140 mm)
Front fan3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum Included)
Top fan3x 120/140 mm
Rear fan1x 120/140 mm
Bottom fan-
Side fan3x 140 mm (no 120 support without radiator)
Dust filtersPSU (Bottom)
Cable routing space37.5 mm
Cable coverYes
Cable organizers3 Hook-and-loop straps + 3 Cable Aligners
Tool-less push-to-lockBoth Side Panels, Bottom Filter, Front Panel, Top Panel
Captive thumbscrewsTop Radiator Bracket, Air Guide, PSU Bracket
Left side panelIndustrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)
Right side panelIndustrial steel
Power supply typeATX
Motherboard compatibilityE-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
PSU max length230 mm
GPU max length512 mm
GPU max height189 mm (7 slot) including cables
CPU cooler max height182 mm
Front radiator280/360 mm
Top radiator360/420 (up to 475) mm
Rear radiatorUp to 120/140 mm
Side radiator360 mm (with brackets)
Case dimensions (LxWxH)575 x 245 x 515 mm
Case dimensions w/o feet/protrusions/screws565 x 245x 515
Package dimensions596 x 350 x 550 mm
Net weight10.5 kg (Solid) 10.9 kg (TG and RGB) 11.4 kg (Ambience Pro RGB)
Gross weight12.4 kg (Solid) 13 kg (TG and RGB) 13.3 kg (Ambience Pro RGB)
Package contentsCase, Accessory Box, Manual, Red Note
Accessory Box content (Solid/TG/RGB)PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8
