Description
Description
Advanced airflow
Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.
Evolved design
Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
Designed for gaming
Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX (330 mm) motherboard compatibility.

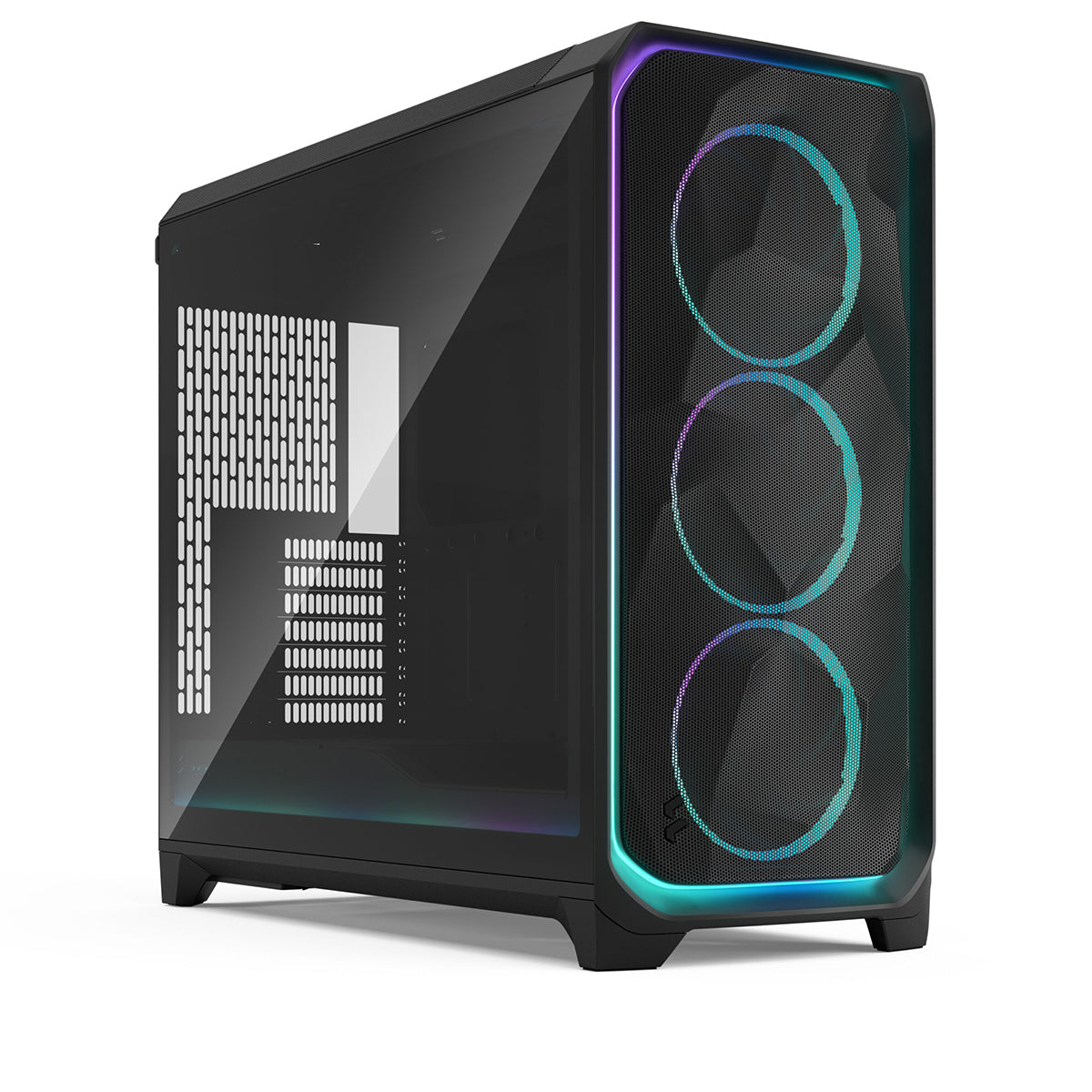

Ambience Pro RGB Version - Enhanced lighting
Create the right atmosphere with advanced ARGB Gen 2 ambient lighting, including an animated PC startup effect.
Ambience Pro RGB Version - Tailored experience
Customize your lighting and fans easily with a download-free configuration tool, accessed via the included Adjust Pro Hub.

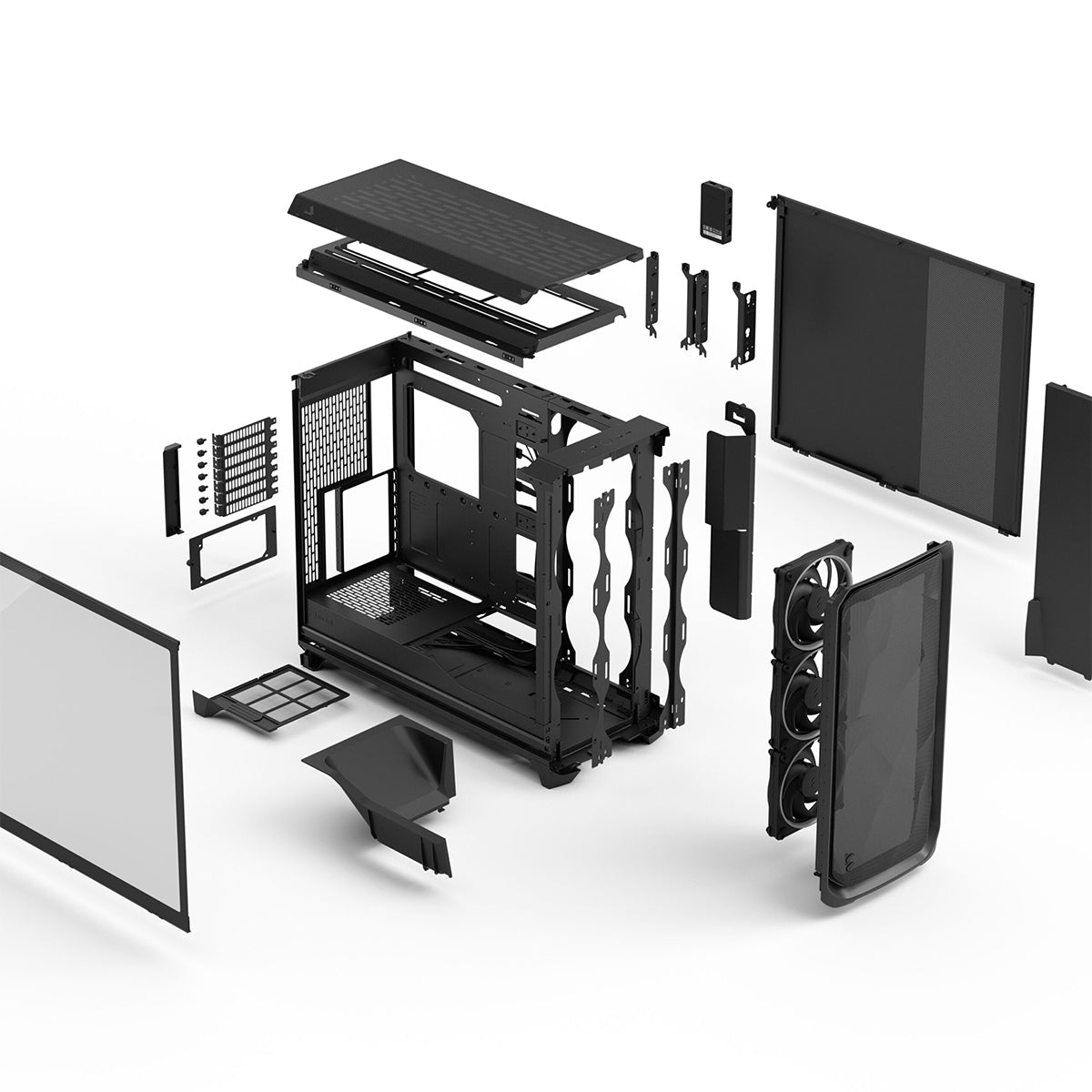

Easily accessible
Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.
Powerful fans included
Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Ideal for custom loops
Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.

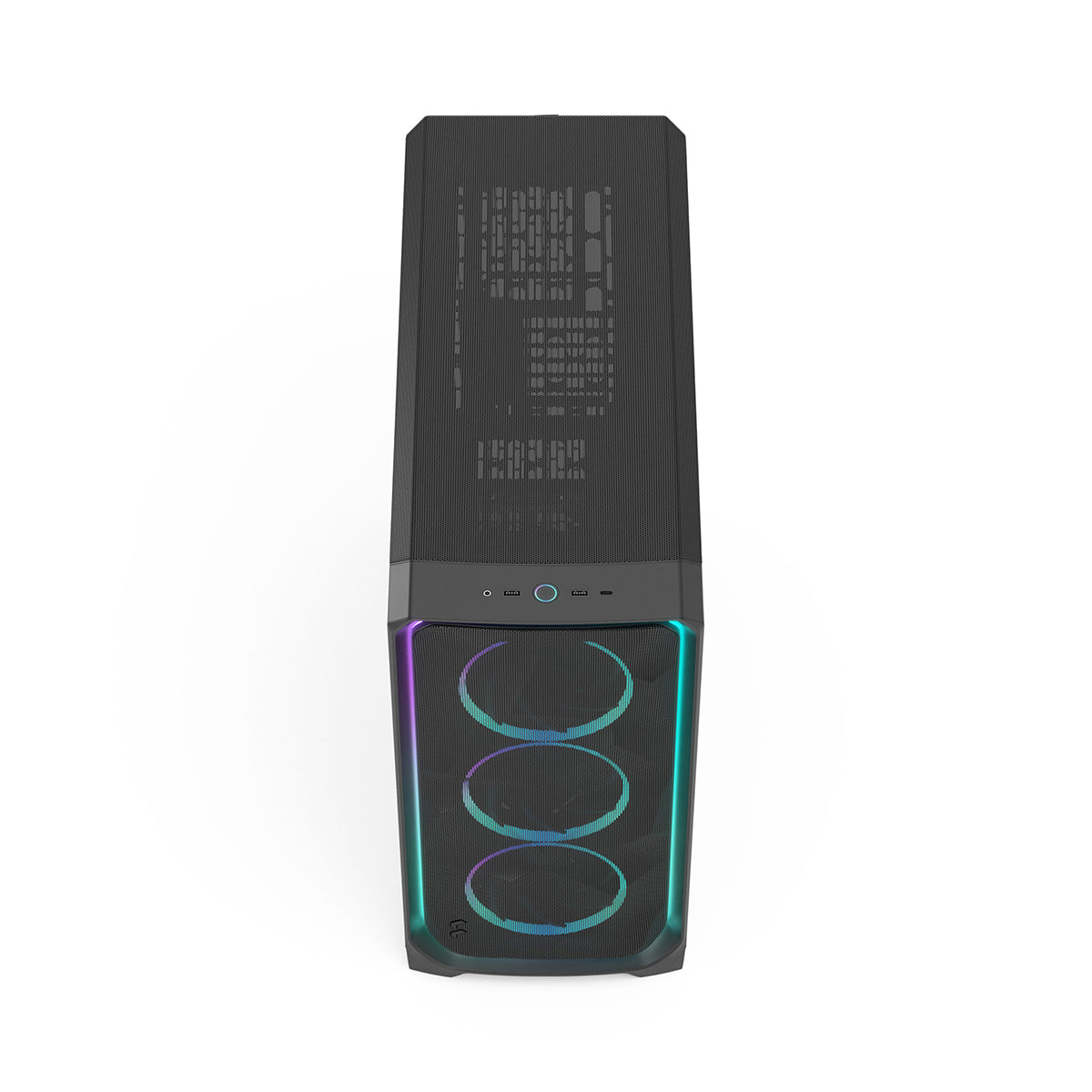

Accessible I/O
Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.

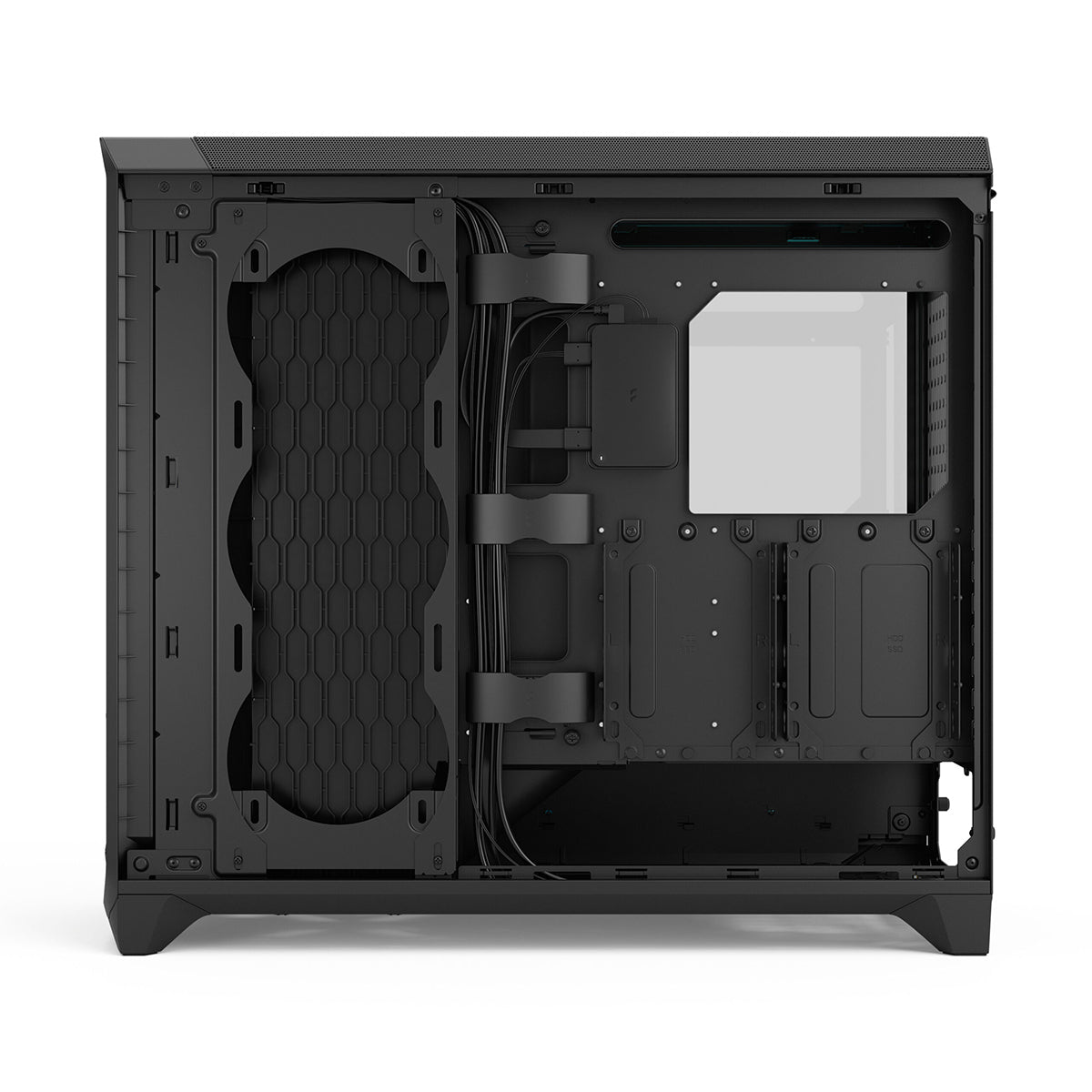

Clean finish
Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
Specifications
Specifications
| 3.5"/2.5" drive mounts | 2/4 |
| 5.25” drive mounts | 1 |
| Dedicated 2.5" drive mounts | 0 |
| Expansion slots | 7 |
| Motherboard compatibility | E-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB ATX |
| Front interface | 1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button |
| Total fan mounts | 10 (140 mm) / 7 (120 mm) |
| Front fan | 3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum RGB Included) |
| Top fan | 3x 120/140 mm |
| Rear fan | 1x 120/140 mm |
| Bottom fan | 3x 140 mm (no 120 support without radiator) |
| Dust filters | PSU (Bottom) |
| Front radiator | Up to 360/280 mm |
| Top radiator | 360/420 (up to 475 mm) |
| Rear radiator | Up to 120/140 mm |
| Bottom radiator | 360 (with brackets) |
| PSU max length | 230 mm |
| GPU max length | 512 mm |
| GPU max height | 189 mm (7 slot) Including Cables |
| CPU cooler max height | 182 mm |
| Adjust Pro Hub | Included |
| Ambient Case Lighting | Yes |
| Cable routing space | 37.5 mm |
| Cable cover | Yes |
| Cable organizers | 3 Velcro straps + 3 Cable Aligners |
| Tool-less push-to-lock | Both Side Panels, Bottom Filter, Front Panel, Top Panel |
| Captive thumbscrews | Top Rad. Bracket, Air Guide, PSU Bracket |

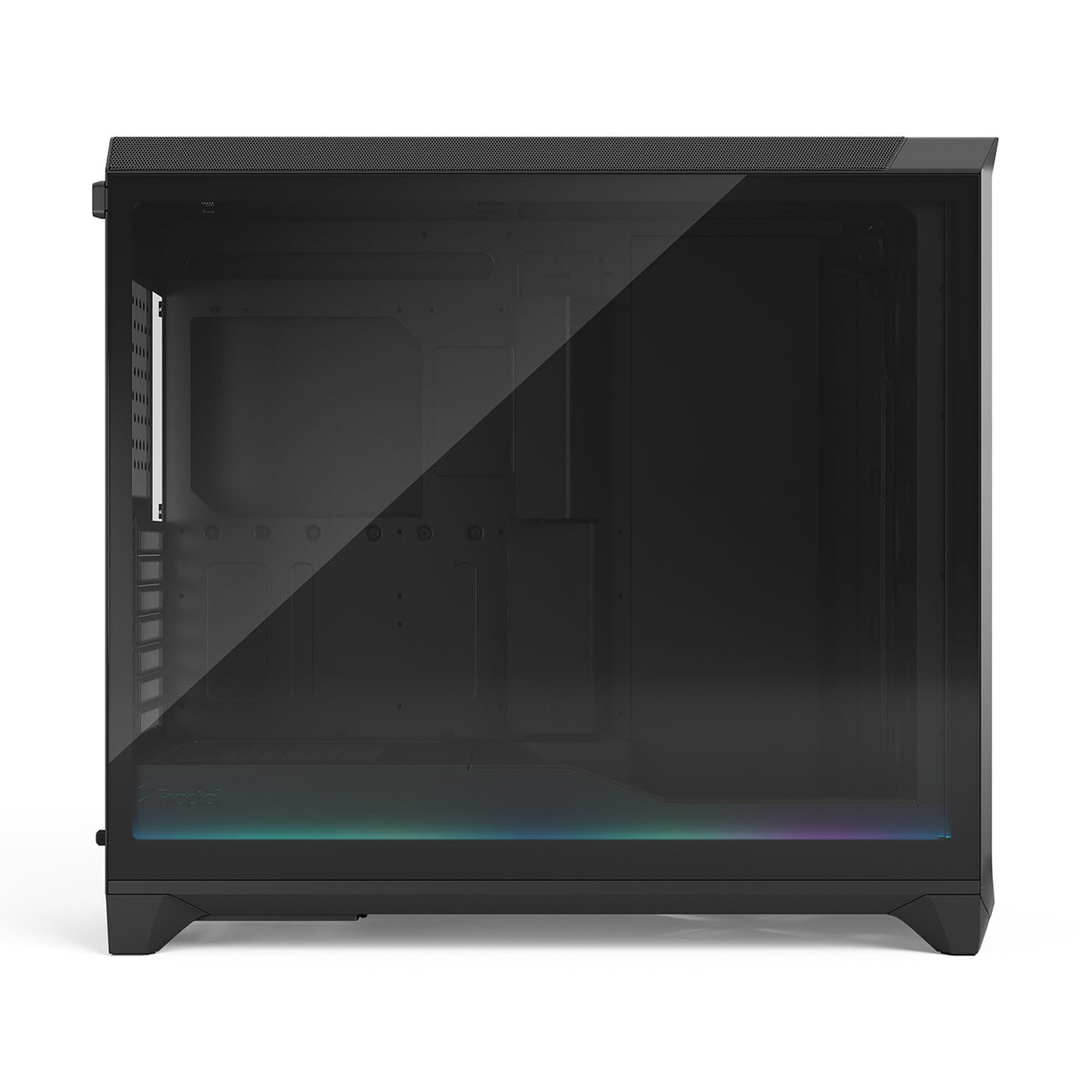

| Left side panel | Tempered Glass |
| Right side panel | Industrial Steel |
| Case dimensions (LxWxH) | 575 x 245 x 515 mm |
| Case dimensions w/o feet/protrusions/screws | 565 x 245 x 515 mm |
| Net weight | 11.4 kg |
| Package dimensions (LxWxH) | 688 x 350 x 596 mm |
| Gross weight | 13.3 kg |
