Description
Description
Meshify 3
Meshify 3 is a performance PC case combining top-tier cooling with fluid, aerodynamic design.
Advanced airflow
Access performance engineering with ample ventilation and an air guide which directs airflow towards components to improve GPU cooling.
Evolved design

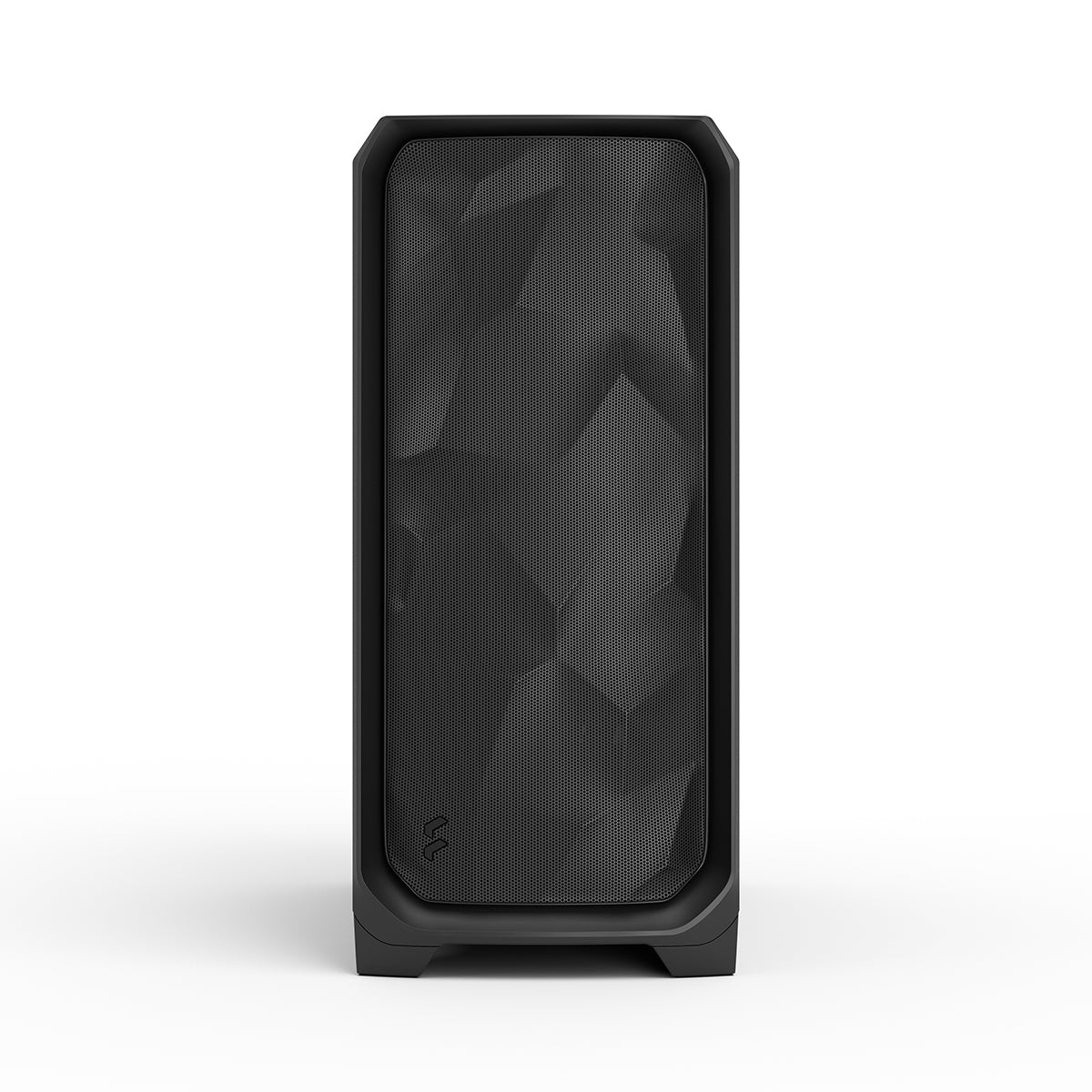

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
AMBIENCE PRO RGB VERSION - Enhanced lighting
Create the right atmosphere with advanced ARGB Gen 2 ambient case lighting and fans, including an animated PC startup effect.
AMBIENCE PRO RGB VERSION - Tailored experience
Customize your lighting and fans easily with Adjust Pro — a web browser-based configuration tool, accessed via the included Adjust Pro Hub.
Designed for gaming
Create a powerful gaming system with space for graphics cards up to 349 mm in length and E-ATX (277 mm) motherboard compatibility.
Powerful fans included
Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Cooler compatible
Cool your build further with up to a 280 mm top radiator and 360 mm front radiator, with removable brackets for easy installation.

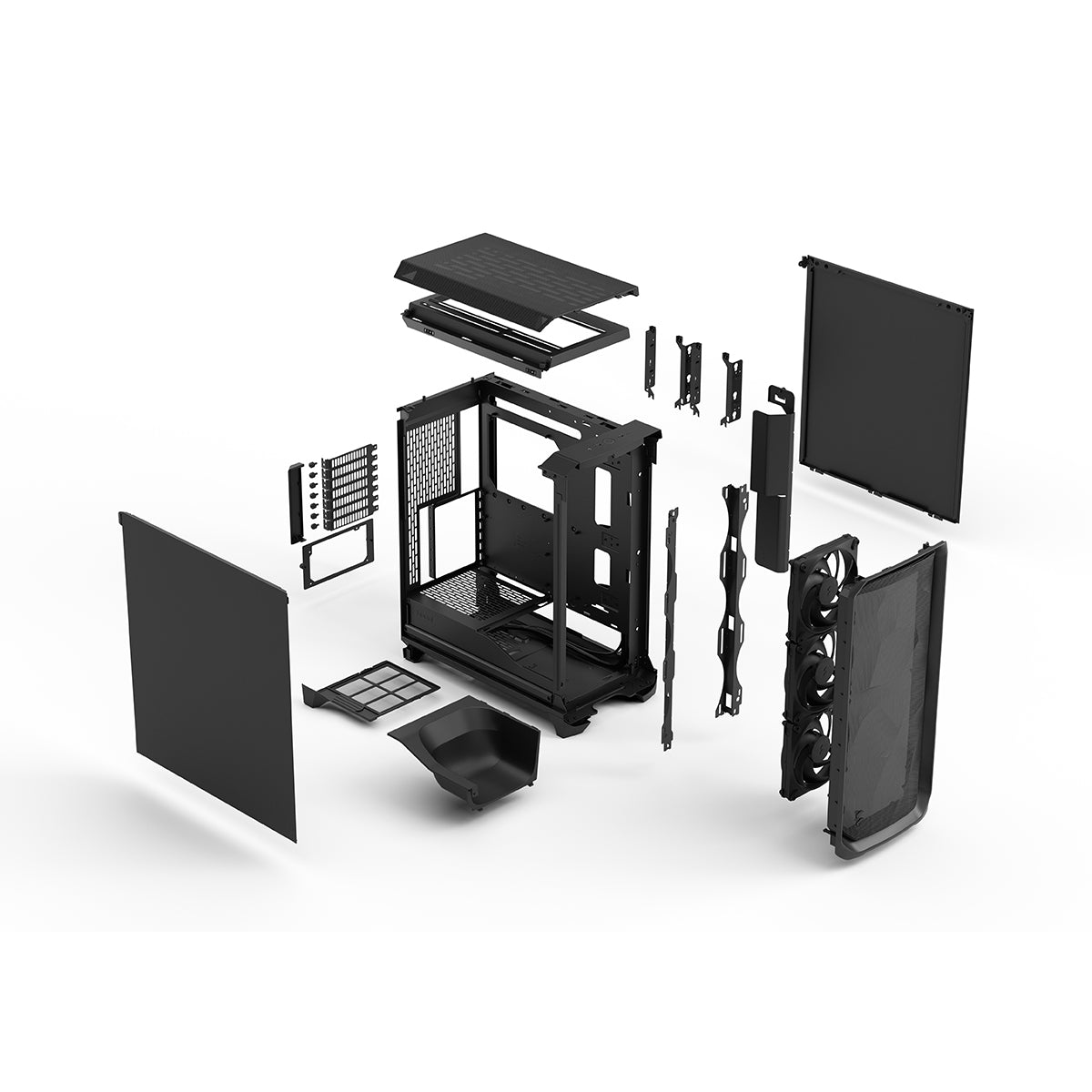

Easily accessible
Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.
Clean finish

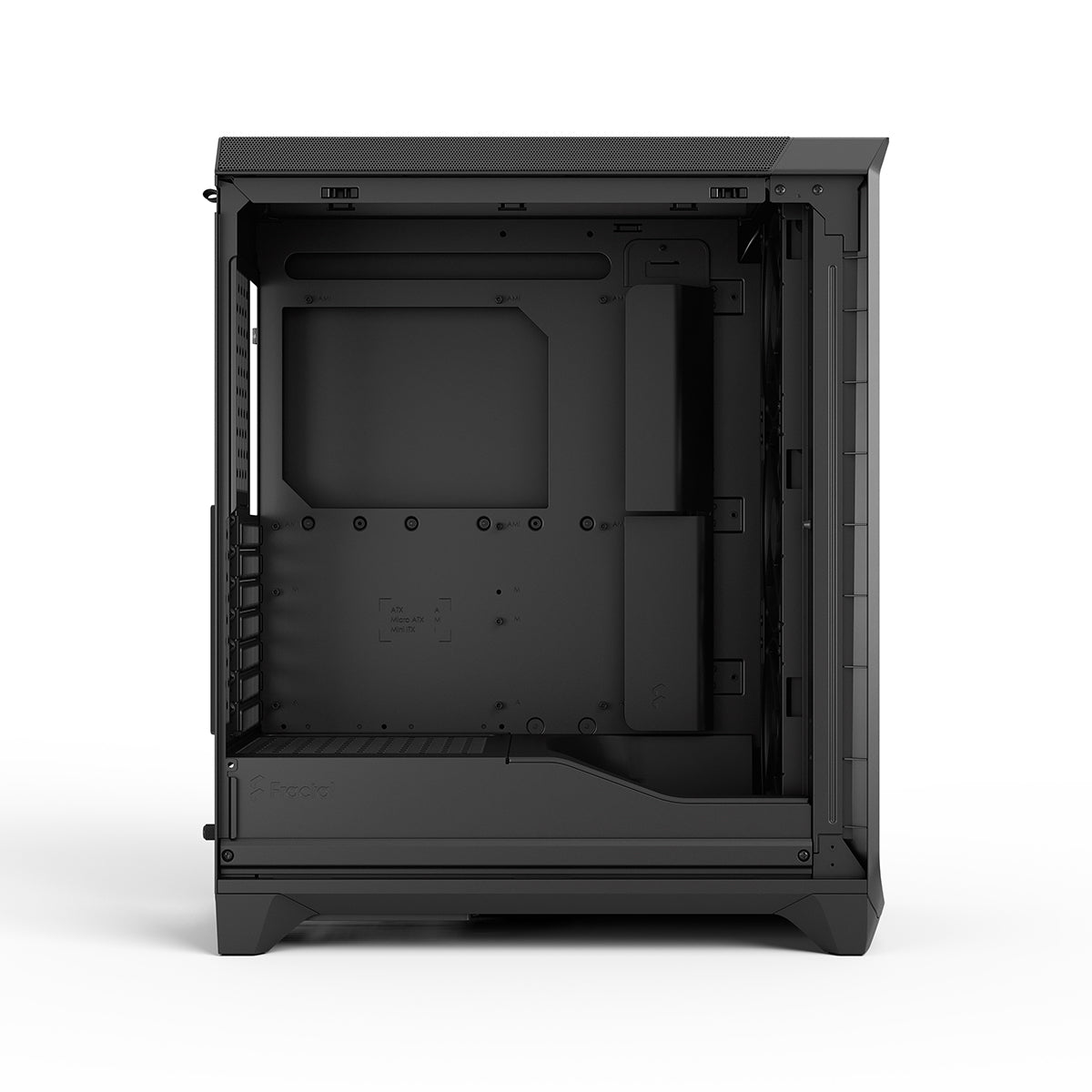

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
Accessible I/O
Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.
Specifications
Specifications
| Graphics Card Max Length | 349 mm |
| Graphics Card Max Height | 176 mm (incl. cables) |
| PSU Max Length | 180 mm |
| CPU Cooler Max Height | 173 mm |
| Cable Routing Space | 34.5 mm |
| Top Radiator | 240/280 mm |
| Front Radiator | 280/360 mm |
| Rear Radiator | 120 mm |
| Total Fan Mounts | 6x 120 mm or 5x 140 mm + 1x 120 mm |
| Front Fan | 3x 120 mm, 3x 140 mm (3 x 140 mm Momentum Included) |
| Top Fan | 2x 120 mm, 2x 140 mm |
| Rear Fan | 1x 120 mm |
| Bottom Fan | - |
| Dust Filters | PSU (Bottom) |
| 3.5"/2.5" Drive Mounts | 2 / 4 |
| Dedicated 2.5" Mounts | 2 (6 total) |
| 5.25" Drive Mounts | - |
| Expansion Slots | 7 |
| Adjust Pro Hub | Included in Ambience Pro RGB version |
| Ambient Case Lighting | Ambience Pro RGB version |
| Front Interface | 1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button |
| Cable Cover | Yes |
| Cable Organizers | 3 Hook-and-loop straps + 3 Cable Aligners |
| Tool-less Features | Both Side Panels, Bottom Filter, Front Panel, Top Panel, PSU Bracket |
| Captive Thumbscrews | Top Radiator Bracket, PSU Bracket |
| Left Side Panel | Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB) |
| Right Side Panel | Industrial steel |
| Power Supply Type | ATX |
| Motherboard Compatibility | E-ATX (277 mm) / AT / MATX / m-ITX |
| Case Dimensions (LxWxH) | 433 x 229 x 507 mm |
| Dimensions w/o Feet | 423 x 229 x 483 mm |
| Package Dimensions | 596 x 345 x 550 mm |
| Net Weight | 8.7 kg (Solid), 8.8 kg (TG and RGB), 9.1 kg (Ambience Pro RGB) |
| Gross Weight | 10.5 kg (Solid), 10.6 kg (TG and RGB), 11.1 kg (Ambience Pro RGB) |
| Package Contents | Case, Accessory Box, Manual, Red Note |
| Accessory Box Contents | Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4 |
