Fractal Design Ion SFX 500W 80Plus Gold Power Supply
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Keeping it down
You'll rarely hear a sound from the Ion SFX-L Gold, mainly due to a semi-passive mode that only activates the fan when it's really necessary. Even then, the true FDB bearings will make sure it remains very discrete.
- The semi-passive Zero RPM mode maintains total silence under light loads.
- The custom-tailored 120 mm fan with FDB bearings ensures discrete operation even under heavy use.
The power of flexibility
Thanks to an ultra-high strand count wire and special insulation, our UltraFlex DC wire bends and twists effortlessly to fit your installation instead of fighting it.
- Combining an increased strand-count and reduced diameter of just 0.08 mm allows thinner, more flexible cables
- Specially formulated insulation increases flexibility without impacting efficiency or current capacity
- Cables flex and flow with ease for near-effortless routing and superior cable management opportunities
- Cables bend and twist to make for easy connections in tight spaces with less resistance and strain
Full modular design
Reduced clutter results in a clean and simple installation
10 year warranty
All Ion SFX-L Gold power supplies are 80 PLUS® Gold Certified and backed with a 10-year warranty and full electrical protection suite for your peace of mind.
Japanese capacitors
Premium Japanese 105°C capacitors provide enhanced reliability and durability
Fully protected
Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
Mounting options
Includes SFX-to-ATX mounting bracket
Specifications
Specifications
80PLUS® Certification | Gold |
Modular cables | Fully modular |
Fan type | Slim (15 mm) FDB bearing 120 mm fan |
Maximum operating temperature (full load) | 40°C - Maximum 80% load at 50°C |
Semi-passive operation | Yes (Zero RPM) |
Capacitors | 105°C Japanese Polymer |
Life expectancy (MTBF) at max output load | 100,000 hours |
PSU form factor | SFX-L* |
Cable type | Modular 24-pin: Braided sleeve UltraFlexâ„¢ wire - Others: Flat UltraFlexâ„¢ wire |
PSU Color | Black/Gunmetal |
Cable Color | Black |
Protection features | Over voltage protection - Under voltage protection - Over power protection - Short circuit protection - Over current protection - Over temperature protection |
Input voltage | 100-240V AC |
Input frequency | 50-60 Hz |
Input current | 6A/3A (500G) |
Number of 12V rails | 1 |
Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
Sleep State Compliance | C6/C7 |
Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
Warranty | 10 Years |
*NOTE | Ion SFX-L is not compatible with Node 202 |
ATX | 1 |
EPS/ATX12V | 1 |
PCIe | 2 |
SATA | 4 |
Peripheral | 2 |
ATX 24-pin | 350 |
EPS/ATX12V 4+4 pin | 400 |
PCIe 6+2 pin | 400+100 |
SATA | 300+200+200+100 |
Peripheral | 300+200 |
3.3V | 20A |
5V | 20A |
3.3V and 5V combined | 100W |
12V | 41A |
-12V | 0.3A |
+5Vsb | 3A |
Total Power | 500W |

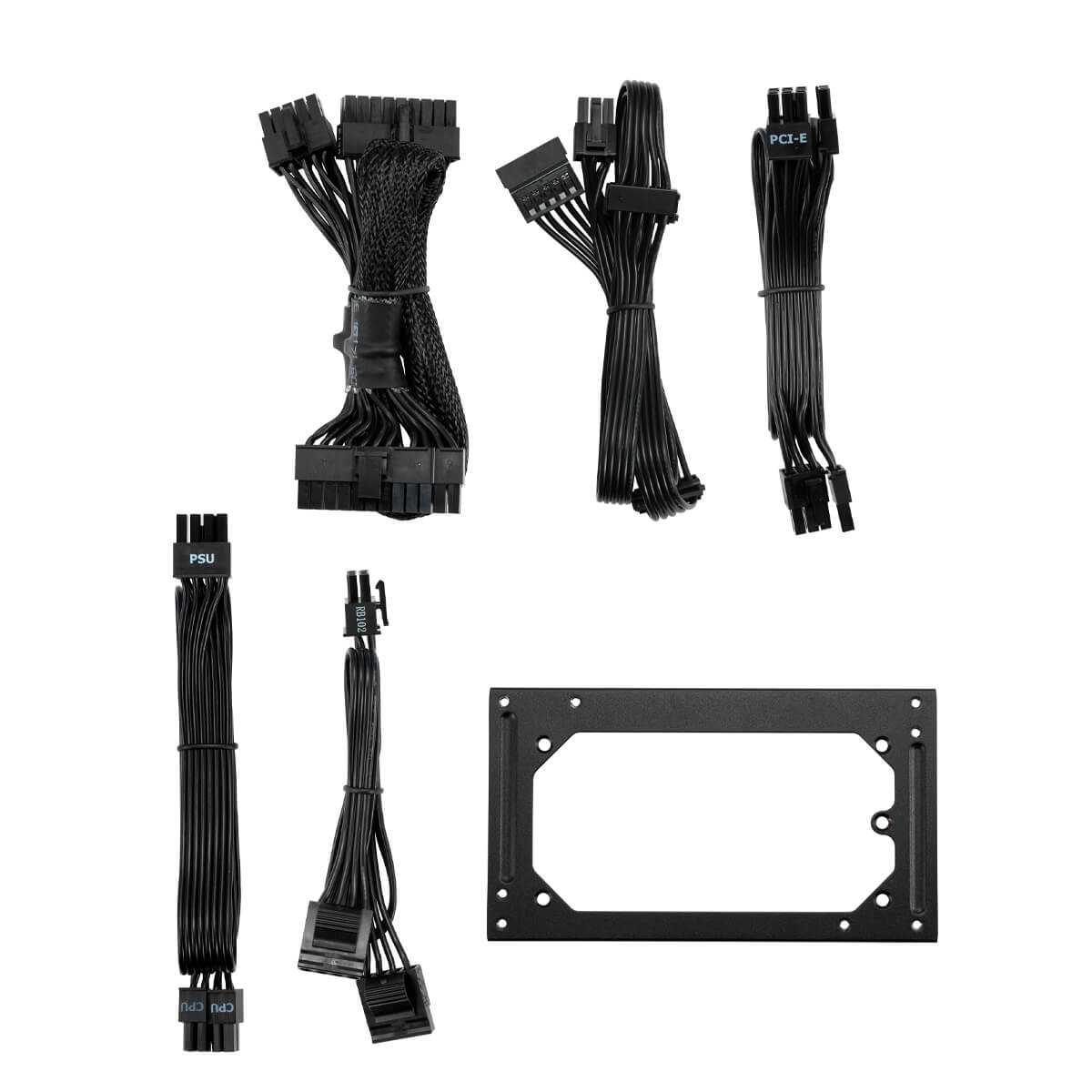

Package contents | • Ion SFX-L PSU with protective bag • Modular cables in a convenient storage bag • Screw pack with Velcro cable ties • SFX-to-ATX bracket • AC power cord (localized) • User manual |
Unit dimensions (LxWxH) | 125 x 125 x 63.5 mm |
Net weight (unit only) | 1.11 kg |
Package dimensions (LxWxH) | 260 x 170 x 95 mm |
Package weight | 1.91 kg |
EAN | 7340172702016 |
UPC | 843276102012 |
Product code | FD-PSU-ION-SFX-500G-BK |
