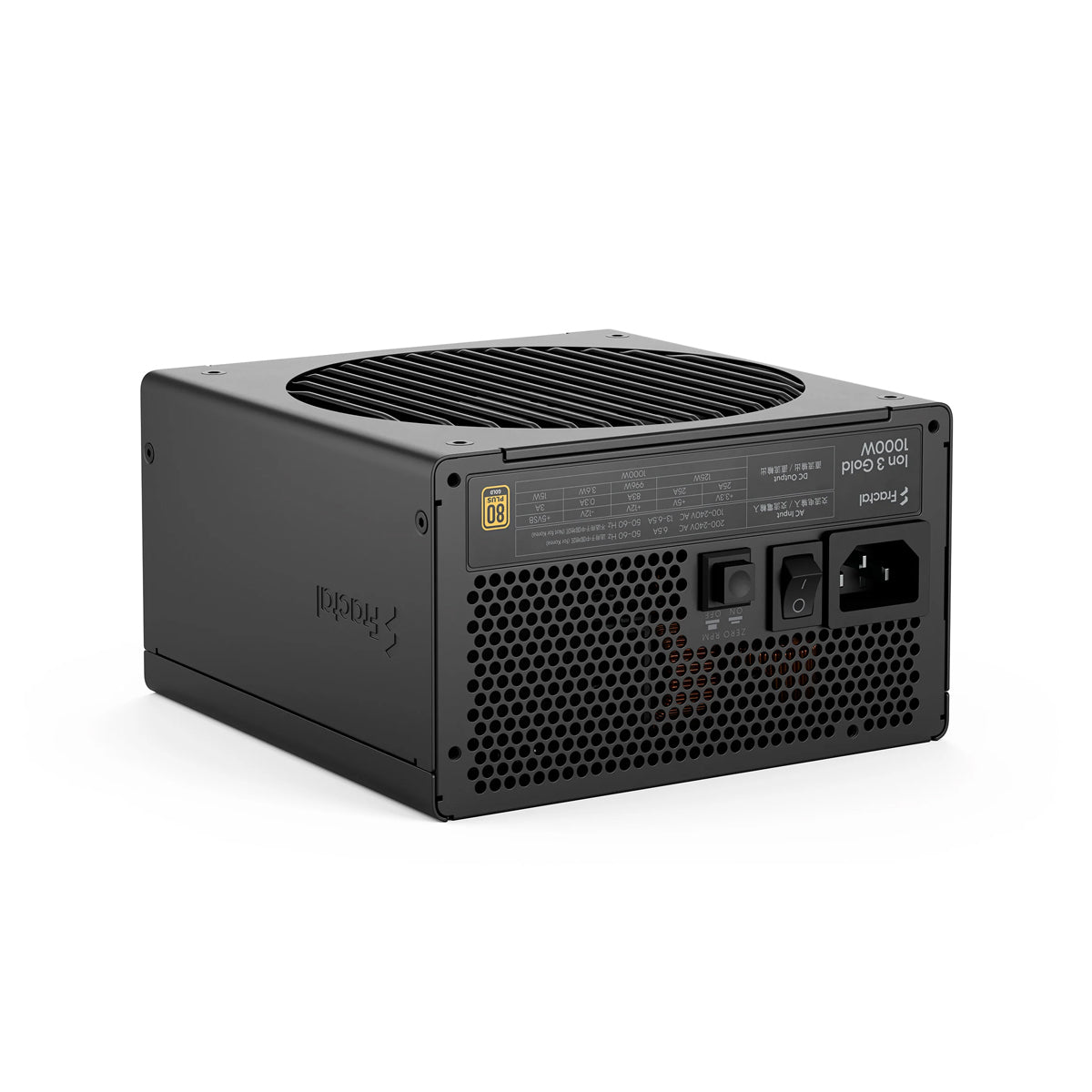

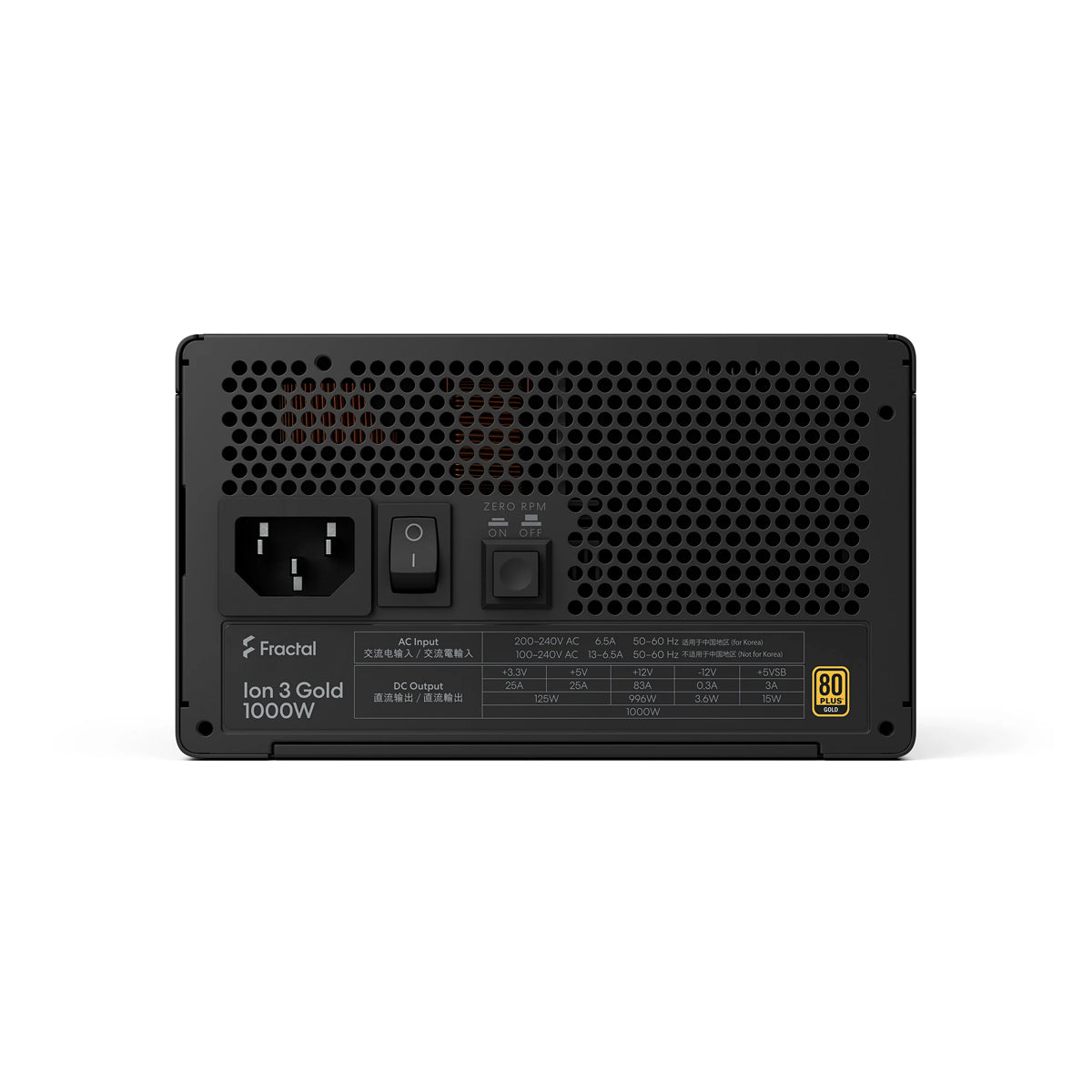

Fractal Design Ion 3 1000W 80 Plus Gold ATX 3.1 PCIE Gen 5 Fully Modular Power Supply - Black
Momentum Fan | Japanese Capacitors | UltraFlex Cables | Zero RPM Semi-Passive Mode
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
SHOP STORE:
Description
Description
The power of silence
Designed to deliver strong performance with minimal noise for a smooth and quiet computing experience.
Future-ready
Connect next-generation components with ATX12V 3.1 compatibility and enjoy stable performance with graphics card power excursion support.
Native Gen 5 support
Power modern graphics cards with 16-pin PCIe Gen 5 12V-2×6 support featuring shortened sense pins for a reliable, secure connection.

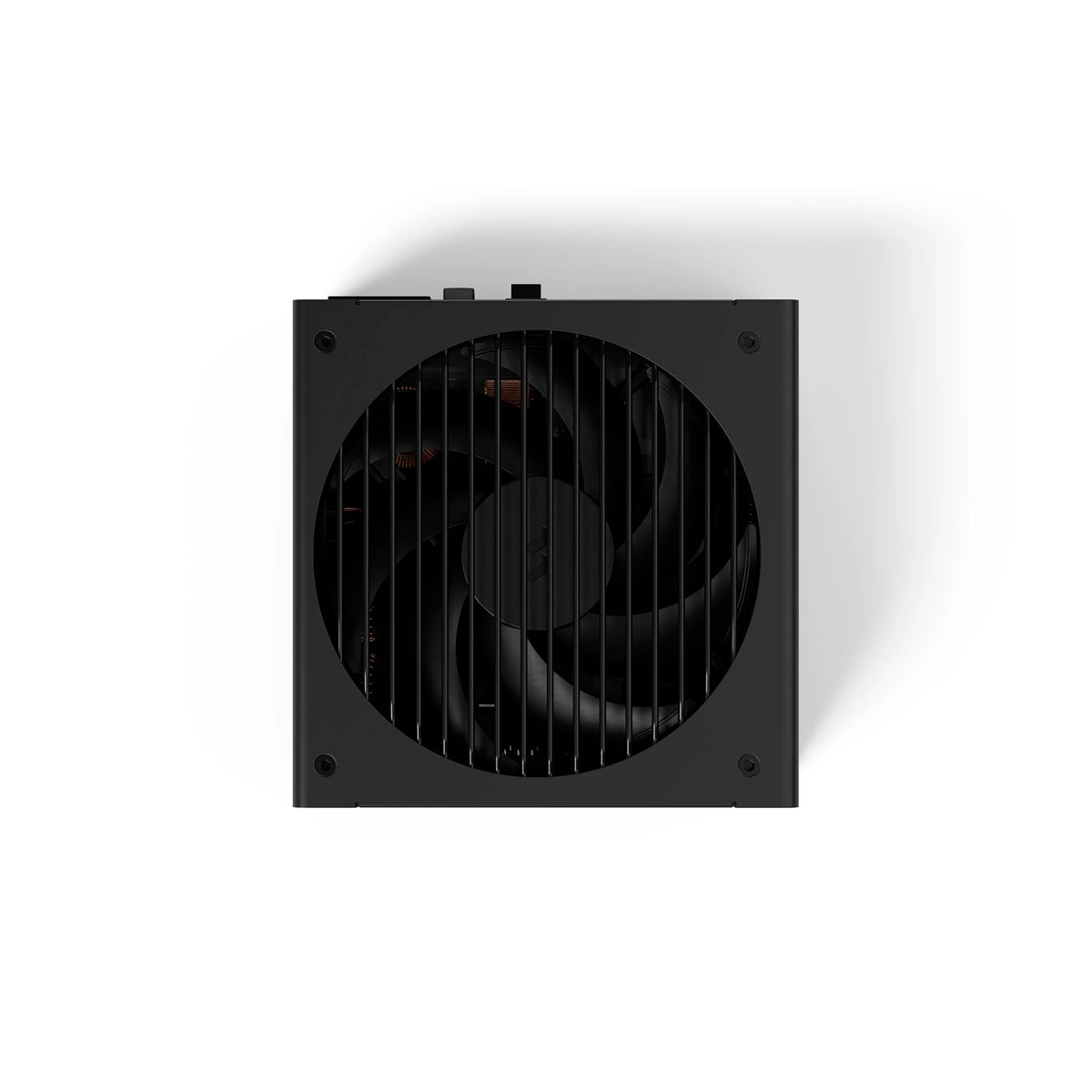

Momentum cooling
Featuring a powerful Momentum 14 fan with a fluid dynamic bearing and LCP blades to ensure lower noise, cooler operation, and a longer lifespan.
Certified efficiency
80 PLUS Gold–certified for efficient performance with reduced energy use and heat output through optimized power delivery.
Quiet operation
Featuring variable fan speeds for adaptive cooling and the option to activate Zero RPM Mode for near-silent operation under lighter loads.

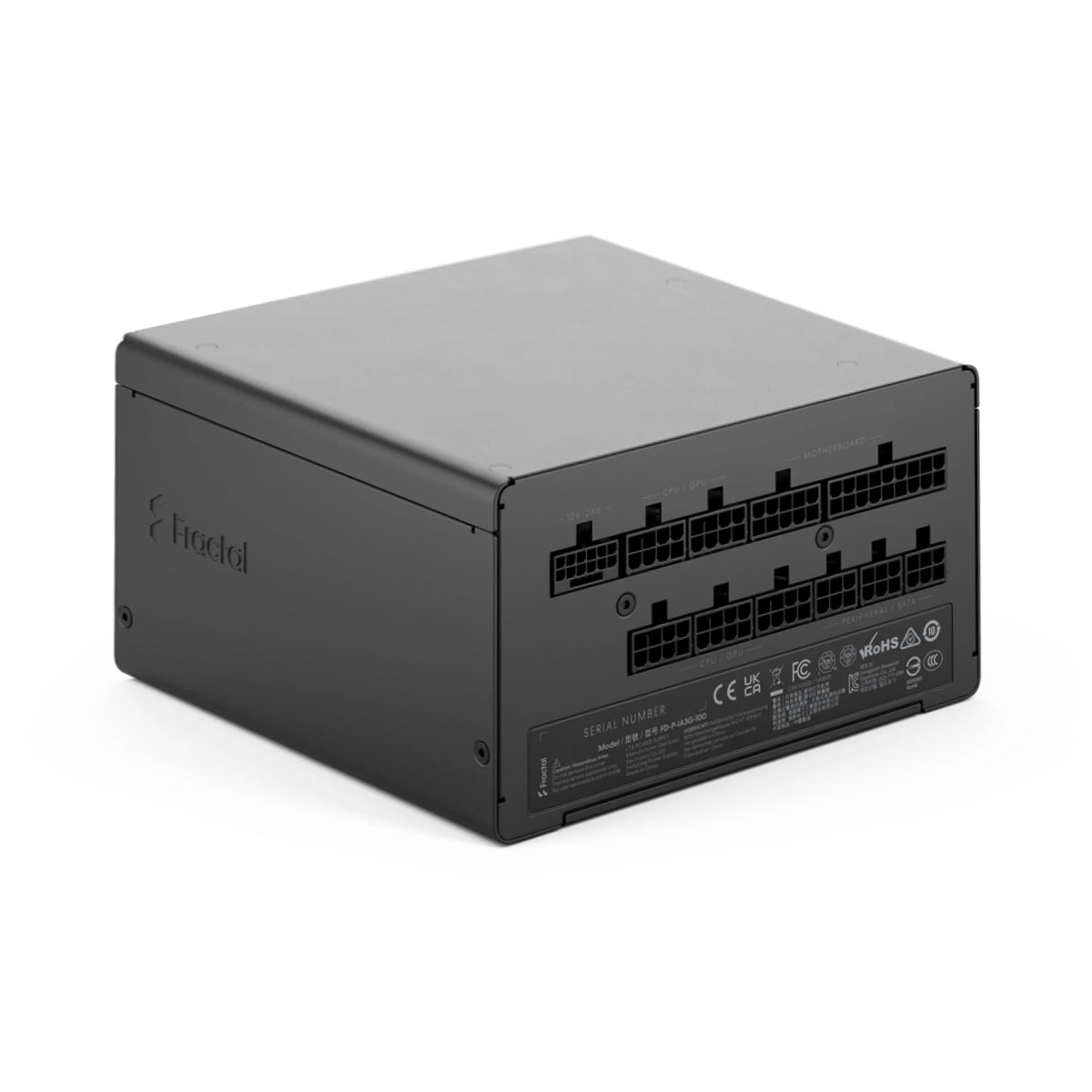

Fully modular
Achieve a clean, uncluttered build with a fully modular design and UltraFlex cables for smoother cable routing.
Designed to last
Built with high-quality, reliable components including Japanese 105°C capacitors.
Specifications
Specifications
| Wattage | 1000W |
| PSU Specification | ATX12V 3.1 |
| Efficiency | 80PLUS® Gold |
| Modular Cables | Fully modular |
| Fan Type | Momentum 14 series fan Fluid Dynamic Bearing |
| Semi-passive | Yes, user selectable (Zero RPM mode) |
| DC Cable Type | UltraFlex, flat cables |
| Cable Color | Black PSU: Black White PSU: White |
| Capacitors | 105°C Japanese capacitors |
| 12V Rails | Single 12V rail |
| Protection |
Over Power Protection (OPP) Over Voltage Protection (OVP) Under Voltage Protection (UVP) Short Circuit Protection (SCP) Over Current Protection (OCP) Over Temperature Protection (OTP) |
| Life Expectancy | 100,000 h (25°C ambient temperature) |
| Sleep States | C6 and C7 compatible |
| PFC | Yes, active |
| Input Voltage | 100–240 V |
| Standby Efficiency | ≥ 45% ErP Lot 6 compliant |
| Operating Temp |
40°C (full load) 50°C (80% load) |
| Certifications |
CE, UKCA, BSMI, CCC, FCC TUV, cULus, RCM, ICES CB, KC |
| Modular Cables |

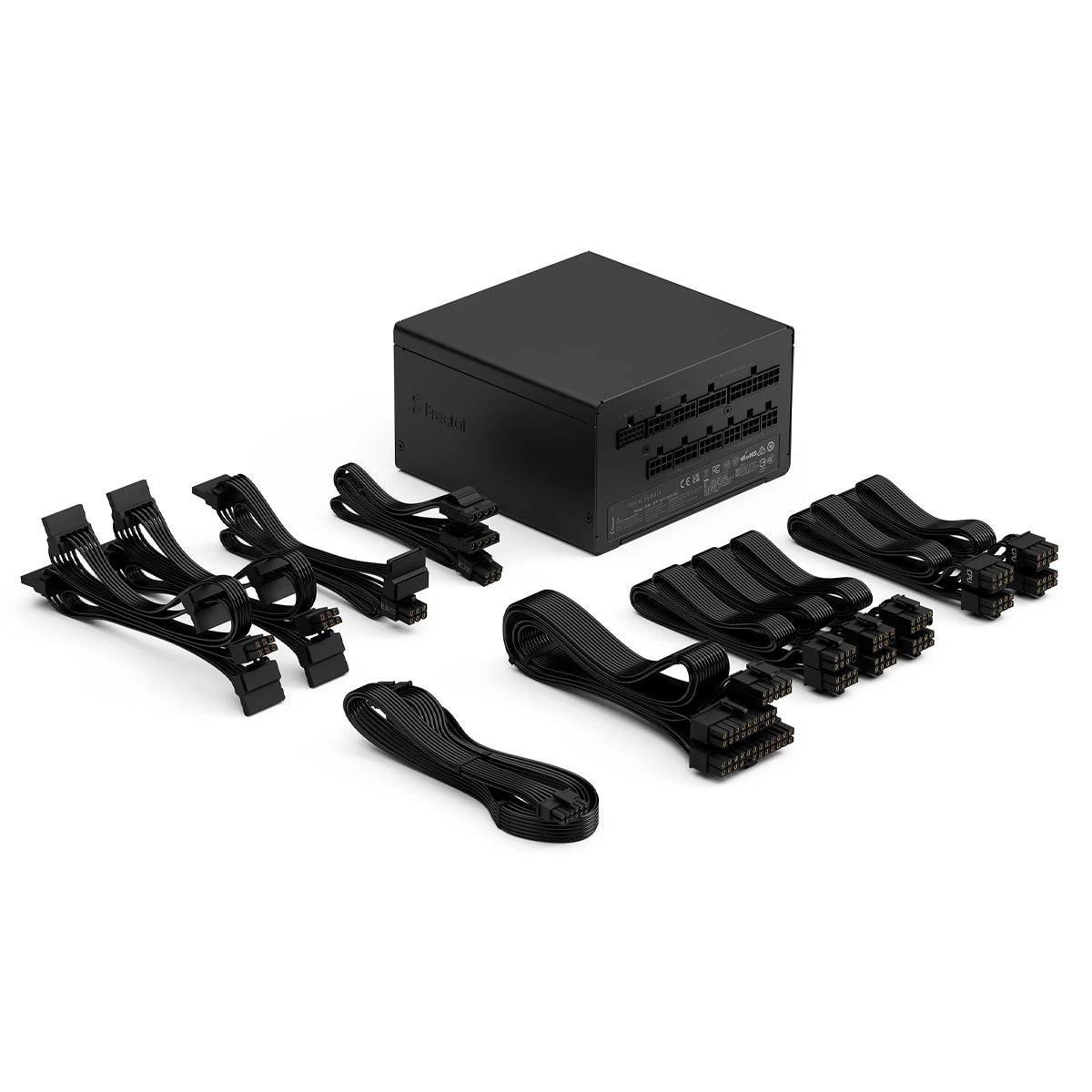

ATX 24-pin, 600 mm ×1 ATX 12V 4+4P, 700 mm ×2 PCI-E 6+2 pin, 650 mm ×3 PCI-E Gen5 12V-2x6, 700 mm ×1 4× SATA, 400+150+150+150 mm ×2 2× SATA, 650+150 mm ×1 2× Peripheral (Molex), 650+150 mm ×1 |
| SATA Connectors | 10 |
| Molex Connectors | 2 |
| Package Contents |
Ion 3 Gold power supply unit Modular cables Accessory kit User manual Power cord (regional) |
| Unit Dimensions | 150 × 150 × 86 mm |
| Net Weight | 1.8 kg |
| Package Size | 354 × 189 × 122 mm |
| Package Weight | 3.3 kg |
| EAN | Black: 7340172710271 |
| UPC | Black: 843276110277 |
| Product Code | Black: FD-P-IA3G-100 |
