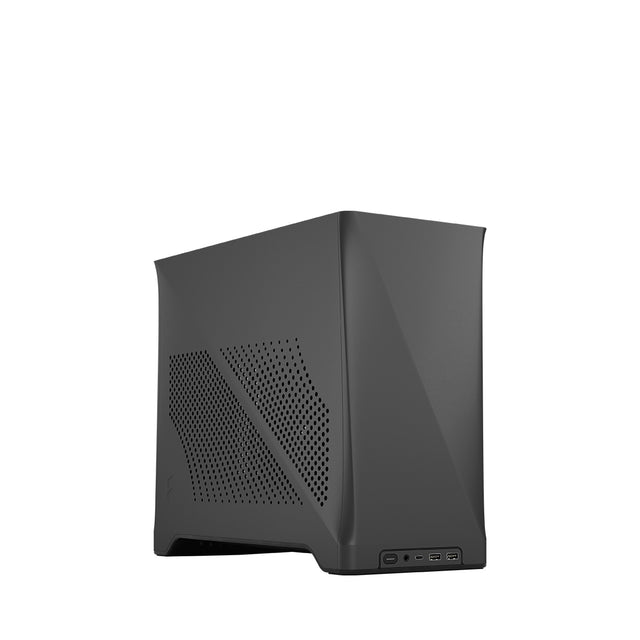

Fractal Design Era 2 Mini ITX Case - Charcoal
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Elegance in every detail
In Era 2, the original Era case has been refined and enhanced, furthering its distinctive architectural design and improving its cooling capability for a smoother gaming experience. With water cooling compatibility and ventilation on five sides, including a sleek, magnet-fastened panel in solid walnut, Era 2 is a small form factor case optimized for gaming. Its elegantly sculpted outer body is crafted with anodized aluminum and slides off in one piece to reveal an intuitive, well-constructed interior with space for a powerful GPU.
Sleek, sculpted design
Sleek, sculpted design with an anodized aluminum exterior and solid walnut top panel.
Graphics card compatibility
Compatible with graphics cards up to 3 slots with 326 mm in length and 63 mm in thickness.
Watercooling optimization
Optimized for AIO watercoolers with support for radiators up to 280 mm. Includes two Aspect 12 PWM fans and features ample ventilation for airflow performance.
Tool-free access
Tool-free access with an exterior shell that slides off and a push-to-release top bracket.
Build flexibility
Offers 15 mm of internal build flexibility provided by a stepless, slidable central wall. Includes a pre-installed PCIe 4.0 riser cable and dedicated mounts for up to four 2.5” drives.
Front I/O panel
Easy-access front I/O panel with two USB ports, including one USB Type-C 20Gbps.
Iconic design
Enjoy a sleek, sculpted aesthetic complete with an anodized aluminum exterior and an FSC-certified walnut top panel.
Streamlined gaming
Install a graphics card up to 326 mm in length and pair it with a radiator up to 280 mm for powerful SFF gaming.
Ventilated performance
Features ample ventilation engineered to direct airflow through the case and includes two Aspect 12 PWM fans.
Smooth access
Enjoy tool-free access with a magnetic top panel, an exterior that slides off, and a push-to-release top bracket.
Flexible interior
Find your build’s ideal balance with 15 mm of internal flexibility provided by a stepless, slidable central wall.
Ready to connect
Includes a PCIe 4.0 riser cable pre-installed in the case and features dedicated mounts for up to four 2.5” drives.
Front-facing I/O
Features an illuminated power button and two USB ports for connecting devices, including one USB Type-C 20Gbps.
Specifications
Specifications
3.5"/2.5" drive mounts | 0 included 0 total |
Dedicated 2.5" drive mounts | 4 included 4 total (2 on MB Wall) |
5.25” drive mounts | 0 |
Expansion slots | 3 |
Motherboard compatibility | ITX |
Power supply type | SFX / SFX-L |
Front interface | 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, Audio |
Total fan mounts | 4 x 120 mm or 2 x 120 mm & 2 x 140 mm (2x120 mm Aspect PWM fans included) |
Top fan | 2 x 120 mm or 2 x 140 mm |
Bottom fan | 2 x 120 mm |
Dust filters | Bottom |
Top radiator | Up to 315 x 140 mm with total thickness ≤ 52 mm Up to 300 x 140 mm with total thickness ≤ 58 mm |
GPU max length | 326 mm |
GPU max height | 137 mm |
GPU max thickness | 48-63 mm (depending on MB wall position) |
CPU cooler max height | 55-70 mm (depending on MB wall position) |
Cable routing grommets | No |
Fixed velcro straps | Yes (2 included) |
Captive thumbscrews | PCI-e blanks |
Panels | Aluminum |
Case dimensions (LxWxH) | 366 x 165 x 314 mm |
Case dimensions w/o feet/protrusions/screws | 365 x 165 x 314 mm |
Net weight | 4.64 kg |
Package dimensions (LxWxH) | 455 x 250 x 408 mm |
Gross weight | 5.74 kg |
