Fractal Design Dynamic X2 GP-18 180mm PWM Fan - OEM Packaging
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.
Optimized fan geometry
- Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
- Trip Wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quieter fan environment
- Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
High-grade LLS bearing
Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability

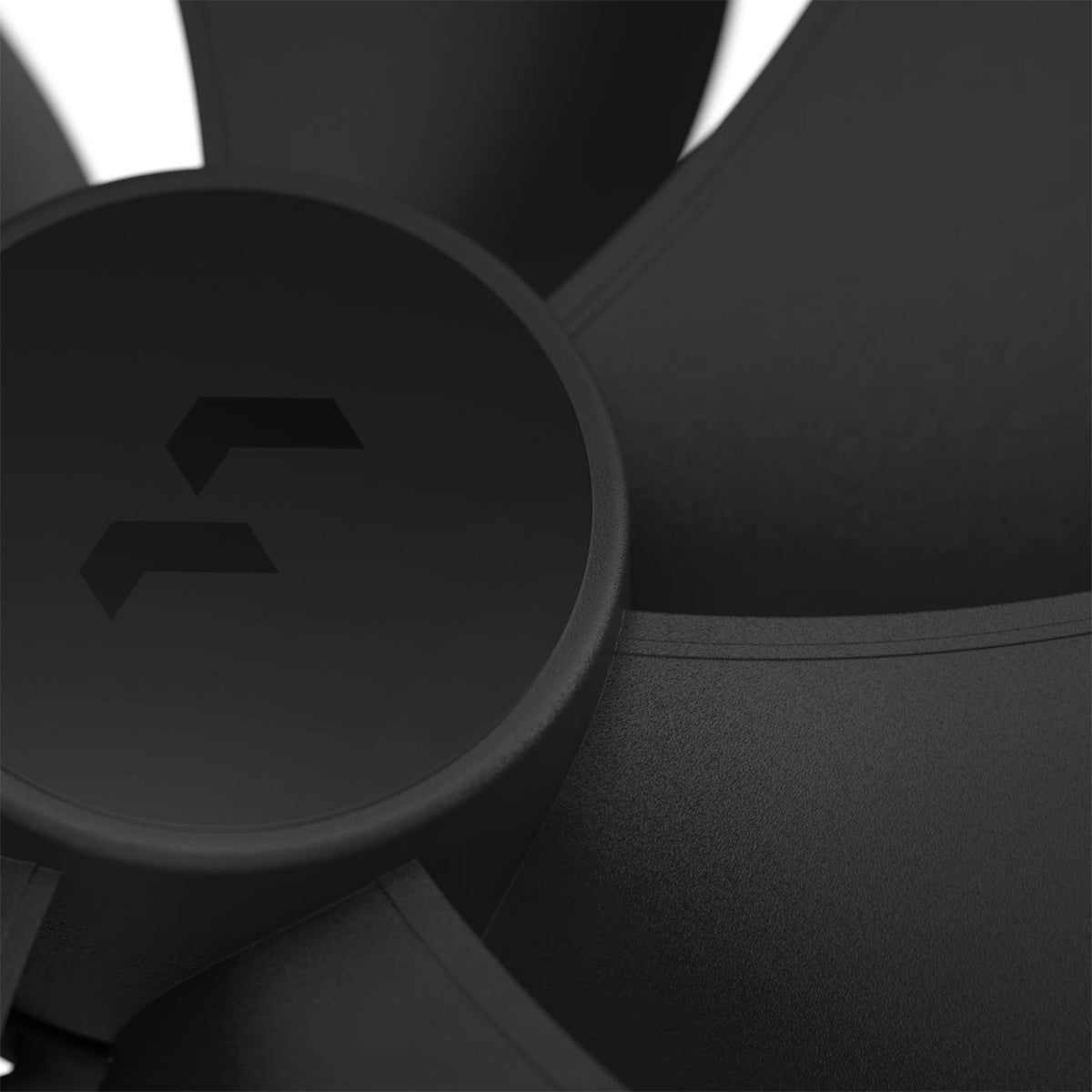

Notched blade design
- Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts
- Aerodynamic stator struts with embedded wiring helps reduce noise and turbulence
- Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
Specifications
Specifications
| Size | 180 x 180 x 38 mm |
| Screw hole pattern | 165 x 165 mm |
| Power Connector | 4-pin |
| Bearing | LLS |
| Number of blades | 7 |
| Rotational speed | 300 – 1200 RPM |
| Noise level | 16 – 35.4 dB(A) |
| Max airflow | 44.9 – 153.7 CFM |
| Max airflow | 76.33 – 261.29 m³/h |
| Max pressure | 0.4 – 2.26 mmH2O |
| Input power | 4.2W at 12VDC |
| Maximum rated input current | 0.35A |
| Nominal input Voltage | 12V |
| Minimum startup voltage | 6V |
| MTTF | 90,000 hrs |
| Fan weight | 499 g |
| Cable length | 1000 mm |
| Cable type | Black ribbon cable |
