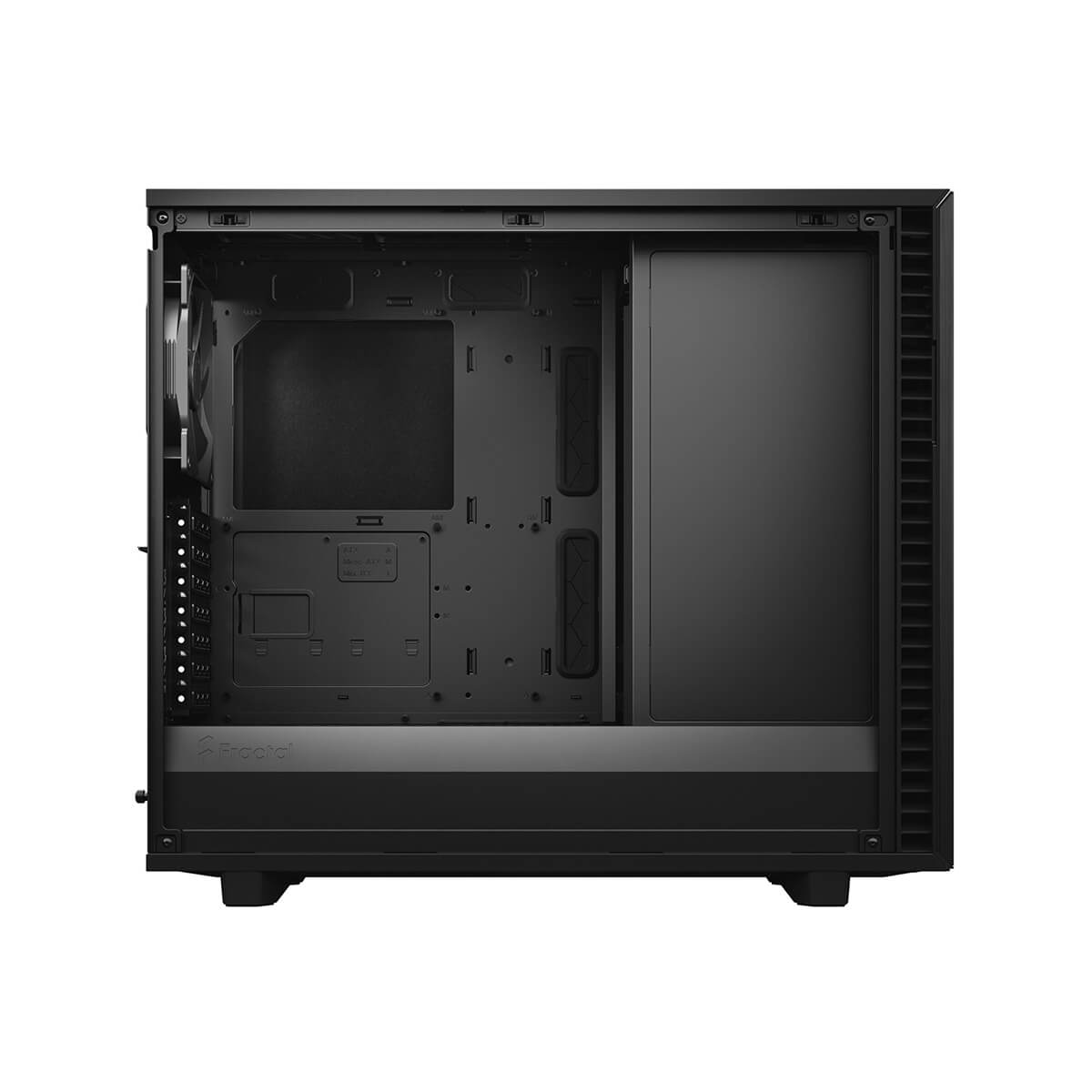

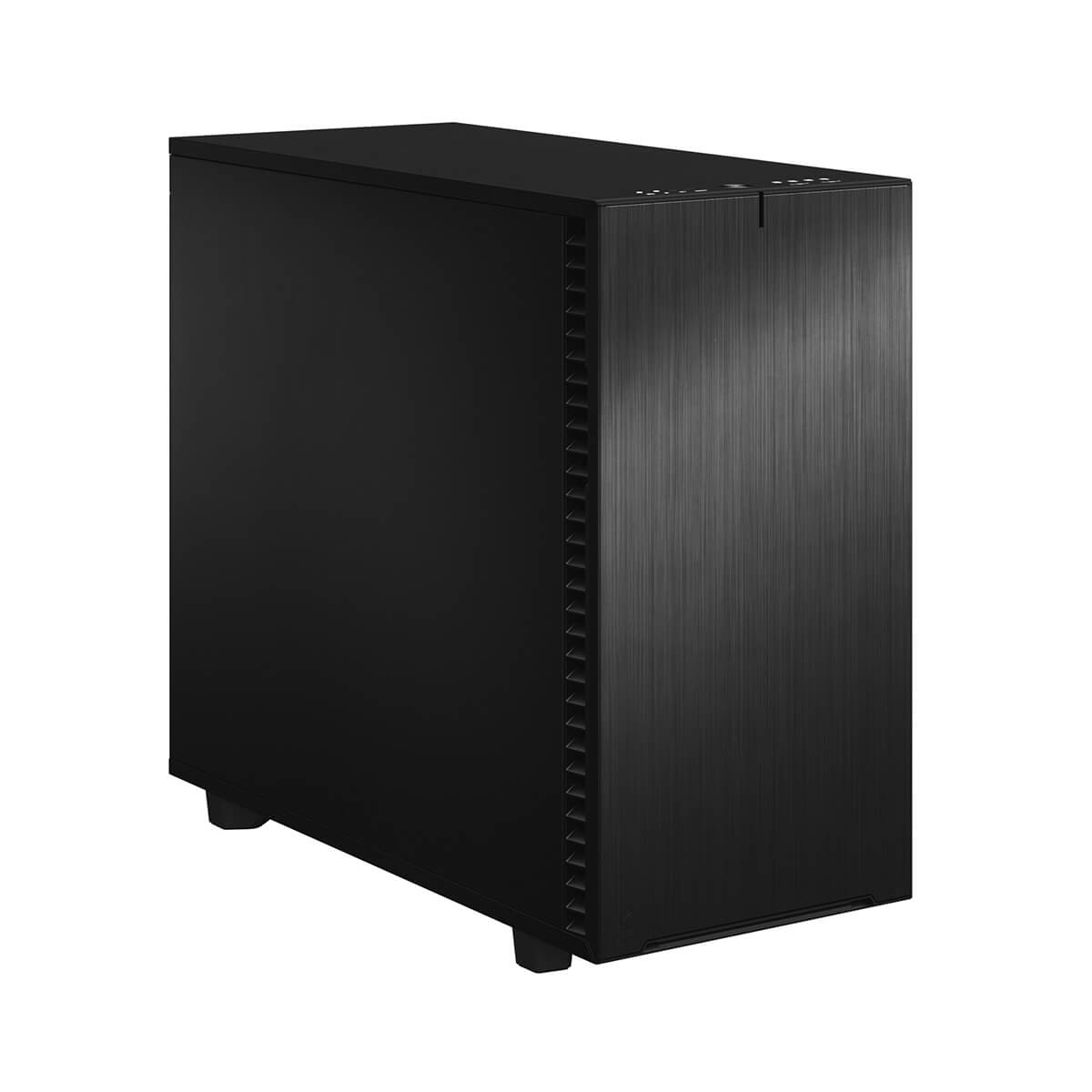

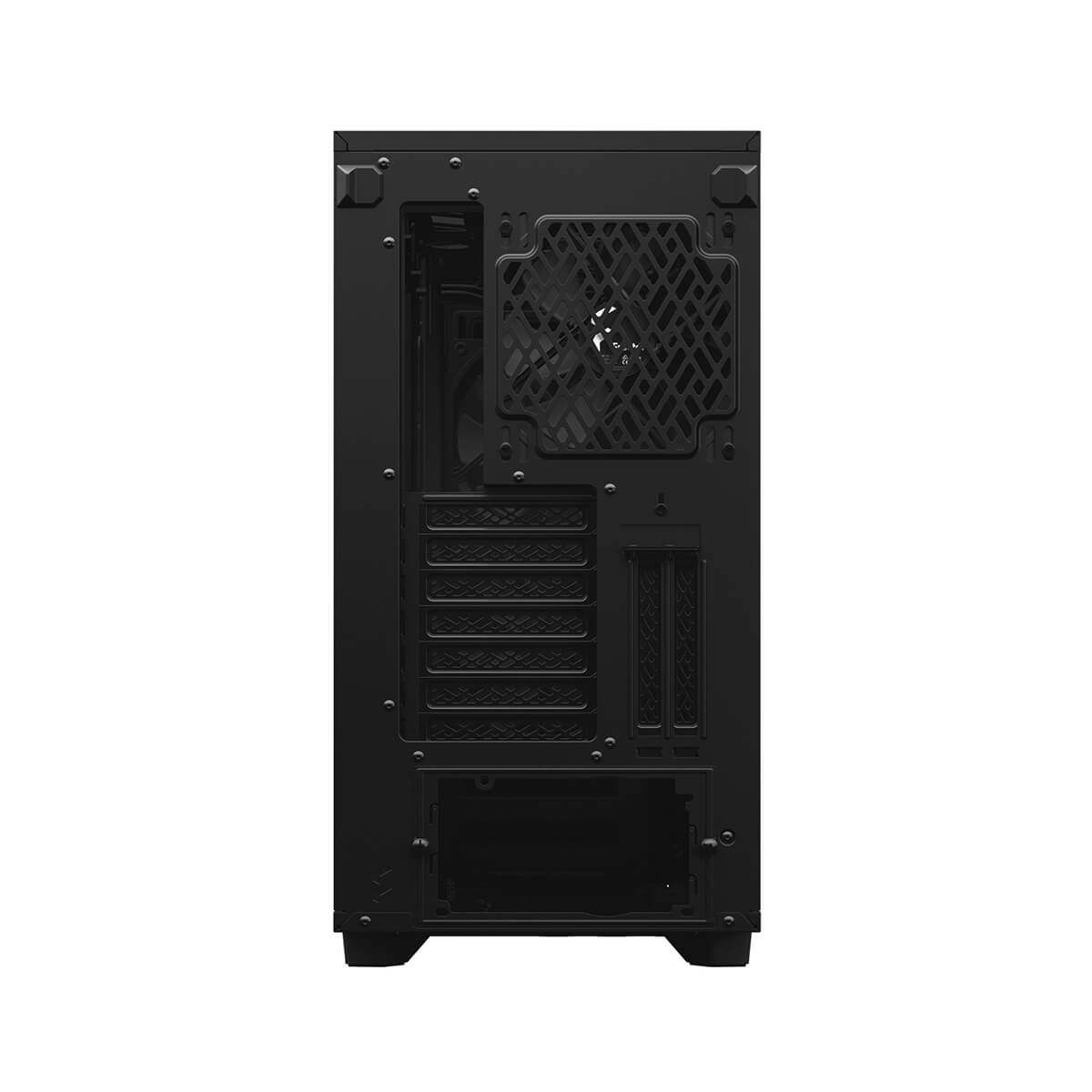

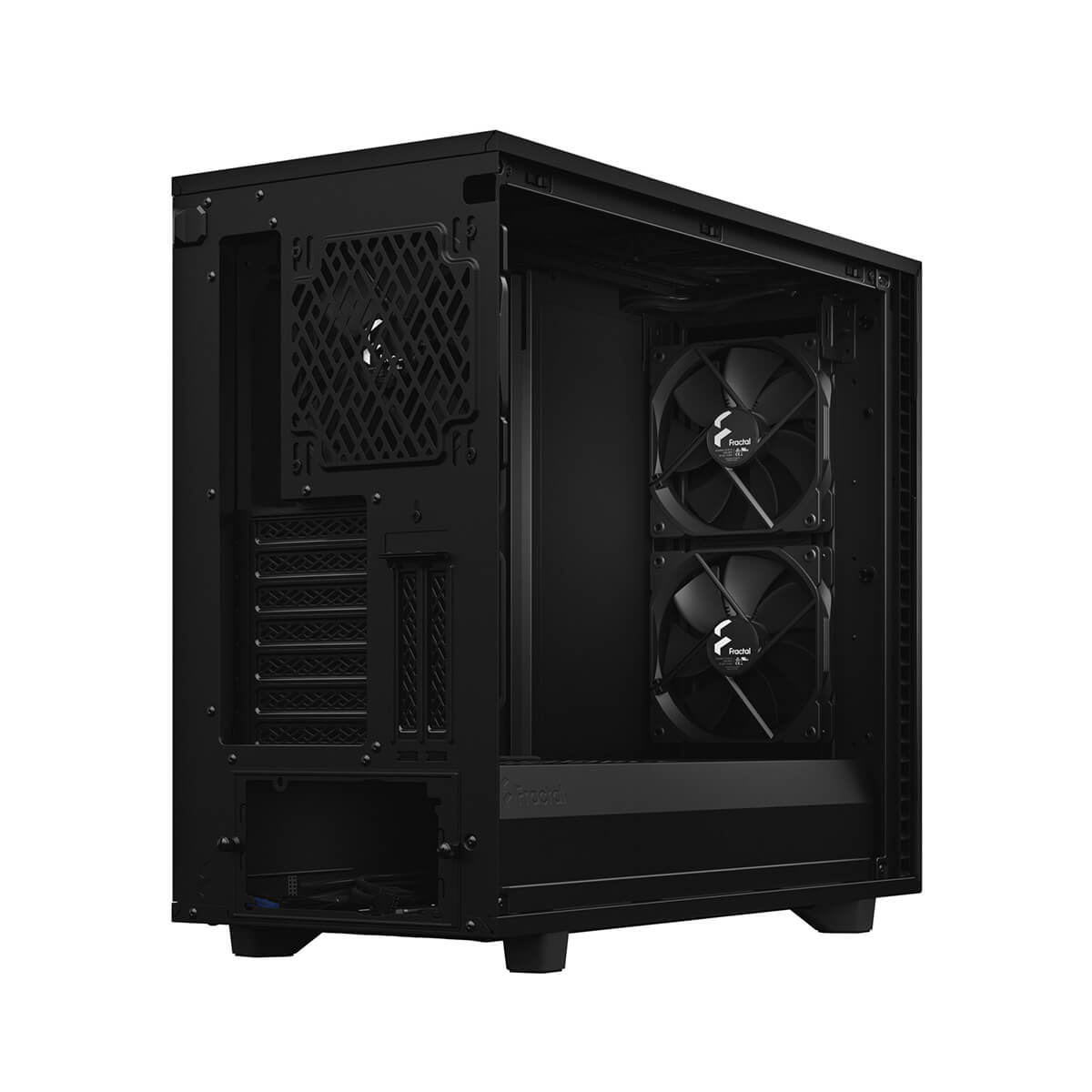

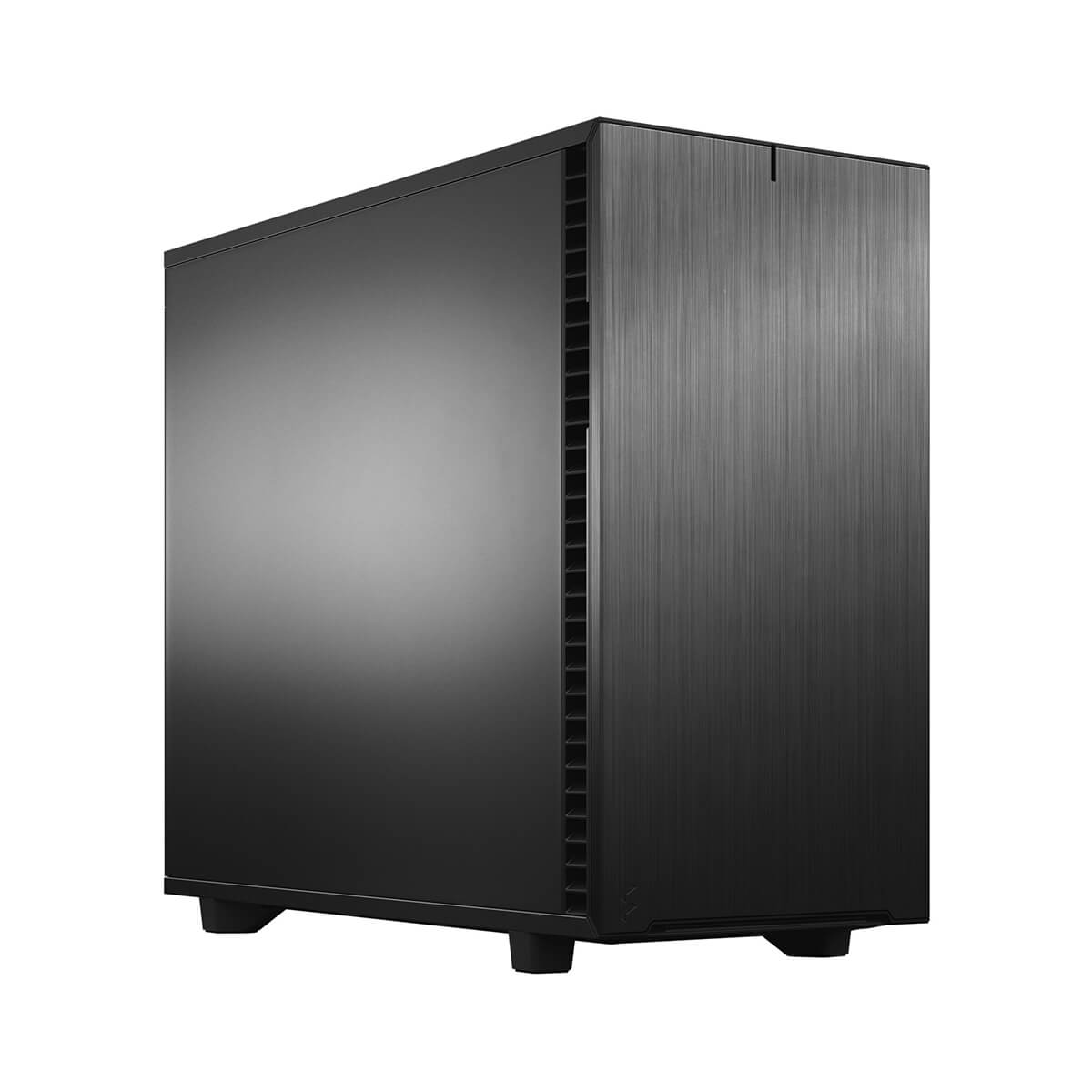

Fractal Design Define 7 Mid Tower Black - Solid Panel
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Open and interchangeable
Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance
Define 7
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.
• New chassis design opens up to fully expose the case interior
• Anodized aluminum front panel with reversible dual-handed hinges
• Multibracket converts unused fan positions to HDD, SSD or pump mounts
Superior airflow by design
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.
Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
Superlative storage
- Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts
- 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
- 2 dedicated SSD brackets included with 4 positions total
- Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
- Sturdy new HDD cage design with vibration damped trays
Open layout for massive headroom
You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.
Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
Specifications
Specifications
5"/2.5" Universal drive brackets | 6 included, 14 positions total |
Dedicated 2.5" drive brackets | 2 trays included, 4 positions total |
5.25” drive mounts | 1 |
Expansion slots | 7 + 2 |
Front ports | 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
Total fan mounts | 9 x 120/140 mm |
Front fan | 3 x 120/140 mm (2 x Dynamic X2 GP-14 included) |
Top fan | 3 x 120/140 mm |
Rear fan | 1 x 120/140 mm (1 x Dynamic X2 GP-14 included) |
Bottom fan | 2 x 120/140 mm |
Dust filters | Top, 2 x front, full length bottom |
Fixed velcro straps | Yes |
Cable routing grommets | Yes |
Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |
Left side panel | Industrial sound-damped steel |
Right side panel | Industrial sound-damped steel |
Motherboard compatibility | E-ATX (max 285 mm) / ATX / mATX / mITX |
Power supply type | ATX |
PSU max length | 250 mm (with HDD cage installed) |
GPU max length | Storage layout: 290 mm - Open layout: 470 mm (445 mm w/ front fan) |
CPU cooler max height | 185 mm |
Front radiator | Up to 360/280 mm |
Top radiator | Up to 360/420 mm |
Rear radiator | 120 mm |
Bottom radiator | Up to 240/280 mm |
Cable routing space | 30 mm |
Vertical GPU Support (with Flex B-20 or Flex VRC-25) | 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
Case dimensions (LxWxH) | 547 x 240 x 475 mm |
Case dimensions w/o feet/protrusions/screws | 533 x 240 x 451 mm |
Package dimensions (LxWxH) | 558 x 363 x 641 mm |
Net weight | 13.49 kg, |
Package weight | 15.98 kg |
Volume | 57.7 liters |
Package contents | Define 7 case. Accessory box. User manual. Ventilated top. 4 x HDD/SSD trays (for a total of 6) |
