EVE Audio SC3010 3-Way 10" Professional Studio Monitor Speakers

SC3010

The SC3010/SC3012 systems feature a very powerful amplifier array, with one amplifier per driver. All drivers, and especially our proprietary AMT RS6 tweeter, are developed to deliver high sound pressure levels, extremely low distortion and an optimised directivity. Together with the ultra-stiff plywood front plate and a special inner construction to lower resonances, they offer a smooth directivity, highly defined mids, pristine high frequencies and a powerful and tight low end.

The SC3010/SC3012 systems are also built with in-wall installations in mind. In this case, simply adjust the filter controls to "inwall". A set of high-density foam is provided to close the backfiring bass ports.

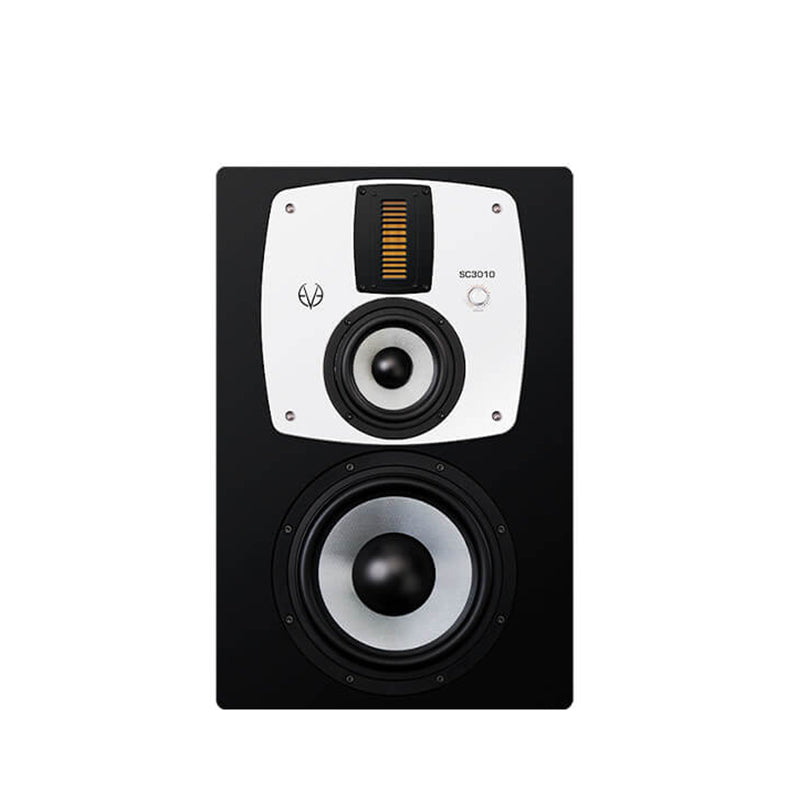

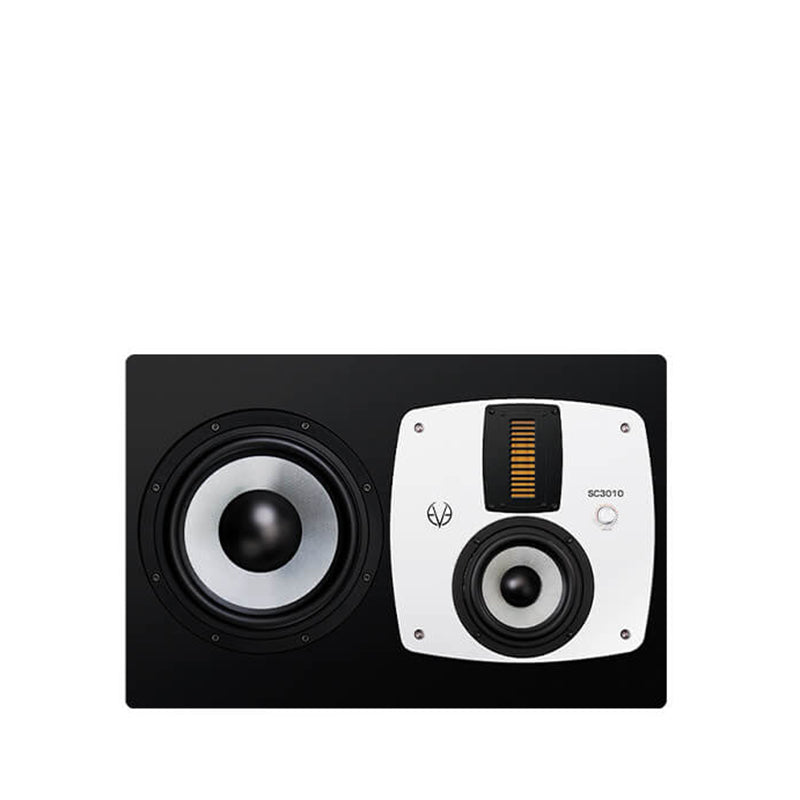

The silver module housing the midrange driver and our AMT RS6 tweeter can be rotated by 90 degrees allowing you to set up the speakers either horizontally or vertically.

TECH TALK

The SC3010 is the smallest of the biggest in our range of main monitors and able to reproduce the entire audible frequency range with an ultra-low level of distortion. One 10" SilverCone bass woofer, with an extreme long excursion, provides for an extraordinarily clean low frequency reproduction down to 29 Hz (-3 dB). Its hexagonal glass fibre layered diaphragm will easily reproduce all audio content, even at higher than usual SPL's. The SC3010 also features our newly developed 5" midrange unit. Its glass fibre layered Rohacel™ sandwich diaphragm delivers a clear and detailed midrange frequency reproduction. Both the 10" SilverCone woofer and 5" SilverCone midrange are equipped with our very low distortion copper cap magnet system. Exclusive to SC3010 – and its larger sibling SC3012 – is our newly developed Air Motion Transformer AMT RS6. This new AMT is 2.5 times bigger than the RS1, RS2 and RS3 Air Motion Transformer units, and it is a crucial part of the system as it helps to couple the middle and high frequencies with great precision. Our team was able to engineer the RS6 to set its crossover frequency at 1800 Hz, a very important frequency for human hearing and subsequently, music production. Each driver is provided with its own separate PWM amplifier that is able to deliver a short-term output power of 250 W per tweeter and midrange channel and 800 W for the low-end driver. With a maximum output level of 114 dB (SPL @ 1 m), you will definitely be able to judge your mixes precisely, whatever their final intended output level is. The SC3010 is a three-way system that combines powerful bass reproduction with a very transparent and present mid-range and crystal clear high frequency reproduction. Make no mistakes: whether you're producing your new hip-hop hit or mastering the contemporary works, the SC3010's will be there for you and they will tell it like it is. Bad mixes no longer have a place to hide. As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience.

DSP / SMART-KNOB

All EVE Audio monitors feature a high-resolution DSP electronics. A high-quality analog/digital converter from BurrBrown (24bit/192kHz) converts the analog input signal supplied via RCA or XLR. The DSP provides latency-free filtering while protecting tweeter and woofers against overload across the entire frequency range. When switched on, the volume of the monitor increases slowly to leave enough time to reduce the source volume if the input signal is too loud. Adjustments to the acoustic environment can be made via the front rotary/pressure encoder, the SMART-knob with rotating LED ring. This knob allows the levelling of system volume as well as the adjustment of filters for room variables (low shelf, mid eq and high shelf filters). All settings are displayed on the LED ring, providing instant information about the selected values. The brightness of the LED ring can be adjusted for dark studios or video applications. High-quality Class D amplifiers complete the system and deliver enough power to the demands of modern music production. Selected volume and/or filter settings can be independently fixed with DIP-switches that are positioned on the rear of the amplifier to prevent unauthorised or unintentional adjustments.

BASS PORT DESIGN

The rear-facing bass reflex channel is, as usual with EVE Audio, designed for low airflow noise and enhances the powerful and precise bass reproduction.
