EKWB EK-Quantum Torque Pass-Through G1/4 - Nickel
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Details

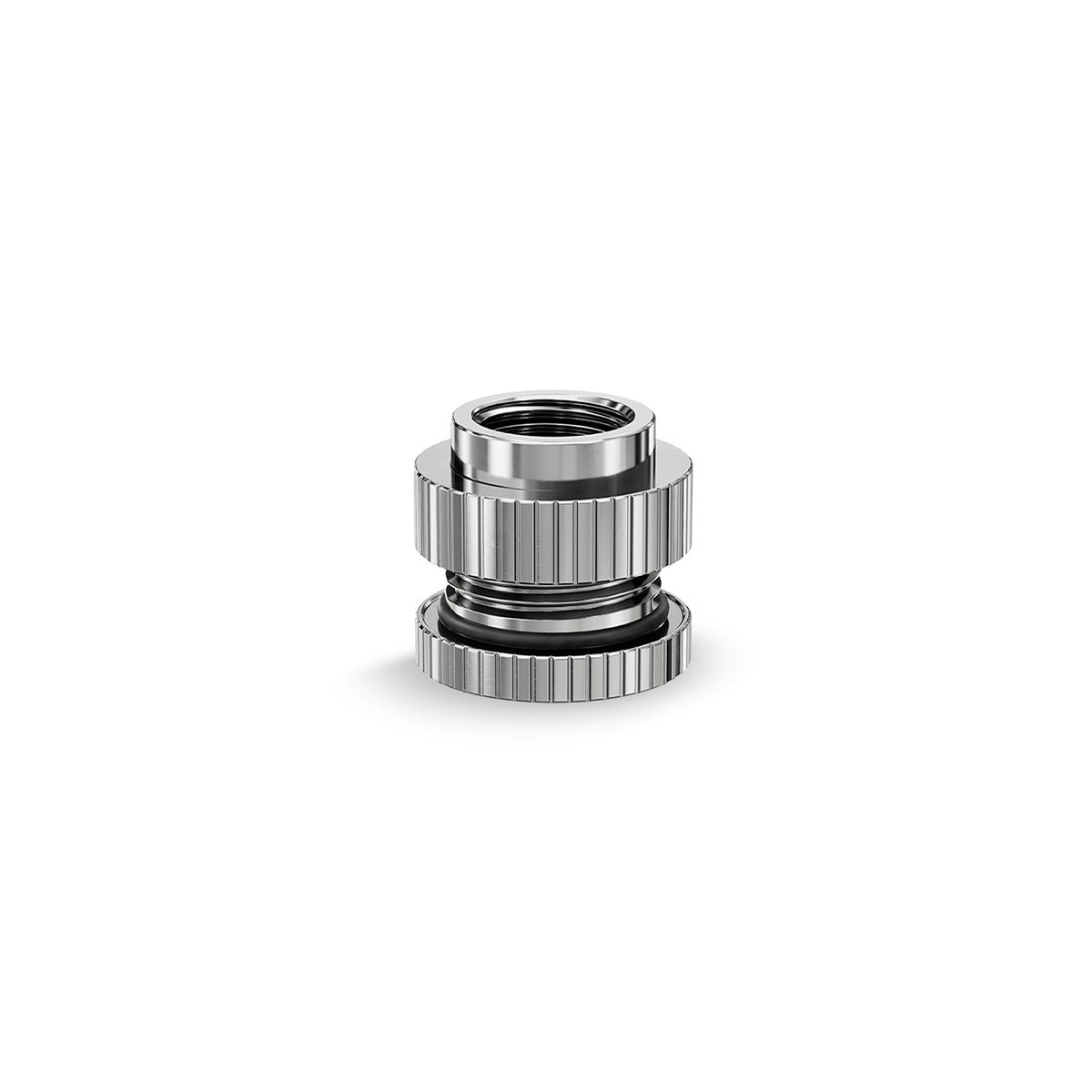

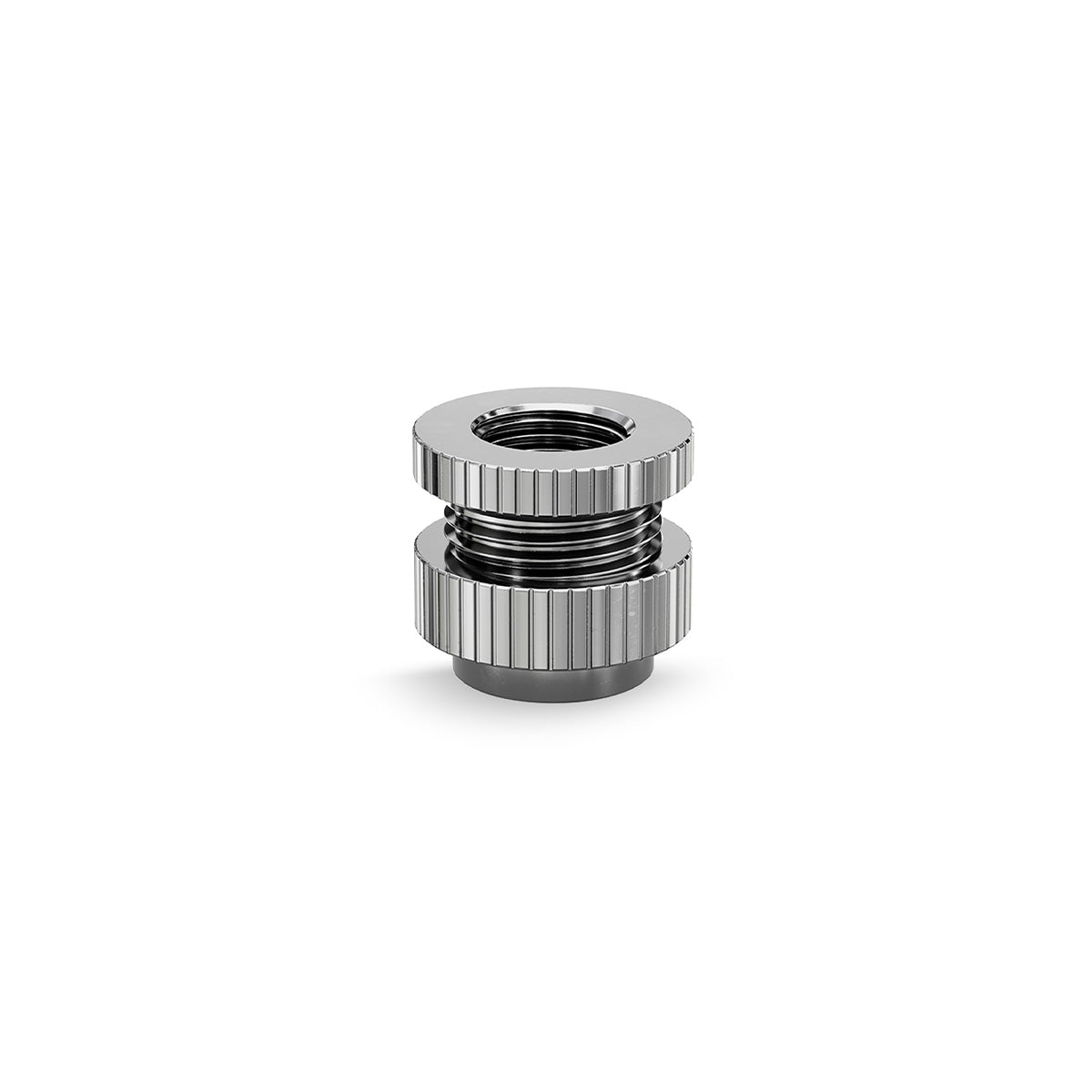

The EK-Quantum Torque Pass-Through G1/4 - Nickel is a panel-mounted adapter fitting. Equipped with female G1/4" BSP threads on both ends, it enables seamless liquid interconnection between separate chassis compartments.
This fitting is particularly well-suited for compact small form factor (SFF) cases that lack space for internal radiator placement, necessitating external positioning.
This Adapter Fitting is secured to the panel with the enclosed grip nut.
It is constructed from nickel-plated CNC-machined brass, ensuring durability and an appealing aesthetic.

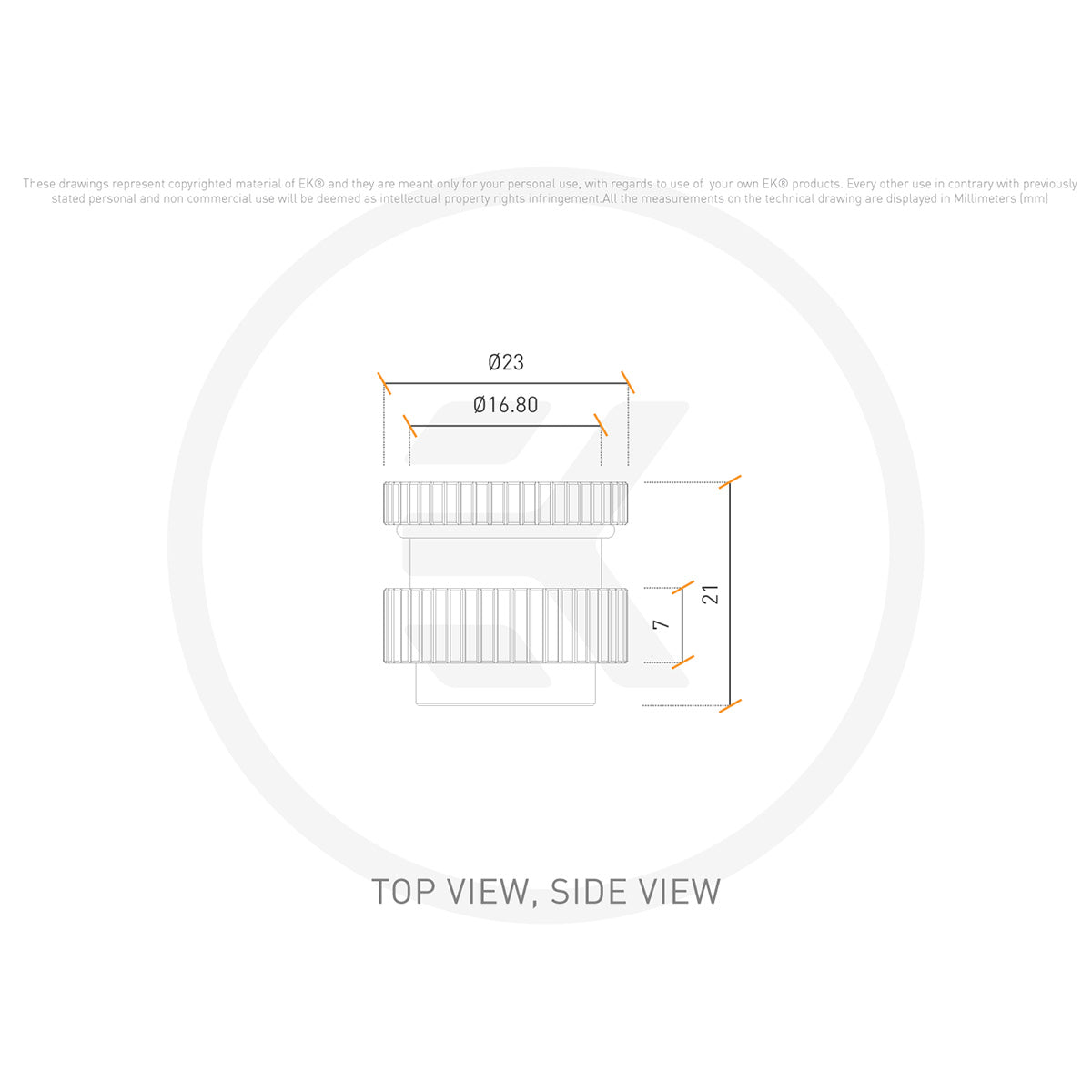

Technical data:
- Threading: 2 x G 1/4" (Female-Female)
- Thread length: 4.5mm
- Hole Diameter: 20.0mm
- Max thickness of the wall to bridge: 6mm
- Installation height on the side of the screw: 4mm
- Installation height on the side of the nut: min 7mm/max 16mm
- Width: 23.0mm
- Length: 21.0mm
