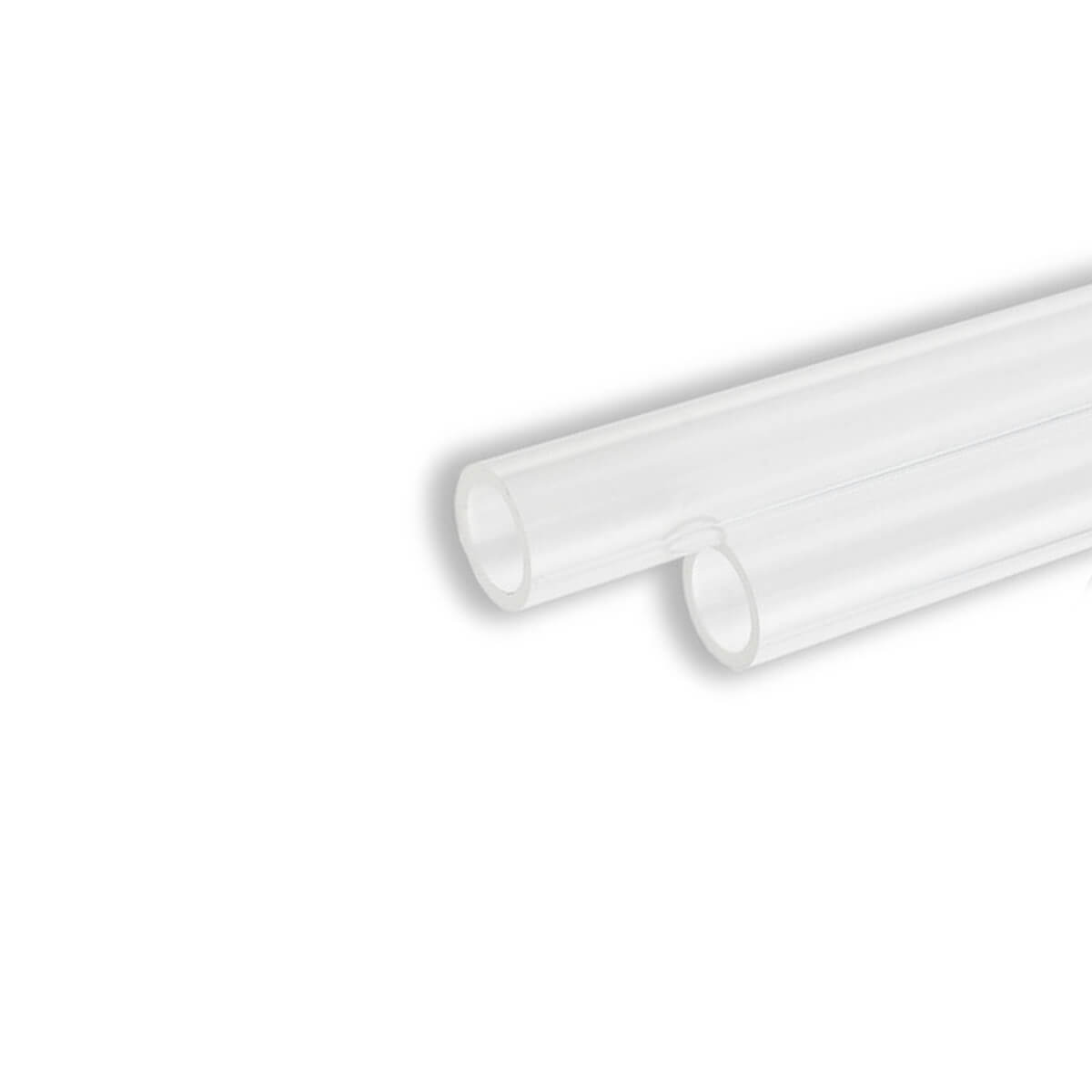

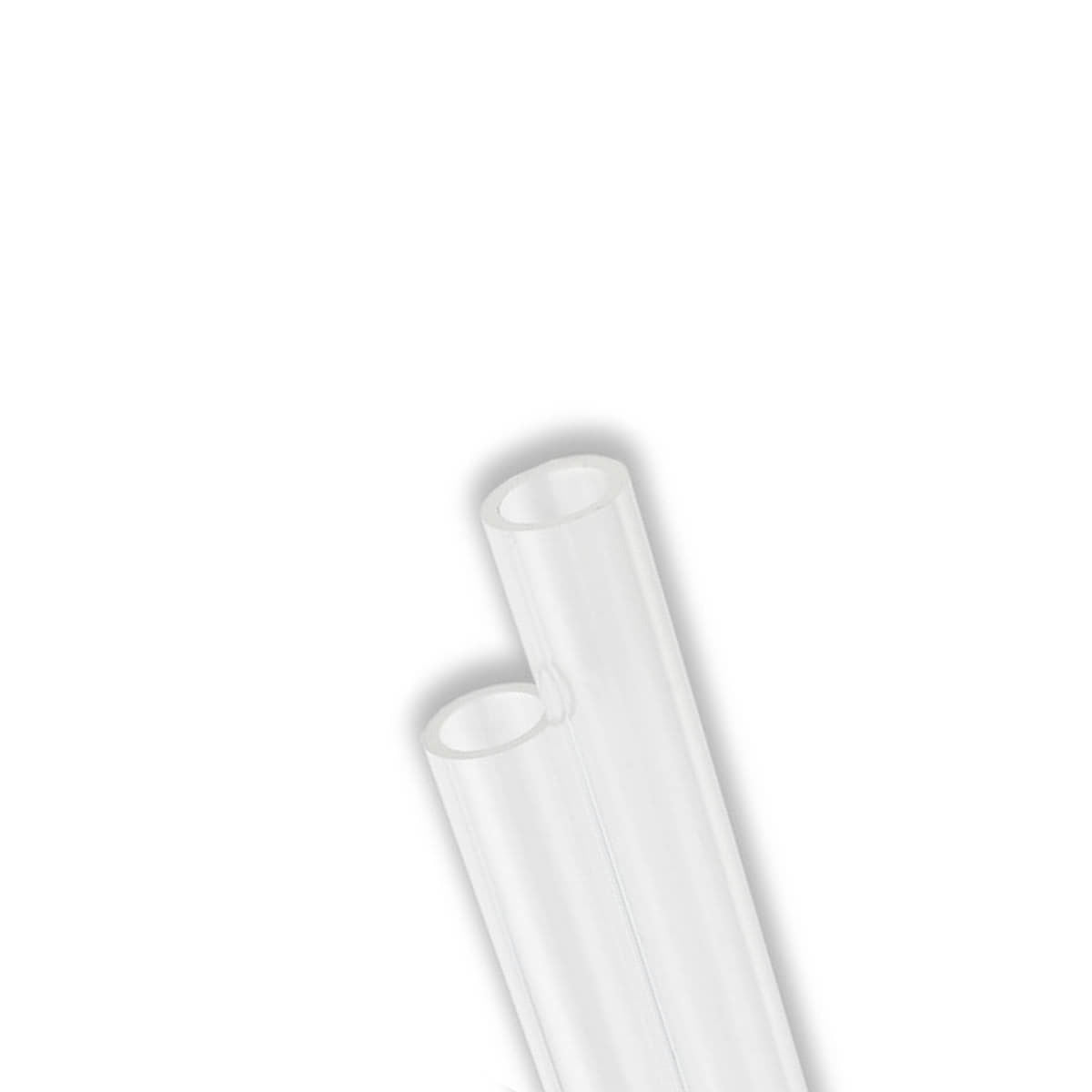

EKWB EK-Loop Hard Tube 16mm 0.5m - Acrylic (2pcs)
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Details
EK-HD Tube is solid type extruded acrylic tubing intended for use with EK-HD push-in adapters and EK-HDC series compression fittings. The tubing may be heat treated to achieve certain bends. For expert users only!
It is mandatory to chamfer the edges of freshly cut tube in order to prevent gasket (O-ring) damage. EK recommends a 0,5mm x 45° chamfer.
Technical data:
- Material: Extruded acrylic
- Inner diameter: 12 mm
- Outer diameter: 16 mm
- Length: 500 mm (19.5")
The package contains 2 pieces of tube only. Please purchase EK-HD Adapter or EK-HDC compression fittings separately!
For easier installation we recommend wetting the gasket (O-ring) using drops of water prior to installing solid tube.
Specifications
Specifications
| Material | Extruded acrylic |
| Inner Diameter (ID) | 12 mm |
| Outer Diameter (OD) | 16 mm |
| Length | 500 mm (19.5") |
| Package Contents | 2 pieces of tube only Please purchase EK-HD Adapter or EK-HDC compression fittings separately |
