Description
Description
ASSASSIN 4S - Sophisticated Elegance
Beauty in Simplicity
The elegant design of the ASSASSIN 4S is not only visually pleasing but also optimized for airflow and compatibility, making it a standout choice in cooling performance.
Quiet or Performance Mode
With the slide of a switch, the ASSASSIN 4S transforms from a whisper-quiet cooler when minimal noise is crucial to a powerful cooling solution synonymous with DeepCool air coolers.
Let it Shine!
The sleek shell channels air through fin towers while maintaining a slim profile, ensuring ample clearance for high-profile RGB RAM setups.
Be Cool, Be Calm
The ASSASSIN 4S’s quiet operation is driven by three-phase, six-slot, four-pole fan motors designed for low voltage and minimal power consumption. Backed by a 6-year limited warranty, DeepCool stands by this advanced design.
Exceptional by Design

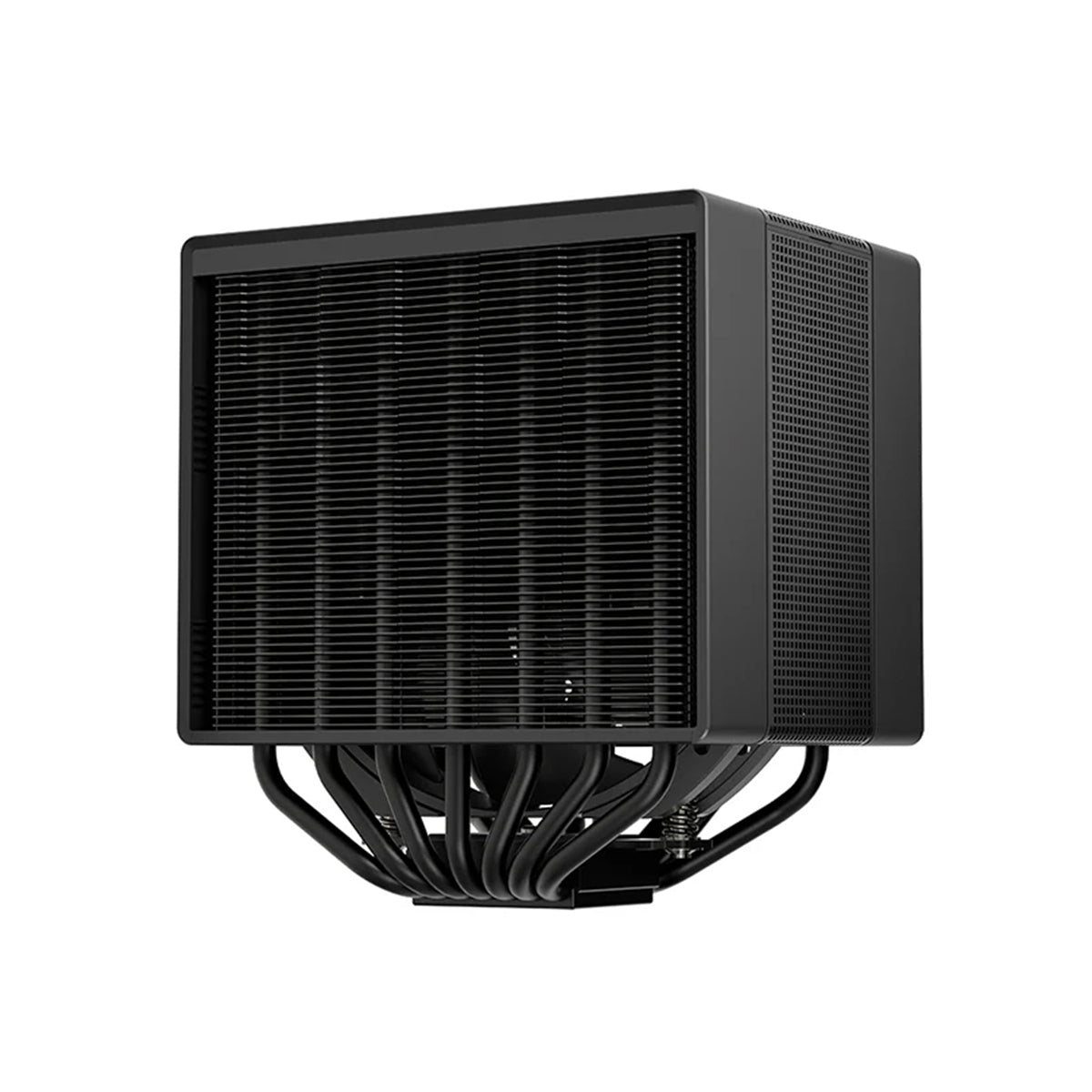

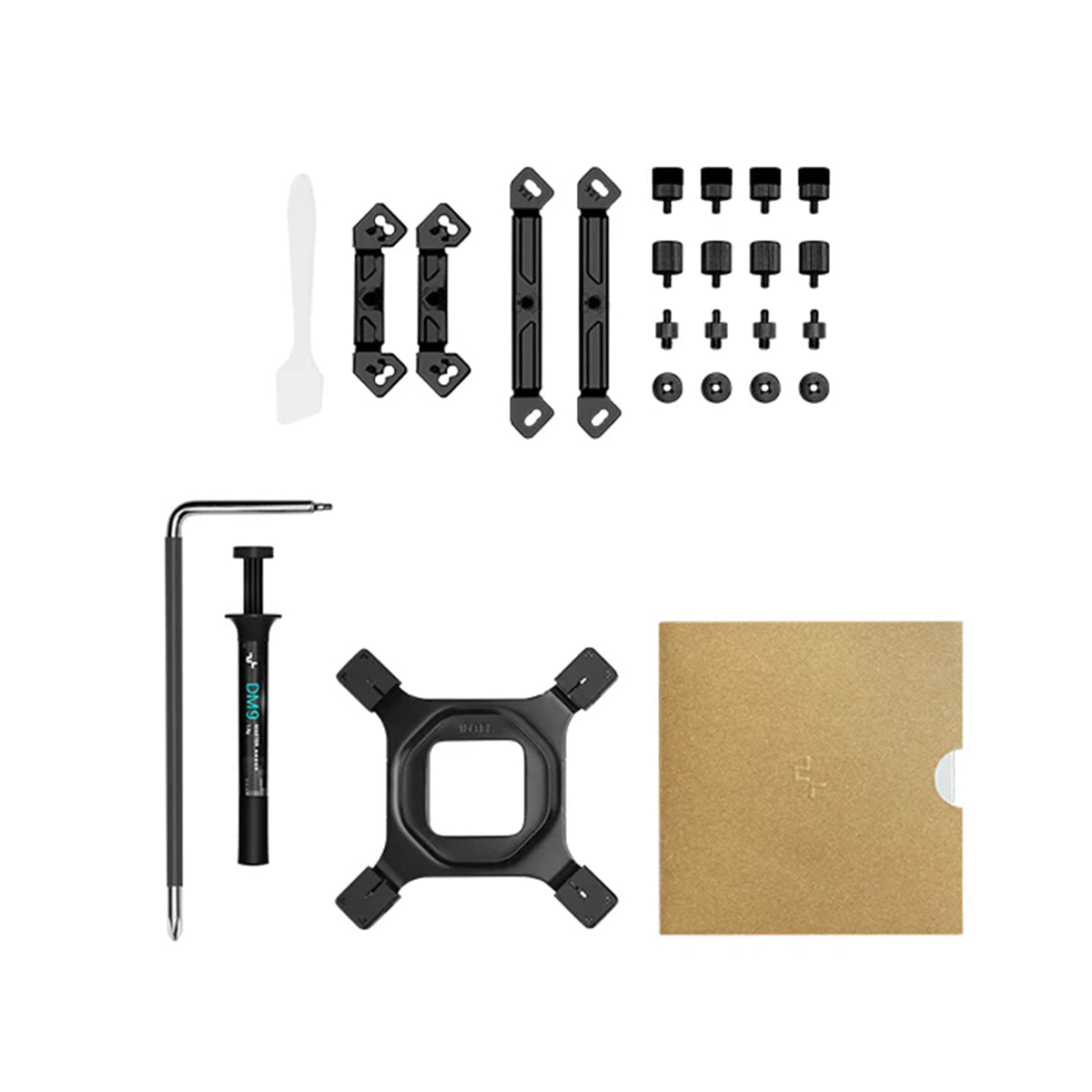

Seven heat pipes improve heat transfer across two fin-array heat sink towers, delivering high-performance efficiency. The included DM9 thermal paste is engineered to meet rigorous industrial standards.
The Flow Below
The 140mm center fan, seated deep within the ASSASSIN 4S, directs cooling airflow to the surrounding VRMs, reducing ambient temperatures.
Streamlined Installation
Designed for user-friendly setup, even the magnetic top fan cover enhances the ease of installation, making the ASSASSIN 4S as convenient as it is efficient.
Specifications
Specifications
| Product Dimensions | 116×147×164 mm (L×W×H) |
| Heatsink Dimensions | 140×110×160 mm (L×W×H) |
| Net Weight | 1380 g |
| Heatpipe | Ø6 mm × 7 pcs |
| Fan Dimensions | 140×140×25 mm (L×W×H) |
| Fan Speed (Performance Mode) | 500~1800 RPM ±10% |
| Fan Airflow (Performance Mode) | 61.25 CFM |
| Fan Air Pressure (Performance Mode) | 3.76 mm Aq |
| Overall Noise (Performance Mode) | ≤29.3 dB(A) |
| Fan Speed (Quiet Mode) | 500~1450 RPM ±10% |
| Fan Airflow (Quiet Mode) | 48.55 CFM |
| Fan Air Pressure (Quiet Mode) | 2.46 mm Aq |
| Overall Noise (Quiet Mode) | ≤22.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.2 A |
| Fan Power Consumption | 2.4 W |
| Rated Voltage | 12 VDC |
| Power Consumption (Performance Mode) | 3.6 W |
| Power Consumption (Quiet Mode) | 2.4 W |
