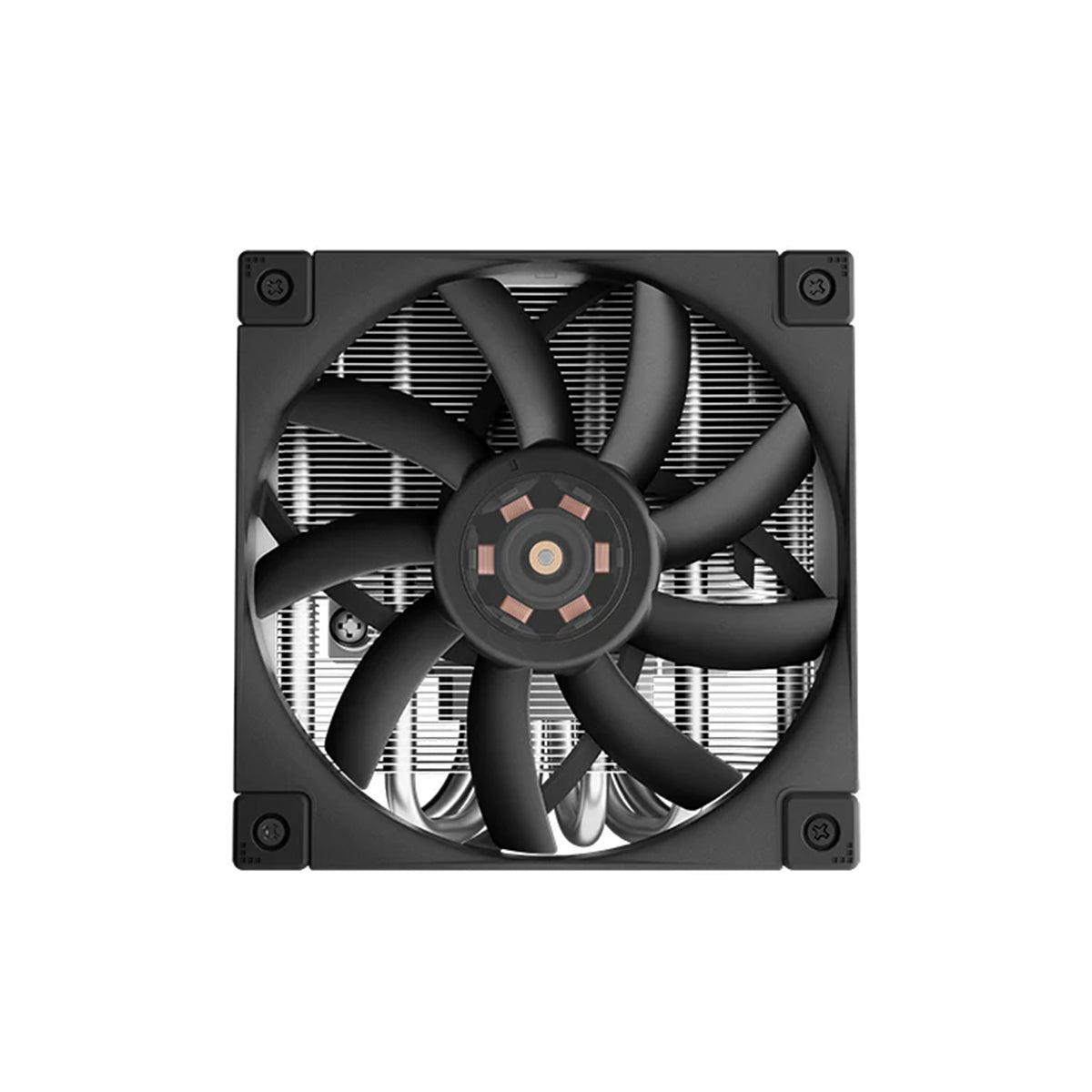

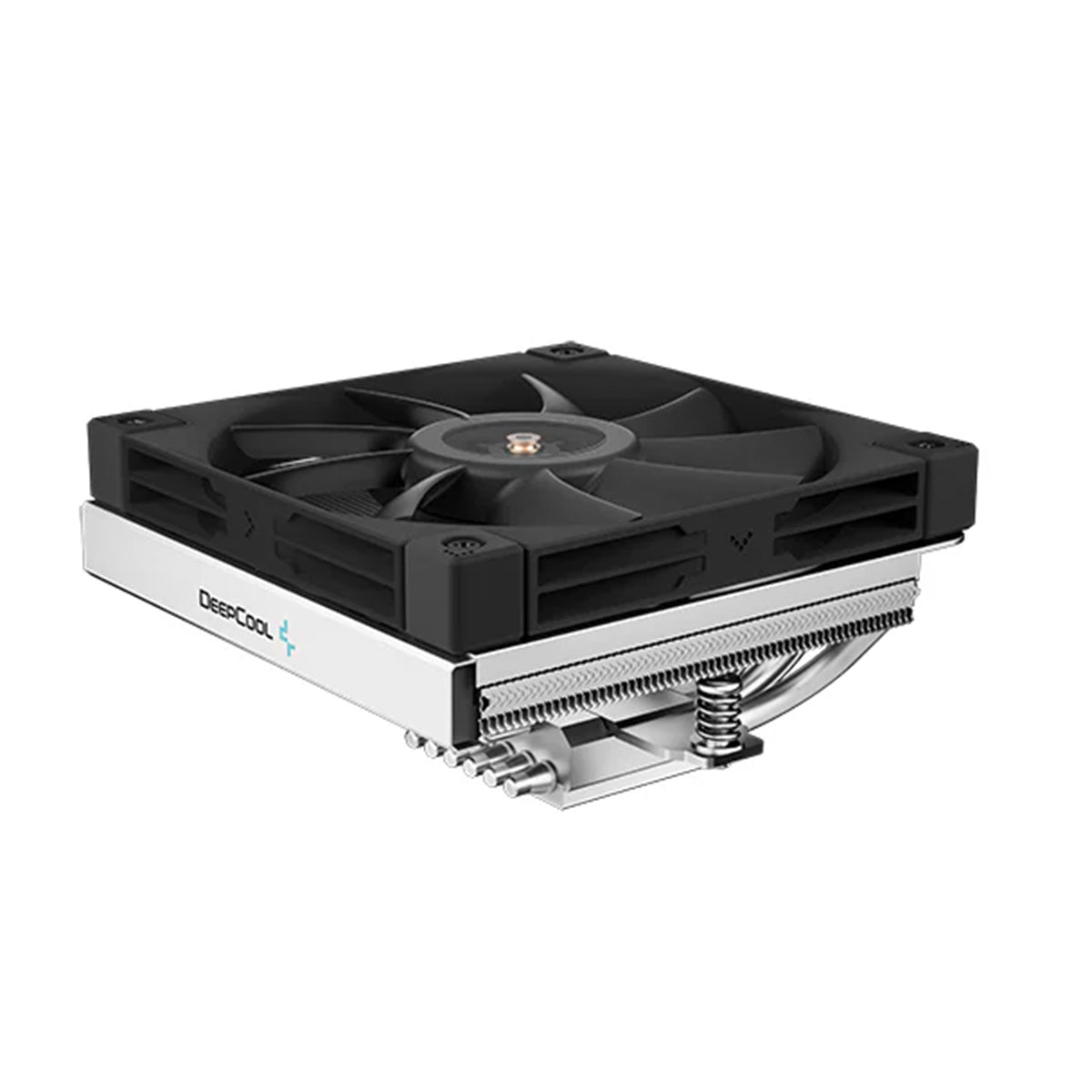

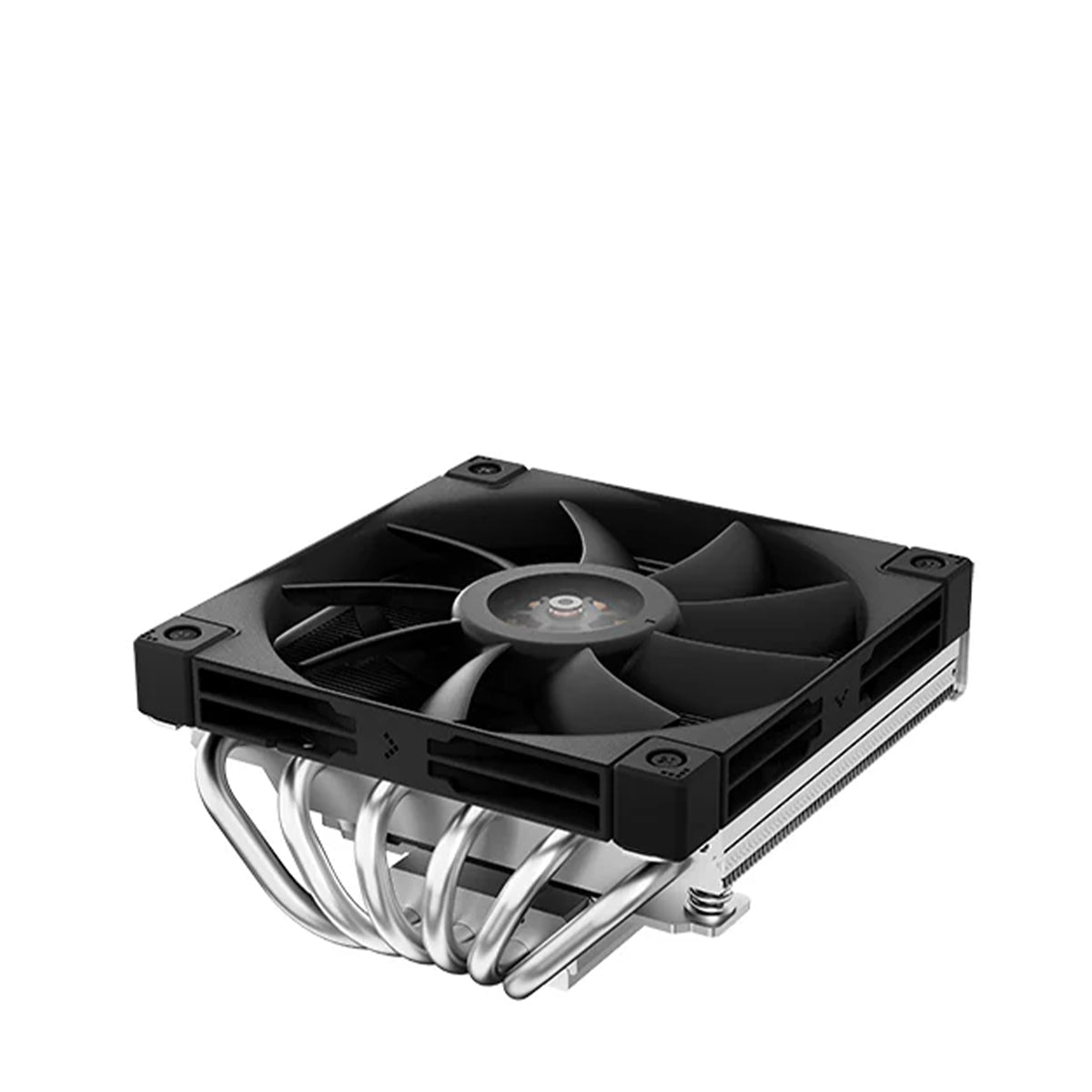

Deepcool AN600 Low Profile CPU Cooler
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
AN600 Top Flow Low Profile Cooler
Keeping Things Cool

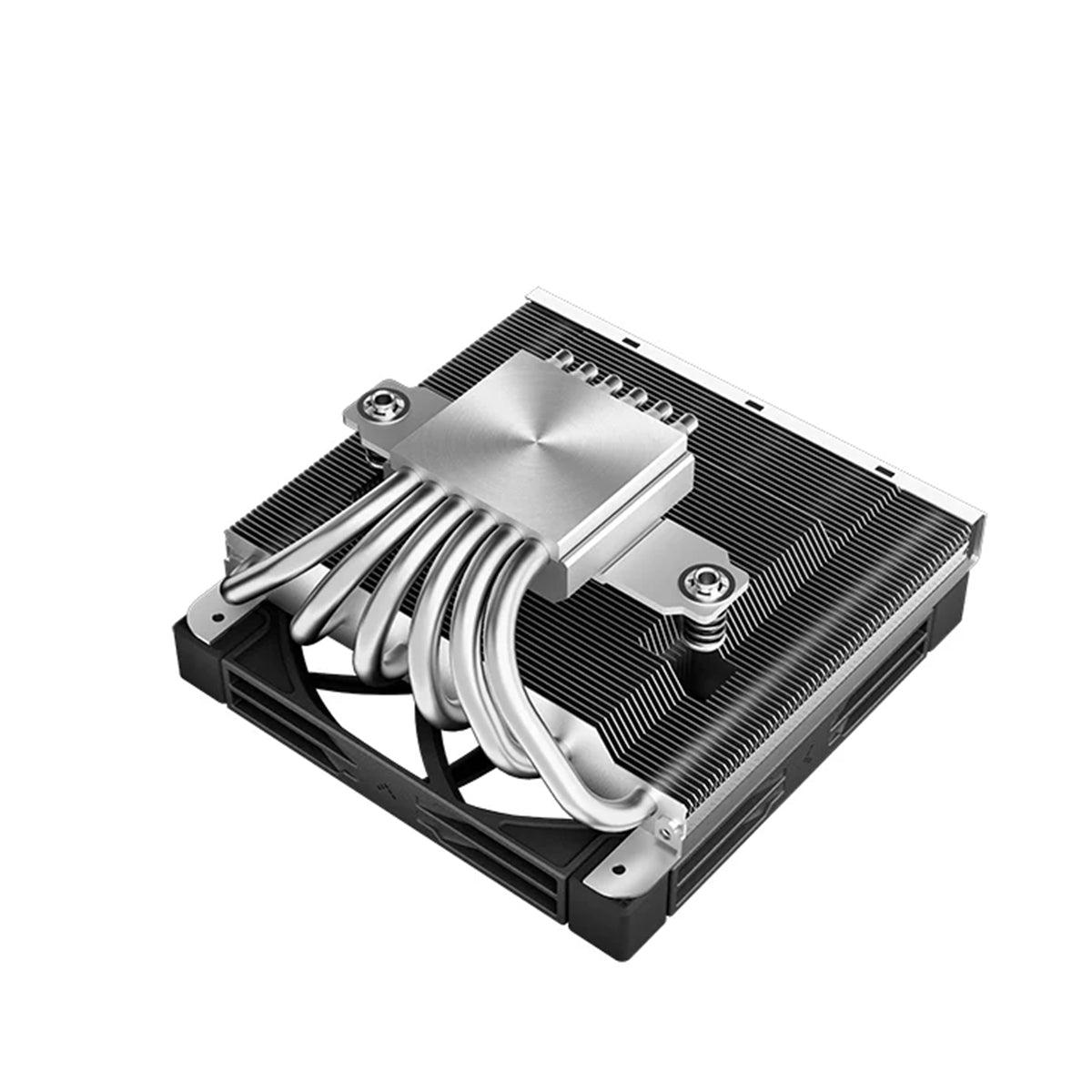

The AN600 combines 62 aluminum fins, a slim-profile 120mm fan, six optimized heat pipes, and a raised copper cold plate to deliver excellent cooling in a compact, 67mm-tall design.
More Than a CPU Cooler
Equipped with a PWM-enabled FDB fan, the AN600 directs powerful top-down airflow across the fin array, reaching the RAM and VRMs below. The three-phase, six-slot, four-pole fan motor keeps the operation ultra-quiet at under 24.4 dB(A) while maintaining high efficiency.
Simplified Support
Installation is straightforward with an all-metal back plate, which provides reinforcement and even pressure distribution behind the CPU socket for enhanced stability and cooling performance.
Specifications
Specifications
| Product Dimensions | 122×120×67 mm (L×W×H) |
| Heatsink Dimensions | 121×120×52 mm (L×W×H) |
| Net Weight | 628 g |
| Heatpipe | Ø6 mm × 6 pcs |
| Fan Dimensions | 120×120×15 mm (L×W×H) |
| Fan Speed | 500~1850 RPM ±10% |
| Fan Airflow | 61.56 CFM |
| Fan Air Pressure | 1.97 mm Aq |
| Fan Noise | ≤24.4 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.7 A |
| Fan Power Consumption | 8.4 W |
| LED Type | White LED |
| EAN | 6933412728146 |
| P/N | R-AN600-BKNNMN-G |
