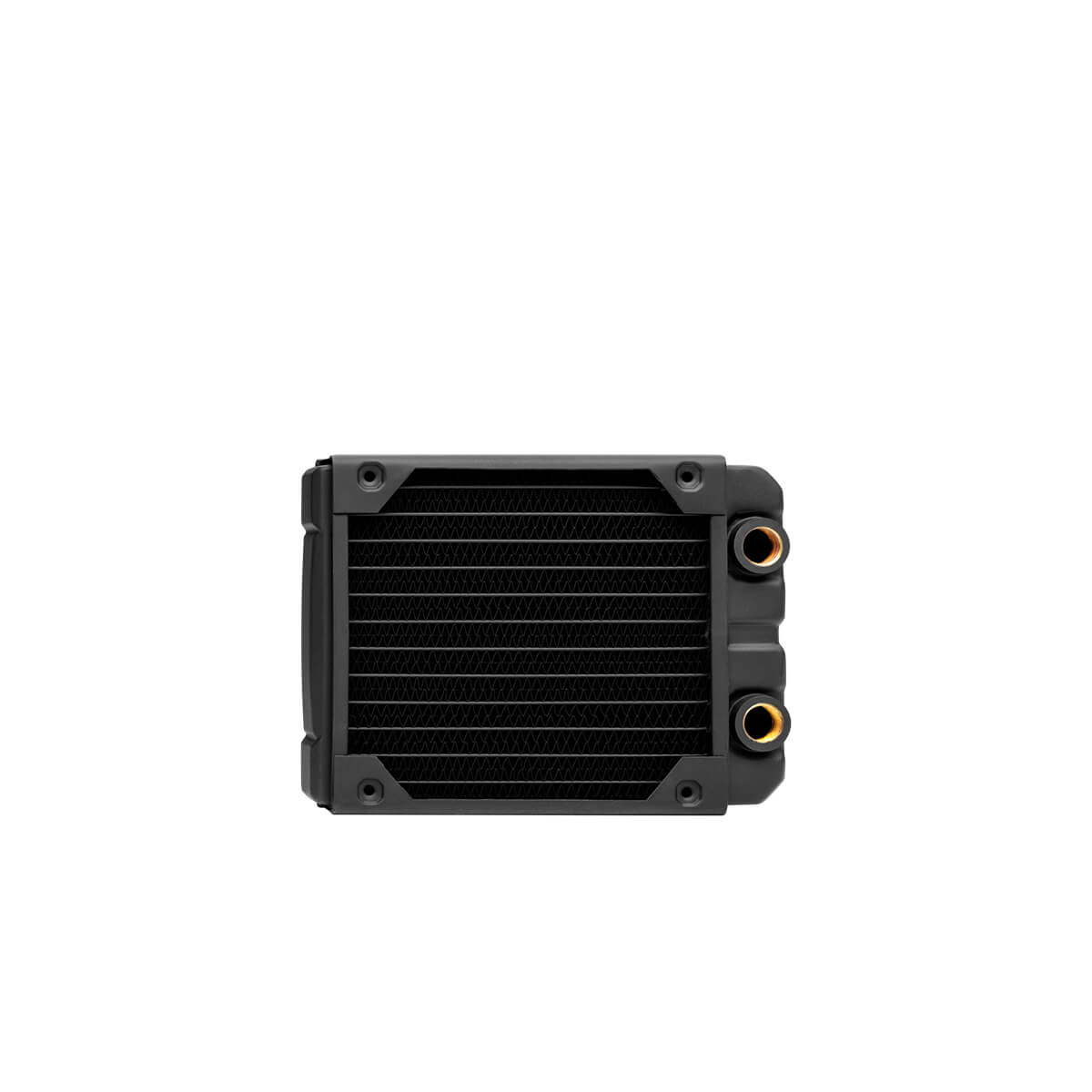

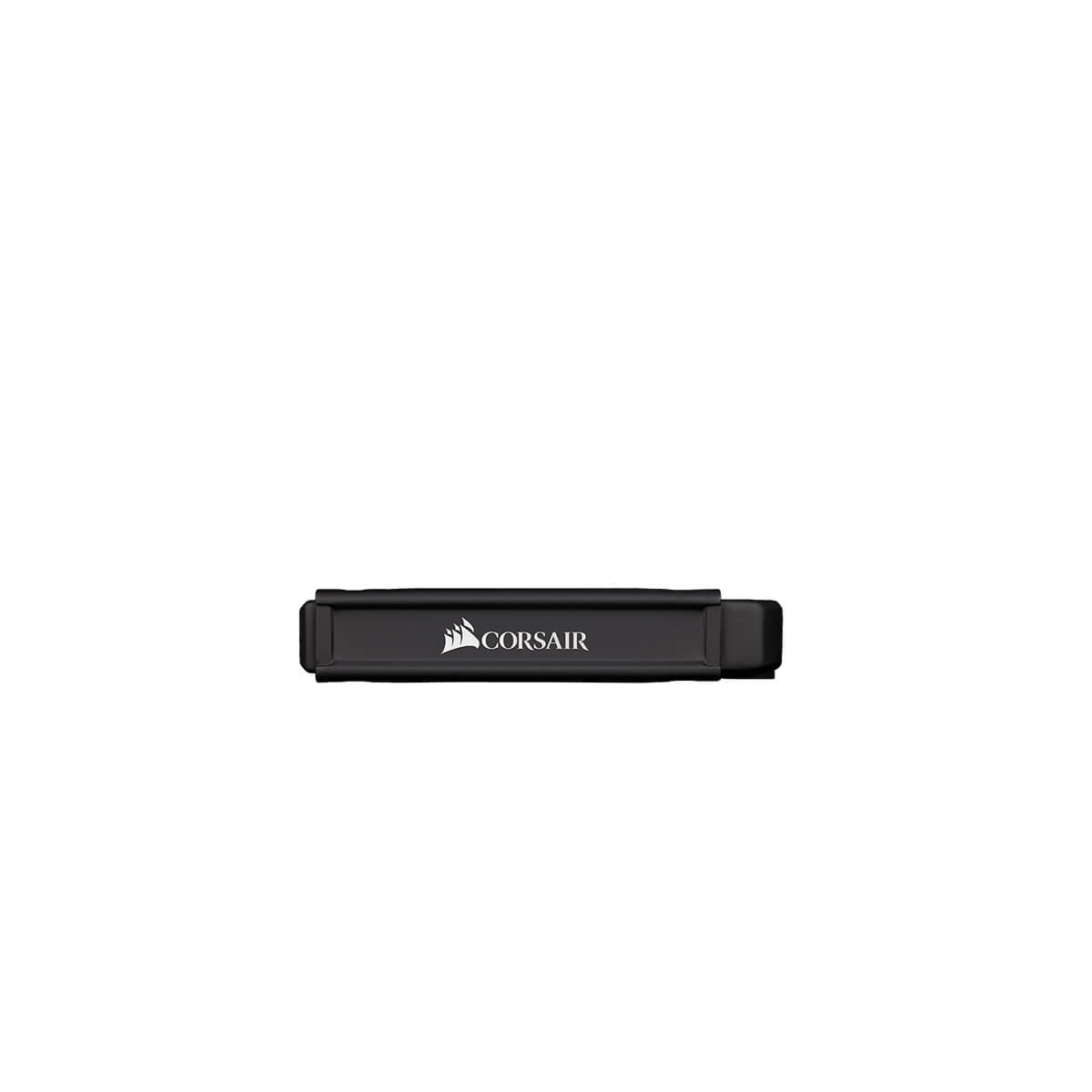

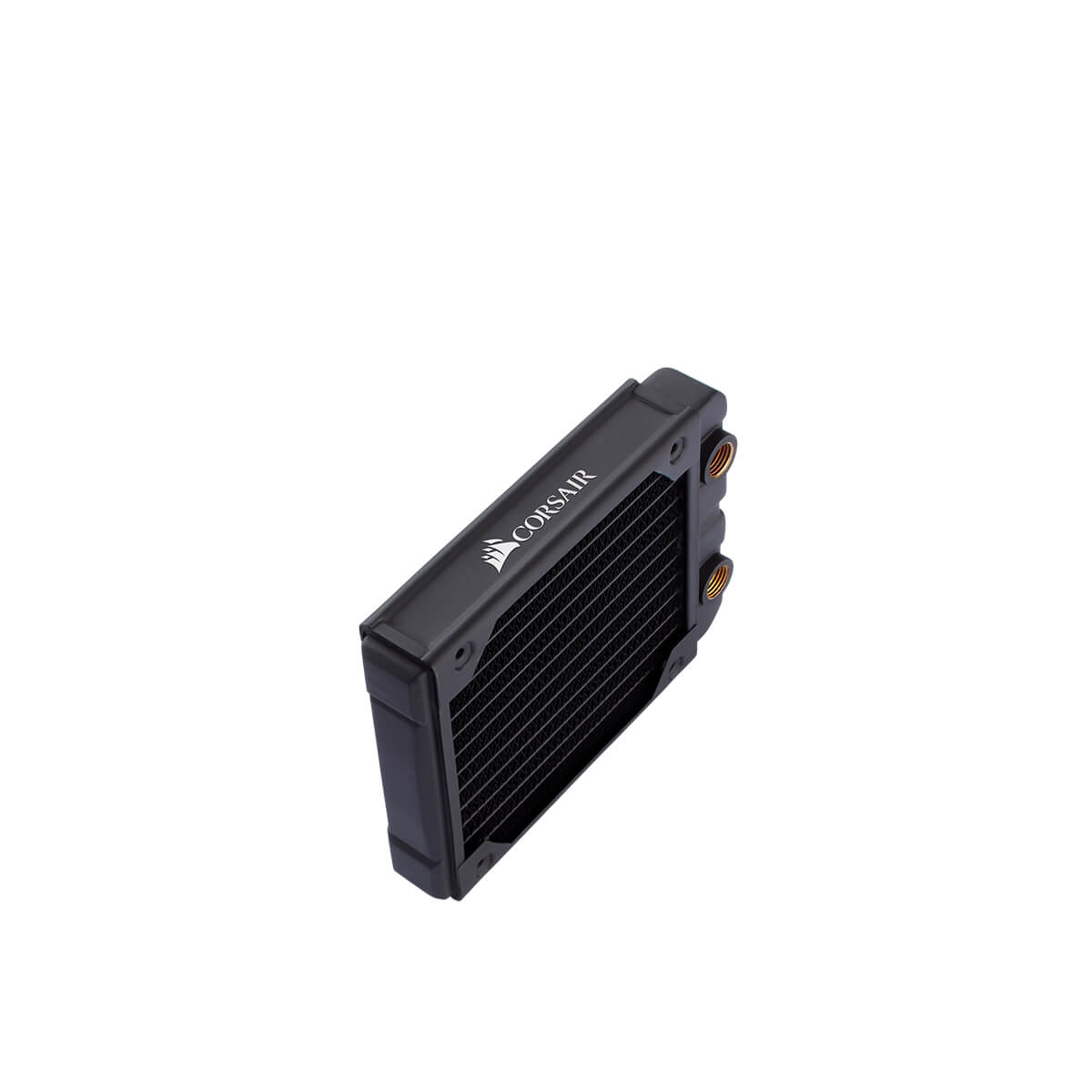

Corsair Hydro X Series XR5 120mm Water Cooling Radiator
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
EXTREME CUSTOM COOLING PERFORMANCE
Single 120mm fan mounts on either side are ready for your most ambitious custom cooling build.
HIGH SURFACE AREA
30mm Radiator thickness delivers extreme cooling performance with high-airflow or low-noise fans.
PREMIUM COPPER CONSTRUCTION
A premium copper radiator core and 25 micron-thick cooling fins provide a high thermal transfer rate optimized for performance copper water blocks.
HIGH-QUALITY POLYURETHANE COATING
A flawless finish to match your system.
EASY AND SAFE TO MOUNT
Screw protection plates prevent long or over-tightened screws from damaging the radiator core.
STANDARD G1/4” THREADS
All inlet/outlet ports provide universal fitting compatibility.
Specifications
Specifications
| Materials | Copper / Brass |
| Compatible Materials | Only mix with other copper / brass products |
| Screw Thread Size | M4 x P0.7 |
| Port Thread | G1/4" BSPP |
| Radiator Thickness | 30mm |
| Max Operating Temp | 60°C coolant temperature |
| Compatible Coolants | CORSAIR XL or equivalent |
| Color | Black |
| Number of Fans | 1 |
| Dimensions | 160 x 120 x 30mm |
| Model | Radiator |
| Weight | 0.5 kg |
| Included |
XR5 120 radiator 4 x M4x6mm screws 4 x M4x30mm screws 4 x M4x35mm screws |
