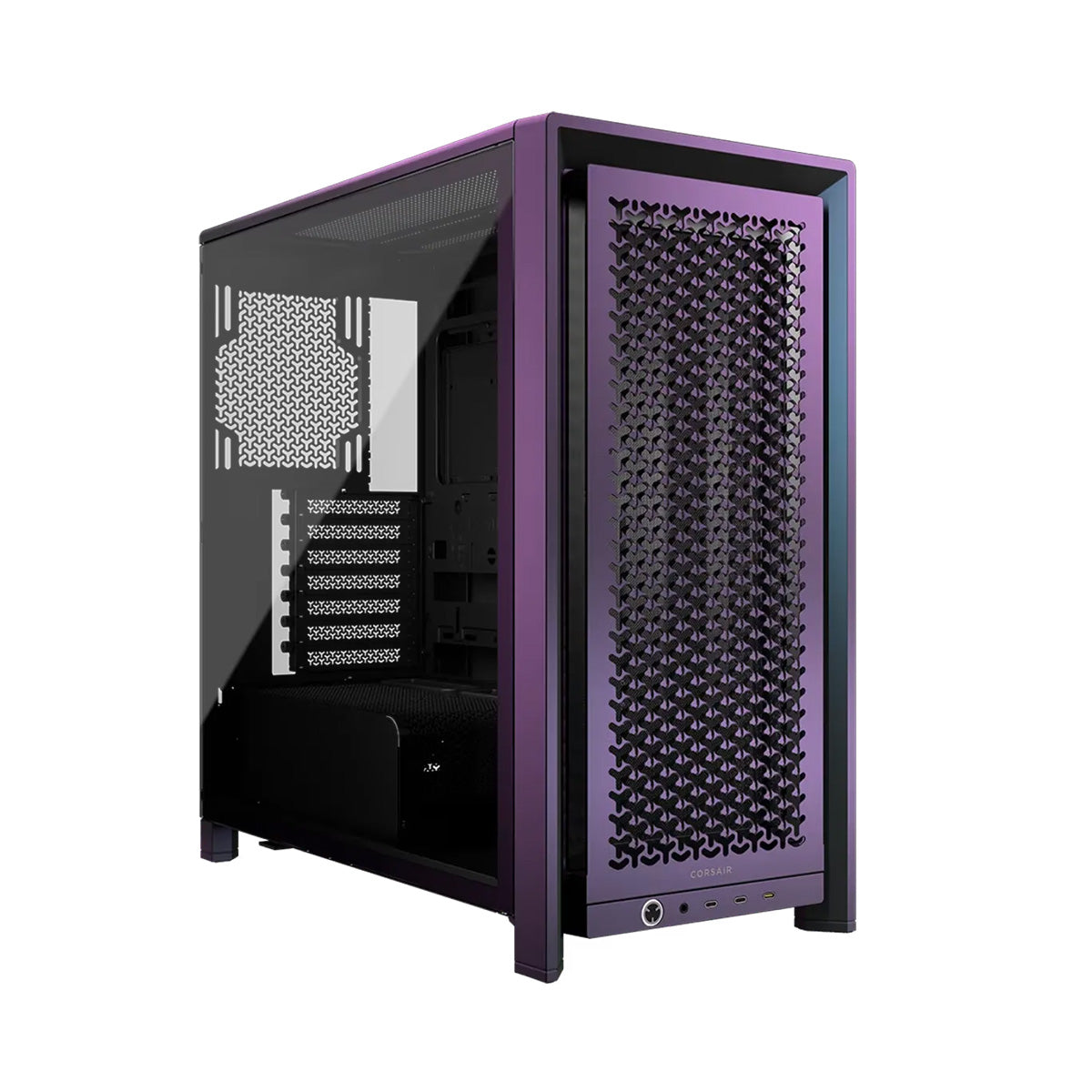

Corsair Frame 4000D Vault Series Limited Edition Modular Mid-Tower Case - Galaxy
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
FRAME 4000D
Modular Mid-Tower PC Case
CORSAIR InfiniRailâ„¢ Fan Mounting System
The steel multi-point mounting system provides exceptional flexibility for front and roof fan configurations. Easily slide the rail between 120mm and 140mm fan sizes and adjust fan locations to deliver targeted airflow without the limitations of fixed mounting points.
Wide Cooling Flexibility
Customize your cooling setup with support for up to 13x 120mm fans and versatile radiator mounting options, including up to two 360mm radiators.
Generous GPU Clearance
Install a graphics card up to 405mm in length, even with cooling fans installed in the front of the case.
FRAME 4000D Vault Series
The limited-edition Vault Series features aluminum badge etching, a full-tempered glass left side panel, and a compact PSU shroud.
Modern USB Connectivity
The front I/O provides 1x USB 3.2 Gen 2x2 Type-C port and 2x USB 3.2 Gen 1 Type-C ports for convenient device connectivity.
Bottom Fan Support
The case supports 1x 120mm fan at the bottom for additional airflow and cooling flexibility.
Included Fans
No fans are included, allowing you to choose and install a cooling configuration that matches your system requirements.
Specifications
Specifications
| Case Supported | Mini-ITX | MicroATX | ATX E-ATX (305mm x 277mm) |
| Case Height | 486mm |
| Case Length | 490mm |
| Case Width | 239mm |
| Material | Steel, Tempered Glass, Plastic |
| Color | Galaxy |
| Case Size | Mid-Tower |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Case Window | Tempered Glass |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Case Front IO | (1x) USB 3.2 Gen 2x2 Type-C (2x) USB 3.2 Gen 1 Type-C (1x) Audio in/out |
| Maximum GPU Length | 430mm |
| Weight | 12.54kg |
| Case Expansion Slots | 7 Horizontal or 3 Vertical |
| Case Power Supply | ATX |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Bottom | None |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support - Bottom | 3x 120mm |
| Fan Support - Side | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x USB 3.2 Gen 2x2 Type-E 1x USB 3.2 Gen 1 20-Pin 1x F_PANEL 1x HD Audio |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | No Fans Included |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| RapidRoute Included | No |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
