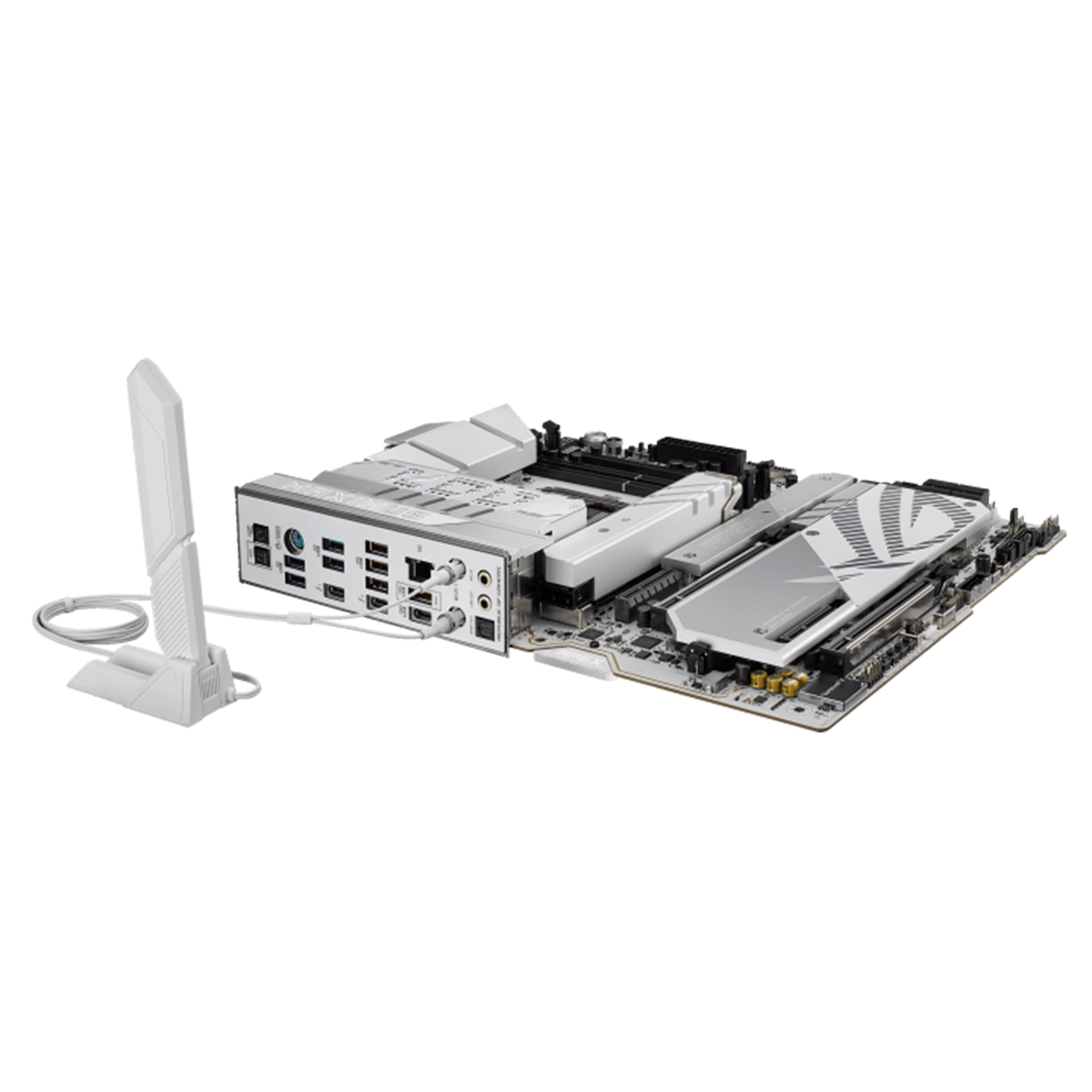

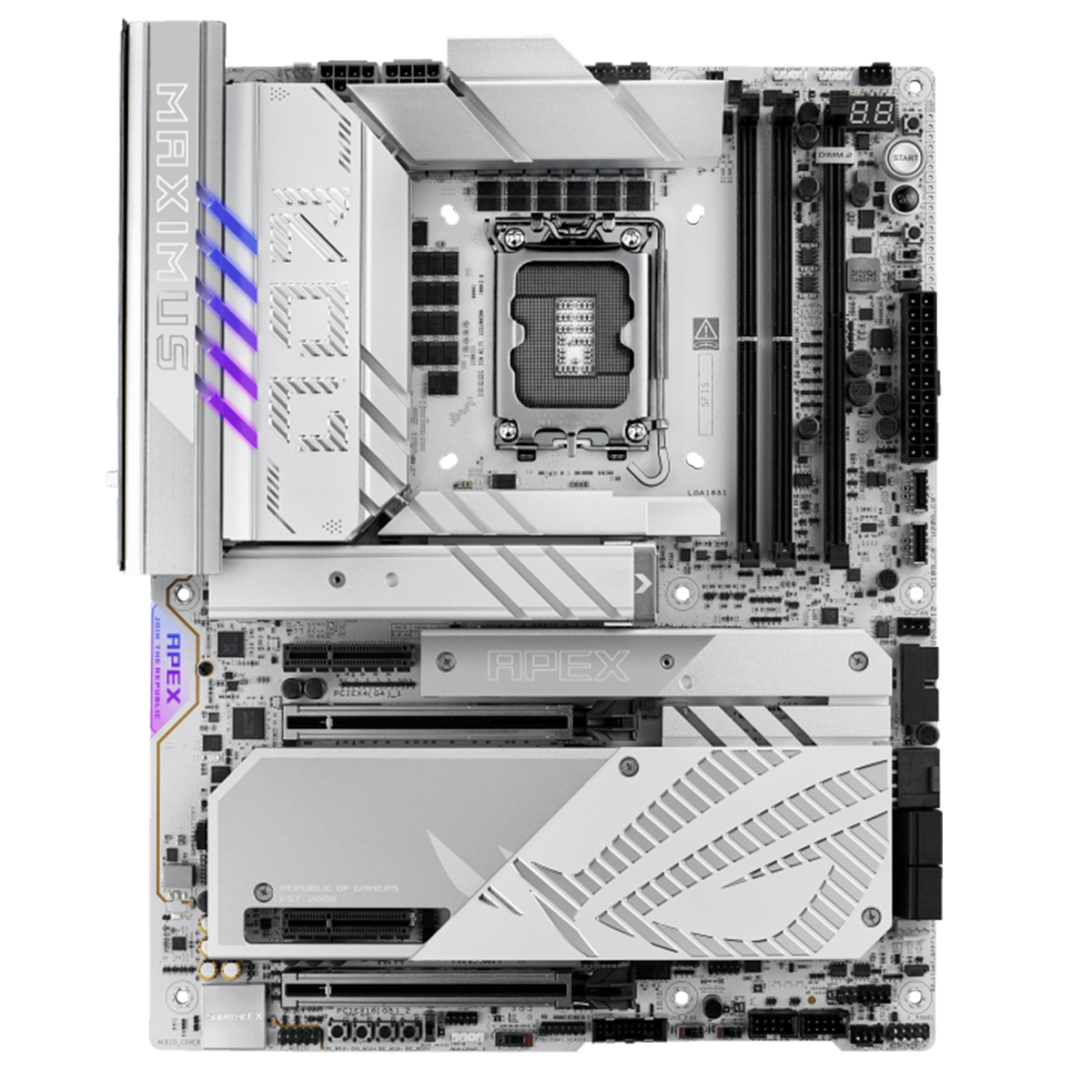

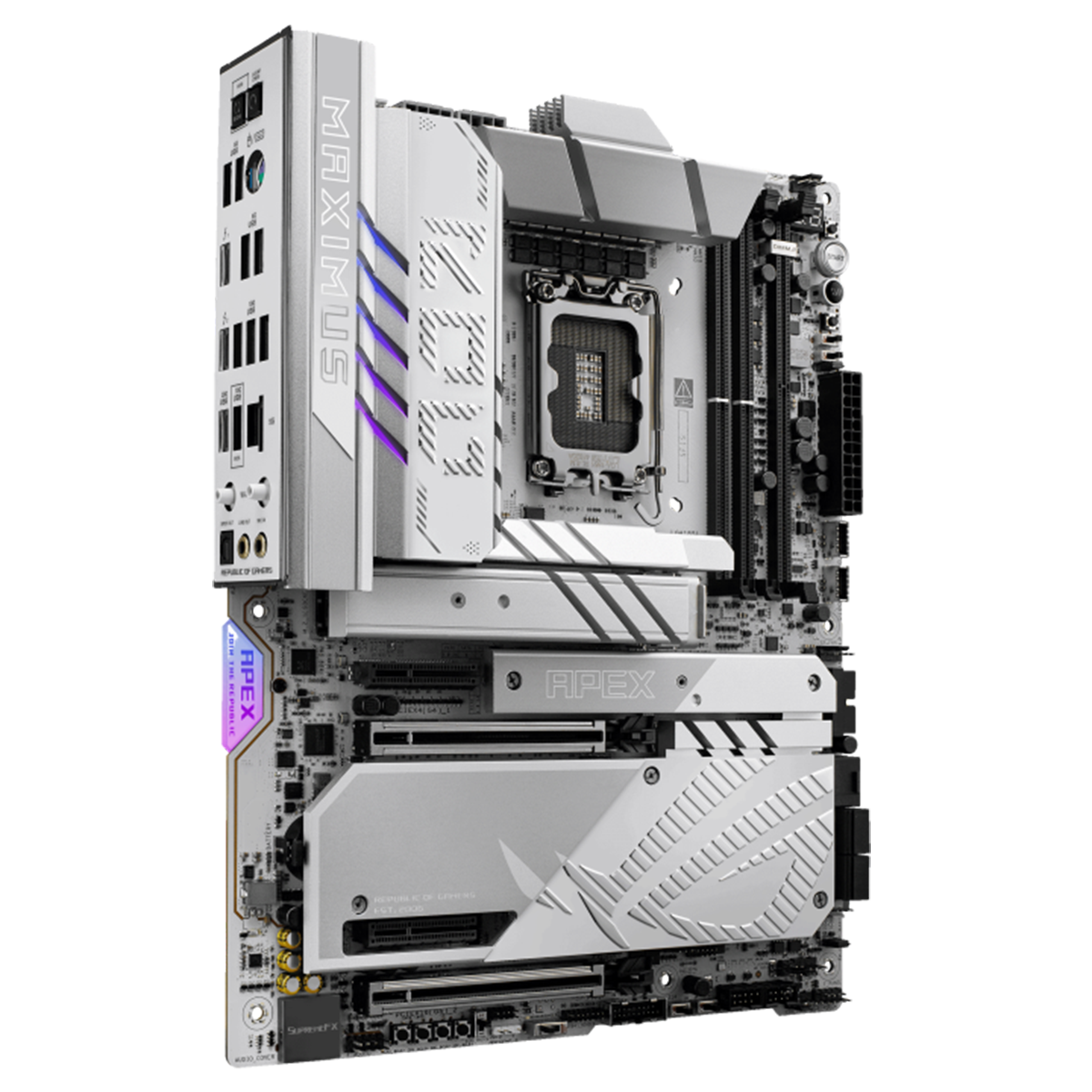

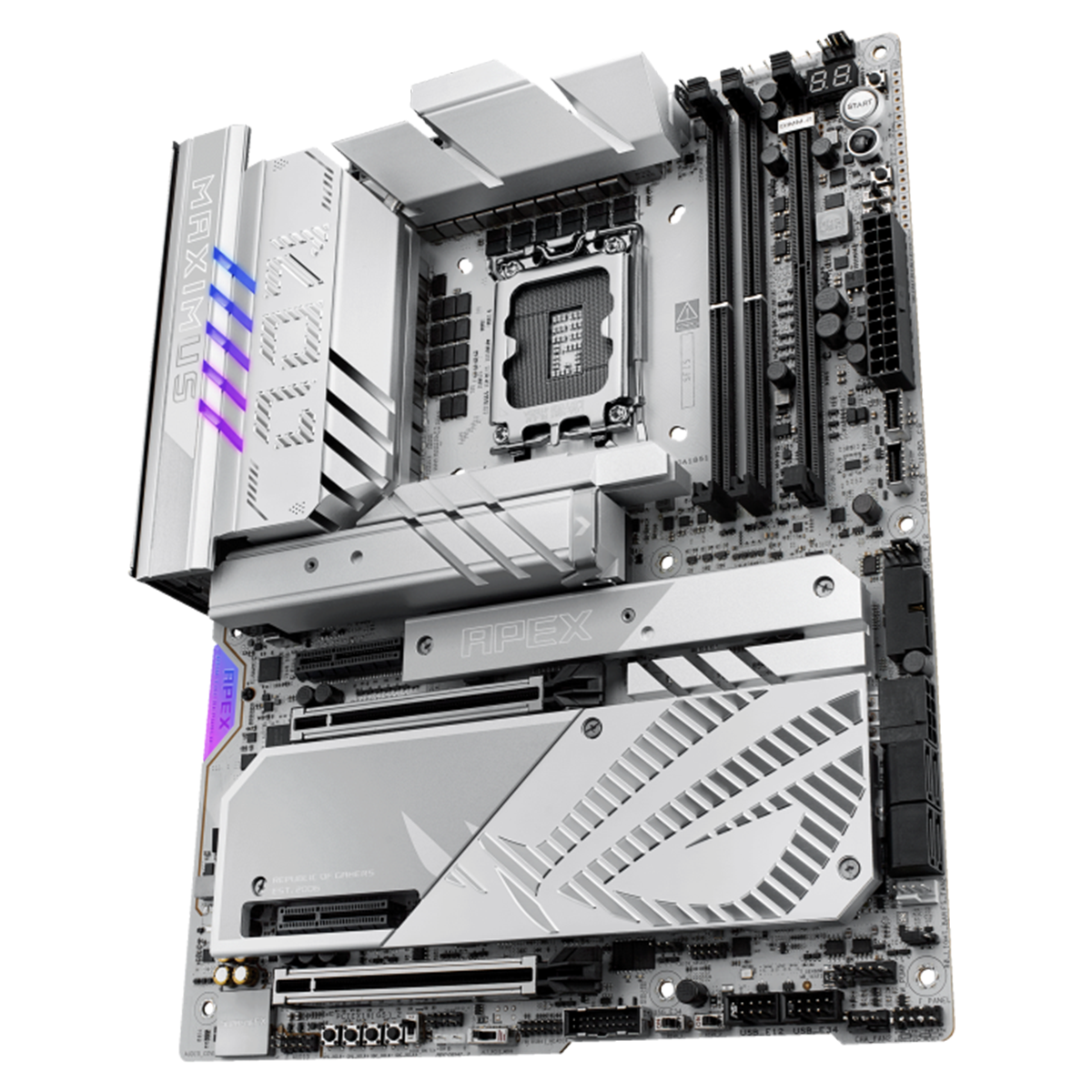

ASUS ROG MAXIMUS Z890 APEX Motherboard

The ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.

ASUS AI INTELLIGENCE

• AI Networking II: AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
• AI Cooling II: Balance the thermals and acoustics of any build with a single click.

Performance OVERCLOCKING

• NPU Boost: The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
• Differential Sensing: Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Extreme features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
• Overclocker’s Toolkit: The ROG Overclocker’s Toolkit is a powerful set of hardware-level controls to enhance your overclocking experience. Some are quick and easy time savers, while others offer masterful functionality to help you smash benchmarks and break records.
• Condensation Detection: Specialized circuitry allows ROG Maximus Z890 Apex to detect when condensation occurs on the back of the board. Divided into three distinct sections — CPU, DRAM, and PCIe — the feature provides a useful warning when an area may be at risk of short-circuiting.

DDR5 DOMINATION

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven as far as 9 GT/s on the Maximus Z890 Apex, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

The ROG Maximus Z890 Apex is also equipped with the ROG Memory Fan Kit – a cooling solution to solidify DDR5 stability and unleash memory overclocking. With the ROG Memory Fan Kit, your DDR5 modules can push the boundaries and reach overclocking speeds of 9000+ MT/s. Experience superior cooling performance and unlock the full potential of your memory with ease.

• DIMMFIT: DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
• AEMP III: ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
• DIMMFLEX: DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

ROG Ultimate Power Solution

• 22(110A)+1(90A)+2(90A)+2(80A) Power Stages
• 8 + 8-pin ProCool II power connectors: Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
• SMD capacitors: Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
• MicroFine alloy chokes: Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

Cooling

• VRM heatsink array: VRM heatsinks on the MOSFETs and chokes are connected by an embedded heatpipe to increase mass and surface area for dissipation.
• M.2 heatsinks and backplates: Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four onboard M.2 slots have dedicated backplates for additional heat dissipation.
• High-conductivity thermal pads: Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
• ROG DIMM.2 card heatsink: Two additional M.2 slots are kept cool with the DIMM.2 card's hefty heatsinks.
• Chipset heatsink: A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

FOUR ONBOARD M.2 SLOTS

The ROG Maximus Z890 Apex features four onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the other slot offers still-impressive 8 GB/s through the PCIe 4.0 interface.

• ROG M.2 POWERBOOST: ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting all four onboard M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads, while also helping to ensure the rated lifespan of an M.2 SSD.
• ROG DIMM.2 CARD: The ROG DIMM.2 card allows you to easily mount two M.2 drives next to the memory slots, where its large heatsinks benefit directly from chassis airflow for prime cooling performance.

PCIE 5.0 EXPANSION SLOTS

Both x16 expansion slots offer PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, they are also protected with SafeSlot retention brackets which can be released easily, thanks to PCIe Slot Q-Release Slim.

WIFI 7

The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

5Gb ETHERNET

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gbps Ethernet.

TWO THUNDERBOLT 4 TYPE-C® PORTS

Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. The Thunderbolt Display function supports up to 8K with DSC. Please see specifications for more details.

ONE USB 20Gbps & ONE USB 10Gbps TYPE-C FRONT PANEL CONNECTORS

The USB 20Gbps front-panel connector features Quick Charge 4+ technology that can rapidly charge devices up to 60W.

Dolby Atmos

Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.

SupremeFX

ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Maximus Z890 Apex's SupremeFX implementation features the ALC4080 codec with up to 32-bit/384 kHz playback. The front-panel output is streamed through a highly integrated Savitech amplifier that is capable of driving a wide variety of gaming headsets and high-fidelity headphones.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Glow your gaming world with aura sync

Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
