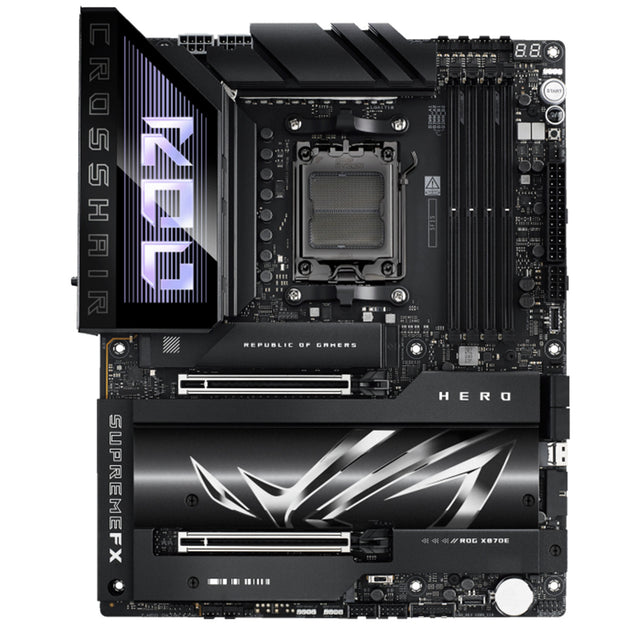

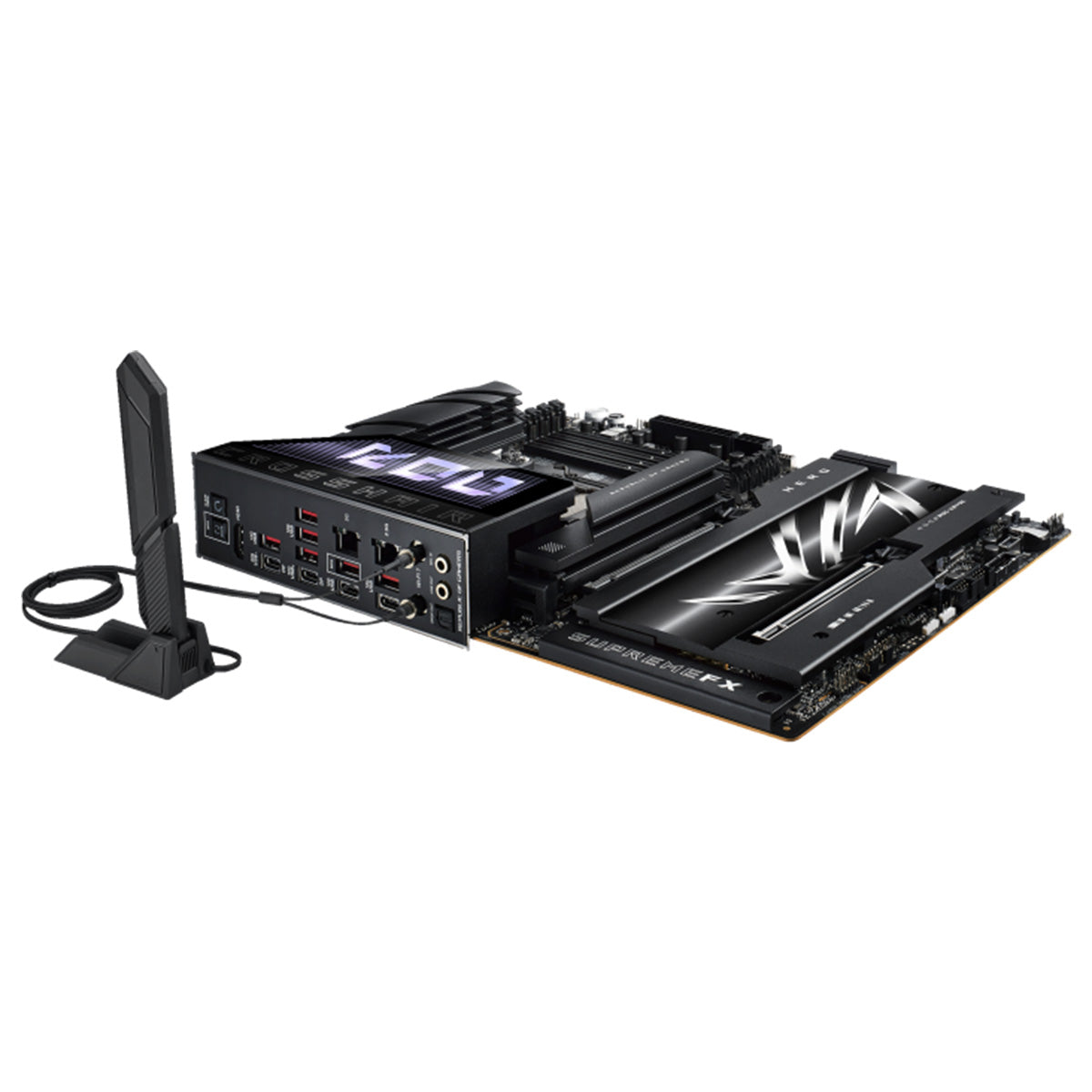

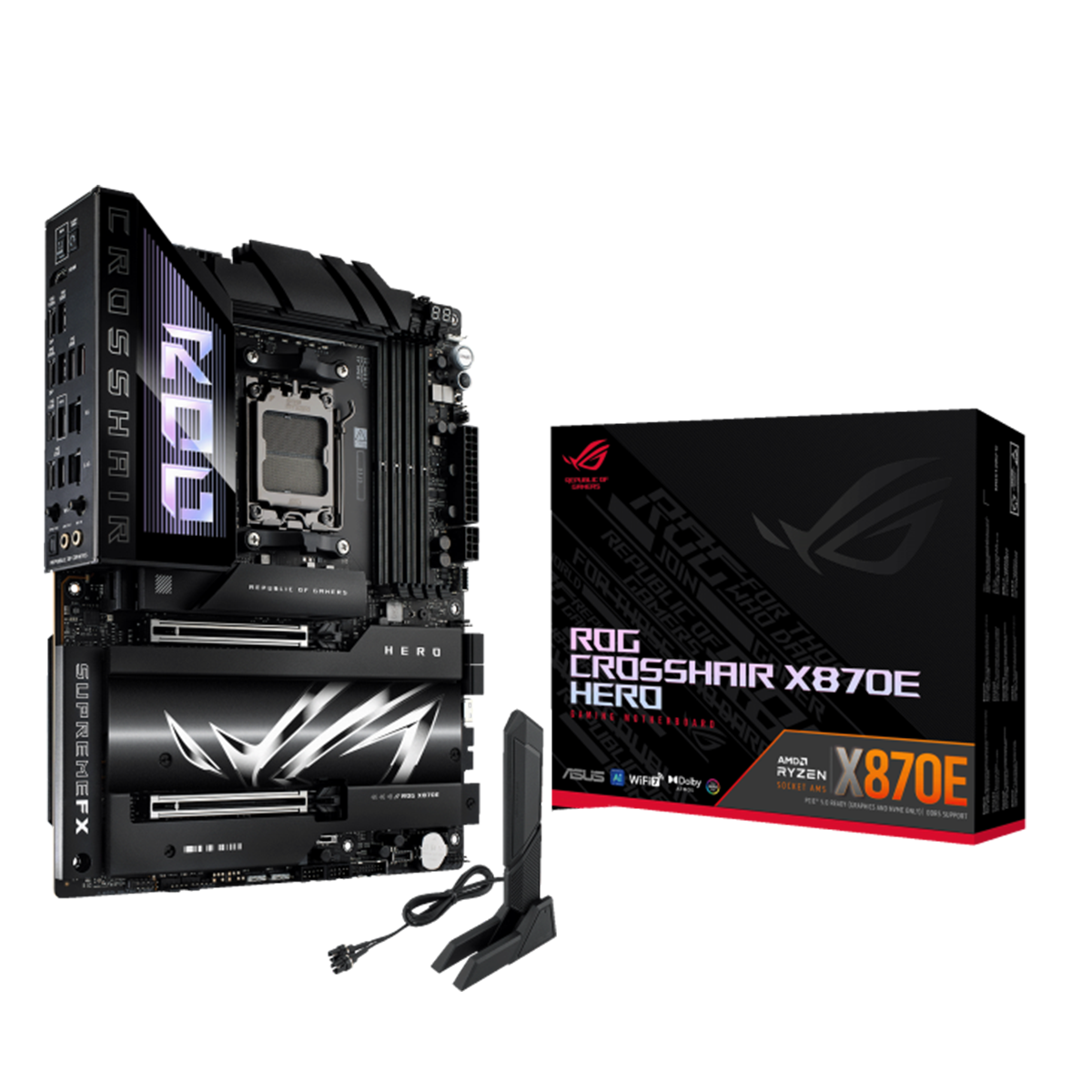

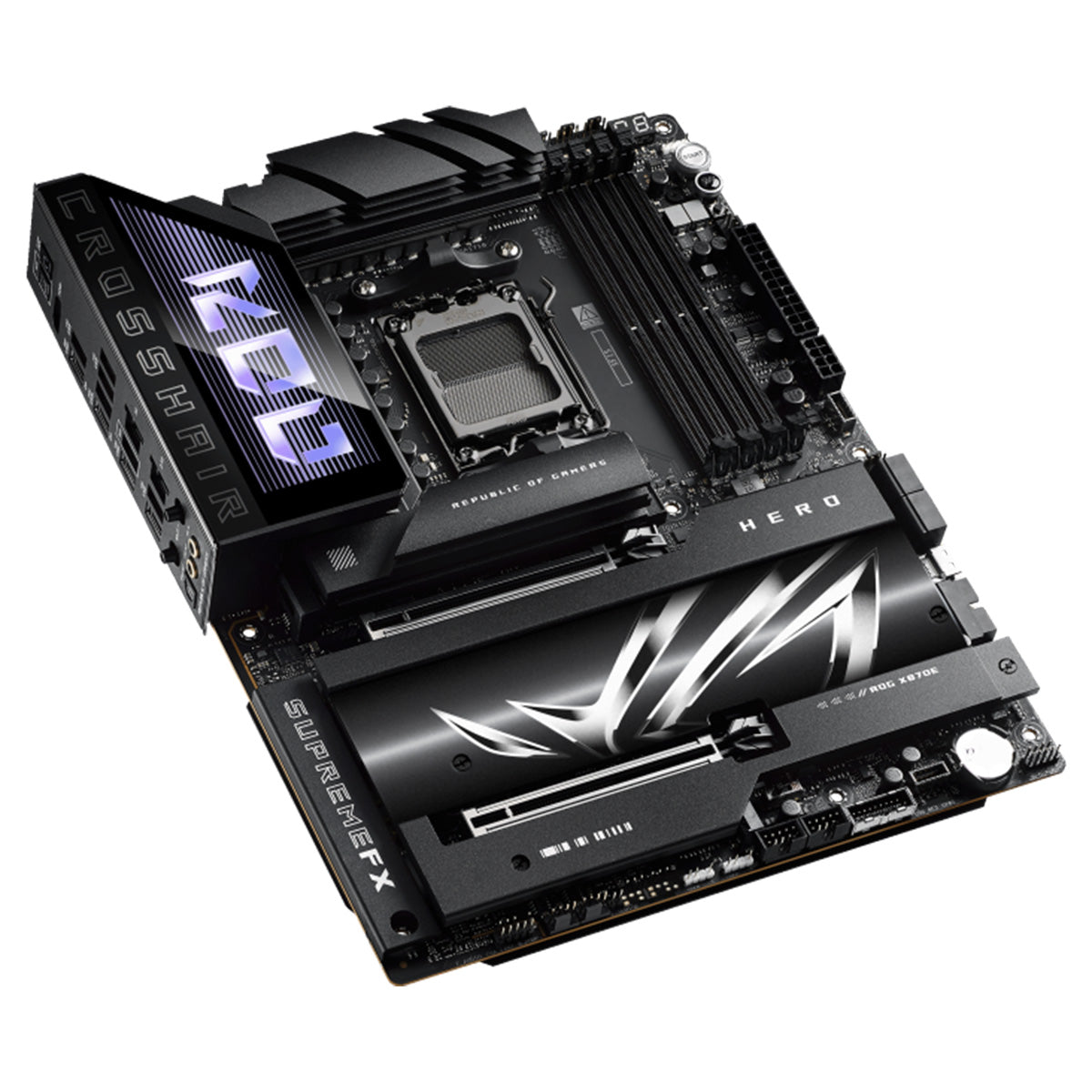

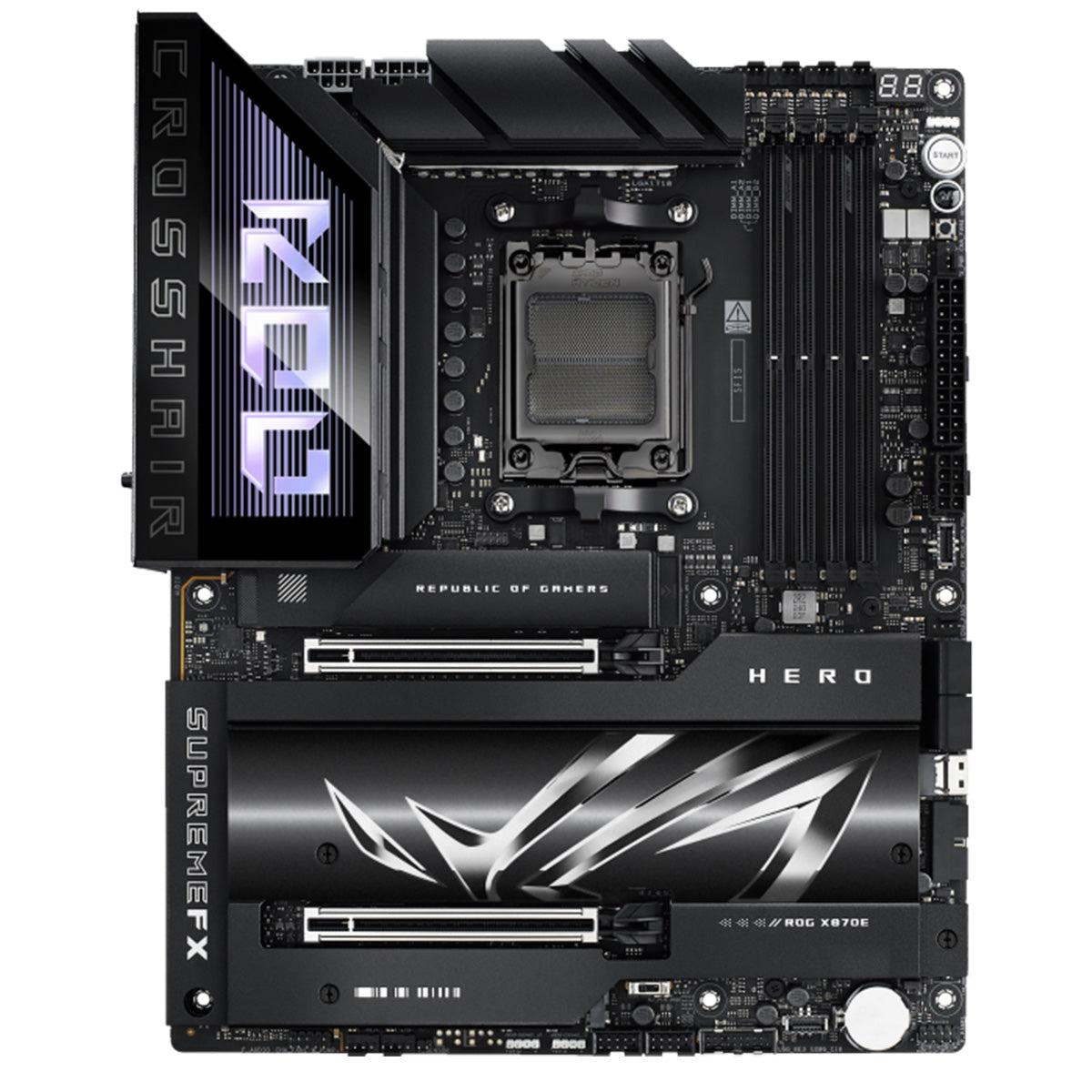

ASUS ROG CROSSHAIR X870E HERO Motherboard
ASUS
| SKU
66640
$1,499.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
ROG Crosshair X870E Hero
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, and comprehensive PCIe 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours, and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
POWER SOLUTION
ROG ULTIMATE POWER SOLUTION
18(110A)+2(110A)+2 Power Stages
Performance
OVERCLOCKING
DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.
Core Flex diagram
ASYNCHRONOUS CLOCK
For next-level frequency flexibility, the ROG Crosshair X870E Hero features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.
MEMORY
DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 8 GT/s mark on the ROG Crosshair X870E Hero*.
*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
The ROG Crosshair X870 Hero lets you overclock memory up to 8600+ MT/s.
NITROPATH DRAM TECHNOLOGY
Frequency up to 400 MT/s higher
Slot retention force enhanced by 57%
The ROG Crosshair X870 Hero supports NitroPath DRAM Technology.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
THERMAL MANAGEMENT
An extensive array of headers line the ROG Crosshair X870E Hero for precise cooling control and monitoring.
Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
4-pin fan headers
In addition to the pair of CPU fan headers, the ROG Crosshair X870E Hero features four chassis headers, and each supports auto-detection of PWM or DC fans.
AIO pump header
An additional PWM/DC fan header offers dedicated control of self-contained water-cooling setups.
COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics, and customizable functionality for new X870E / X870 motherboards, empowering you to build your dream gaming rig.
CONNECTIVITY
FIVE ONBOARD M.2 SLOTS
The ROG Crosshair X870E Hero features five onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces. It also features a SlimSAS connector, which supports PCIe 4.0 x4 mode via a transfer cable. The cable is purchased separately.
EXPANSION SLOTS
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the PCIe Slot Q-Release Slim.
WIFI 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
Learn more about Multi-link Operation (MLO) and WiFi 7 technology.
*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.
**Specifications vary by model.
2.5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.
ASUS WIFI Q-ANTENNA
Dual transceivers support the 2.4, 5, and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Wireless Signal Reception Improvement
Versus previous-generation antenna:
Up to +6% @ 6GHz
Up to +18% @ 5/2.4 GHz
TWO USB4® TYPE-C® PORTS
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
TWO USB 20Gbps TYPE-C FRONT-PANEL CONNECTORS
One of which features Quick Charge 4+ technology that can rapidly charge devices up to 60W*.
*Requires a PCIe power supply cable to be plugged into the nearby 8-pin connector.
SUPREMEFX
ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS® ES9219 Quad DAC capable of reaching -114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.
DOLBY ATMOS
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, and comprehensive PCIe 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours, and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
POWER SOLUTION
ROG ULTIMATE POWER SOLUTION
18(110A)+2(110A)+2 Power Stages
Performance
OVERCLOCKING
DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.
Core Flex diagram
ASYNCHRONOUS CLOCK
For next-level frequency flexibility, the ROG Crosshair X870E Hero features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.
MEMORY
DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 8 GT/s mark on the ROG Crosshair X870E Hero*.
*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
The ROG Crosshair X870 Hero lets you overclock memory up to 8600+ MT/s.
NITROPATH DRAM TECHNOLOGY
Frequency up to 400 MT/s higher
Slot retention force enhanced by 57%
The ROG Crosshair X870 Hero supports NitroPath DRAM Technology.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
THERMAL MANAGEMENT
An extensive array of headers line the ROG Crosshair X870E Hero for precise cooling control and monitoring.
Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
4-pin fan headers
In addition to the pair of CPU fan headers, the ROG Crosshair X870E Hero features four chassis headers, and each supports auto-detection of PWM or DC fans.
AIO pump header
An additional PWM/DC fan header offers dedicated control of self-contained water-cooling setups.
COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics, and customizable functionality for new X870E / X870 motherboards, empowering you to build your dream gaming rig.
CONNECTIVITY
FIVE ONBOARD M.2 SLOTS
The ROG Crosshair X870E Hero features five onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces. It also features a SlimSAS connector, which supports PCIe 4.0 x4 mode via a transfer cable. The cable is purchased separately.
EXPANSION SLOTS
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the PCIe Slot Q-Release Slim.
WIFI 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
Learn more about Multi-link Operation (MLO) and WiFi 7 technology.
*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.
**Specifications vary by model.
2.5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.
ASUS WIFI Q-ANTENNA
Dual transceivers support the 2.4, 5, and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Wireless Signal Reception Improvement
Versus previous-generation antenna:
Up to +6% @ 6GHz
Up to +18% @ 5/2.4 GHz
TWO USB4® TYPE-C® PORTS
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
TWO USB 20Gbps TYPE-C FRONT-PANEL CONNECTORS
One of which features Quick Charge 4+ technology that can rapidly charge devices up to 60W*.
*Requires a PCIe power supply cable to be plugged into the nearby 8-pin connector.
SUPREMEFX
ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS® ES9219 Quad DAC capable of reaching -114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.
DOLBY ATMOS
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.
Specifications
Specifications
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to ASUS Support for CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 192GB, DDR5. Supports up to: • 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, • 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors. ECC and Non-ECC, Un-buffered Memory*. Dual channel memory architecture. Supports AMD Extended Profiles for Overclocking (EXPO™). NitroPath DRAM Technology. ASUS Enhanced Memory Profile (AEMP). *Supported memory types vary depending on CPU and memory configuration. |
| Graphics | 1 x HDMI™ port*. 2 x USB4® (40Gbps) ports support USB Type-C® display outputs**. *Supports 4K@60Hz as specified in HDMI 2.1. **Supports max. 4K@60Hz as specified in DisplayPort 1.4a. |
| Expansion Slots | **AMD Ryzen™ 9000 & 7000 Series Desktop Processors***: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) ** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. ***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4. **AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors***: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) **AMD Ryzen™ 8500 & 8300 Series Desktop Processors***: 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled) |
| Storage | Supports 5 x M.2 slots, 1 x SlimSAS connector, and 4 x SATA 6Gb/s ports*. **AMD Ryzen™ 9000 & 7000 Series Desktop Processors**: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). **AMD Ryzen™ 8000 Series Desktop Processors**: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (Not supported). M.2_3 slot (Key M), type 2242/2260/2280 (Not supported). **AMD X870E Chipset**: M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode). SlimSAS slot supports PCIe 4.0 x4 mode. 4 x SATA 6Gb/s ports. *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet. 1 x Realtek 5Gb Ethernet. ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7*. 2x2 Wi-Fi 7 (802.11be). Supports 2.4/5/6GHz frequency band**. Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth® v5.4***. *Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 requires 24H2 or later version for full functions. For Windows 10, please note that no driver is available. |
| USB | **Rear USB (Total 10 ports)**: 2 x USB4® (40Gbps) ports (2 x USB Type-C®). 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®). **Front USB (Total 10 ports)**: 1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)*. 1 x USB 20Gbps connector (supports USB Type-C®). 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. USB Type-C® power delivery output: max. 5V/3A. *To support 60W, please install the power cable to the 8-pin PCIe power connector. |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*. - Impedance sense for front and rear headphone outputs. - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking. - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input. - Supports up to 32-Bit/384 kHz playback on front panel. Audio Features: - SupremeFX Shielding Technology. - ESS® ES9219 QUAD DAC. - Gold-plated audio jacks. - Rear optical S/PDIF out port. - Premium audio capacitors. *A chassis with an HD audio module is required to support 7.1 Surround Sound audio output. |

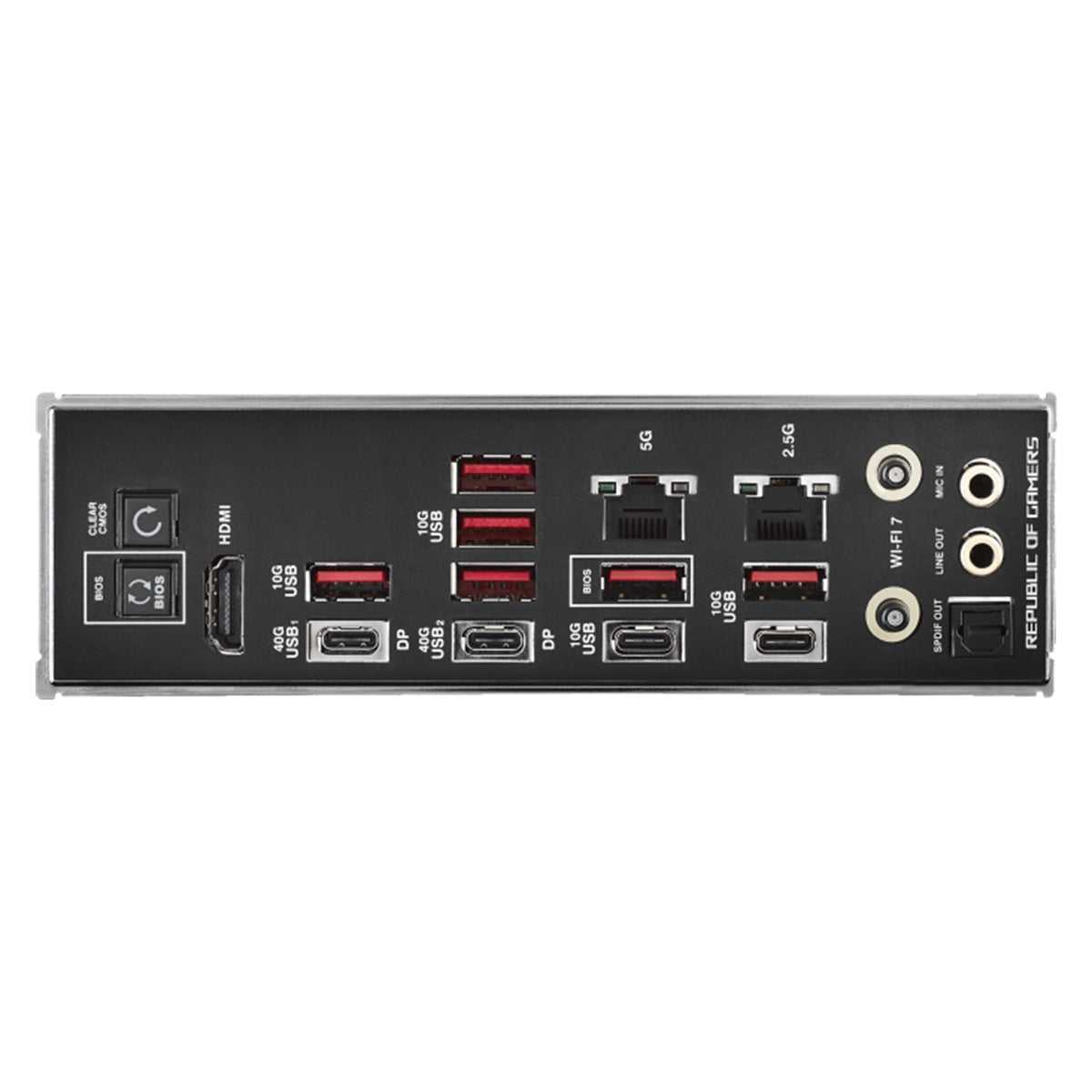

| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®). 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®). 1 x HDMI™ port. 1 x Wi-Fi module. 1 x Intel® 2.5Gb Ethernet port. 1 x Realtek 5Gb Ethernet port. 2 x Gold-plated audio jacks. 1 x Optical S/PDIF out port. 1 x BIOS FlashBack™ button. 1 x Clear CMOS button. |
| Internal I/O Connectors | **Fan and Cooling Related**: 1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 4 x 4-pin Chassis Fan headers. 1 x W_PUMP+ header. **Power Related**: 1 x 24-pin Main Power connector. 2 x 8-pin CPU Power connectors. **Storage Related**: 1 x SlimSAS connector. 5 x M.2 slots. 4 x SATA 6Gb/s ports. **USB Related**: 2 x USB 20Gbps headers. 2 x USB 5Gbps headers. 2 x USB 2.0 headers. **Others**: 1 x BIOS FlashBack™ button. 1 x Clear CMOS button. 1 x 2-pin speaker header. 1 x 4-pin RGB header (3-pin +5V addressable RGB header). |
| LED Indicators | 1 x Dr. MOS Power LED. 1 x Boot LED. 1 x Power LED. |
| Form Factor | ATX |
