ASUS PRO WS WRX90E-SAGE SE Workstation Motherboard

ASUS  |  SKU 58025  |  MPN PRO WS WRX90E-SAGE SE
$2,999.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

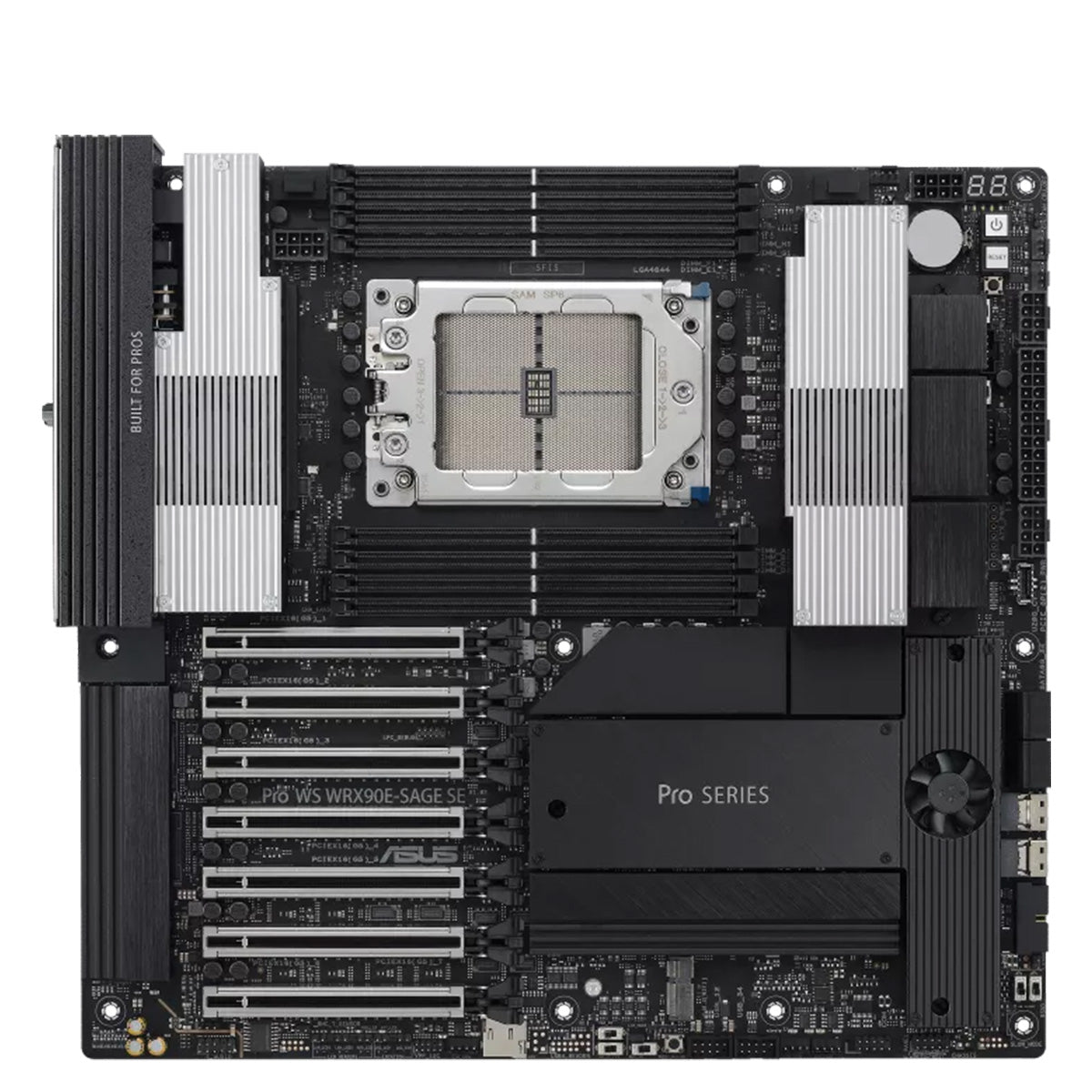

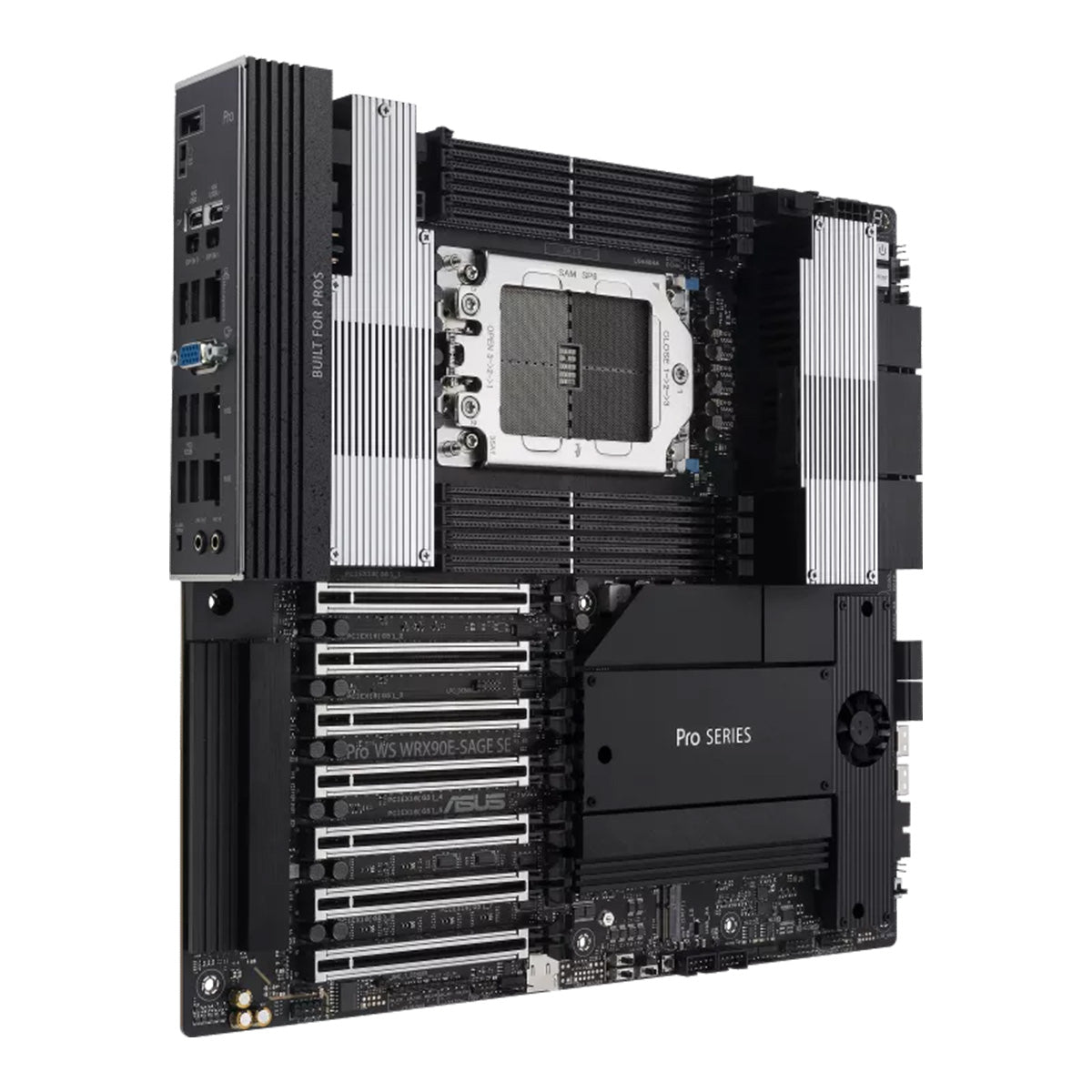

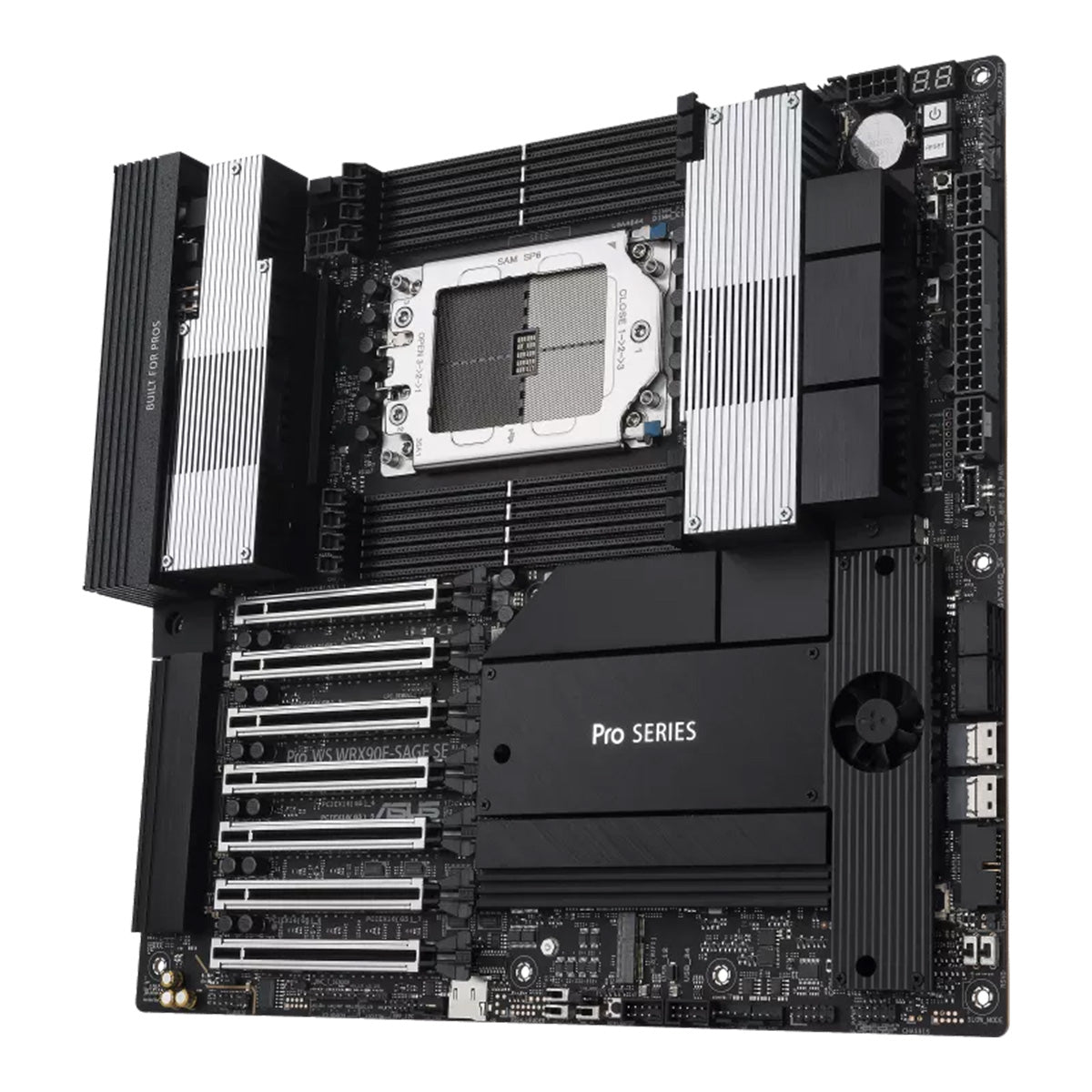

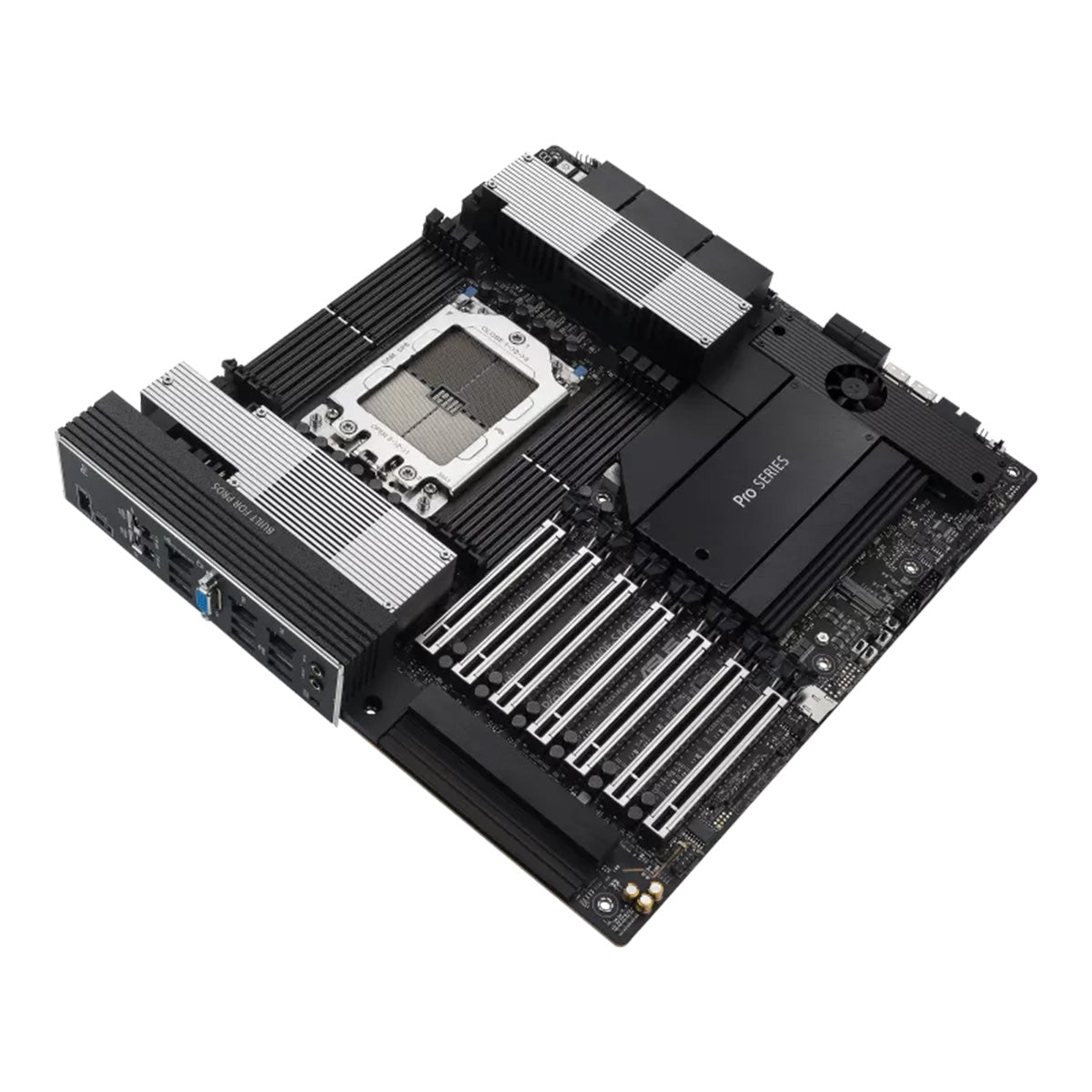

Pro WS WRX90E-SAGE SE

  • AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
  • Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
  • CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
  • Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
  • PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
  • Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
  • Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Specifications

ModelPro WS WRX90E-SAGE SE
CPUAMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*
*Refer to www.asus.com for CPU support list.
ChipsetAMD WRX90 Chipset
Memory8 x DIMM slots, DDR5, ECC Registered Memory*
8 Channel Memory Architecture
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, refer to the CPU/Memory Support list at https://www.asus.com/support/.
Expansion SlotsAMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
*Please check the PCIe bifurcation table on the support site at https://www.asus.com/support/FAQ/1037507/.
**To ensure compatibility of the installed device, please refer to the list of supported peripherals at https://www.asus.com/support/.
StorageTotal supports 4 x M.2 slots, 2 x SlimSAS ports, and 4 x SATA 6Gb/s ports*
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode).
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode).
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode).
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode).
AMD WRX90 Chipset:
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe devices.
4 x SATA 6Gb/s ports.
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel® dual 10Gb Ethernet
ASUS LANGuard
USBRear USB (Total 9 ports):
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®).
6 x USB 10Gbps ports (6 x Type-A).
1 x USB 2.0 port (2 x Type-A).
Front USB (Total 7 ports):
1 x USB 20Gbps connector (supports USB Type-C®).
1 x USB 5Gbps header supports 2 additional USB 5G ports.
2 x USB 2.0 headers support additional 4 USB 2.0 ports.
AudioRealtek ALC1220P Surround Sound High Definition Audio CODEC*:
- Impedance sense for front and rear headphone outputs.
- Internal audio amplifier to enhance the highest quality sound for headphones and speakers.
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking.
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in).
- Supports up to 32-Bit/192 kHz playback.
Audio Features:
- Premium audio capacitors.
- Dedicated audio PCB layers.
- Unique de-pop circuit.
*A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
*This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

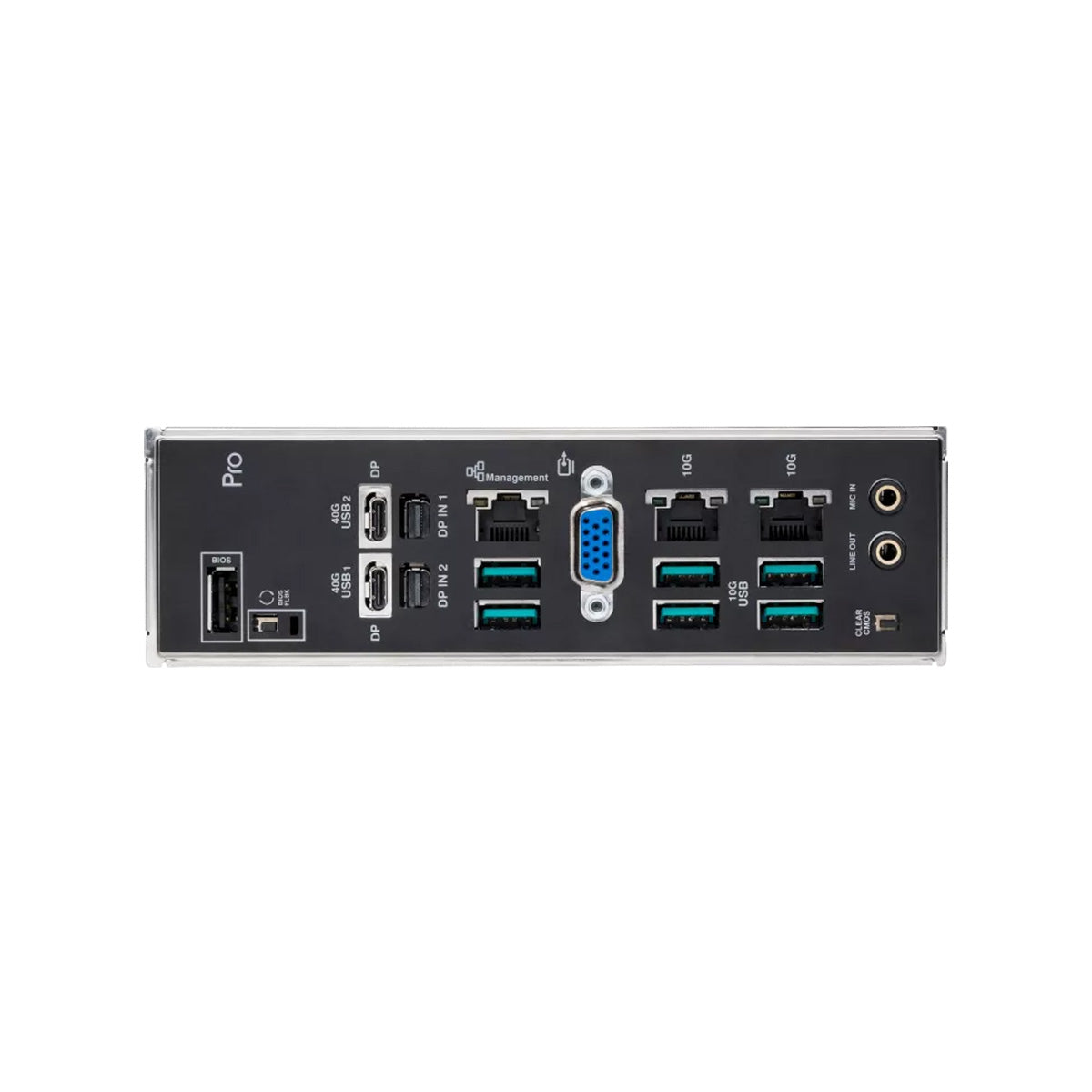

Back Panel I/O Ports2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®).
6 x USB 10Gbps ports (6 x Type-A).
1 x USB 2.0 port (2 x Type-A).
1 x VGA port.
2 x mini DisplayPort IN.
1 x Intel® dual 10Gb Ethernet ports.
1 x Realtek 1Gb Ethernet port.
2 x Audio jacks.
1 x BIOS FlashBack™ button.
1 x Clear CMOS button.
Internal I/O ConnectorsFan and Cooling related:
1 x 4-pin CPU Fan header.
1 x 4-pin CPU OPT Fan header.
1 x W_PUMP+ header.
5 x 4-pin Chassis Fan headers.
2 x 4-pin VRM Fan headers (with VRM FAN onboard).
1 x 4-pin M.2 Fan header (with M.2 FAN onboard).
Power related:
1 x 24-pin Main Power connector.
2 x 8-pin +12V Power connectors.
2 x 8-pin PCIe to CPU power connectors.
2 x 8-pin PCIe Power connectors.
Storage related:
4 x M.2 slots (Key M).
4 x SATA 6Gb/s ports.
2 x SlimSAS ports.
USB:
1 x USB 20Gbps connector supports USB Type-C®.
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports.
2 x USB 2.0 headers support additional 4 USB 2.0 ports.
Miscellaneous1 x Chassis intrusion header.
1 x COM port header.
1 x FlexKey button.
1 x Front panel audio header (F_AUDIO).
1 x LN2 mode jumper.
1 x M.2 slot (Key E).
7 x ProbeIt measurement points.
1 x ReTry button.
1 x RSVD switch.
1 x Slow mode switch.
1 x Safe boot button.
1 x SPI TPM header (14-1 pin).
1 x Start button.
1 x 10-1 pin system panel header.
1 x Thermal sensor header.
Special FeaturesASUS 5X PROTECTION III:
- DIGI+ VRM (Digital power design with SPS).
- ESD Guards.
- LANGuard.
- Overvoltage protection.
- SafeSlot.
- Stainless-steel back I/O.
ASUS Q-Design:
- M.2 Q-Latch.
- Q-Release Slim (with PCIe SafeSlot).
- Q-Code.
- Q-Connector.
- Q-DIMM.
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]).
- Q-Slot.
ASUS Thermal Solution:
- M.2 heatsink backplate and onboard thermal pads.
- M.2 heatsink.
- Steel backplate.
- VRM heatsink design with active fans.
ASUS EZ DIY:
- BIOS FlashBack™ button.
- BIOS FlashBack™ LED.
- Clear CMOS button.
- ProCool II.
- Pre-mounted I/O shield.
- SafeSlot.
- SafeDIMM.
Bespoke Motherboard Design & Business Focused Features:
- 24/7 Reliability.
- Overcurrent Protection.
Software FeaturesASUS Exclusive Software:
- Armoury Crate.
- Fan Xpert 4.
- ASUS CPU-Z.
IT Management software supported:
- ASUS Control Center Express (ACCE).
- Adobe Creative Cloud (Free Trial).
- Norton 360 for Deluxe (60 Days Free Trial).
- WinRAR (40 Days Free Trial).
UEFI BIOS:
- ASUS CrashFree BIOS 3.
- ASUSTeK EzFlash Utility.
- FlexKey.
BIOS256 Mb Flash ROM, UEFI AMI BIOS (text-based)
ManageabilityWOL by PME, PXE (UEFI mode)
AccessoriesCables:
- 2 x PCIe 8-pin to CPU power cables.
- 1 x 24-pin power cable (Y cable).
- 2 x Mini DisplayPort cables.
- 4 x SATA 6Gb/s cables.
- 1 x Thermistor cable pack.
Miscellaneous:
- 1 x Q-connector.
- 1 x M.2 Q-Latch package.
- 1 x AMI license sticker.
- 4 x M.2 rubber packages.
- 1 x Screw package for M.2 Key E.
Documentation:
- 1 x ACC Express Activation Key Card.
- 1 x Quick start guide.
Operating SystemWindows® 11, Windows® 10 64-bit
Form FactorEEB Form Factor, 12 inch x 13 inch (30.5 cm x 33 cm)
